Streamline Every Step Of Your Harvest With Mobius

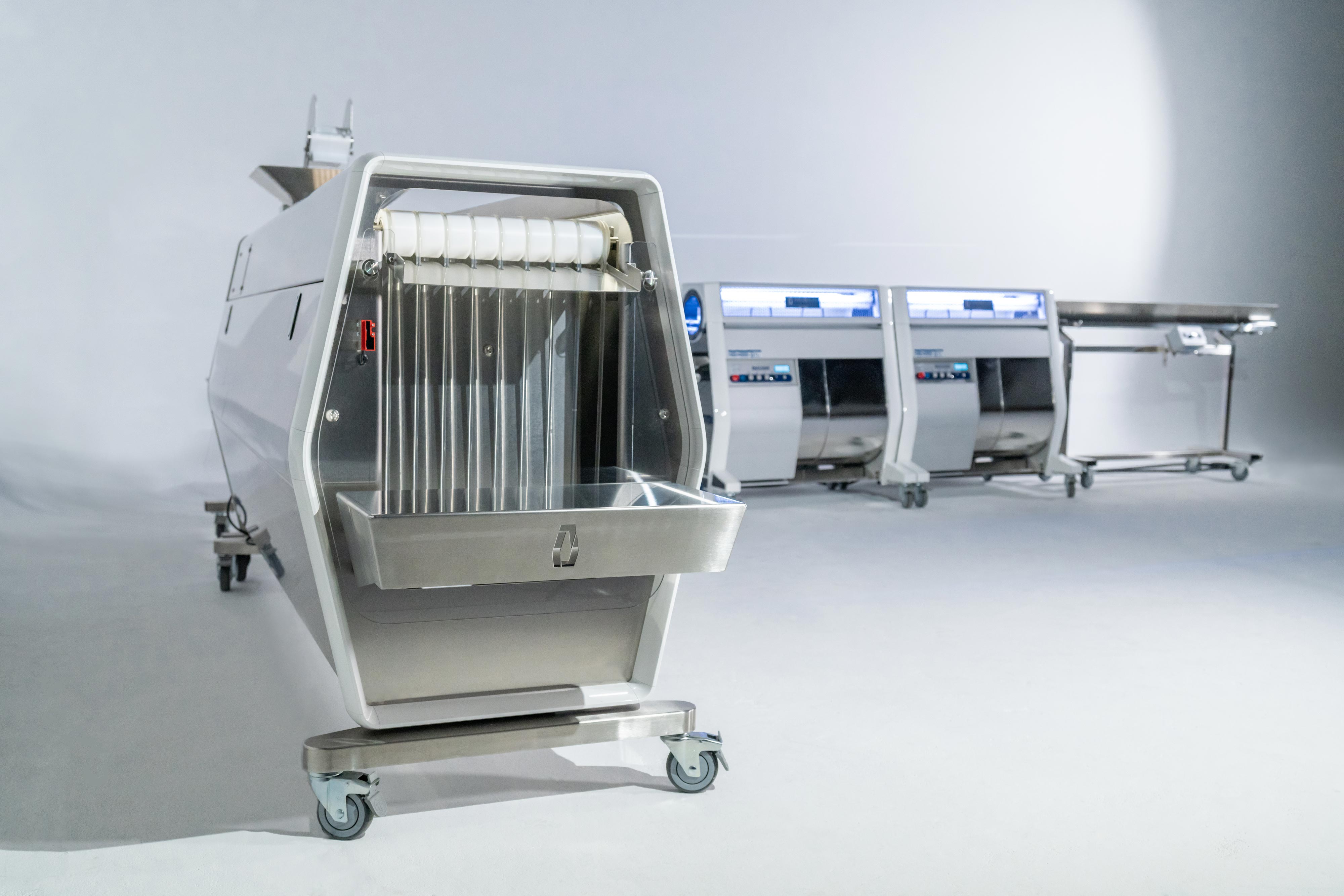

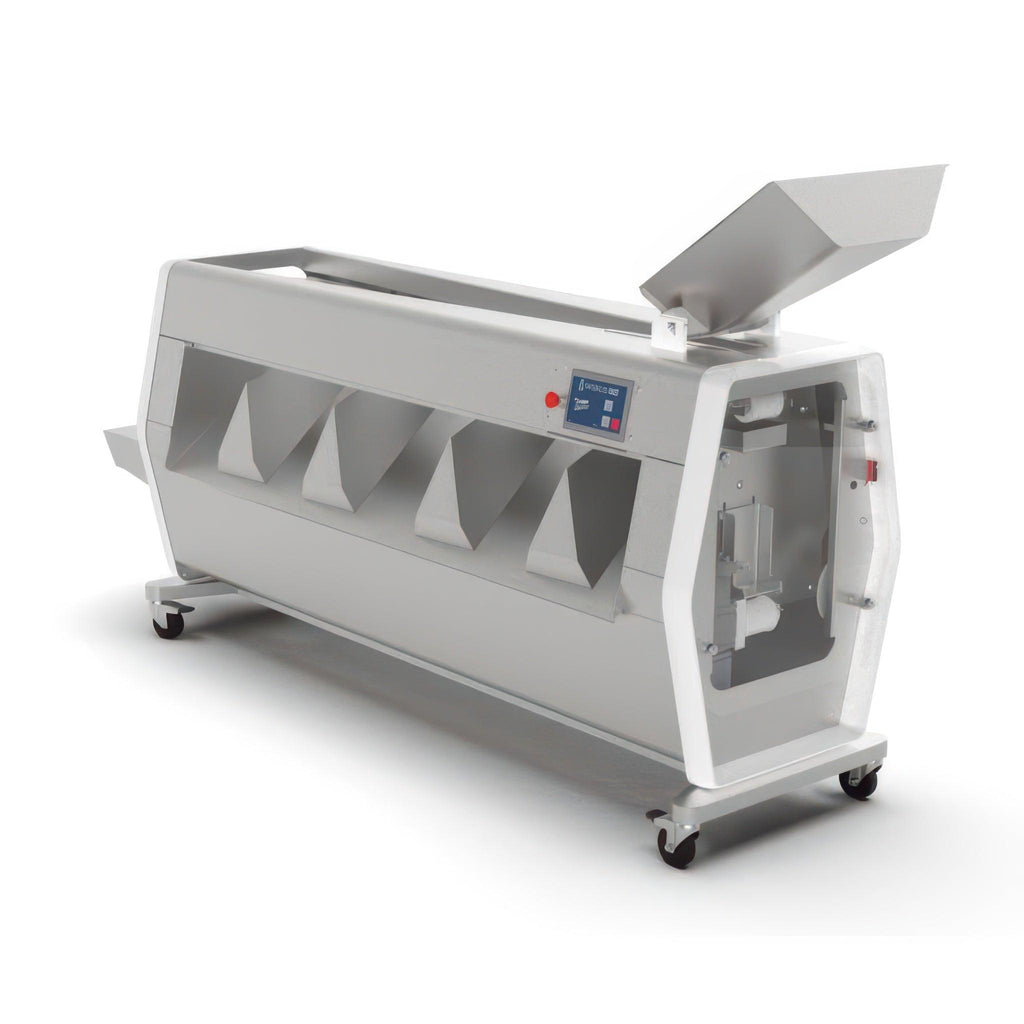

The Mobius M9 is a continuous, through-put sorter that grades flowers by size to streamline post-harvest processes such as drying, weighing, and final packaging. With an industry-leading 78” of total sorting distance and 9 sorting belts, the M9 is the fastest and most precise sorter on the market. Stainless steel construction, operator safety guarding, tool-less disassembly, and simple cleaning make it easy to integrate the M9 into post-harvest workflows at GMP-certified facilities.
What comes in the box?
- Mobius M9 Sorter
- Infeed Hopper
- Outfeed Shelf
Sorter Throughput: 440 lbs./hr.
Features & Benefits

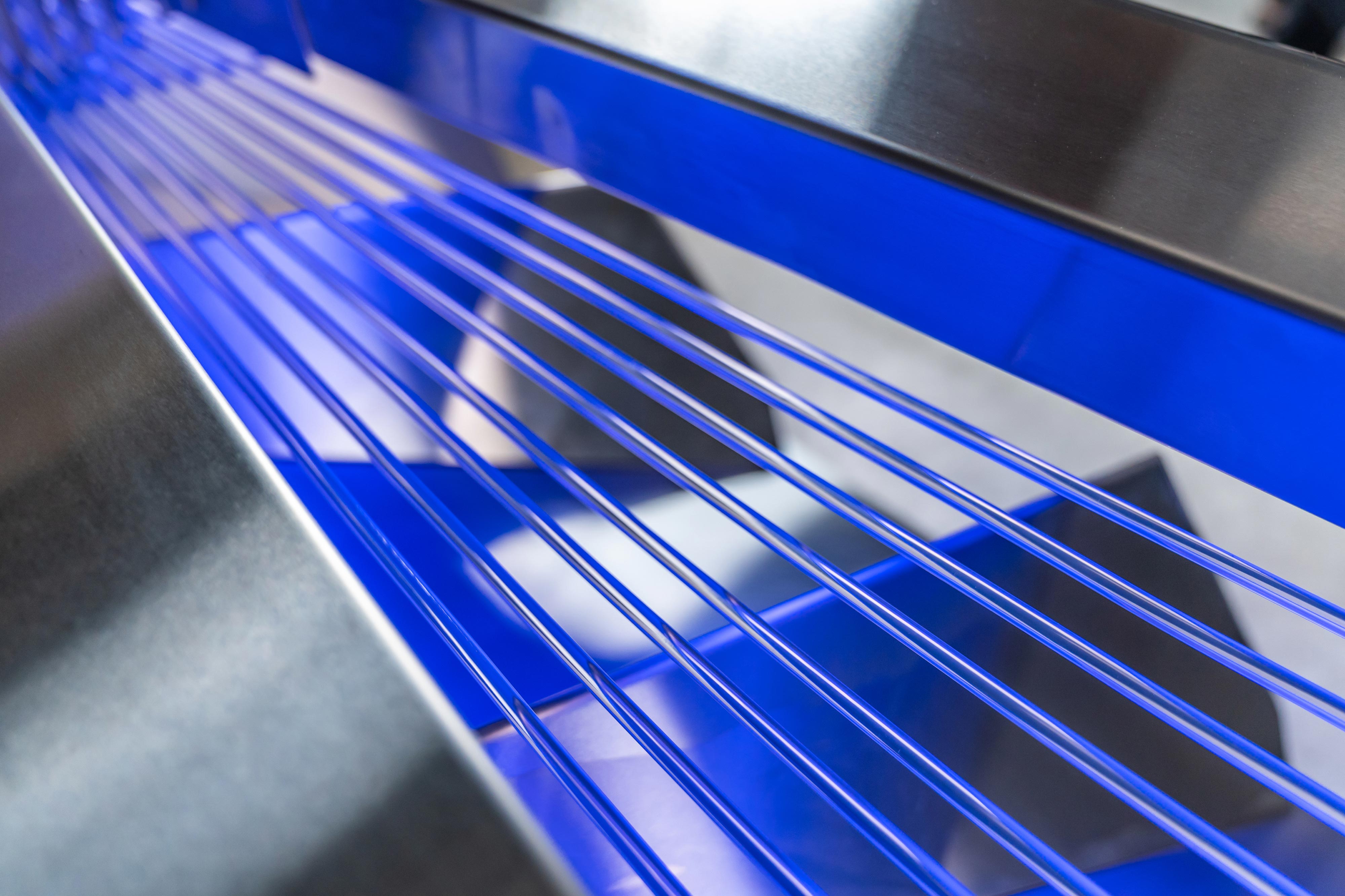

- 78” sorting zone for precise flower sizing
- 9 sorting belts for industry-leading grading speed
- 5 customizable sorting sizes: from fines – 2.75″ flowers
- Fast, tool-free removal of all belts and rollers for easy cleaning

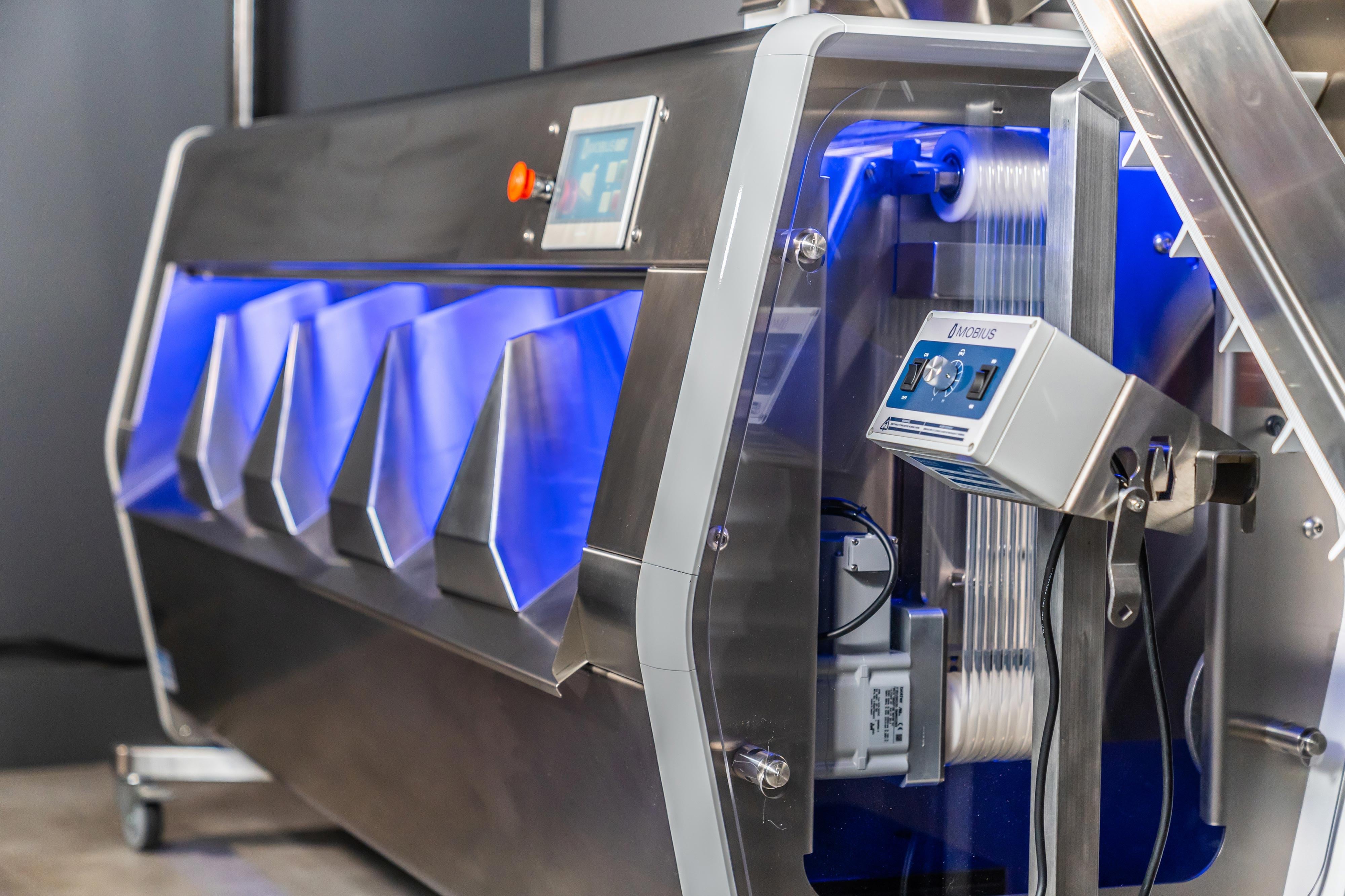

- 7” HMI color controller
- GMP-ready with stainless steel construction

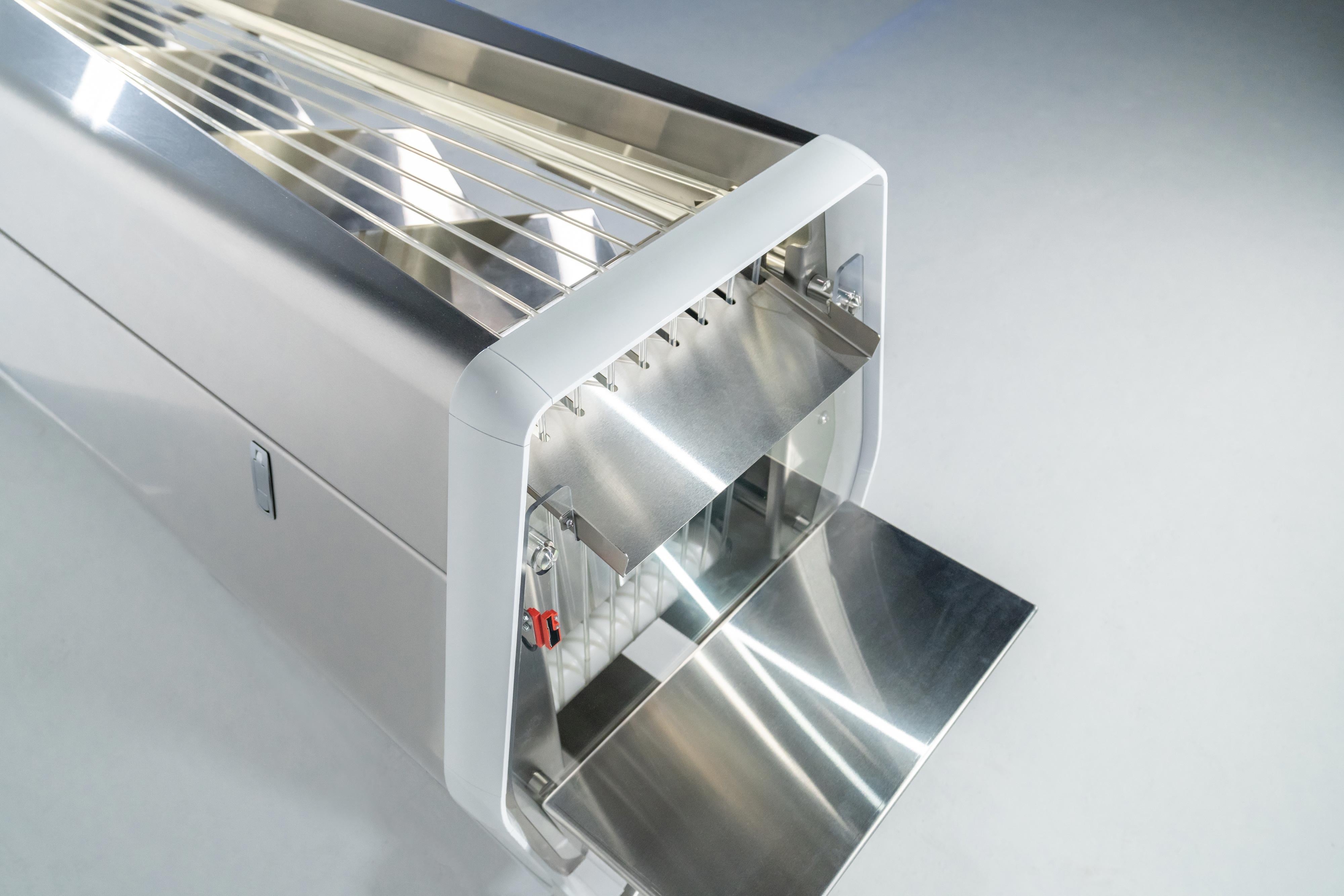

- Configurable infeed hopper for manual or conveyor feeding
- Reversible operation for left or right outfeed configurations
- Safety interlocks automatically stop operation if guarding is removed
- LED indicator lights denote machine status
Gentle & Precise
90x Faster Than Hand Sorting
Reduce labor costs and potency losses with the M9 Sorter. Grade up to 440lbs per hour with our gentle rotating belt design which eliminates manual handling and reduces trichome losses. With 9 sorting belts, the M9 is capable of sorting up to 1.5 x faster than the nearest competitor and over 90 x faster than manual sorting. When paired with the optional Autofeed Conveyor, the M9 eliminates all labor requirements and works seamlessly as part of the M108S Trimmer Tandem line.
100% Automated
Customizeable For Any Configuration

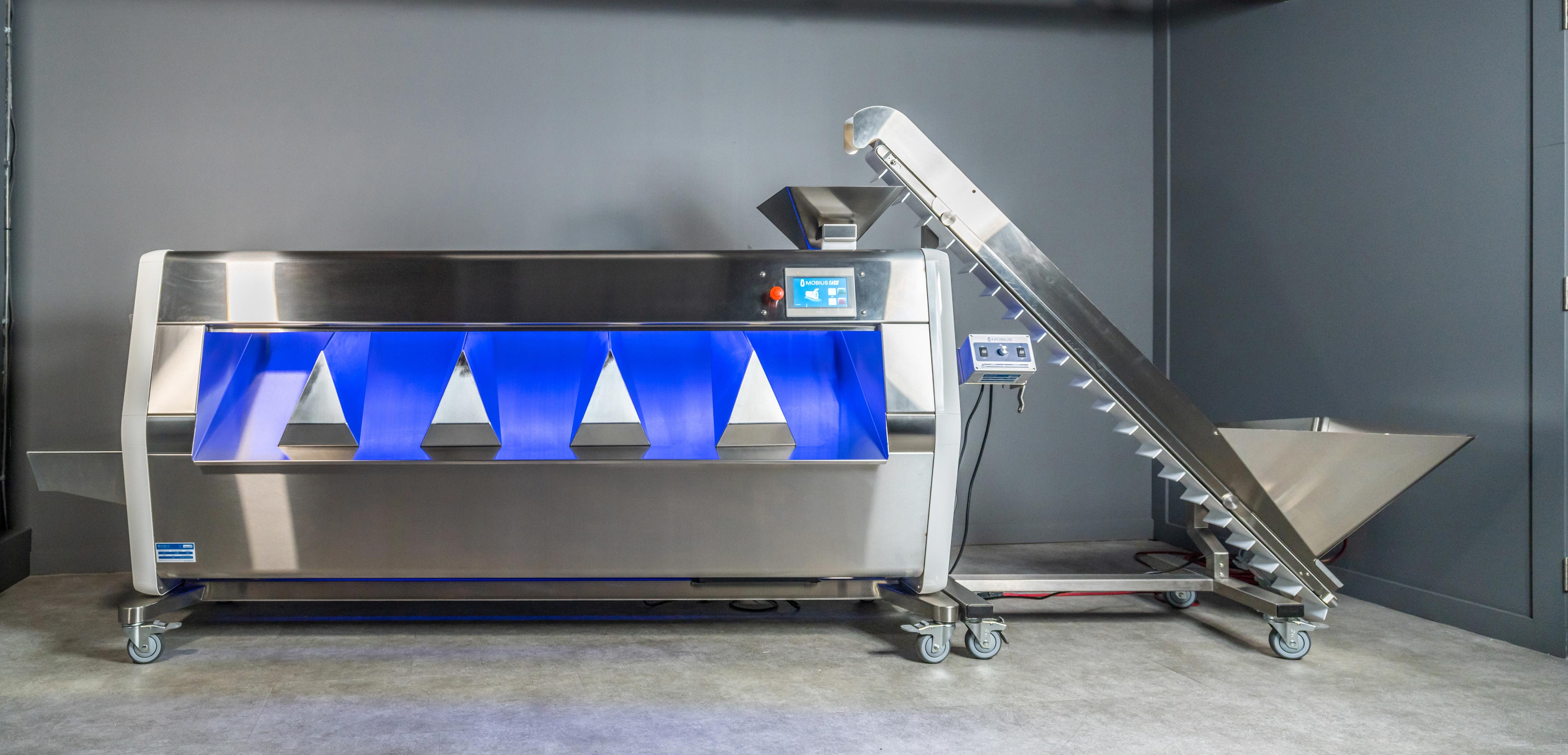

Combined with the optional Autofeed Conveyor, the M9 integrates seamlessly into the Mobius harvesting system, creating a fully automated process from bucking to sorting. To accommodate different workflows, the outfeed direction can be configured to both right or left orientations. Finally, the sorting partitions can be adjusted or removed in seconds, resulting in unlimited sorting-size options.
Safety-First Design
Meets CSA Guarding Standards
The M9 uses safety interlocks to provide the highest level of operator safety. The system automatically shuts down if a maintenance panel is removed, and the sorting tray immediately glows red to indicate a fault status. Once the fault is corrected the operator must restart the machine using the HMI controls, which complies with leading CSA, EU, and UL safety standards. Under normal operating conditions, the sorting tray is illuminated blue, which indicates it is ready to sort, or white when in operation.
Tool-Free Cleaning
GMP Ready

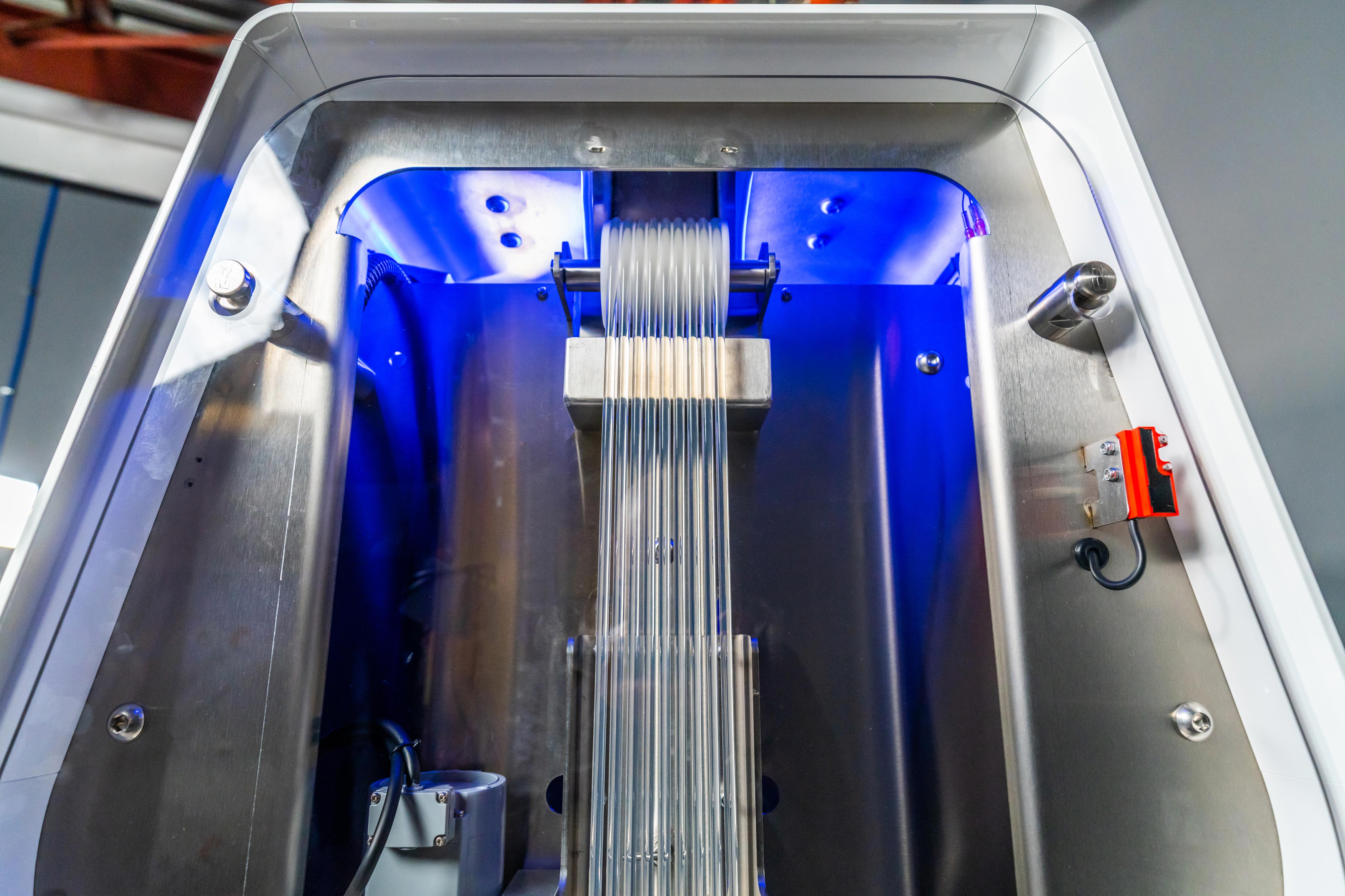

Cleaning is quick and easy with the M9 Sorter. The tool-free design eliminates lost bolts, and speeds cleaning. All maintenance panels, belts, and rollers can be easily be removed. In total, the machine can be disassembled for a comprehensive cleaning in less than 5 minutes.
Good Manufacturing Practices, commonly referred to as GMP, are an internationally harmonized set of standards that ensure manufacturing facilities are clean, and manufacture products for human consumption that are both consistent and free from cross-contamination. The M9 is a perfect fit for GMP-certified organizations because its smooth internal surfaces and high-quality construction materials make it easy to clean. In addition, the speed and ease of cleaning will allow your facility to operate more efficiently even while maintaining the most stringent GMP standard operating procedures (SOPs).
Specification for the Mobius M9 Sorter
| Wet/Dry Capable | Yes |
|---|---|
| Construction | Aanodized Aluminum & 304 Stainless Steel |
| Speed Adjustment | 1-11 |
| Number of belts | 9 |
| Belt Diameter | 5/16" |
| Adjustable Partitions | Yes |
| Belt Drive Motor | 1/10 HP |
| HMI Control | Yes |
| Tool-Less Disassembly | Yes |
| Power Requirements | 110 Volt / 1.5 Amps |
|---|---|
| Fits through a 32" door | Yes |
| Width | 30" |
| Length | 88" |
| Height | 46.5" |
| Weight | 450 lbs |
| Warranty | 1 Year |
| Certifications | CSA, CE, AND UL CERTIFIED ELECTRONICS |
| Brand | Mobius |
|---|---|
| SKU | MOBIUS-M9-USA |
| Weight (lb.) | 926.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Lead Time | This product ships in 4-6 weeks |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Sorter Throughput | 440 lbs./hr. |
Mobius M9 Harvest Sorting Machine Questions & Answers
Q: What makes the M9 Sorter different?
A: An industry-leading 78” of total sorting distance and 9 sorting bands makes the M9 Sorter the fastest and most precise sorter on the market. It also features a tool-free, GMP-ready design, and a full-color HMI control panel which differentiates it from others in the market
Q: What is the throughput?
A: It is estimated to be 440lbs/hr of dry material. We recommend one M9 Sorter in combination with the M108S Trimmer Tandem line.
Q: Is it GMP ready?
A: Yes. Full stainless construction and surface preparation make this machine a fit for facilities producing GMP-certified products.
The application of GMP to the harvesting and production of cannabis means the end-user can be sure that what they buy is safe to consume and that it is consistent each time they buy it. For information about what it is and how it might be important to your workflow, check out our Ultimate Guide to a GMP-Certified Cannabis Trimming Workflow.
Q: Can it sort wet and dry?
A: The M9 is fully adjustable and can be used for sorting both wet and dry flowers up to 2.75″.
Q: Is it easy to clean?
A: Quick, tool-free disassembly and all stainless construction make the M9 Sorter very easy to clean either by hand or with a pressure washer.
Q: Is it safety compliant?
A: Operator guarding and safety interlocks to make it compliant with CSA, EU, and UL safety standards.
Q: What power does the M9 Sorter require?
A: The M9 Sorter runs on a standard 110V circuit drawing 1.5 Amps.
Q: Where is it made?
A: Mobius equipment is made in the US and Canada.
