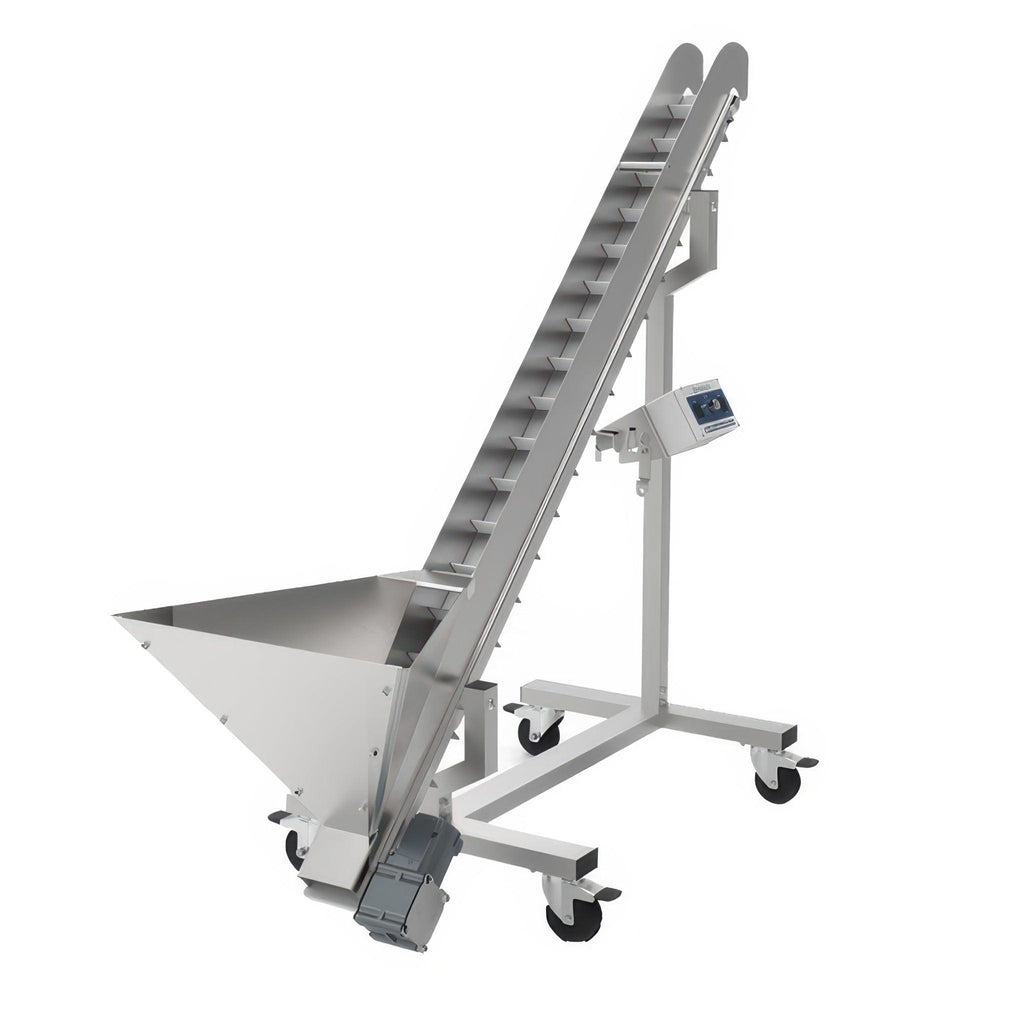

Mobius M9 Autofeed Conveyor Spec SheetThe M9 Autofeed Conveyor
Full automation is easily achieved by adding the M9 Autofeed Conveyor with its custom low-profile Autofeed Hopper, which swaps into place in seconds, tool-free. The Autofeed Conveyor can be fed directly from the M108S Trimmer, or from the Mobius Outfeed Conveyor if you operation includes hand touch-up on the Outfeed belt.
Key Features
- Full stainless steel construction
- Engineered specifically for commercial processing
- Washdown-rated components
- Simple belt tensioning and removal
- Easily mates to the Mobius M108S Trimmer or Mobius Outfeed Conveyor
- Adjustable height to fit any trimming setup
- Variable speed and direction controls
- Hand-built in North America
Specifications for the M9 Autofeed
| Wet/Dry Capable | Yes |
|---|---|
| Construction | 304 Stainless Steel and Delrin |
| Belt Material | Matte White Polyurethane |
| Speed Adjustments | 1-11 |
| Belt Length/Width | 77" / 5" |
| Motor | 1/10 HP |
| Power Requirements | 120 V, 1.5 A |
|---|---|
| Tools | Mobius tensioning wrench included |
| Fits through 32” door? | Yes |
| Length | 66.5" |
| Height | 65.25" |
| Width | 26.25" |
| Brand | Mobius |
|---|---|
| SKU | 14-00-004400U |
| Weight (lb.) | 205.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 year |
| Lead Time | This product ships in 2-3 Business Days |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
