Mars Hydro FC Series User ManualCommercial cultivator’s preferred grow lighting solution for single or multi-tier racking system
APP-Controlled smart FC 6500, a member of the Mars Hydro smart grow system, is one of the first revealed smart LED grow lights that support mobile control and growth plan programming. Densely mounted with high-quality Samsung LM301H EVO chips, and designed with a full spectrum light that is rich in red and blue, the Smart FC 6500 adopts a uniform photon distribution to maintain an even PPFD and optimal PPF across the canopy.
- Wattage - 730w
- Personal Cultivation Coverage - 5x5 ft
- Commercial Cultivation Coverage - 4x4 ft

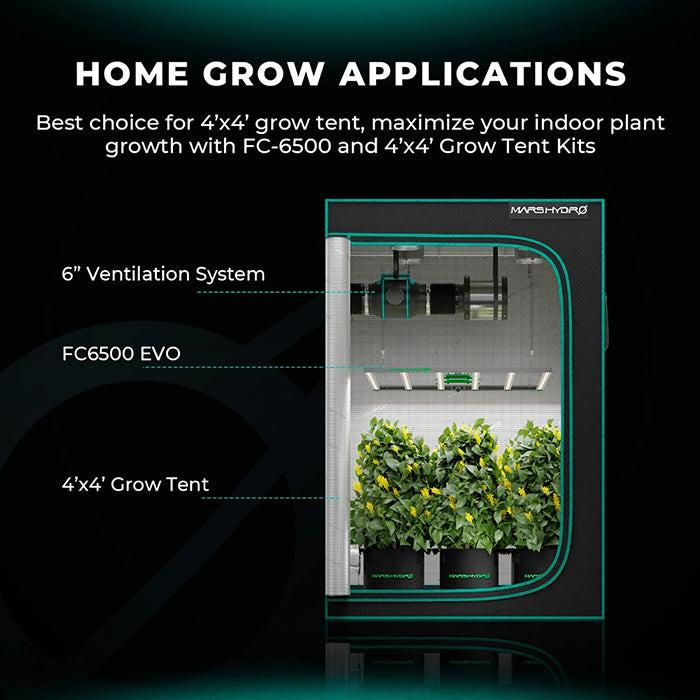

Commercial cultivator’s preferred grow lighting solution for single or multi-tier racking systems, vertical farms, and various indoor plant grow rooms.
Features & Benefits of the FC6500 LED Grow Light
The FC Series LED grow lighting solutions feature horticulture-optimized Samsung LM301H EVO chips with a uniform layout and full spectrum lighting to provide equal and high PPFD across the canopy and energy-efficient performance, producing indoor plants of uniform and consistent quality for grow rooms and vertical farms to achieve year-round bountiful harvests.

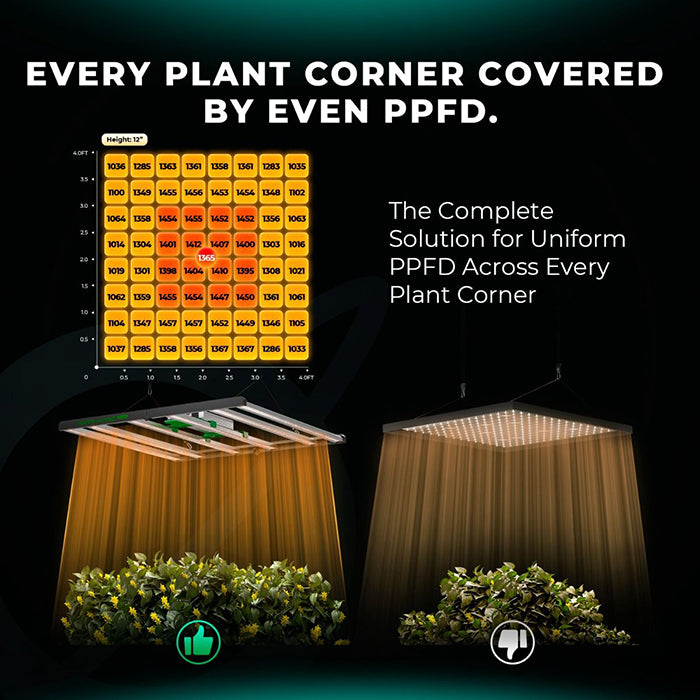

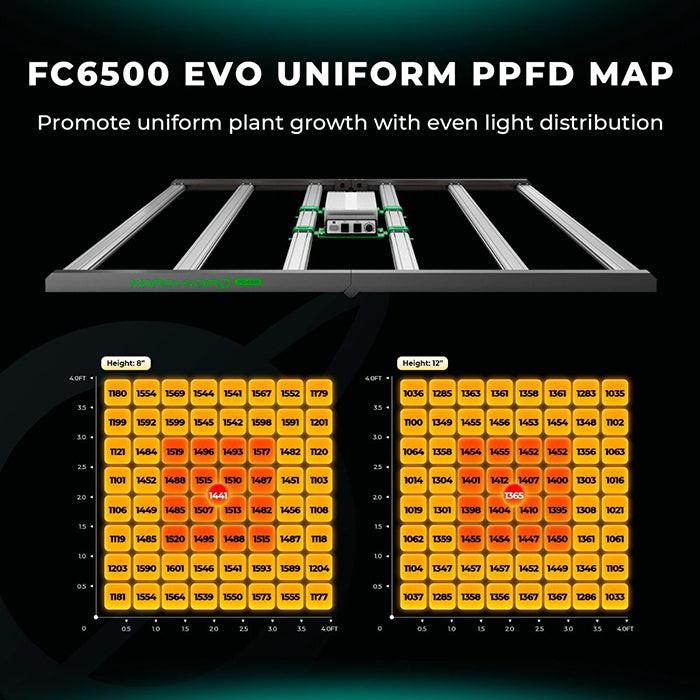

- Uniform PPFD
- Fast Heat Dissipation
- Efficient Samsung LM301H EVO Chips
- Daisy Chain Dimming Feature

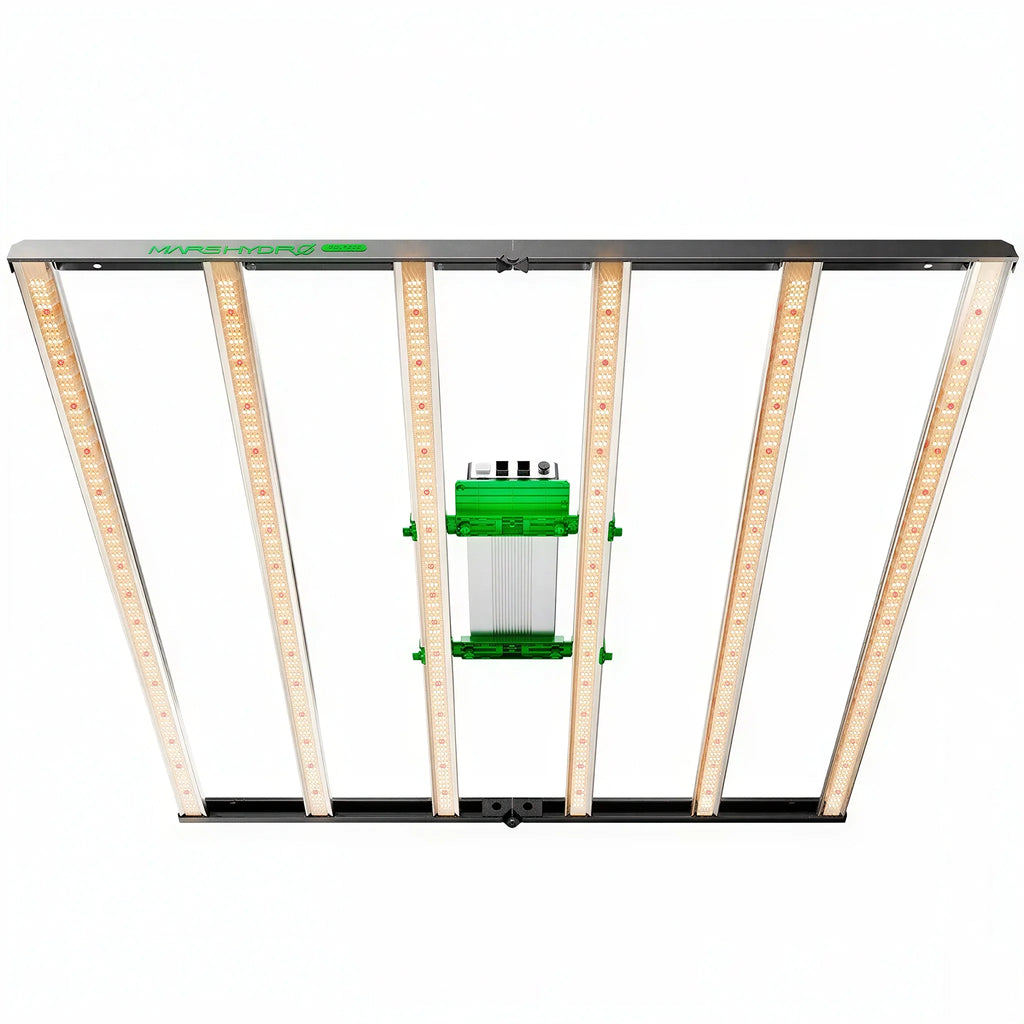

Professional Samsung LED Grow Light
The Mars Hydro FC 6500 730 watt LED grow light boasts cutting-edge Samsung LM301H EVO diodes that drive its high-performance capabilities. The advanced chips help the FC6500 deliver a remarkable photosynthetic photon efficacy (PPE) of 2.85 μmol/j and a PPF of 2079 μmol/s high photon flux, providing a substantial and enduring lighting energy source for indoor plants. Together with a long-lasting color rendering capability, Samsung LM301H EVO chips make sure the light spectrum emitted is consistent and stable throughout the lifespan of the product. Ideal for both personal growers and racking cultivation operators.

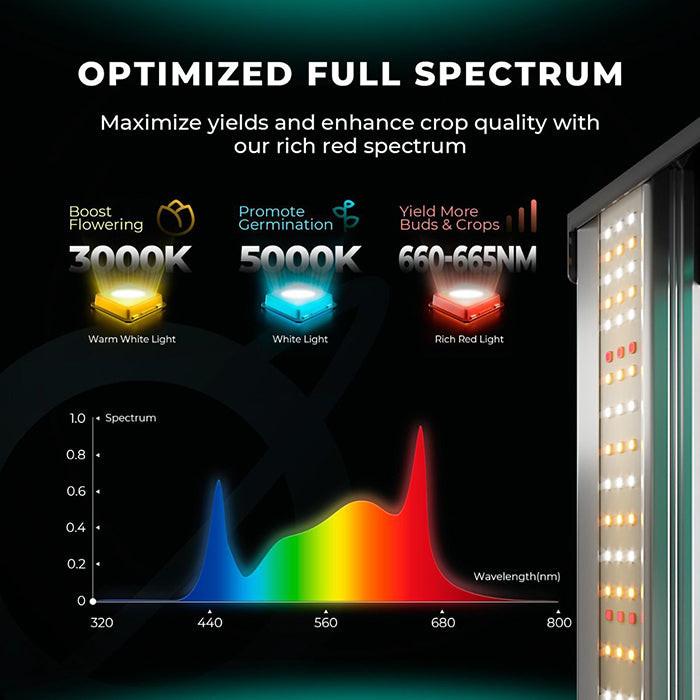

Exclusive Recipe of Full Spectrum Light
This specialized spectrum blend incorporates blue and red light, and adequate green light, with the blue stimulating veg growth and facilitating the accumulation of essential phytochemicals, and the abundant red light enhances the maturation process and enhances the overall quality of buds and flowers produced by the plants. Adequate green light is added as well to support necessary plant growth and increase light penetration.

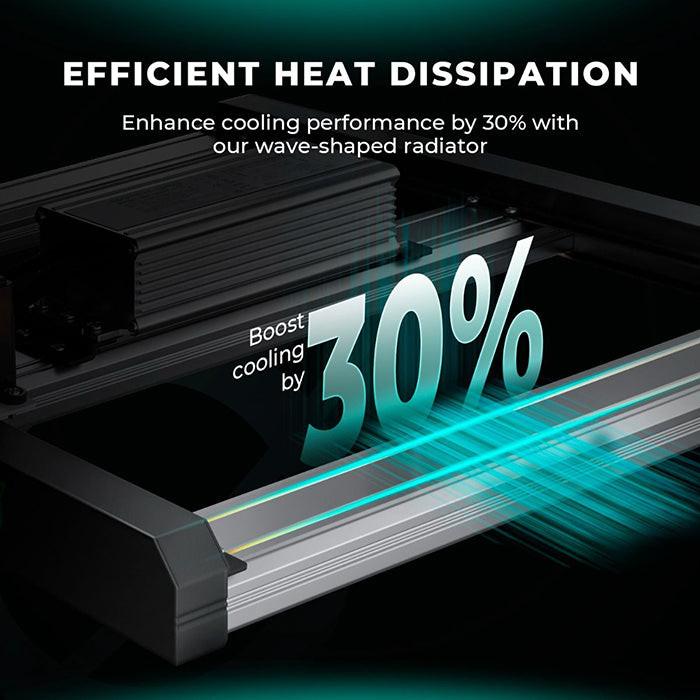

Fast Heat Dissipation Avoid Hot Spot
The wave-shaped heat sink allows for quick heat dissipation, preventing any disruptions to the light's operation. The multi-bar style design incorporates reserved space between the light bars for cooling, effectively mitigating any potential hot spot issues. This feature ensures that the grow light operates optimally and reliably, delivering consistent and uniform lighting to the plants, ensuring that the temperature remains stable and does not interfere with the carefully controlled environment.

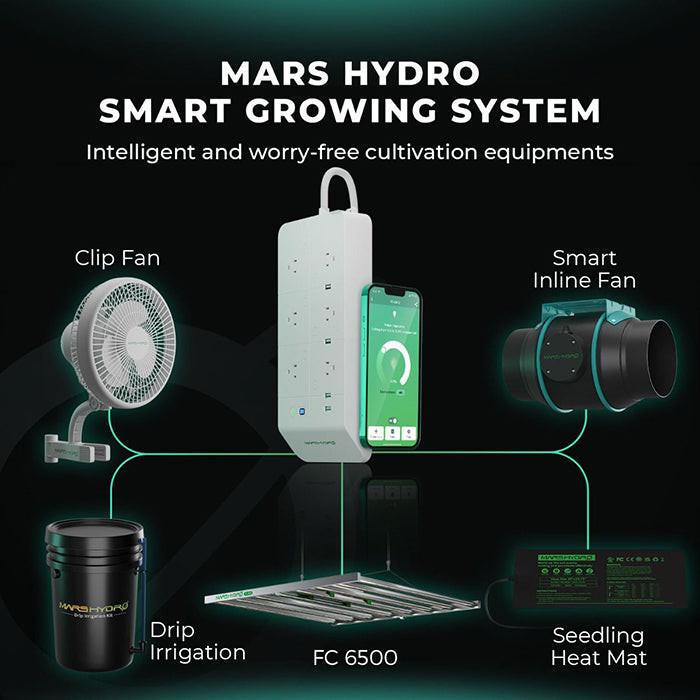

Smart LED Grow Light In Smart Grow System
Remote Control On The Cellphone: The Mars Hydro smart FC6500 comes equipped with advanced features for remote control and data transfer, enabling easy mobile access to your grow light via the Mars Hydro app on your phone or tablet. This convenient feature allows for effortless control of the grow light and scheduling of grow plans, all at your fingertips, from wherever you may be. All data and settings are stored and transferred using OTA (Over The Air) technology, ensuring seamless and efficient data transfer between devices. Super convenient for growers who don't have enough time to sit in front of their indoor plants.
Plan Your Grow Light and It Runs Automatically
The smart FC6500 boasts precise configuration capabilities and an auto-dimming feature that can be adjusted to the year, month, day, hour, and minute, ensuring that the light intensity is tailored to match your specific grow schedules, providing the utmost precision and automation in lighting control for your convenience. A Sunrise & Sunset Simulation option, which mimics the natural photoperiod of plants, is also provided for professional personal grows.

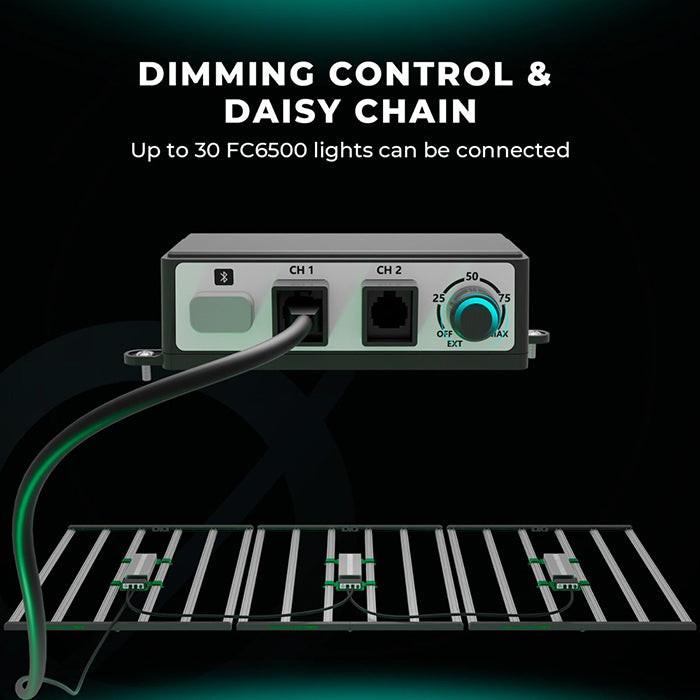

Over The Air Daisy-Chaining & Group Division
FC6500 Smart LED Grow Light enables independent control of multiple lights simultaneously, allowing for seamless switching and dimming of up to 100 FC 3000 plant lights without the need for additional dimming cables. The Mars Hydro app also allows for easy division of the LED grow lights into different lighting groups, even when they are located in separate rooms or tents. This feature makes it possible for the independent management of various ongoing cultivations, enabling users to monitor and program each grow plan without interference from other cultivation plans.
Specifications for the FC 6500 LED Grow Light
| Wattage | 730W±5% |
|---|---|
| Core Coverage | 4'x4' |
| Max Coverage | 5'x5' |
| PAR | 2.85 μmol/J |
| PPF | 2079 μmol/s |
| Chip Brand | Samsung LM301H EVO |
| Spectrum | 650-665nm 2800-3000K 4800-5000K |
| Voltage | AC120-277V |
|---|---|
| Amps | 5.47A@120V 2.64A@240V 2.31A@277V |
| BTU | 2489.3 |
| Certificate | ETL,CE,UKCA,RoHS, DLC,IP65 |
| Lifespan | 50,000 Hours |
| Warranty | 5 years |
| Dimensions | 44.4" x 44" x 3.9" |
| Brand | Mars Hydro |
|---|---|
| SKU | FC-6500 |
| Weight (lb.) | 56.9800 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| UPC | 600740980435 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $31.53 |
| Exact Watts | 730 Watts |
| Suggested Hanging Height | 12" Above Canopy |
| LED Diode Type | Samsung LM301H EVO |
| PAR Efficiency | 2.85 μmol/J |
| Total PPF Output | 2079 μmol/s |
| Daisy Chain | Yes |
| Voltage | 120 Volts |
| Amps | 5.478 A @ 120 Volts; 2.648 A @ 240 Votls; 2.310 A @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 6.5 ft. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | DLC Listed, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
Mars Hydro Smart FC6500-EVO Samsung LM301H 730 Watt LED Grow Light Videos
Mars Hydro Smart FC6500-EVO Samsung LM301H 730 Watt LED Grow Light Questions & Answers
Q: Do the FC lights have IR and UV?
A: FC series led grow lights don’t have UV & IR. You can add Mars Hydro UR45 UV IR lights to your growing
Q: What's the diodes FC use?
A: FC Series use Samsung LM301B chips which are known for the high energy efficiency, converting a significant portion of electricity into usable light for plant growth. Also Samsung chips are capable of producing high-intensity light, which ensures that plants receive the light they need for optimal growth and yield.
