LTL Controls Product Documents

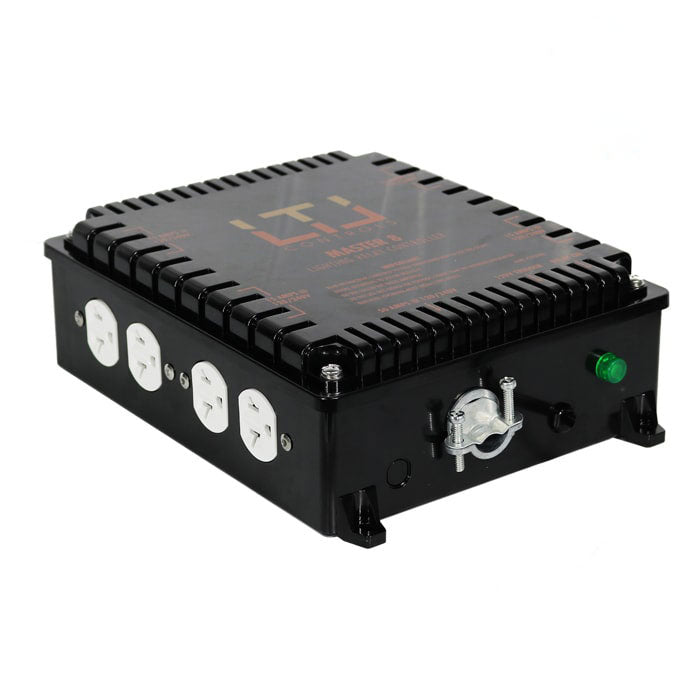

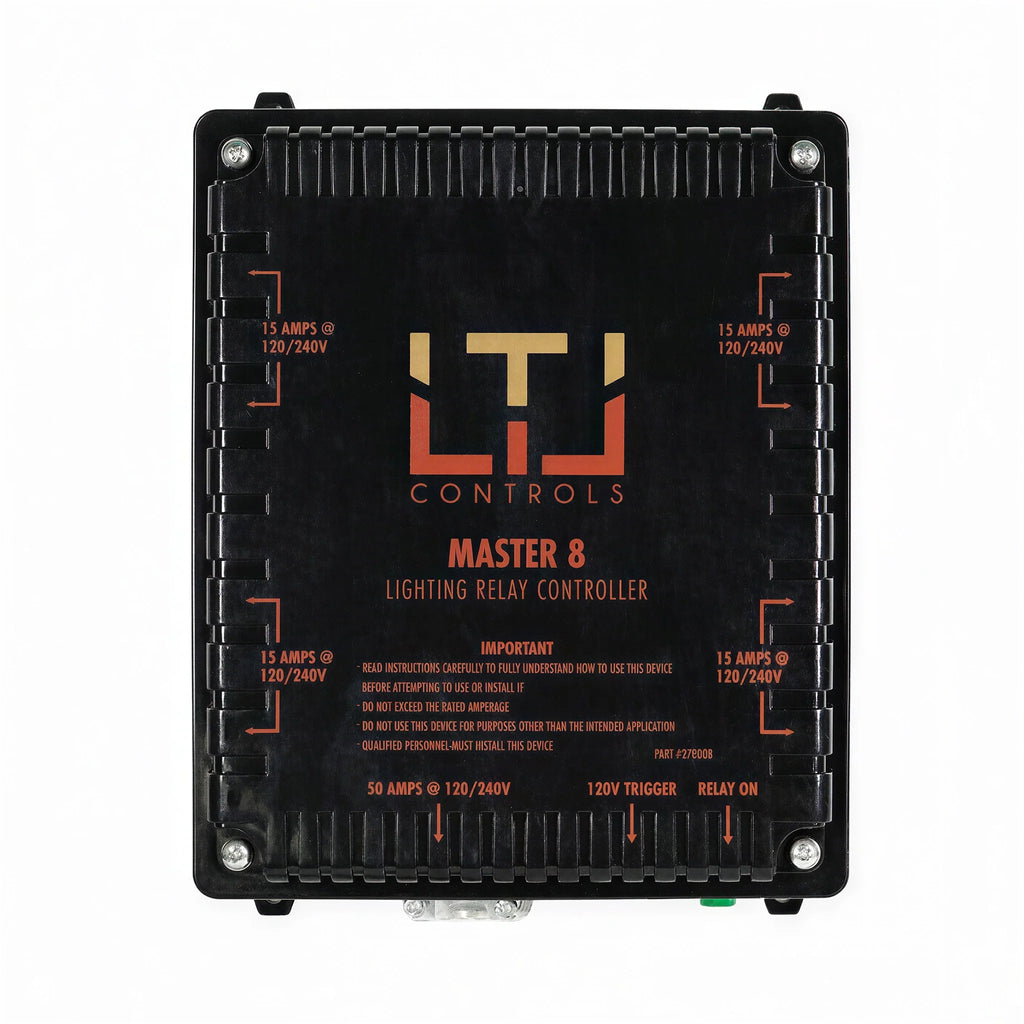

LTL Controls Master 8 ManualThe Master 8 by LTL Controls is the safest and easiest way to control a 8 HID light setup.
This controller has the capability to run a maximum of (8) 1000 Watt ballasts using 120 Volt power & 240 Volt power, with a maximum relay amperage of 50 Amps, and includes a 120 Volt trigger cable which can be connected to a 120 Volt timing device.
It is recommended to consult a certified electrician before installing or using this controller, especially if you are unfamiliar with electrical wiring and circuits. (120 volt & 240 volt Universal Plug)
Features:
- 120 Volt Trigger Cable
- Can be connected to 120 Volt timing device
- Maximum relay amperage of 50 amps
Technical specifications:
- Main Power Voltage: 120 or 240 volt
- Receptacle Type: Universal
- Maximum Lighting Wattage: 8000 (1000/outlet)
- Maximum Relay Amperage: 50 Amps
- Operating Temp Range: 32-110 °F
- Operating Humidity Range: 0-99% (non-condensing)
- Minimum Relay Operations: 100,00 @ full load
| Brand | LTL Controls |
|---|---|
| SKU | 270008 |
| Weight (lb.) | 5.4000 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | 5-7 |
| Hazardous Material | false |
| UPC | 816731015523 |
| UL Listed | No |
| ETL Listed | No |
| Number of Lights Controlled | 8 |
| Voltage | 120 Volts, 240 Volts |
| Amps | 50 Amps |
| Power Cord(s) Included | No |
What lighting setup can the LTL Controls Master 8 control?
The LTL Controls Master 8 controls up to 8 HID lights using 1000-watt ballasts, with a maximum lighting wattage of 8000 watts.
Can the LTL Controls Master 8 operate with 120-volt and 240-volt power?
The LTL Controls Master 8 operates with 120-volt or 240-volt main power and features a universal receptacle.
How does the LTL Controls Master 8 connect to a lighting timer?
The LTL Controls Master 8 includes a 120-volt trigger cable for connection to a 120-volt timing device.
What electrical capacity does the LTL Controls Master 8 provide for HID lighting?
The LTL Controls Master 8 provides a maximum relay amperage of 50 amps for HID lighting control.
What installation guidance applies to the LTL Controls Master 8?
A certified electrician should install or use the LTL Controls Master 8, especially when electrical wiring and circuits are unfamiliar.
