King Electric Product Documents

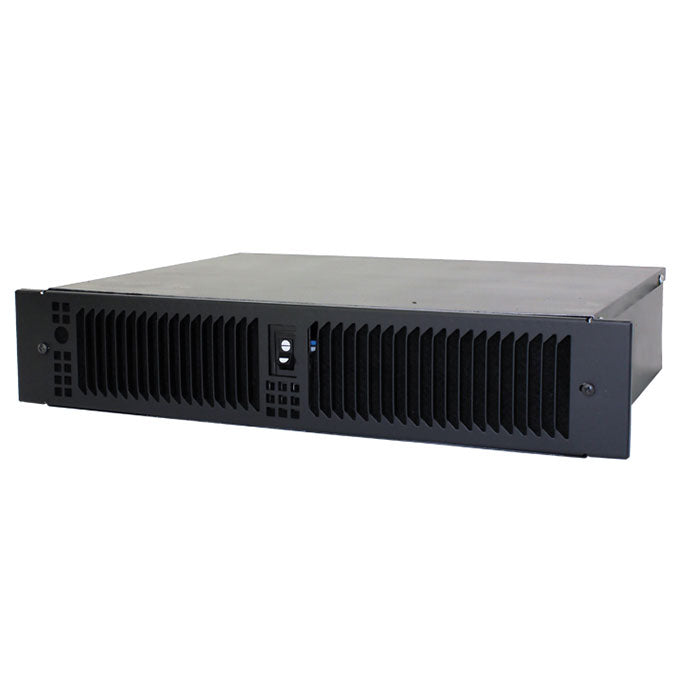

King Electric KTW Heater Instructions King Electric KTW Heater SpecsThe only convertible cabinet heater that can be installed either vertically or horizontally on the market
The King Electric KTW Series is a narrow profile heater with only 3-5/8" tall and specifically designed to fit into kitchen or bathroom cabinets, providing warm comfortable air for cold bathrooms or kitchens saving valuable floor and wall space.
Features
- Installs Vertically or Horizontally
- Multiple wattage options, to tailor to a room’s specific heating requirements
- NiChrome Open Coil Element For Quick Heat Transfer
- Squirrel Cage Blower
- Patented Smart Limit Protection

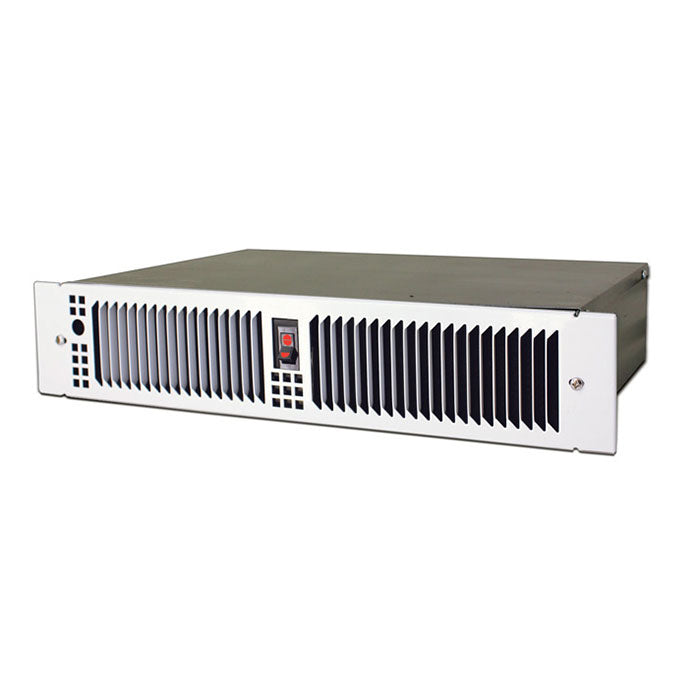

- Available in Black, White, or Almond Finishes
- Proudly made in the USA
- 2-year warranty
- Available in black, white, and almond finishes (call in for almond)
Felt But Not Seen
Often-overlooked, Kickpace heaters deliver the best of both worlds. Cost-effective heating in a compact package. Their modest size means that in a room with a challenging layout, one that would not accommodate a baseboard heater, a Kickspace heater may be able to fit in seamlessly, installed at floor level beneath cabinetry or even inside the wall.
Fits Where Others Can't
With its narrow 3-5/8" profile the KTW Kickspace heater easily fits out of the way, under cabinets providing warm air for cold bathrooms and kitchens.
Specifications
- Hi/Lo selector switch: Wattage can be adjusted from 250-1250 watts in the low position and 750-1500 watts in the hi position
- Blower and Motor: The tangential cylindrical blower delivers 70 CFM and is driven by a shaded pole, permanently lubricated. C-frame type motor with impedance protection and sealed bearings. The motor is the same voltage as the heater.
- Elements: Element assemblies have a 3-wattage element construction of coiled nickel-chromium, alloy corrosion-resistant wire strung with a minimum of two rows of the muscovite insulator. Element assemblies have factory provided connections to allow field modification of wattage at the time of installation.
- Thermal Overload: Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for fifteen minutes. Automatic reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
- Grill: The grill is louvered, meaning horizontal slants to admit air, and is a one-piece design. The grill has an epoxy powder coated in the color specified on the plans or stainless steel.
- Wall Can: The wall can is 20-gauge steel and contains two 1/2" knockouts for power leads. The wall can is supplied with a factory installed grounding wire.
- Ratings: Heaters shall be available in wattages of 250 to 1,500 dual rated from 208 volts to 240 volts.
| Brand | King Electric |
|---|---|
| SKU | KE-KTW |
| Hazardous Material | false |
