The KBP is the industry standard for multi-wattage garage / shop heaters. It even provides an idea solution for Greenhouse heating. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. With high quality components suitable for both residential and commercial applications, it comes standard with a 3-position switch and an accurate built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.

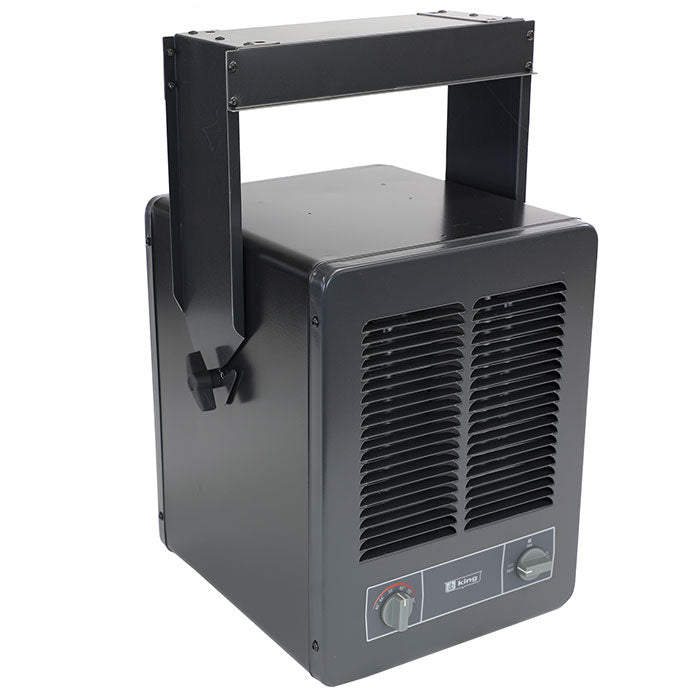

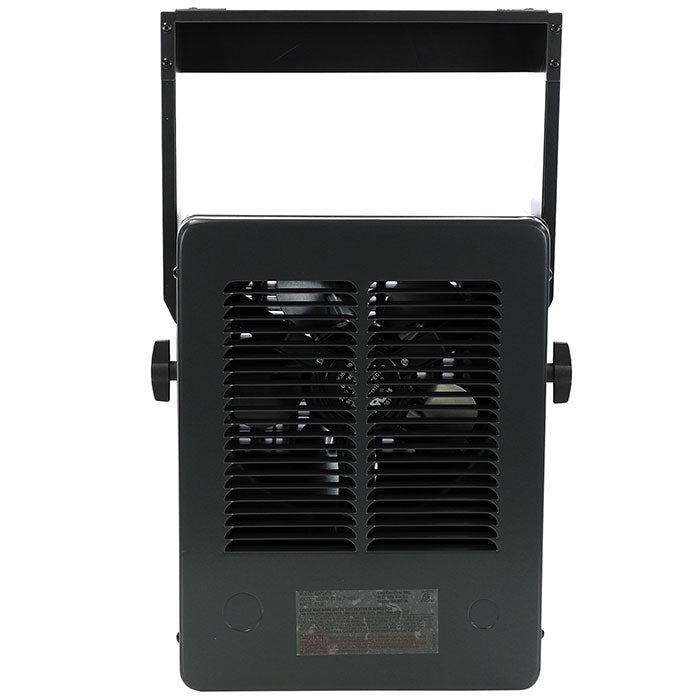

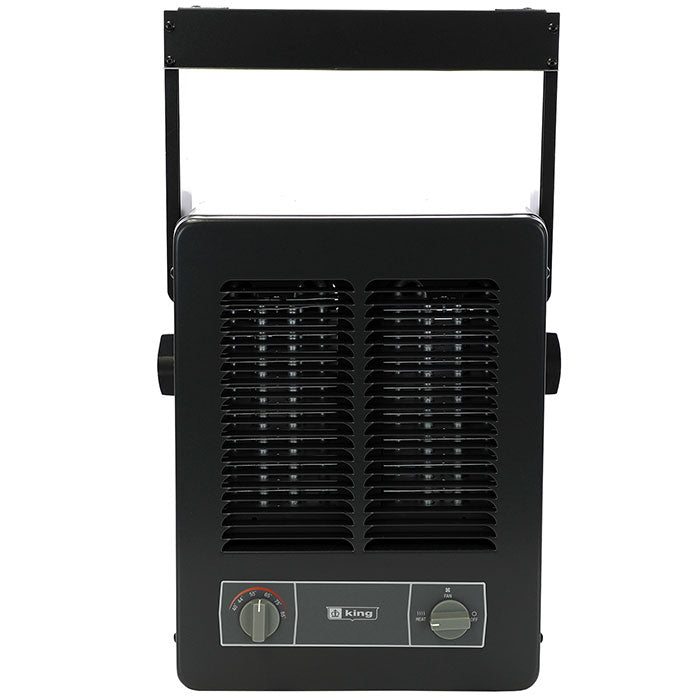

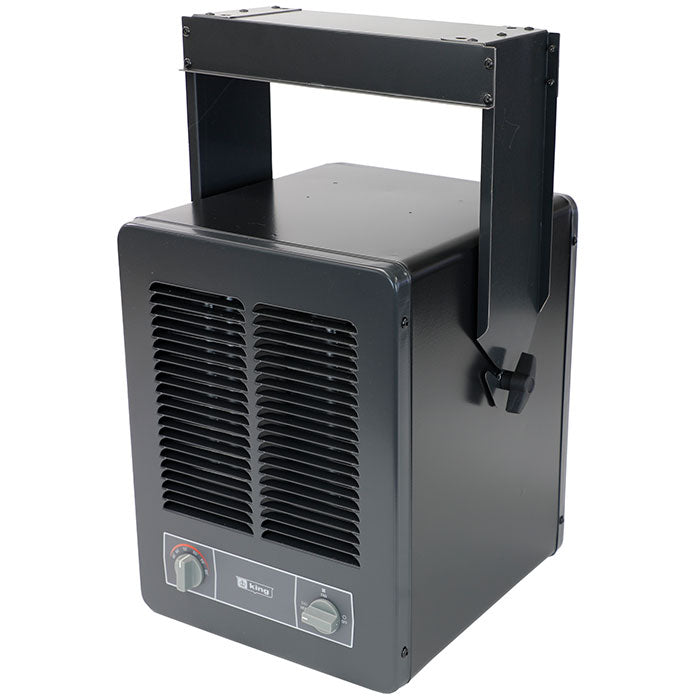

King Electric KBP Compact Heating Unit Features
-
Original Pic-A-Watt Element
-
Multiple wattage options, to tailor to a room’s specific heating requirements
-
Patented Smart Limit Protection
-
Built-in Thermostat
-
Selector Switch: Fan/Heat/Off
-
Long Life Cast Iron Motor
-
Fan Delay To Dissipate Heat
-
Universal Wall/Ceiling Bracket Included
-
Proudly made in the USA
-
5 Year Warranty
King Electric KBP Compact Heating Unit Specs
-
Pic-A-Watt Heating Element:
Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
-
Built-in Thermostat:
Single pole factory installed hydraulic capillary tube thermostat for precision heating control. Operating range 40° to 90° F.
-
Fan/Heat/Off Switch:
3-position switch provides heating and summer fan only operation.
-
Fan Delay Switch:
The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.
-
CFM:
270
-
Universal Mounting Bracket:
Combination ceiling/wall bracket is included with every heater.
-
Unit Bearing Motor:
Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1300 RPM.
-
Electrically Held Smart Limit Protection:
Heater shuts off when an over temperature condition exists and automatically resets when the normal operating temperature returns.
-
Tested:
UL 2021
-
Approval:
cCSAus
Note:
3-Phase units do not have Heat / Fan / Off
