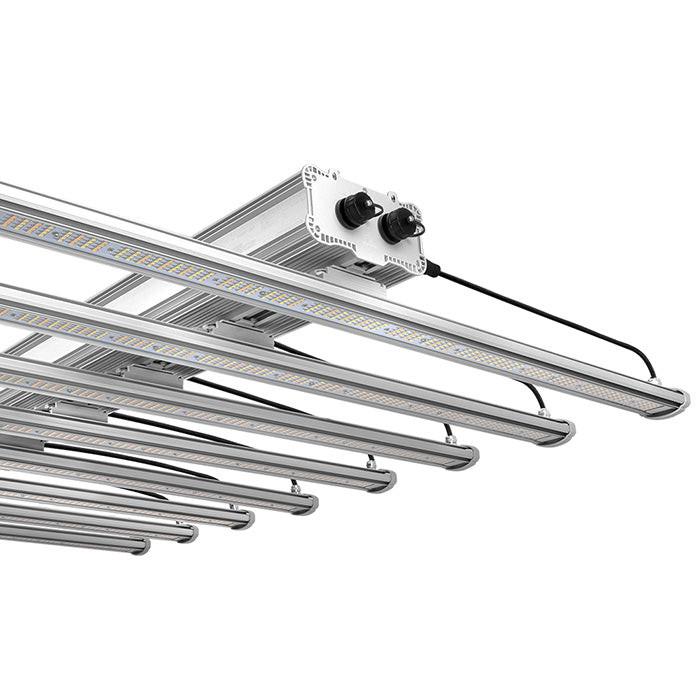

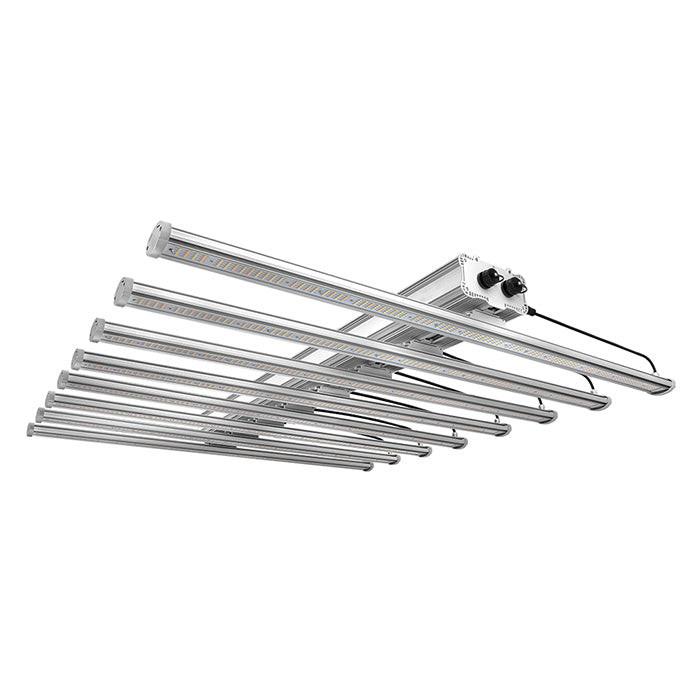

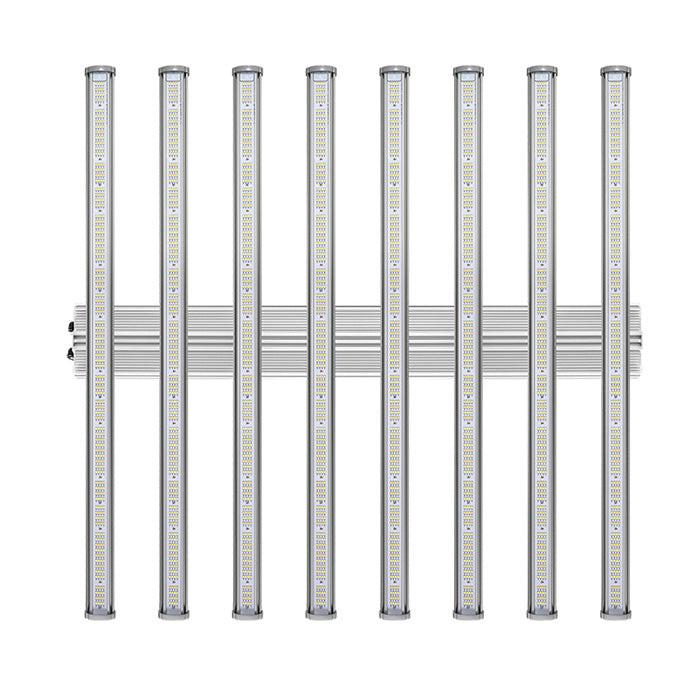

Iluminar iLogic8 Full-Spectrum LED Grow Light, 120 Volt

SKU: IL-ILOGIC8-120-6
No reviews
Iluminar Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 1-2 business days


Price:
Sale price$910.95

The new benchmark for LED lighting

Available in "Full Spectrum" or "Full Specutrm + UV/Far Red"

Enjoy all the benefits of "Full Spectrum" or 'UV + Far-Red" lighting without sacrificing efficiency. The iLogic LED family delivers deep, penetrating light intensity along with industry-leading uniformity over a square 4' x 4' footprint. Optimized for the most demanding floriculture applications, the iLogic 8 is designed to scale up with ease as your operation grows, offering unbeatable reliability, longevity, and performance.

The iLogic8 LEDs drive maximum plant productivity, even in the densest of canopies in CO2-enriched flowering rooms. Equally, at home in single or multi-tier cultivation environments, this state-of-the-art LED grow lighting promotes compact and vigorous growth and the production of high levels of secondary metabolites through the full spectrum output.


Choose Between Full-Spectrum or Full-Spectrum + UV/Far-Red

Logo for iLogic8 Full-Spectrum

Built for Real-World Cultivation Environments

The iLogic8 Full Spectrum LED is about more than impressive statistics, it’s the realization of years of lessons in the field. Combining industry-leading thermal management solutions with specially inset diodes for safe and easy light-bar cleaning, this LED grow light utilizes cutting-edge lighting technology. Creating uniform lighting footprints couldn’t be easier thanks to the lightweight aluminum casing and four-point hanging system. Growers love how easy it is to swap out individual light bars without taking the whole fixture out of service thanks to the “hot swap” easy-release clips.

Image of iLogic8 Full-Spectrum
Logo for iLogic8 Full-Spectrum + UV/Far-Red

Expanding the Potential of Indoor Grow Lighting

Unlock new heights of crop quality with a broader spectrum that promotes faster growth combined with more branching. Additional UV helps strengthen plants, making them more resistant to pests and powdery mildew while visibly boosting the production of terpenes and essential oils. The iLogic8 UV+FR fills the spectral gap that has persisted between legacy lighting technologies and LED. Plants will have a marked increase in growth rates combined with increased flower site density and trichome development. The result is truly the next level in terms of quantity and quality.

Image of iLogic8 Full-Spectrum + UV/Far-Red Spectrum

Features & Benefits of the iLogic 8

  • Spectrum Tuned: Full Spectrum Growth
  • High Efficiency SMD LED Array
  • Lightweight Aluminum Alloy Casing (22.8 kg / 50.3 lbs.
  • 4 Points for hanging for a level mount
  • Smooth LED Diode Surface for Easy Cleaning
  • High-end OSRAM & Samsung Diodes
  • Low Profile
  • ETL / DLC / UL 8800 / FCC / CE Listed
  • 5-Year Warranty
  • No adaptor needed for ILUMINAR controller

Cable Logic - iLogic Power Cords & Daisy Chain Cords

Hydrobuilder will include the following items with your iLogic8 LED

  • Cable Logic AC Power Cord, 5-15P, 10 Inch, Select Voltage at top
  • Cable Logic Main-Line AC Extension Cable, 6 Feet

3 ft. and 15. Extension cables are also available if you do not want 6 ft.

We have a Cable Logic Manual here that illustrates which cables are used where for the iLogic Series. A complete power cord for 1 fixture is made up of the 10 Inch AC Power Cable/Plug of your desired voltage, and a Main-Line AC Extension Cable in either 3 , 6 or 15 Feet.

There are several diagrams here with detailed configurations of the iLogic LED with details on the required cords for each setup.

Daisy Chaining: There are different options for daisy chaining depending on how many lights you wish to use. The Cable Logic Power Cable Manual here details what cords you need to use and where.

Cable Logic Power Cable Manual

Specifications for the iLogic8

Input Power Smart Sensing 100V to 277V
Minimum Mounting Height 8"-12" to top of Canopy
PPF 1700 - 1800 µmol/s
PAR 2.7 - 2.85 µmol/J
Emitter Cooling Passive / Extruded Case
Dimming 0-10V Controllable
Light Distribution 120º
Waterproof Rating IP66 for Damp/Wet Conditions
LED Lifespan (90% of Life) 50,000+ Hours
Ambient Temperature 0 - 35°C / 32-95°F
BTU 1200
Height 124.3mm / 4.9"
Width 1002mm / 39.4"
Length 1064mm / 41.9"
Brand Iluminar
SKU IL-ILOGIC8-120-6
Weight (lb.) 56.0000
Prop 65 false
Warranty 5 Year
Lead Time This product ships in 1-2 business days
Hazardous Material false
Lighting Type LED
LED Light Spectrum Full Spectrum
LED Fixture Type Multi-Bar
LED Fixture Type Multi-Bar
LED Features Dimmable *with Controller
Est. Electricity Cost /mo $27.21
Exact Watts 630 Watts
Suggested Hanging Height 8" -12" Above Canopy
LED Diode Type High-end OSRAM & Samsung Diodes
PAR Efficiency 2.7 umol/J
Total PPF Output 1700 umol/s
Power Factor 0.95
Daisy Chain Yes
Voltage 120 Volts
Amps 5.7 Amps @ 120 Volts, 3.2 Amps @ 208 Volts, 2.8 Amps @ 240 Volts, 2.4 Amps @ 277 Volts
Frequency 50/60 Hz
Power Cord(s) Included Yes - 120 Volt
Power Cord Length 6 ft.
Coverage Area Veg: 5' x 5'; Flower: 4' x 4'
Grow Light Certifications IP66 Rated, DLC Listed, ETL Listed, UL Listed
ETL Listed Yes
UL Listed Yes
