Iluminar Product Documents
Iluminar iLogic FS Plus 340 Spec Sheet Iluminar iLogic FS Plus 340 User ManualOptimized for mother plants and vegetative growth

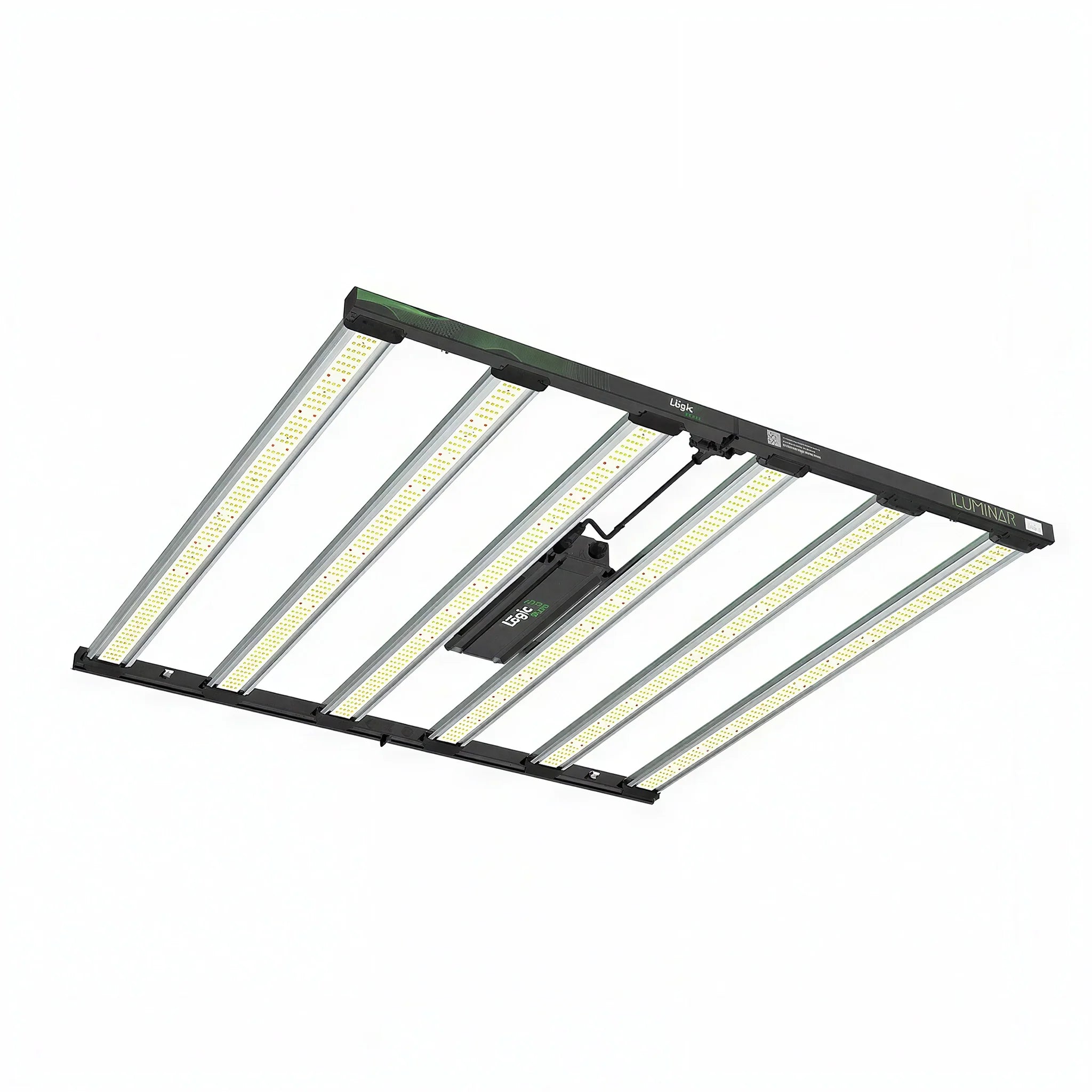

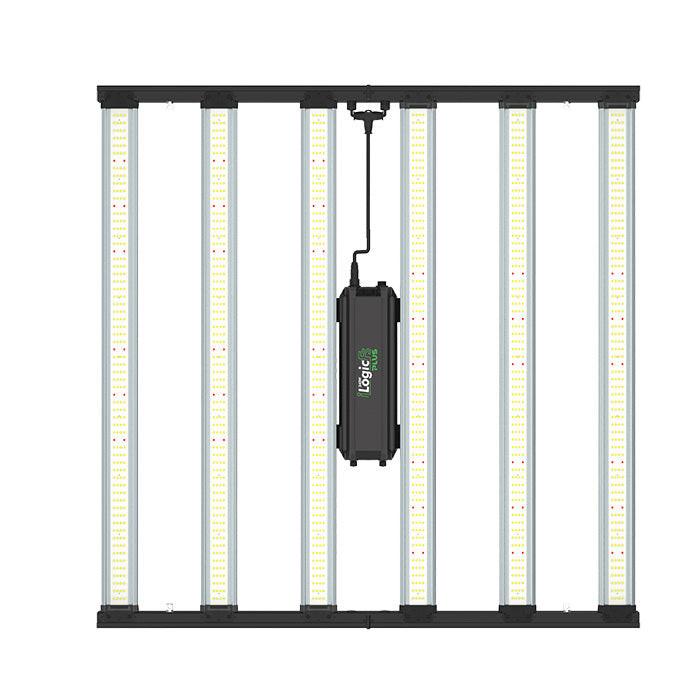

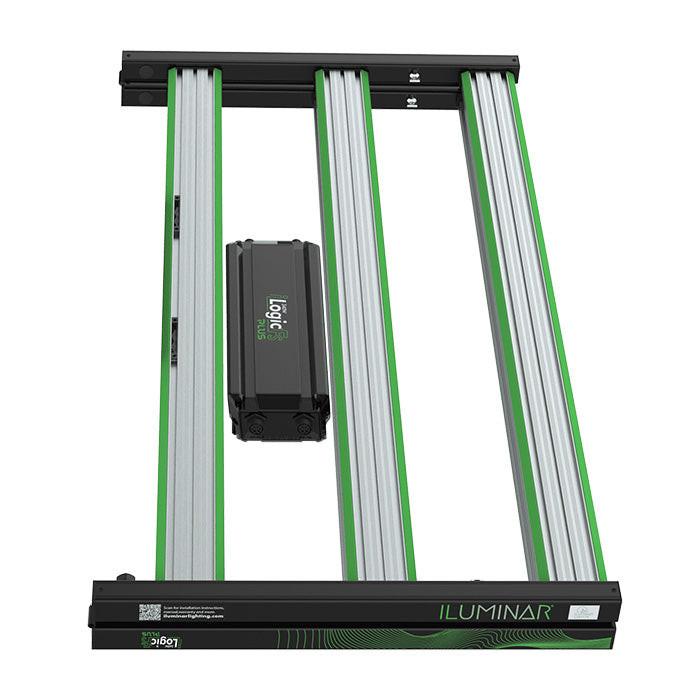

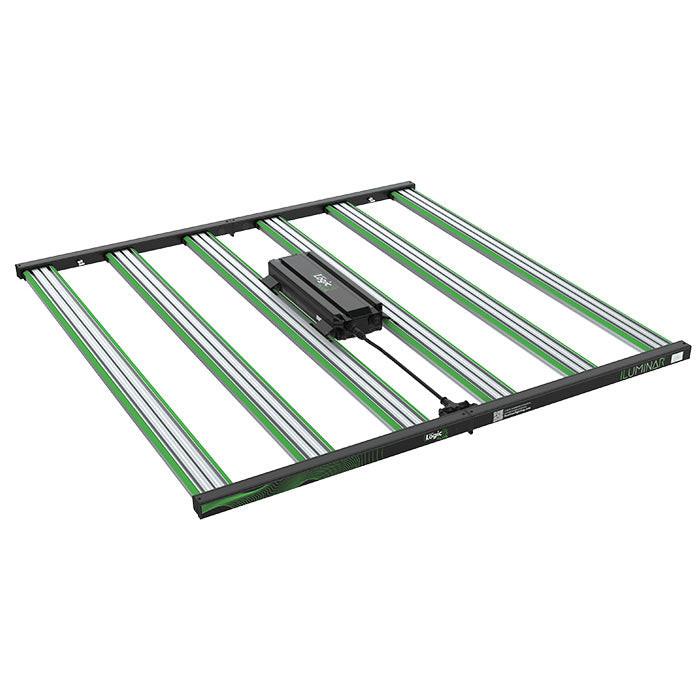

Set your plants up for success with the iLogic™ FS Plus 340W. Optimized for unmatched vegetative vigor, this incredible full spectrum LED grow light delivers the intense broad spectrum light your plants need for robust growth, using fewer watts.
The iLogic™ FS Plus 340W is the perfect choice for keeping your mother plants in tiptop condition or for turbo-charging vegetative development. Crucially, the iLogic™ FS Plus 340W has the power and intensity you need to truly prime your plants for transition into high-intensity flowering environments.
The latest evolution in energy-efficient horticultural LED
High PPF Output:
Boasting an incredible Photosynthetic Photon Flux (PPF) output of 950 µmol/s, this fixture produces super intense light at high efficacy (2.8µmol/J).
Energy Efficiency:
Powered by a Sosen LED Driver with a power factor exceeding 0.9, this state-of-the-art LED lighting fixture optimizes energy usage, reducing operational costs while maintaining peak performance.
Ideal Vegetative Spectrum
Equipped with a precise blend of Samsung LM281B+ Pro LEDs and Honglitronic SMD3535 660nm LEDs, the iLogic™ FS Plus 340W produces a perfectly tailored spectrum to drive strong, robust and vigorous growth.
Optional Upgrade: Iluminar Touch+ Grow Light Controller
The ILUMINAR Touch+ Controller will now allow you to control up to 60 lights per zone or room, with two channels you can control up to a total of 120 lights. This will take even your beginner garden to the commercial level, all of these features packed into the ILUMINAR Touch+ Controller.
The main difference between the Touch+ and the older Touch is greater dimming control. The old Touch controller could only control LEDs down to 50% dimming. The new Touch+ Controller can control dimming on LEDs all the way down to 20%
- LED + CMH + HPS All From One Controller
- Up to 120 Units, 60 fixtures per zone
- Control 2 Independent Rooms
- Auto Temperature Shut-Down
- Sunrise / Sunset Effects
- Battery Backup to Save Data
- Dual Temperature Zone input for High Heat Dimming
- Dual Temperature Probe Inputs
- Touch Screen Technology
- RJ9 to RJ14 cable included
Specifications for the Iluminar FS Plus 340
Input Power | 120V to 277V |
---|---|
Power Consumption | 340 ± 5% |
PPF | 950 µmol/s |
PAR | 2.8 µmol/J |
Power Supplu | Sosen LED Drivers |
Power Factor | >0.9 |
THD | <10% |
Dimming | 0-100% dimming via RS485 |
Frequency | 50/60 Hz |
---|---|
BTU | 1100 |
LED Lifespan (90% of Life) | 50,000+ Hours |
Ambient Temp / Working | 0° - 35°C / 32° - 95°F |
Light Distribution | 120° |
Waterproof Rating | IP65 |
Color Temperature | 3600K |
Color Rendering Index | 85 |
Brand | Iluminar |
---|---|
SKU | IL-L340FS-CONF |
Hazardous Material | false |
