ILUMINAR LED Clone Light Spec SheetEnergy-Efficient Cloning at Any Scale

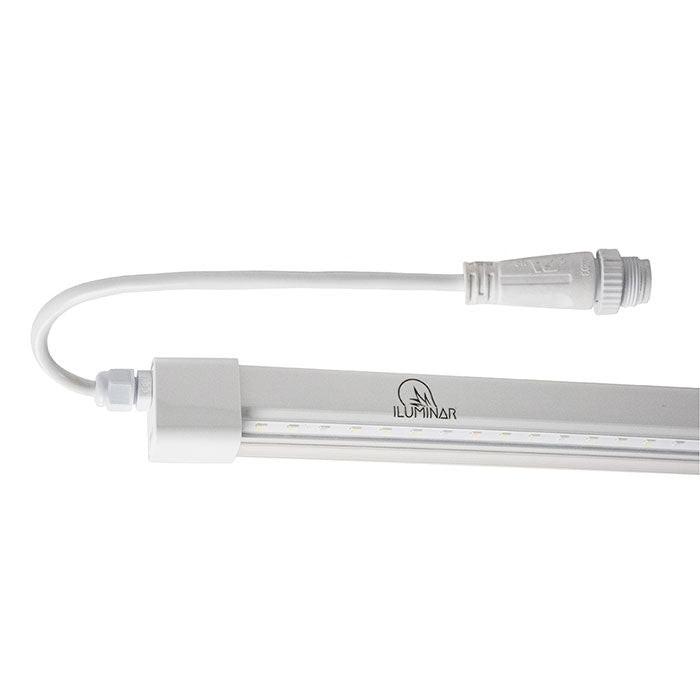

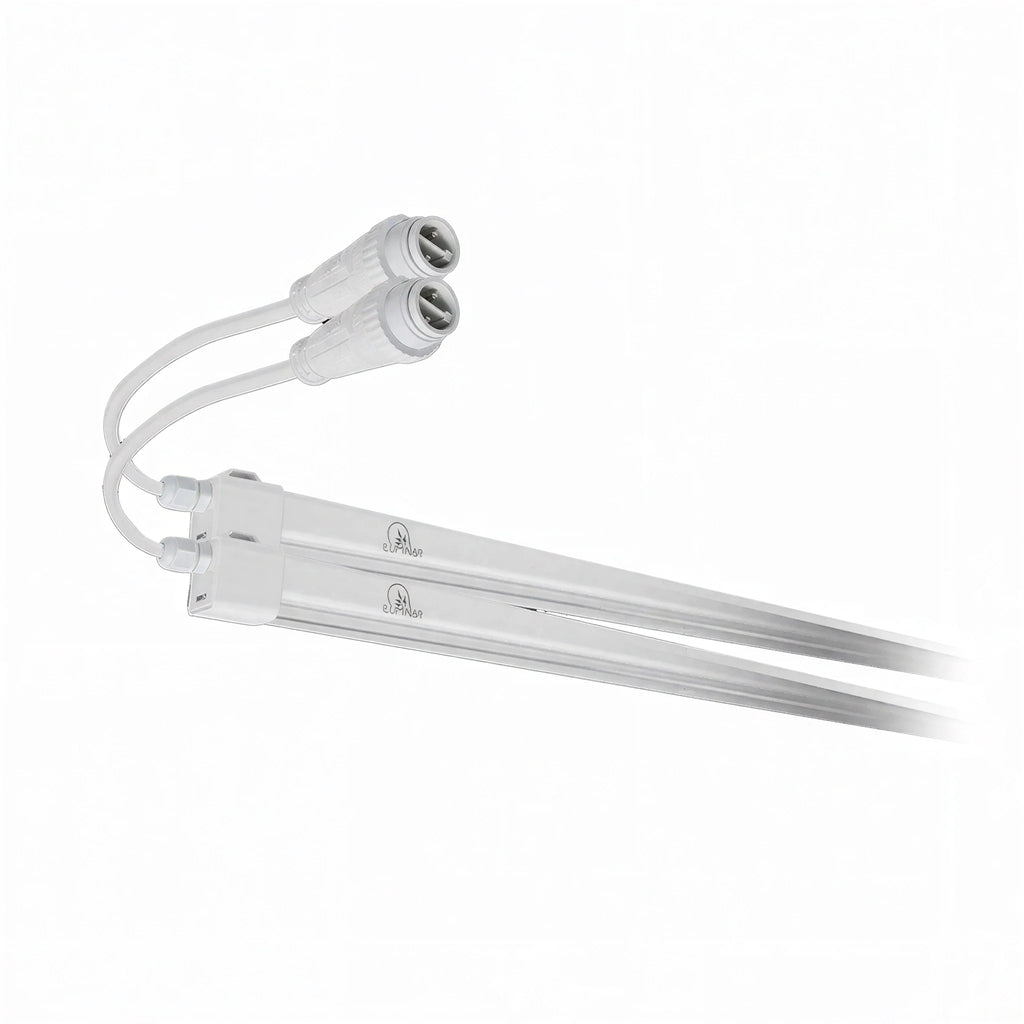

Drive consistent canopies, crop quality, and productivity with a continuous supply of healthy, homogenous, and vigorous clones. The new LED Clone 18W twin-pack contains two energy-efficient LED bars, each one ideal for illuminating two full-sized propagators or equivalent cloning machines.
Using just 33% of the energy required by similar high-output T5 fluorescent tubes and lasting over twice as long, LED Clone bars deliver a superior 9000K spectrum, specially tailored to promote quick rooting, overall plant health, and vigorous early growth in both stem cuttings and seedlings.
Growers enjoy long-term reliability and peace of mind with ILUMINARs 5-Year warranty and IP66 rating for use in wet environments. Each LED Clone bar is rated for 54,000+ hours use.
Each twin-pack comes with four hanging clips and zip tie slots for quick and easy installation
Features & Benefits
- 2 LED Clone Bars per pack
- Color Temperature: 9,000K
- Efficacy 1.9 μmol/J
- IP66 Wet-Rated
- Input Power: 18W (18W per bar)
- Each LED Clone Bar can illuminate two full-sized propagators
- Perfect for multi-level cloning. Minimum recommended hanging distance: 6” (15 cm)
- All hanging equipment is included
Specifications for Iluminar Clone Bar
| Input Voltage | 120-277V |
|---|---|
| Input Current | 0.15A - 0.065A |
| Input Power | 18 Watt |
| Color Temperature | 9,000K |
| PPF | 35 µmol/s |
| Efficacy | 1.9 µmol/J |
| Ambient Temperature | 0 - 35°C / 32-95°F |
| Min Power Factor | 0.9 |
| LED Lifespan (90% of Life) | 54,000+ hours |
|---|---|
| Power Cord 120V | 4ft (NEMA 5-15P) |
| Rated Voltage | 120-277V |
| Voltage Range (+/-10%) | 100-277V |
| Frequency | 50 / 60Hz |
| Operation Frequency | Direct-Current Input |
| Waterproof Rating | IP66 |
| Minimum Mounting Height | >6" Above the canopy |
| Brand | Iluminar |
|---|---|
| SKU | IL-CLN18 |
| Weight (lb.) | 10.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| Case/Pack/Pallet Amount | 2 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Clone Light, Bar/Strip |
| Est. Electricity Cost /mo | $0.77 |
| Exact Watts | 18 Watts |
| Suggested Hanging Height | >6" Above the canopy |
| PAR Efficiency | 1.9 µmol/J |
| Total PPF Output | 35 µmol/s |
| Power Factor | 0.9 |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | 0.15 Amps - 0.065 Amps |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 4 Feet |
| Coverage Area | Veg: 1' x 4' |
| Grow Light Certifications | IP66 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
What growing applications suit the Iluminar Clone 18W LED Grow Light?
The Iluminar Clone 18W LED Grow Light supports stem cuttings, seedlings, quick rooting, and vigorous early growth. The 9,000K spectrum supports healthy, uniform clones.
How many propagators can the Iluminar Clone 18W LED Grow Light illuminate?
Each Iluminar Clone 18W LED Grow Light bar can illuminate two full-sized propagators or equivalent cloning machines. The two-bar pack supports multi-level cloning setups.
How should growers mount the Iluminar Clone 18W LED Grow Light?
Growers should mount each Iluminar Clone 18W LED Grow Light bar more than 6 inches above the canopy. The pack includes four hanging clips and zip tie slots for installation.
Can the Iluminar Clone 18W LED Grow Light be used in wet environments?
The Iluminar Clone 18W LED Grow Light has an IP66 wet-rated design for use in wet environments. The Iluminar Clone 18W LED Grow Light is also ETL listed.
What electrical systems work with the Iluminar Clone 18W LED Grow Light?
The Iluminar Clone 18W LED Grow Light operates with 120 to 277 volts and 50/60 Hz power. The pack includes a 4-foot 120-volt power cord with a NEMA 5-15P plug.
What does the Iluminar Clone 18W LED Grow Light pack include, and what warranty applies?
The Iluminar Clone 18W LED Grow Light pack includes two LED clone bars, four hanging clips, zip tie slots, and power cords. Iluminar provides a 5-year warranty for the Iluminar Clone 18W LED Grow Light.
