HIBLOW Product Documents

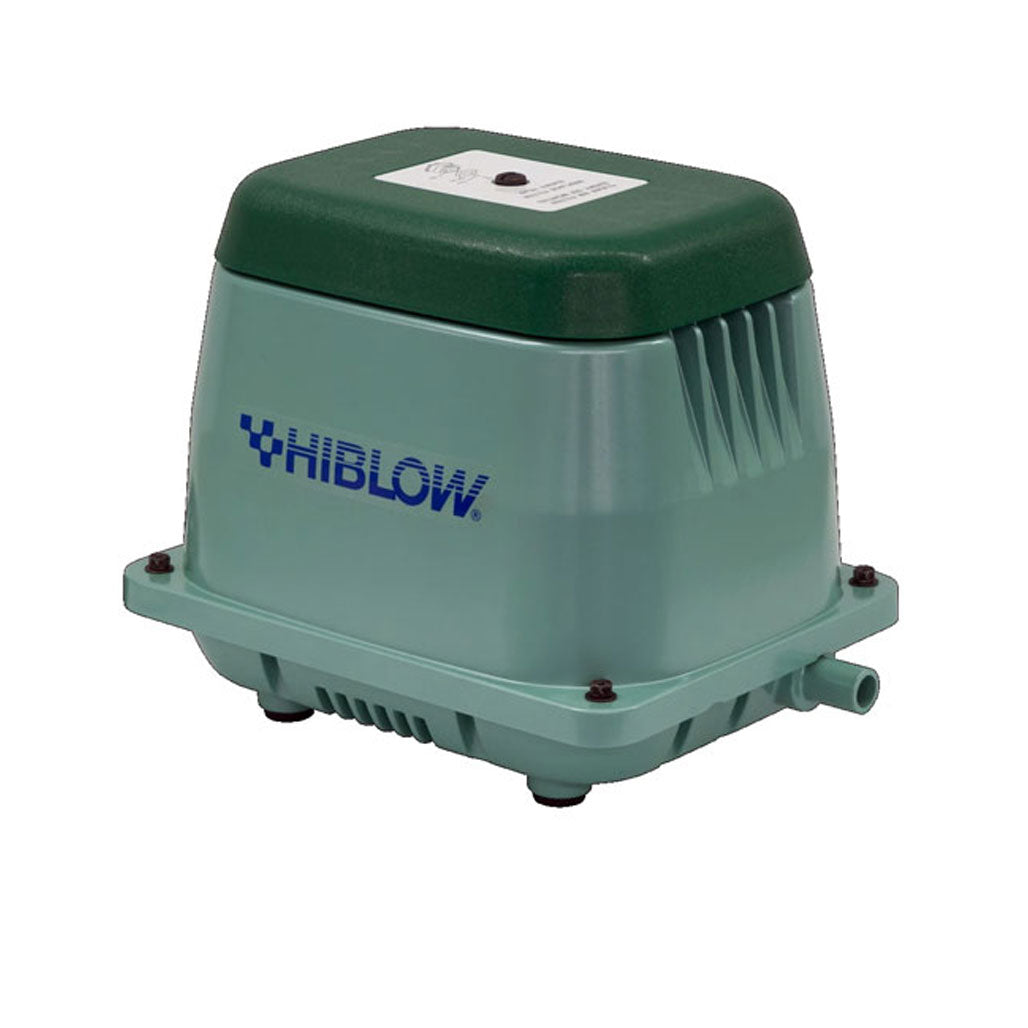

HIBLOW HP-20 Spec Sheet HIBLOW HP-80 Spec Sheet HIBLOW HP-100LL & 120LL Spec Sheet HIBLOW HP-200 Spec SheetThe Hiblow HP Series Linear Air Pumps boast an effective aeration and efficient operation. They are reliable and energy-efficient while being low-noise. The HP Series air pump features thermal overload protection to guard against overheating and pump damage. The pumps are oil-free which eliminates danger of contamination in your pond. They linear diaphragm design allows for quick and inexpensive repair of worn pumps. The HP-20 to HP-80 come with a rubber elbow adapter that will fit a 1/2" or 5/8" barb or slide over weighted 3/8" ID tubing.
HIBLOW HP Series Linear Air Pump Spec Table
| Model | Max Pond Size: | Max. Water Depth: | Max Air Flow (lpm/cfm) | Max Continuous Operating Pressure (kPa/psi): | Noise Level (dB): | Watts: | Dimensions: | Cord Length: | Warranty: |
|---|---|---|---|---|---|---|---|---|---|
| HP-20 | 7000 Gallons | 6' | 32/1.1 | 15/2.1 | 31 | 17 | 8" x 5.5" x 6.75" | 6' | 2 Years |
| HP-80 | 1/2 Acre | 10' | 120/4.2 | 25/3.6 | 36 | 71 | 10" x 7" x 7.75" | 6' | 2 Years |
| HP-100LL | 3/4 Acre | 10' | 130/4.5 | 30/4.3 | 42 | 75 | 11" x 8" x 8.75" | 6' | 2 Years |
| HP-120LL | 1 Acre | 10' | 150/5.2 | 30/4.3 | 42 | 100 | 11" x 8" x 8.75" | 6' | 2 Years |
| HP-20 | 2 Acres | 10' | 200/8.4 | 30/4.3 | 46 | 250 | 11" x 8" x 8.75" | 6' | 2 Years |
