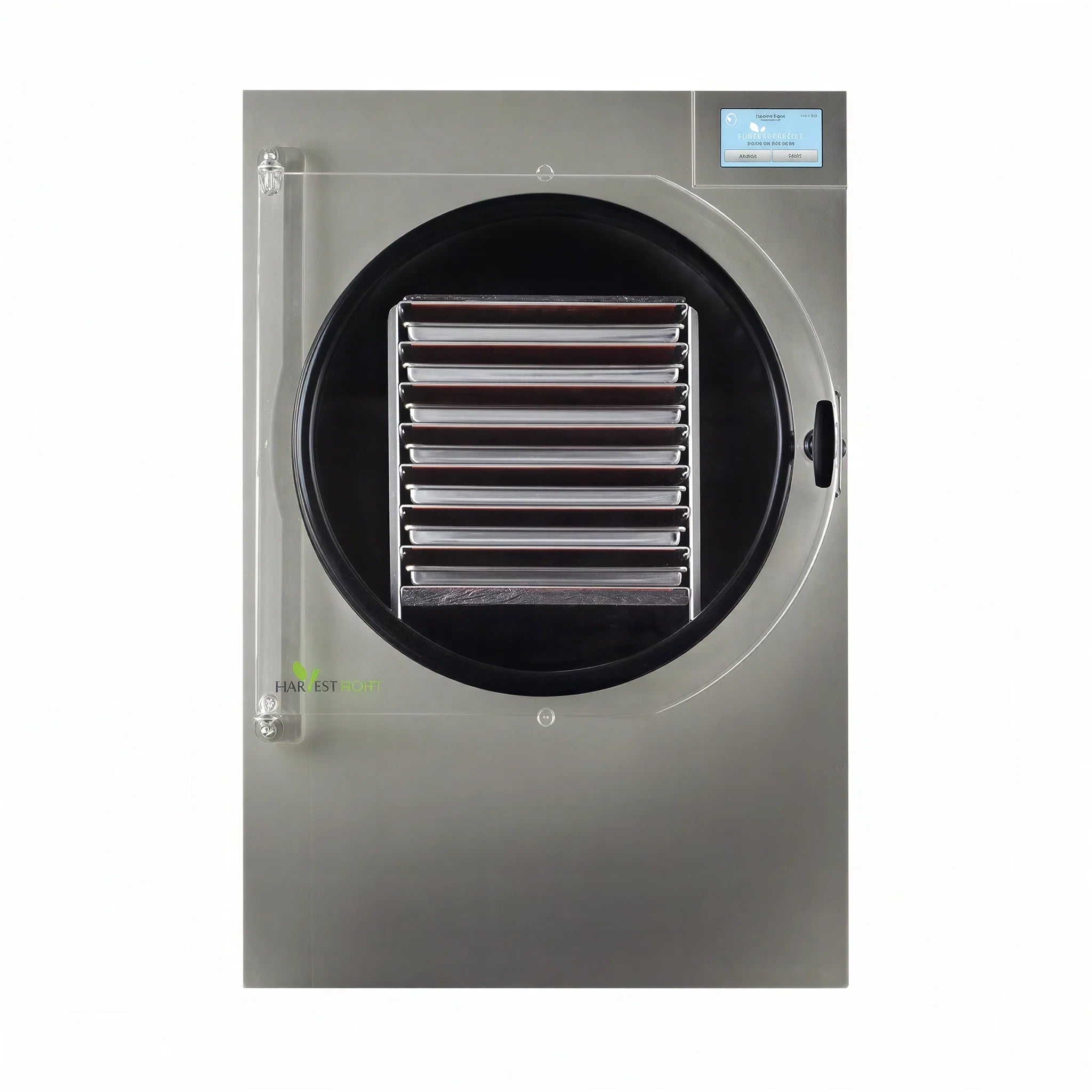

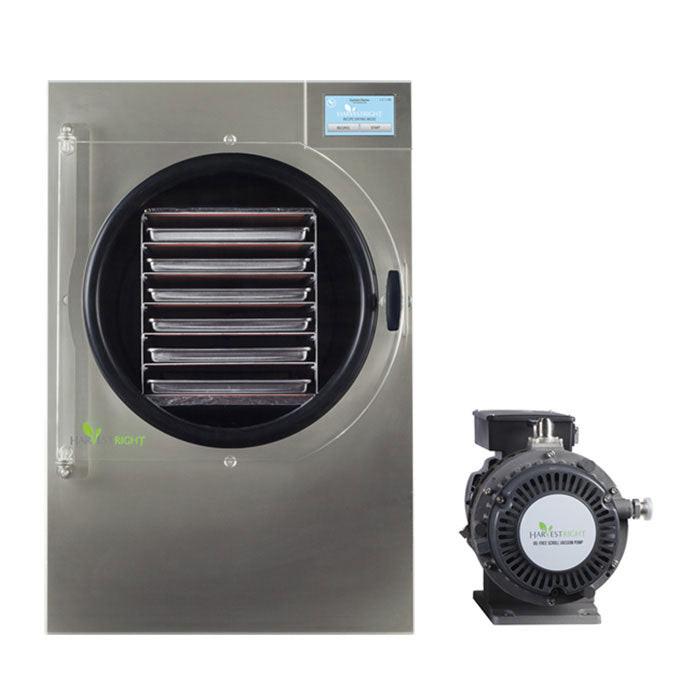

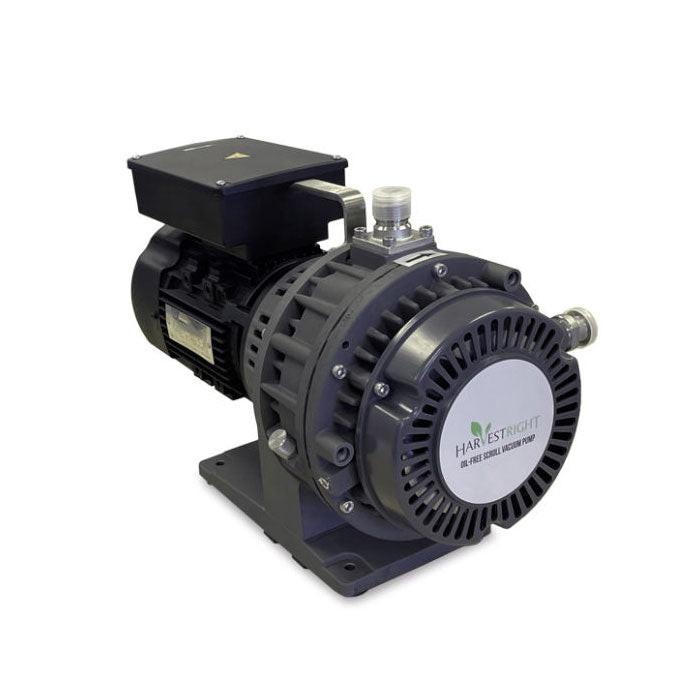

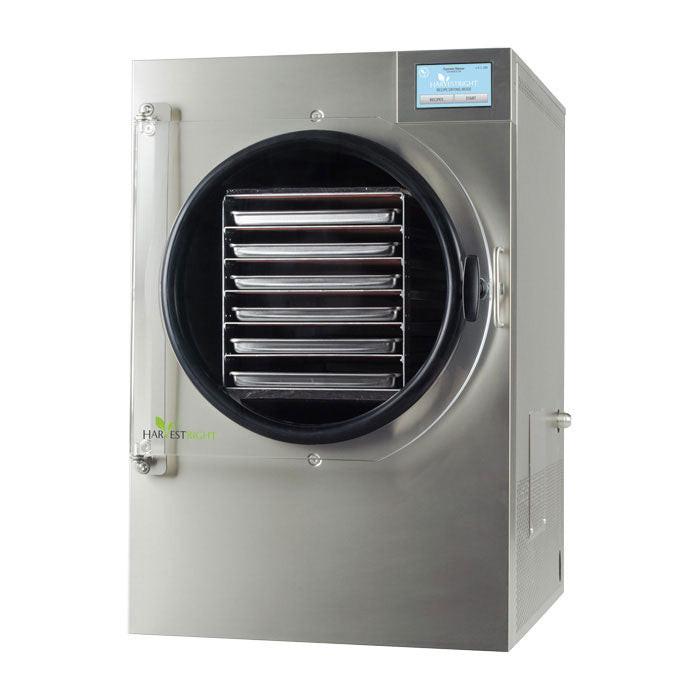

Guide to Freeze DryingHarvest Right’s Scientific Freeze Dryer ("Lyophilizer") is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the oil-free vacuum pump in conjunction with ascending, controlled temperature and time settings.
Key Features & Benefits of Scientific Freeze Dryers
- Full-color, touch-screen display.
- Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
- Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
- Control of the ultimate final freeze temperature.
- Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
- Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
- The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
- The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
- Provides ongoing, real-time display of pressure and temperature.

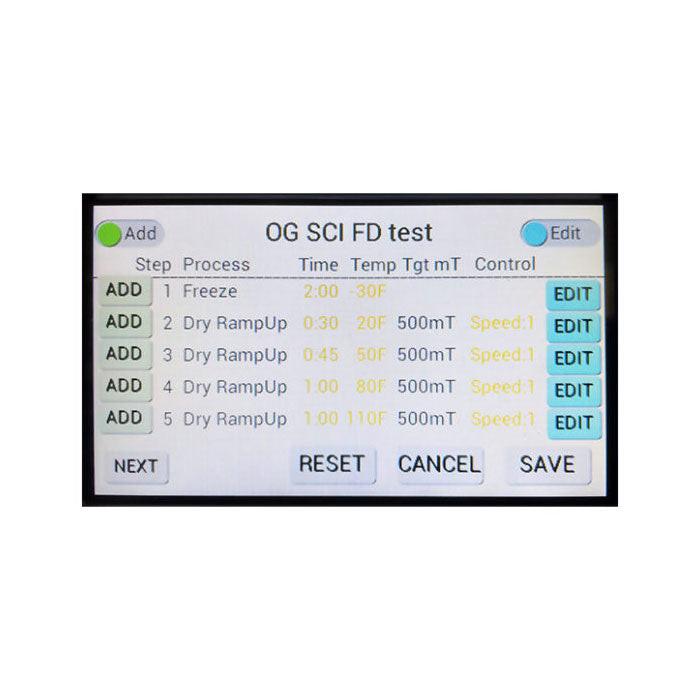

Profiles
Create multiple, manageable profiles, with the ability to power on and off the condensing unit and vacuum pump in conjunction with ascending, controlled temperature and time settings.

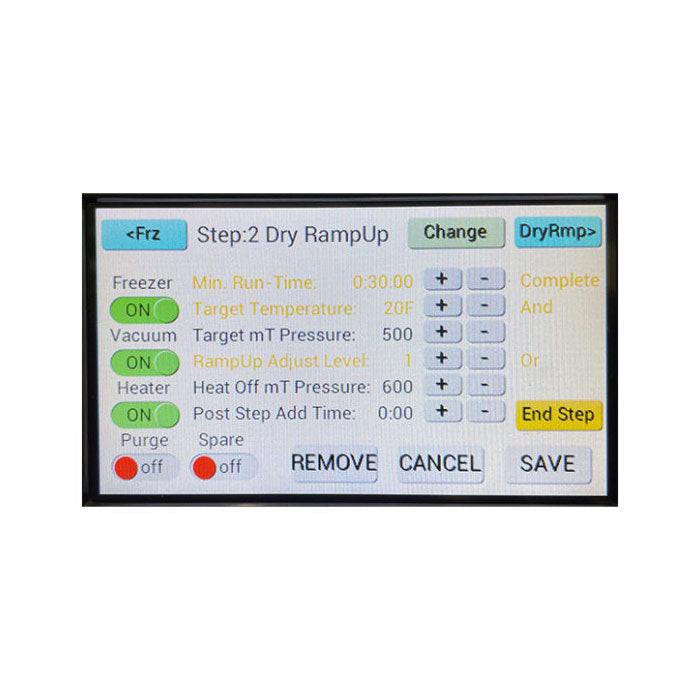

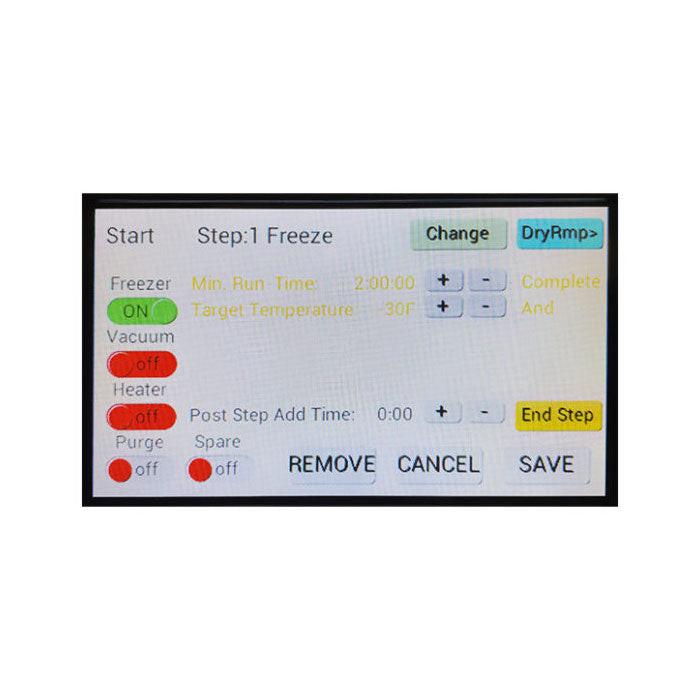

Manual or Automatic
The set point temperature can be programmed to any degree, and the ramp rate, at which the heaters rise, can be changed at any time. Also stores batch parameters and actual data.
Network Connection
With an ethernet cable, view freeze dry data through a cell phone, tablet, computer, or any device with access to a VNC Viewer. Data for each batch is maintained by the unit and can be accessed through a USB.
User Accounts
Can provide privacy with distinct user names and passwords, and can store up to 120 different recipes.
Large Capacity
Table top unit with 4-5 trays, large interior capacity, and freeze drys up to 4 gallons of material per batch.
Programmable Processor
The patented Smart Sensor controls temperature data recordings and manual and automatic operations.
Compare the Scientific Freeze Dryers
For the first time ever, affordable, high-quality, large-capacity laboratory (scientific) units are available in table top models. Competitive units are incredibly expensive, take up a lot of space, and are very costly to run.
Labs, universities, and research institutions that have used Harvest Right freeze dryers prefer them over larger, more expensive products.
Our scientific lyophilizer units are easier to use, more reliable, and have features that even larger, more expensive scientific units don’t have, such as our patented “smart sensors” that can sense when the material you are freeze drying is finished.
Medium
- Height: 30"
- Width: 20"
- Length: 25"
Material Per Batch
2-4 Gallons
Holding Capacity
2 Gallons of Sublimated Ice
Tray Count
5 Trays
Large
- Height: 32.5"
- Width: 22.5"
- Length: 25.5"
Material Per Batch
3.5-6.5 Gallons
Holding Capacity
3.5 Gallons of Sublimated Ice
Tray Count
6 Trays
X-Large
- Height: 35.6"
- Width: 24.3"
- Length: 37.4"
Material Per Batch
7-9 Gallons
Holding Capacity
24 Liters of Sublimated Ice
Tray Count
7 Trays
| Brand | Harvest Right |
|---|---|
| SKU | HRFD-SCIENTIFIC |
| Hazardous Material | false |
