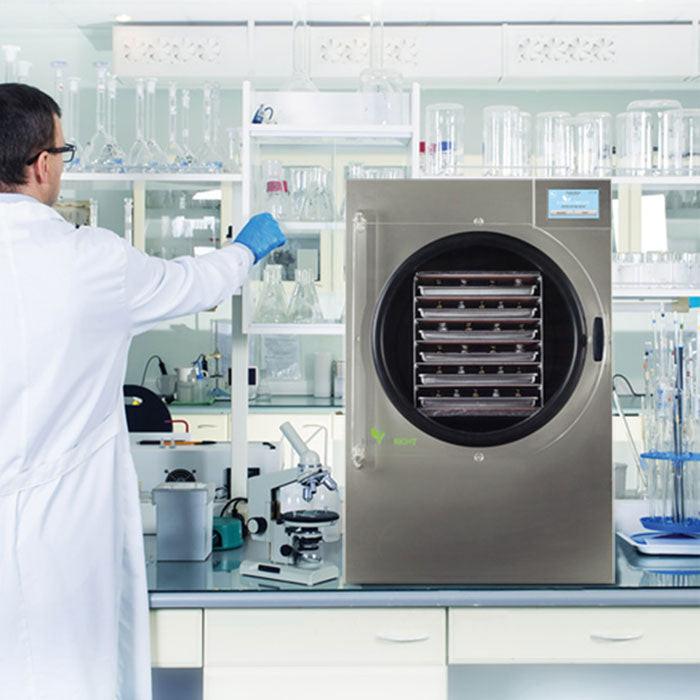

Guide to Freeze DryingHarvest Right’s Scientific Freeze Dryer ("Lyophilizer") is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the oil-free vacuum pump in conjunction with ascending, controlled temperature and time settings.
Key Features & Benefits of Scientific Freeze Dryers

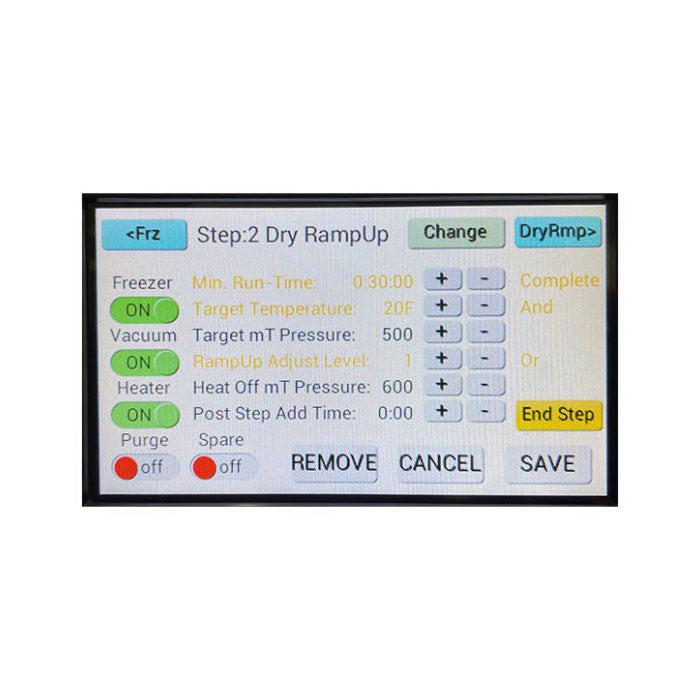

- Full-color, touch-screen display.

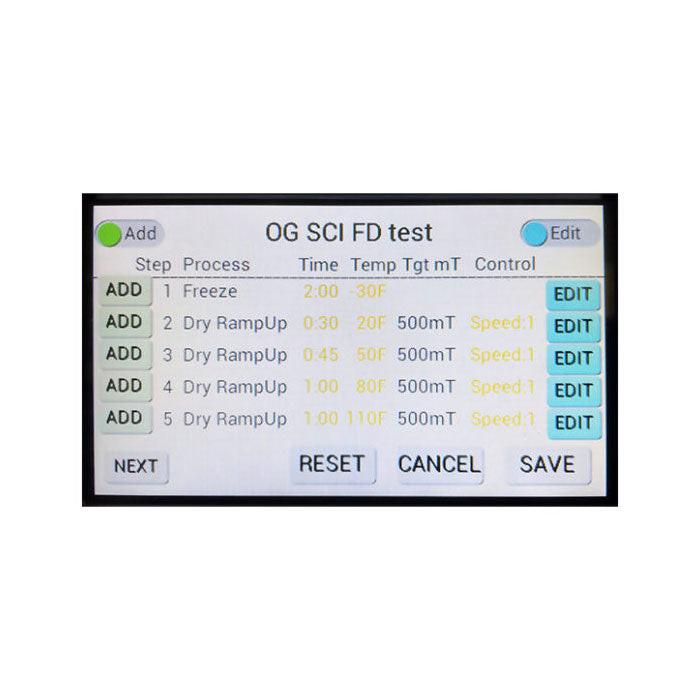

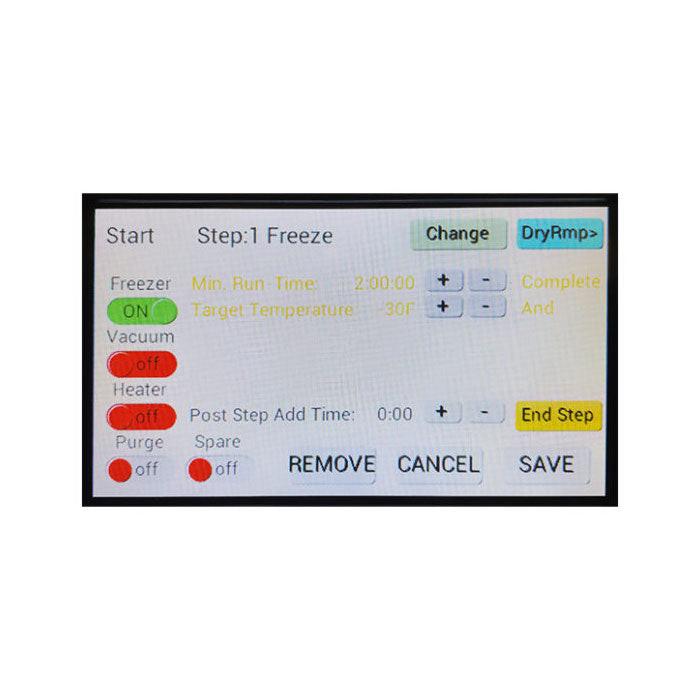

- Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
- Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
- Control of the ultimate final freeze temperature.
- Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
- Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
- The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
- The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
- Provides ongoing, real-time display of pressure and temperature.
Profiles
Create multiple, manageable profiles, with the ability to power on and off the condensing unit and vacuum pump in conjunction with ascending, controlled temperature and time settings.
Manual or Automatic
The set point temperature can be programmed to any degree, and the ramp rate, at which the heaters rise, can be changed at any time. Also stores batch parameters and actual data.
Network Connection
With an ethernet cable, view freeze dry data through a cell phone, tablet, computer, or any device with access to a VNC Viewer. Data for each batch is maintained by the unit and can be accessed through a USB.
User Accounts
Can provide privacy with distinct user names and passwords, and can store up to 120 different recipes.
Large Capacity
Table top unit with 4-5 trays, large interior capacity, and freeze drys up to 4 gallons of material per batch.
Programmable Processor
The patented Smart Sensor controls temperature data recordings and manual and automatic operations.
Compare the Scientific Freeze Dryers
For the first time ever, affordable, high-quality, large-capacity laboratory (scientific) units are available in table top models. Competitive units are incredibly expensive, take up a lot of space, and are very costly to run.
Labs, universities, and research institutions that have used Harvest Right freeze dryers prefer them over larger, more expensive products.
Our scientific lyophilizer units are easier to use, more reliable, and have features that even larger, more expensive scientific units don’t have, such as our patented “smart sensors” that can sense when the material you are freeze drying is finished.
Medium
- Height: 30"
- Width: 20"
- Length: 25"
Material Per Batch
2-4 Gallons
Holding Capacity
2 Gallons of Sublimated Ice
Tray Count
5 Trays
Large
- Height: 32.5"
- Width: 22.5"
- Length: 25.5"
Material Per Batch
3.5-6.5 Gallons
Holding Capacity
3.5 Gallons of Sublimated Ice
Tray Count
6 Trays
X-Large
- Height: 35.6"
- Width: 24.3"
- Length: 37.4"
Material Per Batch
7-9 Gallons
Holding Capacity
24 Liters of Sublimated Ice
Tray Count
7 Trays
| Brand | Harvest Right |
|---|---|
| SKU | HRFDMSC |
| Weight (lb.) | 134.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Lead Time | This product ships in 4-6 weeks |
| Hazardous Material | false |
| UPC | 854877008245 |
| ETL Listed | No |
| UL Listed | No |
| Curing Machine Type | Freeze Dryers |
Harvest Right Scientific Freeze Dryer, Medium Videos
Harvest Right Scientific Freeze Dryer, Medium Questions & Answers
Q: Which Freeze Dryer Is Right For Me?
Small Freeze Dryer:
- Capacity of each batch is a 6 to 10 lbs. of fresh food
- In a year, one can freeze dry up to 1,800 lbs. or more of food
Medium Freeze Dryer:
- Capacity of each batch is 10 to 15 lbs. of fresh food
- In a year, one can easily freeze dry up to 3,000 lbs. of food
Large Freeze Dryer:
- Capacity of each batch is 18 to 27 lbs. of fresh food
- In a year, one can easily freeze dry up to 5,000 lbs. of food
X-Large Freeze Dryer:
- Capacity of each batch is around 40 to 50 lbs. of fresh food
- In a year, one can easily freeze dry up to 10,000 lbs. of food
Q: How Does The Freeze Dryer Work?
- 1. Raw or cooked foods are placed in the freeze dryer where they are frozen to between -30 degrees and -50 degrees Fahrenheit.
- 2. Once frozen, the freeze-dryer creates a vacuum in the food chamber.
- 3. As the food is gradually warmed, the water turns to vapor and evaporates out of the food (sublimation).
- 4. When dry, the freeze dryer notifies the user that the process is complete by sounding an audible beep.
- 5. You can then remove the freeze-dried food from the dryer and place it in vacuum-sealed containers that are moisture and oxygen-proof (preferably a mylar pouch or a can) to ensure freshness until opened.
- 6. When water is added to the food, it regains its original fresh flavor, aroma, texture, and appearance!
Q: What Size Are Freeze Dryers & How Much Do They Weigh?
- Small 16.5" W x 18.5" D x 25" H Color: 91 lbs. Stainless: 98 lbs.
- Medium 18" W x 21.25" D x 28.5" H Color: 119 lbs. Stainless: 127 lbs.
- Large 20.25 " W x 23.75" D x 30.75" H Color: 143 lbs. Stainless: 150 lbs.
- X-Large 23.25 " W x 33.7" D x 35.6" H Color: N/A, Stainless: 258
Q: What Type Of Food Can Be Freeze Dried?
You truly can freeze-dry almost anything. All kinds of fruits, vegetables, and meats taste wonderful when freeze-dried. That includes things like tomatoes, apples, bananas, strawberries, peaches, green beans, peppers, onions, potatoes, spinach, shrimp, pork, beef, turkey, and even ice cream. Your favorite meals that include meat may be easily freeze-dried. Foods like lasagna, rice dishes, cheese macaroni, chili, beef stew, chicken a la king, casseroles, shrimp, lobster, pulled pork, pasta sauces, or scrambled eggs are perfect for this process. You will find that it is a delight to experiment with different foods and meals in your freeze-dryer. A great way to start is by picking meals that are already favorites in your home.
Q: How Much Food Can Be Freeze Dried With Each Batch?
Small
6-10 lbs. of fresh food will fit in our small freeze dryer. It is not uncommon for customers to freeze dry up to 1,800 lbs. of fresh food in just 1 year. Tray space= 434 sq. inches
Medium
10-15 pounds of fresh food will fit in our medium size freeze dryer. It is not uncommon for customers to freeze dry up to 3,000 lbs. of fresh food in just 1 year. Tray space= 675 sq. inches
Large
18-27 pounds of fresh food will fit in our large freeze dryer. It is not uncommon for customers to freeze dry up to 5,000 lbs. of fresh food in just 1 year. Tray space= 1,107 sq. inches
X-Large
40-50 pounds of fresh food will fit in our X-Large freeze dryer. It is not uncommon for customers to freeze dry up to up to 10,000 pounds of fresh food in just 1 year. Tray space= 2,251 sq. inches
Q: How Long Does It Take To Freeze Dry Each Batch?
It typically takes between 20 to 40 hours to complete the process. Food type and quantity will affect the freeze-dry cycle. Things like meat, peas and corn dry quickly, while squash and watermelon can take longer. The thickness of the food slices will affect the cycle time too. Most importantly, your machine senses when the food is ready (alerting you with a beep) so you don’t have to guess when to stop the freeze-dry cycle.
Q: Is It Ok To Freeze Things Prior To Placing In The Freeze Dryer?
Yes! It is a great idea to put frozen products into your freeze dryer. Your machine will accept pre-frozen foods and cool them even further, to around -40 degrees F.
Q: What Components Make Up A Freeze Dryer?

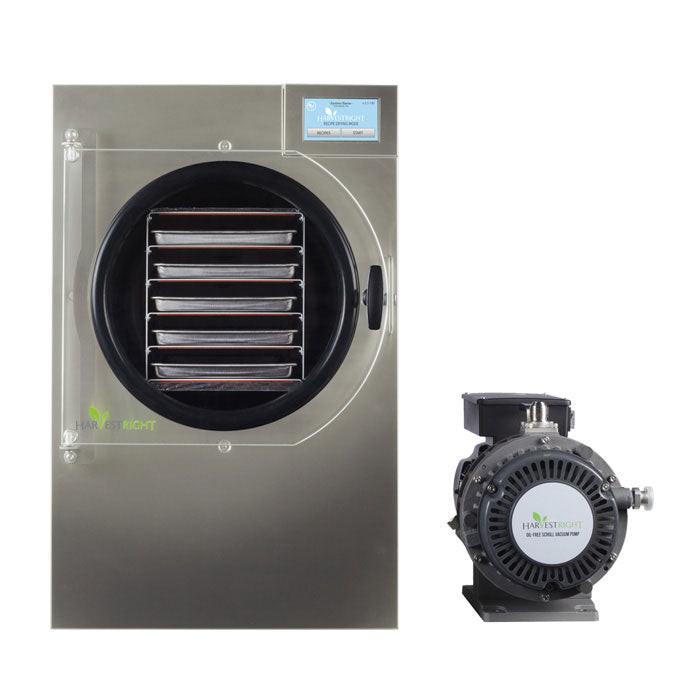

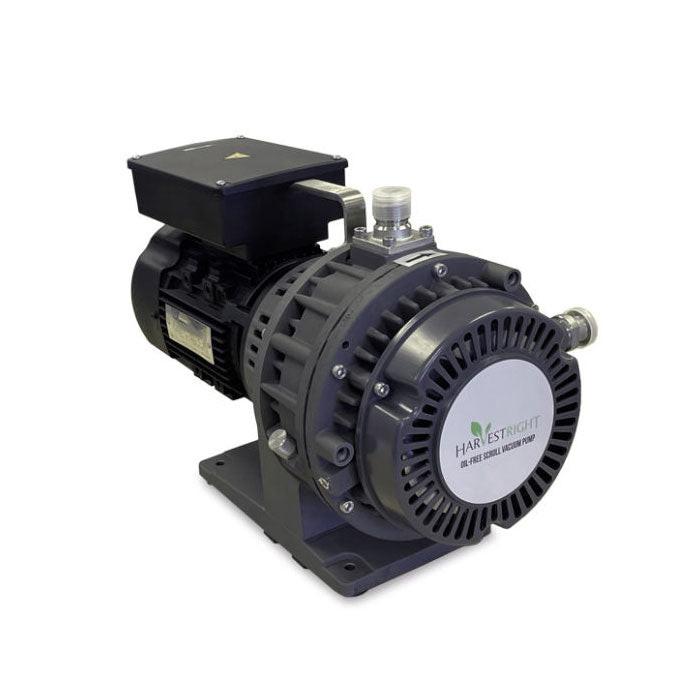

The freeze dryer unit itself as well as a high-quality vacuum pump that sits outside the freeze dryer.
Q: What Maintenance Is Required For A Freeze Dryer?
The freeze dryer itself requires little to no maintenance. However, as shown below, all freeze dryers come with a high quality vacuum pump, which requires some maintenance, mainly adding and draining oil. The vacuum pump comes equipped with an initial supply of oil. There are 3 cups of oil in a vacuum pump that need to be changed regularly to keep a freeze dryer running efficiently. This is a simple process, and requires little effort. Each freeze dryer also includes a stand-alone oil filter. The filter cleans the oil and allows you to keep reusing your oil as if it were new. Using filtered oil in each batch is a great way to save money and be more eco-friendly, while also helping your vacuum pump perform as efficiently as possible
Q: What Type Of Power Do The Freeze Dryers Use? How Much Do They Cost To Run?
Small and Medium: Our small and medium freeze dryers use a standard 110 volt outlet. At peak, the freeze dryer draws about 15 amps, but on the average about 9 to 11 amps (990-1210 watts) of power per hour. A dedicated 20 amp circuit is recommended. Your freeze dryer will cost an estimated $1.25-$2.80 a day, depending on power costs in your area.
Large : Our large freeze dryer requires a 110 volt (NEMA 5-20) outlet. At peak, the large freeze dryer draws about 15 amps, but on the average about 10 amps (1500 watts) of power per hour. A dedicated 20 amp circuit is required. Your freeze dryer will cost an estimated $2.00-$3.00 a day, depending on power costs in your area.
X-Large: Our x-large freeze dryer requires a 110 volt (NEMA 5-20) outlet. At peak, the x-large freeze dryer draws about 17 amps, but on the average about 13 amps (1600 watts) of power per hour. A dedicated 20 amp circuit is required. Your freeze dryer will cost an estimated $4.00 a day, depending on power costs in your area.
Q: What Type Of Warranty Is Offered
3-Year Limited Warranty - All sales of Harvest Right Freeze Dryers after February 1, 2019, are covered by this warranty.
Q: How does the Scientific Free Dyer work?
Harvest Right scientific freeze dryers are remarkable, and a perfect addition to any laboratory. Our scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the vacuum pump in conjunction with ascending, controlled temperature and time settings.
