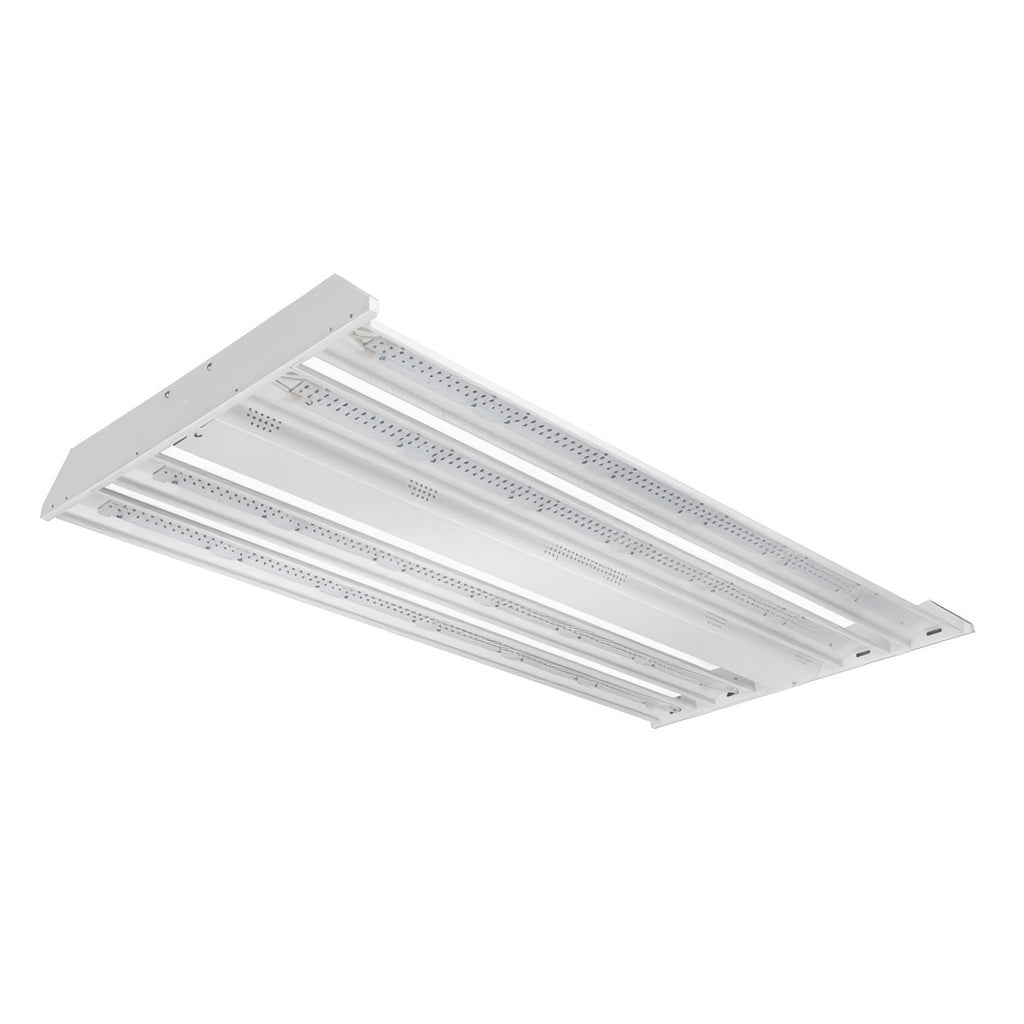

Growlite Wide Body Veg Spec Sheet Growlite Wide Body Veg SellSheet Growlite Wide Body Veg Installation InstructionsGrowlite has developed leading edge LED grow lighttechnology that replaces traditional fluorescent and HID lighting in the beginning growth stages of the plant. The WIDE BODY VEG is a 320W LED fixture that is designed toreplace a 400W MH of a 10-lamp T5HO fixture on a one forone basis. Wide distribution and coverage make the WIDEBODY VEG the logical choice for veg and mother rooms.
Features
- Full-spectrum white LED light provides perfect spectral performance for vegetative and mother juvenile or leafy plants
- Low watt energy consumption
- Over 70% of lighting intensity concentrated within the 120 degree beam angle
- Premium build quality to withstand rigorous environments
- Isolated, vented driver compartment optimizes thermal dissipation
- Wide body design ensures smooth, even light distribution perfect for vegetating plants
SPECS
- Hook and chain included
- Can be mounted with included chain
- 120~277VAC voltage input
- Standard 6' line cord with 120VAC plug
- 0-10V dimming
- UL Listed for damp location
- Operating temperature: -40°C to 50°C (-40°F to 122°F)
- Five (5) Year Warranty
- Dimensions: L 47.5" x W 24.0" x D 2.9"
- Packaged Weight: 30.0 lbs / 13.6 kgs
- Installed Weight: 27.0 lbs / 12.2 kgs
| Brand | Growlite |
|---|---|
| SKU | WBV-320L |
| Weight (lb.) | 30.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 5-8 Business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Veg Spectrum |
| LED Fixture Type | Panel |
| LED Features | Dimmable *with Controller |
| Est. Electricity Cost /mo | $12.96 |
| Exact Watts | 300 Watts |
| Suggested Hanging Height | 24" - 36" Above Canopy |
| Power Factor | > 0.99 |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 6 ft. |
| Coverage Area | Veg: 4' x 6' |
| Grow Light Certifications | DLC Listed, UL Listed |
| ETL Listed | No |
| UL Listed | Yes |
