Growers Choice Product Documents
Grower's Choice PFS LED Specs Grower's Choice PFS LED Specs Continued Grower's Choice PFS LED Instruction ManualPFS Series LED Lighting from Grower's Choice

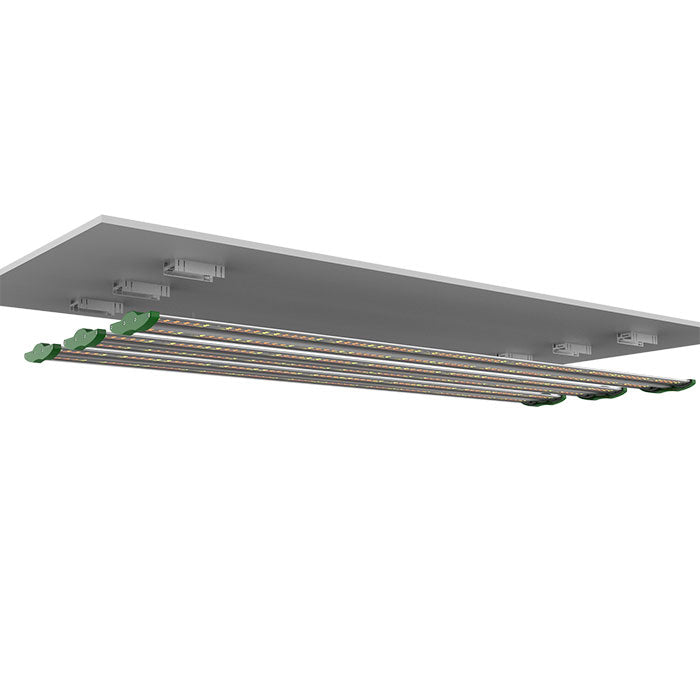

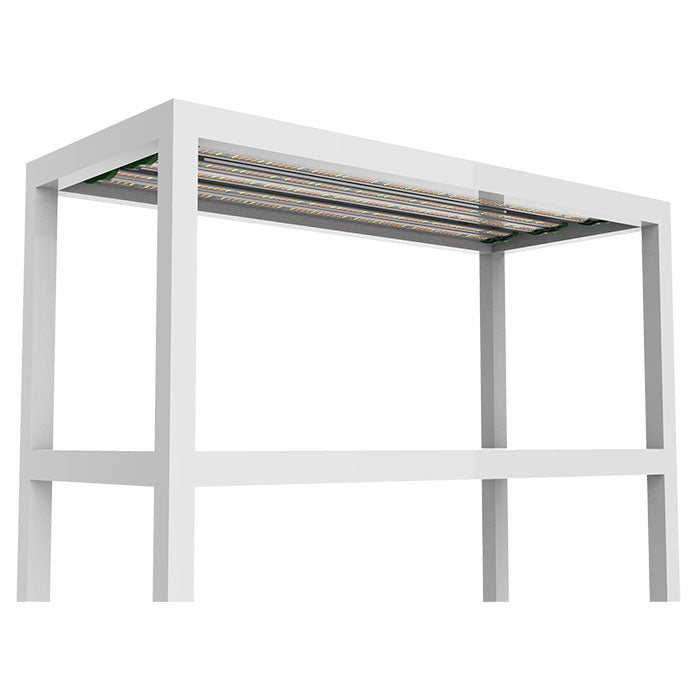

Horti Tech PFS grow lights ultra-low profile at only 1.5 inches thin, are especially created for dense vertical commercial farming where every inch of your indoor cultivation matters. Stack layers from floor to ceiling of leafy greens, micro-greens, and culinary herbs with maximum efficiency at near-ZERO radiant heat with outputs as high as 2.5 umol/J. The PFS is ideal for propagation of medicinal, vegetable and ornamental crops, including cloning and seedling beds, implementing the most pertinent photosynthetic photon flex density for well stacked and dense vegetative growth.

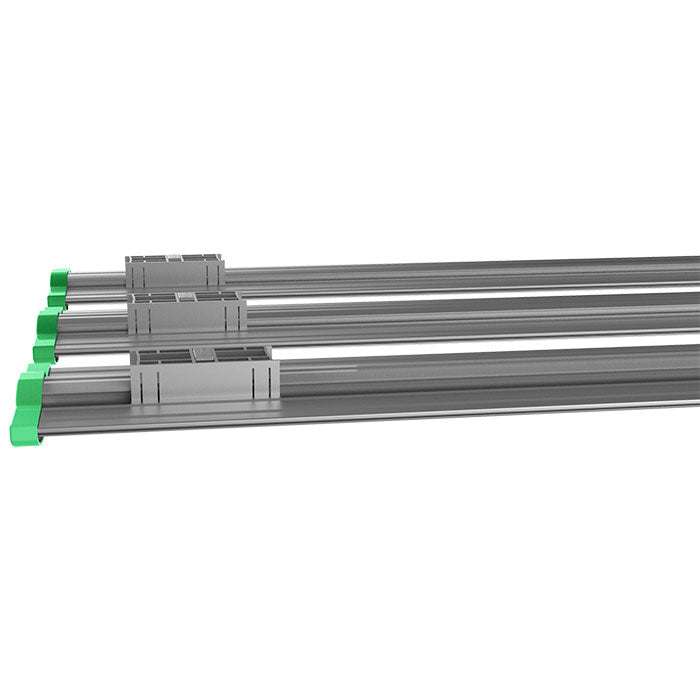

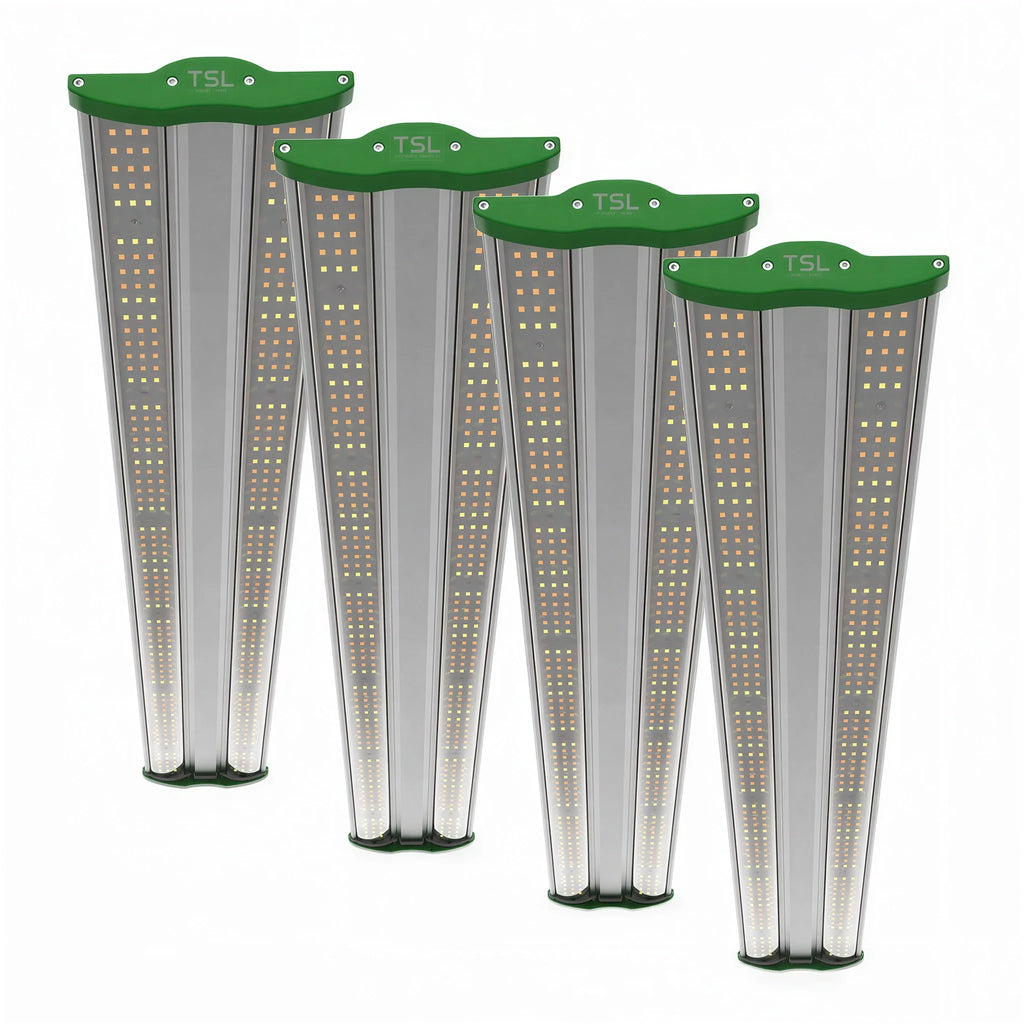

Note: The PFS Series consists of 4 light bars (4 pack sold together) that have individual cords that connect to 1 master cord. Each bar covers a 2' x 4' area
All Growers Choice LEDs come with Osram Top Bin Diodes
Features:
Balanced spectrum, incorporating Grower's Choice famous 3K CMH Full Phase Spectrum for superior growing power with best possible LED diodes available.
Energy Saving & Easy HVAC:
Up to 60% energy savings. 60% less HVAC requirement
Full Spectrum:
The specially deployed full spectrum fills the negligence of the main photoreceptors and pigments outside the 660nm and 450nm range, and it is suitable for reproduction to aging in indoor environments. The overall color temperature of FSM's full spectrum is controlled at 3000-3300K, which increases the radiant energy of red light at 660nm wavelength in white light. It provides a beautiful working environment and a more realistic color reproduction degree at a CRI level of 85.
PPF Calculations:
The specially deployed full spectrum fills the negligence of the main photoreceptors and pigments outside the 660nm and 450nm range, and it is suitable for reproduction to aging in indoor environments. The overall color temperature of FSM's full spectrum is controlled at 3000-3300K, which increases the radiant energy of red light at 660nm wavelength in white light. It provides a beautiful working environment and a more realistic color reproduction degree at a CRI level of 85.
Wattage Values:
Wattage Values: Wattage values are typical expected values. TSL Hort Tech maintains a tolerance of +/- 10% range on flux and power consumption. Target light level can vary from projected levels depending on ambient temperature, room relfections values, and other conditions.
Specifications
- Light Source: LED
- Spectrum: GC-3K Full Phase
- PPF: 100 umols/s
- Input Power: 40 Watts
- Efficacy: 2.5 umols/s
- Fixture Dimensions: 47.2 x 5.1 x 1.5 (1 Light Bar)
- Mounting Height: 6 in. (15.2 cm) above canopy
- Thermal Managment: Passive
- Light Distribution: 120 Degrees
- Lifetime: L90: > 54,000 hours
- Power Factor: >90%
- Certifications: IP65, ETL, CE
- Warranty: 3 Years
| Brand | Growers Choice |
|---|---|
| SKU | GCPFS01 |
| Weight (lb.) | 15.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | 2-3 |
| Hazardous Material | false |
| UPC | 713440682414 |
| Case/Pack/Pallet Amount | 4 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Bar/Strip |
| Est. Electricity Cost /mo | 6.91 |
| Exact Watts | 40 Watts |
| Suggested Hanging Height | 6" - 8" |
| LED Diode Type | Osram Top Bin Diodes |
| PAR Efficiency | 2.5 μmol/j |
| Total PPF Output | 100 μmol/s |
| Power Factor | >90% |
| Voltage | 120 Volts, 208 Volts, 240 Volts, 277 Volts |
| Amps | 0.345 Amps @ 120 Volts, 0.197 Amps @ 208 Volts, 0.173 Amps @ 240 Volts, 0.154 Amps @ 277 Volts |
| Power Cord(s) Included | 120 Volt |
| Power Cord Length | 8 ft. |
| Coverage Area | Veg: 4' x 1'; Flower: 4' x 1 |
| Grow Light Certifications | IP65 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
What growing applications suit the Growers Choice PFS Series LED Grow Light?
The Growers Choice PFS Series LED Grow Light suits propagation, cloning, seedling beds, leafy greens, micro-greens, culinary herbs, medicinal crops, vegetable crops, and ornamental crops. The 1.5-inch profile supports dense vertical farming layouts.
What spectrum and light output does the Growers Choice PFS Series LED Grow Light provide?
The Growers Choice PFS Series LED Grow Light provides a GC-3K Full Phase balanced spectrum, 100 μmol/s PPF, and 2.5 μmol/J efficacy. The full spectrum includes enhanced 660nm red light and 450nm blue light.
How much growing area does the Growers Choice PFS Series LED Grow Light cover?
The Growers Choice PFS Series LED Grow Light includes four light bars, with each light bar covering a 2-foot by 4-foot area.
How high should the Growers Choice PFS Series LED Grow Light hang above the plant canopy?
The Growers Choice PFS Series LED Grow Light should hang approximately 6 to 8 inches above the plant canopy.
What comes with the Growers Choice PFS Series LED Grow Light?
The Growers Choice PFS Series LED Grow Light includes four light bars, individual cords for each light bar, and one master cord connecting the light bars.
