FloraFlex Product Documents

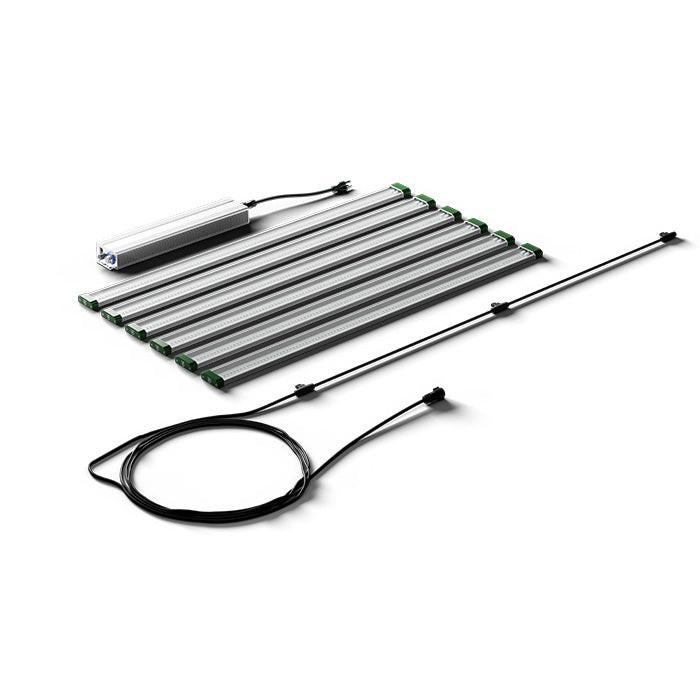

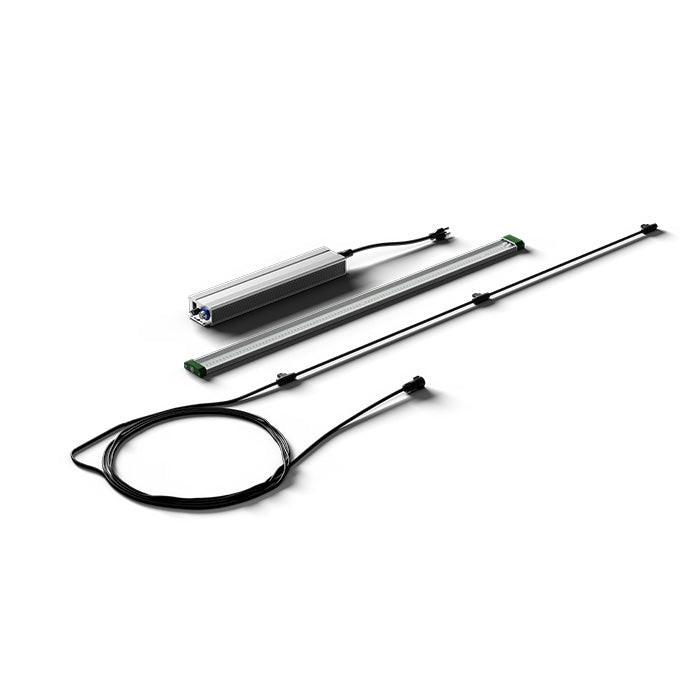

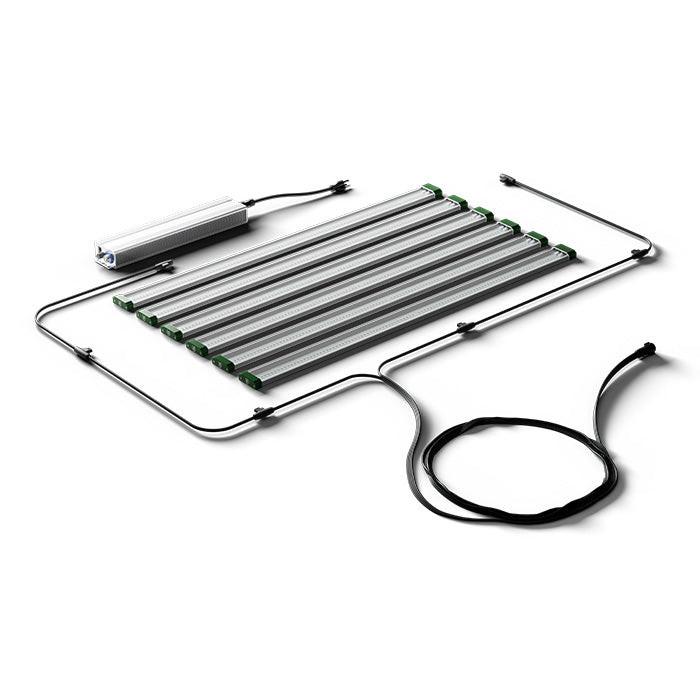

FloraFlex 6-Bar Under-Canopy Spec SheetUnder Canopy 6-Bar LED Grow Light 720W | 4'x8'
The 720W UnderCanopy LED Grow Light (6 Bars, 120W per Bar) is engineered to redefine under canopy plant growth by delivering full-spectrum lighting, including far-red wavelengths, to enhance flowering, terpene production, and overall plant development. Ideal for large cultivation areas ranging from 4' x 8' to 4' x 12', these lights ensure even light penetration beneath the canopy, addressing shading issues and unlocking untapped growth potential.
The addition of far-red spectrum light stimulates the Emerson Effect, increasing photosynthesis rates and boosting flower quality and density. Growers using under-canopy lighting have reported up to 40% increases in yield, with improved flower color and heightened terpene production for a more aromatic and flavorful harvest.
Equipped with Full Spectrum Custom Diodes + Osram 6.24 chips, the system provides a powerful 2376 µmol/s output with an industry leading efficacy of 3.3 µmol/J, delivering energy-efficient, high-performance lighting. The IP65 waterproof rating, passive cooling system, and adjustable wattage (100W to 720W) make this lighting solution ideal for both commercial and home growers.

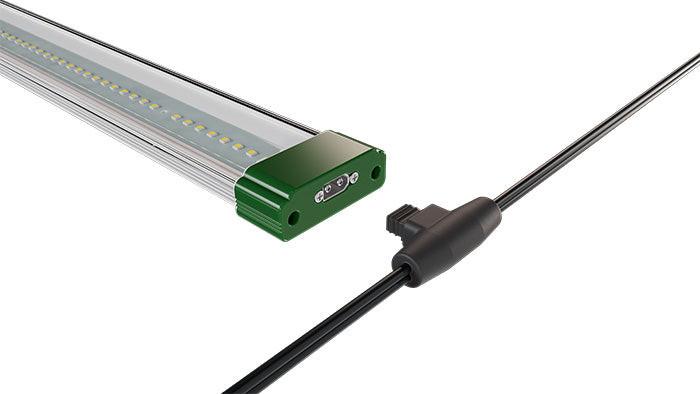

The 24-inch cord length between each bar allows easy customization for optimal placement in your growing space, ensuring full coverage and uniform light distribution.
Key Features:
- Covers 4' x 8' to 4' x 12' Areas - 24-Inch Cord Length Between Bars: Allows flexible positioning and optimal light coverage
- Includes Far-Red Spectrum: Stimulates the Emerson Effect to improve photosynthesis and flowering.
- Up to 40%+ Increase in Yield: Enhances flower density, terpene profiles, and color consistency.
- Energy Efficient: 3.3 µmol/J efficacy for maximum light utilization and energy savings.
- IP65 Waterproof Rating: Perfect for humid environments such as hydroponic setups.
- Plug-and-Play Installation: Quick setup.
Spectrum and Coverage:
The 720W UnderCanopy LED Grow Light is specifically designed to enhance the flowering stage by delivering a balanced full spectrum that includes red (PPF600-700: 1592 µmol/s) and far-red (PPF700-800: 612.3 µmol/s) wavelengths. These wavelengths are critical for stimulating flowering responses, promoting robust bud development, and improving flower density. The inclusion of far-red light also triggers the Emerson Effect, which boosts photosynthesis efficiency and accelerates bloom cycles. This optimized spectrum ensures more consistent flower color, increased terpene production for richer aromas and flavors, and higher yields, making it an invaluable tool for growers focused on achieving premium-quality harvests during the flowering stage.
| Light Output PPF | 2376 µmol/s |
|---|---|
| Efficacy PPE | 3.3 µmol/J |
| AC Input Power | 720W (Adjustable from 100W-720W) |
| AC Input Voltage | 120V-277V AV, 50/60Hz |
| Light Distribution: | 120° |
| Coverage | 4' x 8' - 4' x 12' |
| Chips | Full Spectrum Custom Diodes + Osram 6.24 |
| Cord Length Between Bars | 24 inches |
| Thermal Management | Passive |
|---|---|
| Max Ambient Temperature | 95°F / 35°C |
| Dimming | 0 - 10V |
| Total Harmonic Distortion (THD) | 15% |
| Lifetime | L90 > 5000 hours |
| IP Rating | IP65 |
| Certifications | ETL, DLC |
| Warranty | 10-Year Standard Warranty |
Weights and Dimensions:
- Length: 41.57" (1056mm)
- Width: 7.28" (185mm)
- Height: 7.48" (190mm)
- Weight: 15.43 lbs (7kg)
AC Voltage and Power:
- AC Voltage: 120V / 240V / 277V
- AC Current: 6.13A (120V), 3.02A (240V), 2.60A (277V)
- AC Power: 735W (120V), 725W (240V), 720W (277V)
- Power Factor: 0.98 (120V), 0.98 (240V), 0.97 (277V)
| Brand | FloraFlex |
|---|---|
| SKU | FF-6001 |
| Weight (lb.) | 17.2900 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 10 Year |
| Lead Time | Ships in 3-5 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Far-Red |
| LED Fixture Type | Under/Inner Canopy, Bar/Strip |
| LED Features | Dimmable *with Controller |
| Exact Watts | 720 Watts (Adjustable from 100 Watts-720 Watts) |
| LED Diode Type | Full Spectrum Custom Diodes + Osram 6.24 |
| PAR Efficiency | 3.3 µmol/J |
| Total PPF Output | 2376 µmol/s |
| Power Factor | 0.98 (120V), 0.98 (240V), 0.97 (277V) |
| Daisy Chain | Yes |
| Voltage | 120 Volts |
| Amps | 6.13A (120V), 3.02A (240V), 2.60A (277V) |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Coverage Area | Flower: 4' x 8' |
| Grow Light Certifications | DLC Listed, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
FloraFlex 6-Bar 720 Watt Far-Red Under-Canopy LED Grow Light, 120 Volt Questions & Answers
Q: How do under-canopy lights with far-red spectrum change the way I grow my plants?
A: The inclusion of far-red light enhances photosynthesis through the Emerson Effect, which allows plants to utilize light more efficiently. This leads to faster growth, denser flowers, and improved overall plant health, enabling you to achieve higher yields and better-quality harvests.
Q: Do I need to adjust my feeding or watering schedules with far-red spectrum lighting?
A: Yes, with increased light intensity and spectrum diversity, plants may require more water and nutrients to sustain enhanced growth and flowering. Monitor your plants closely and adjust schedules as needed to ensure they receive adequate hydration and nutrients.
Q: How does the far-red spectrum affect flowering and terpene production?
A: Far-red light encourages more robust flowering by accelerating bloom cycles and enhancing flower density. It also stimulates terpene production, leading to richer aromas and flavors in the final product.
Q: How much heat do the 720W UnderCanopy Lights produce?
A: Thanks to passive cooling technology, these lights generate minimal heat, even with far-red output, keeping your grow environment stable and reducing the need for additional cooling systems.
Q: Can these lights be daisy-chained together?
A: Yes, you can daisy-chain multiple units depending on your power source and voltage. Typically, 4-6 units can be connected on a single circuit, but always check power requirements and circuit limitations.
Q: Are the 720W UnderCanopy Lights DLC listed for energy rebates?
A: Yes, these lights are DLC listed, making them eligible for energy rebates and helping you reduce operational costs while maintaining high efficiency.
Q: Do under-canopy lights with far-red spectrum increase the risk of plant stretch?
A: No, the far-red spectrum in these lights is balanced to avoid excess stretching. Instead, it promotes compact, healthy growth by improving light coverage across all plant levels.
Q: How do I position the lights to take advantage of the far-red spectrum?
A: Position the lights under the canopy to target shaded areas, ensuring even light coverage. The 24-inch cord length between bars allows flexibility in placement to maximize far-red exposure across all plant levels.
Q: What maintenance is required for under-canopy lights?
A: Maintenance is minimal. Wipe down the fixtures periodically to remove dust and debris, and ensure connections are secure for optimal performance.
Q: How does the far-red spectrum affect environmental controls?
A: Far-red lighting can lead to increased transpiration and photosynthesis, which may require slight adjustments to humidity and temperature settings. Proper monitoring and airflow management will help maintain optimal growing conditions.
Q: What is the expected lifespan of the 720W UnderCanopy Lights?
A: These lights are built to last with an L90 > 5000-hour rating, ensuring consistent performance over years of use.
