FloraFlex Product Documents

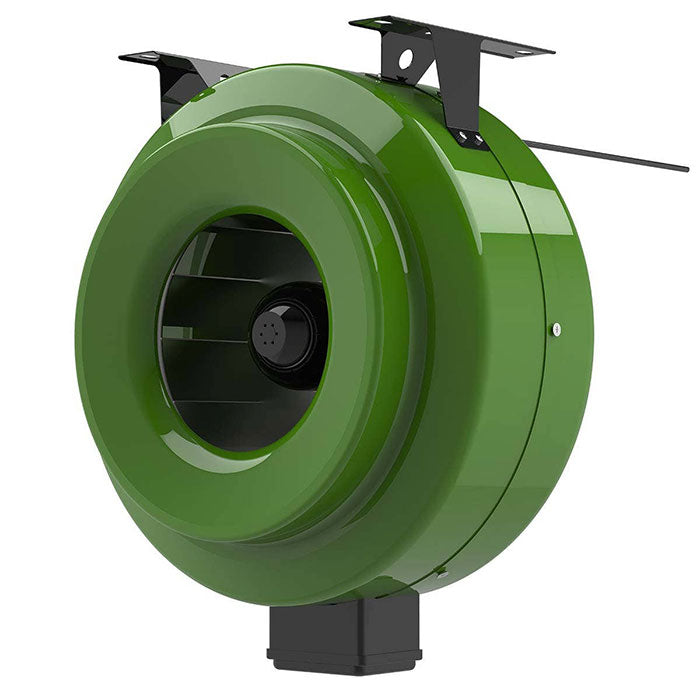

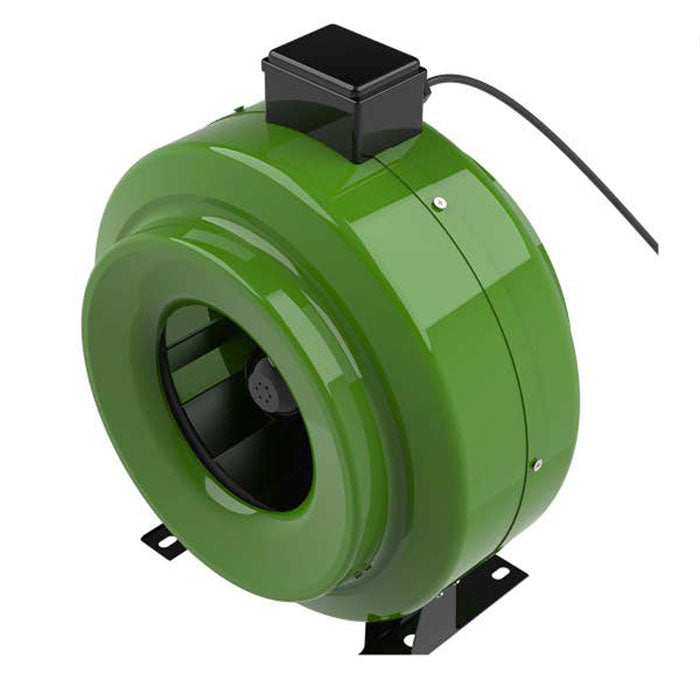

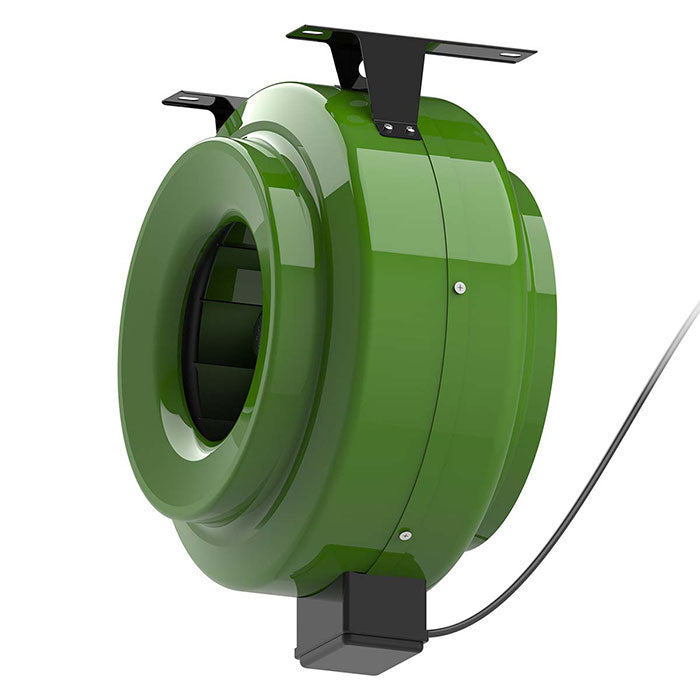

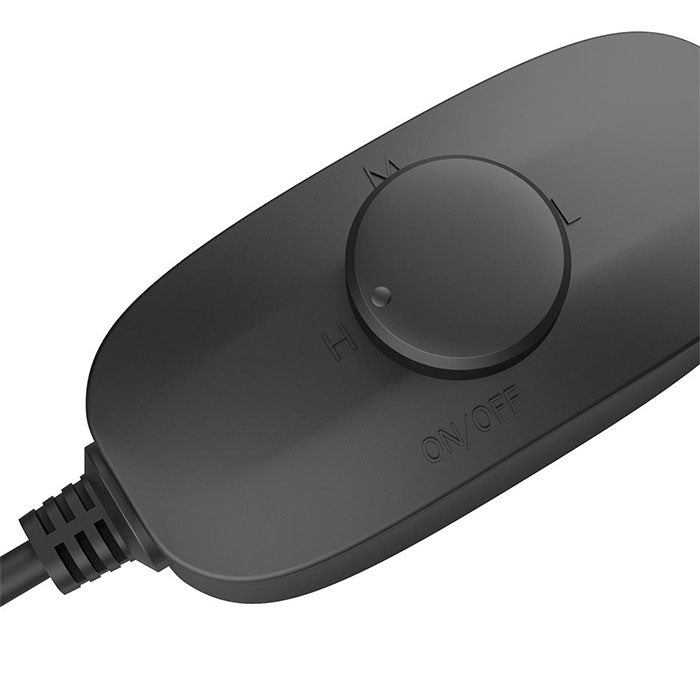

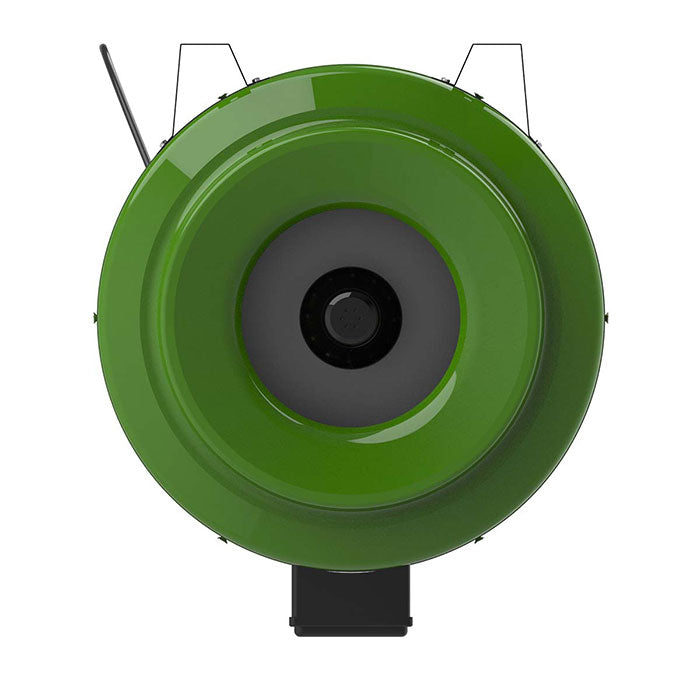

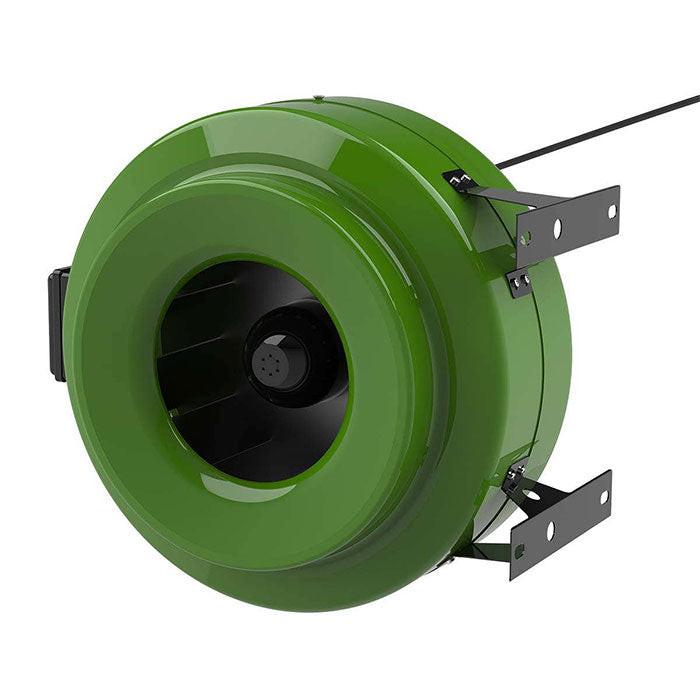

This inline fan system offers exceptional build quality in a value-packed design. It is ideal for quietly cooling grow tents, rooms, and closets, while also providing ventilation for various air circulation and exhaust needs. Featuring an inline mixed-flow design, the duct fan ensures consistent airflow, even in high static pressure conditions. The motor box, which houses the fan's impeller and blades, can be easily detached from the mounted frame for convenient cleaning and maintenance. The complete kit includes the inline fan unit, a speed controller, an installation manual, and all necessary mounting hardware.
FloraFlex Inline Fan with Speed Controller Specs
| Size |
4" |
6" |
8" |
10" |
12" |
| Voltage |
120 Volt |
| Frequency |
60 Hz |
| Power |
101 Watts |
174 Watts |
215 Watts |
239 Watts |
299 Watts |
| Current |
0.86 Amps |
1.45 Amps |
1.83 Amps |
2.00 Amps |
2.50 Amps |
| Speed |
2850 RPM |
2780 RPM |
3000 RPM |
2750 RPM |
2750 RPM |
| Air Flow |
189 CFM |
460 CFM |
720 CFM |
810 CFM |
1100 CFM |
| Noise |
48 DB |
60 DB |
54 DB |
56 DB |
62 DB |
| Pressure |
508 Pa |
673 Pa |
813 Pa |
864 Pa |
1016 Pa |
| Cord Length |
6 Ft |
| EL Listed |
Yes |
