efinity EcoGrow LED Grow Light Spec SheetThe World’s Most Cost Effective Indoor LED Grow Light Fixture

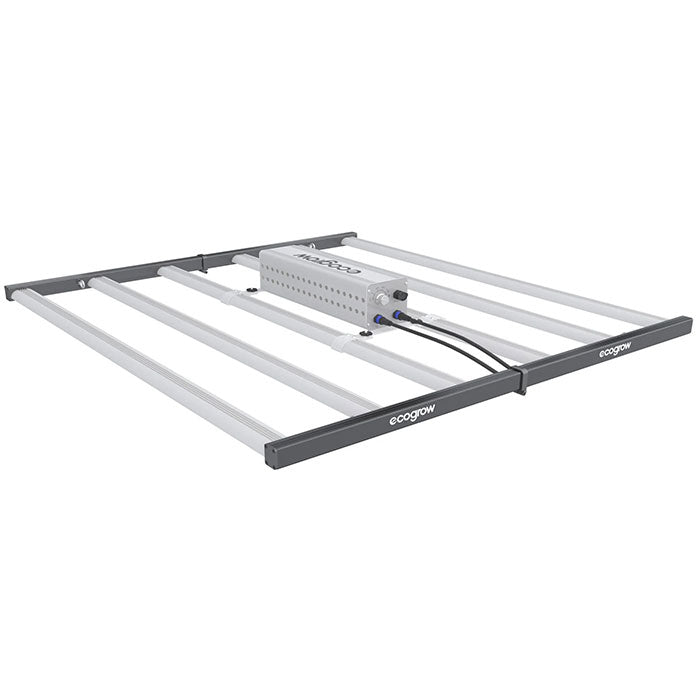

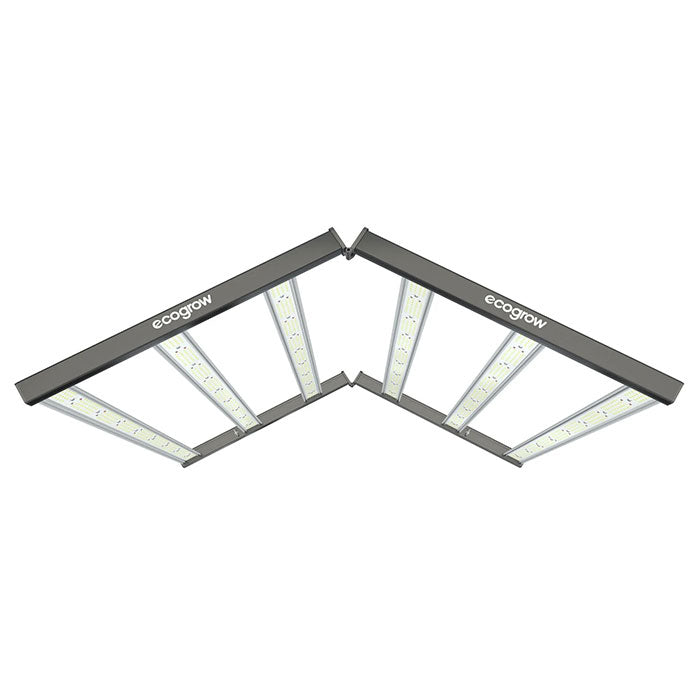

Built for all stages with a Lightweight, Slimline, Foldable, All-Metal Frame. The EcoGrow 630 Watt LED Grow Light will produce exceptional results at all stages of growth with its powerful 1701 µmol/s & 2.7 µmol/J
Osram top-bin diodes help deliver precise, uniform photons to your plants, regardless of the environment.
Key Features
- Full-Specturm LED light fixture for all stages
- Efficay up to 2.7 umol/J
- Daisy-Chain up to 6 units
- Dimmable down to 0%
- Osram LED Chips
- Offers PPF up to 1701 μmol/s
- Certified with ETL
- 5 year warranty on ballast
- 50,000 hour warranty on LEDs
Full Metal Design
The fullly metal body of the EcoGrow provides top notch heat distribution. Thermal mangament is always crititcal when working with high powered LEDs and the EcoGrows high quality build leaves nothing to change.
IP66 & DLC Certified
The IP66 rating is another indicator of the excellent quality you can expect from the EcoGrow. Fully protected from solid partilces and and powerful water streams. The DLC Certification tells you this light is highly efficient and will last you a while!

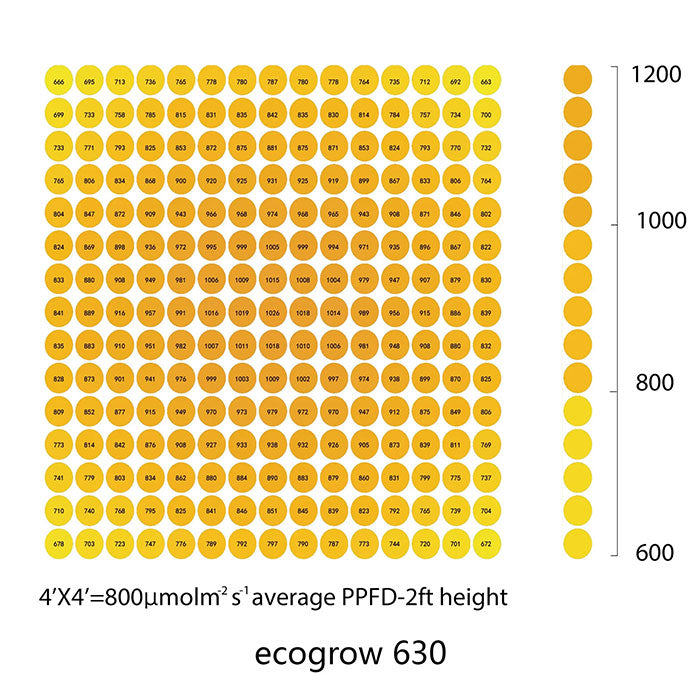

PPFD for the EcoGrow

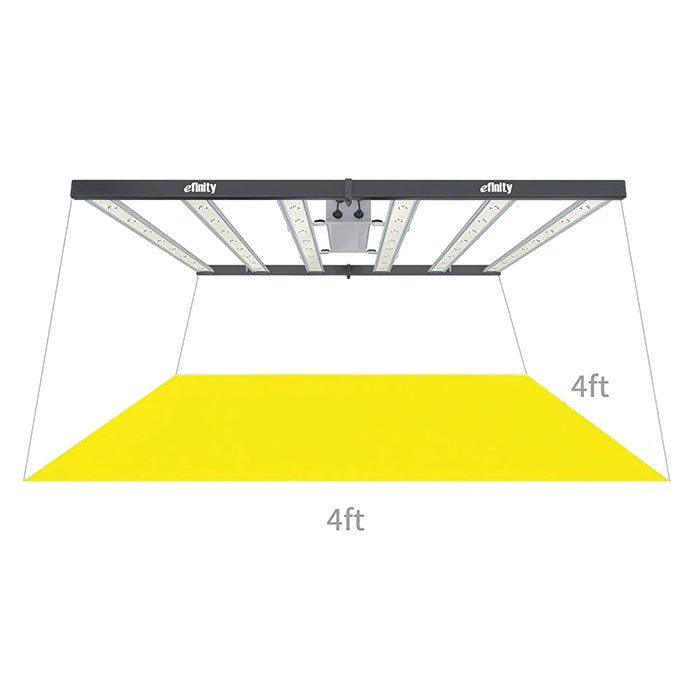

Here you can see the various PPFD ratings for the EcoGrow at different heights. The PPFD map on the rights shows us a 4' x 4' distribution at 24" above the canopy.
Specifications for the EcoGrow
| Input Power | 630 Watts |
|---|---|
| Efficacy | 2.7 µmol/J |
| PPF (380-780nm) | 1701 µmol/s |
| Input Voltage | 120-277V AC / 200-480V AC |
| Frequency | 50/60 Hz |
| Light Distribution | 120° |
| Mounting Height | ≥6" above canopy |
| Thermal Management | Passive |
| Max Ambient Temp | 95°F / 35°C |
| Dimming | 0-10 Volt |
|---|---|
| Power Factor | > 0.95 |
| Total Harmoic Distorion | < 10% |
| Lifetime | > 50,000 hrs. |
| Certifications | DLC, ETL |
| IP Rating | IP66 |
| Warranty | 5 Years |
| Overall Dimensions | 43.3" x 39.4" x 5.7" |
| Net Weight | 26 lbs. |
| Brand | Efinity |
|---|---|
| SKU | EFINITY-ECOGROW |
| Hazardous Material | false |
