The Industry's Highest Efficiency/Lowest Frequency, Daisy-Chainable, Controllable, and Dimmable CMH Grow Light Fixture

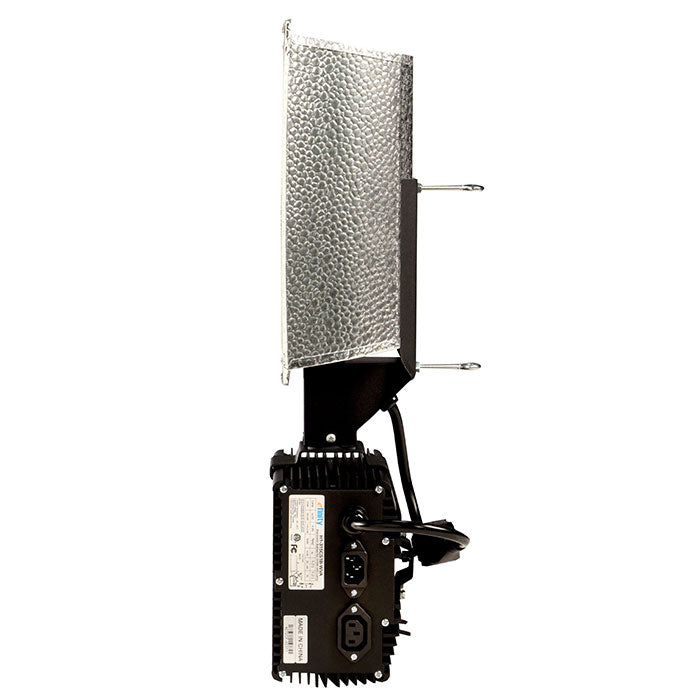

Efinity Black Series 315 Watt CMH Grow Light Fixture Key Features:
- Daisy chain up 8 units

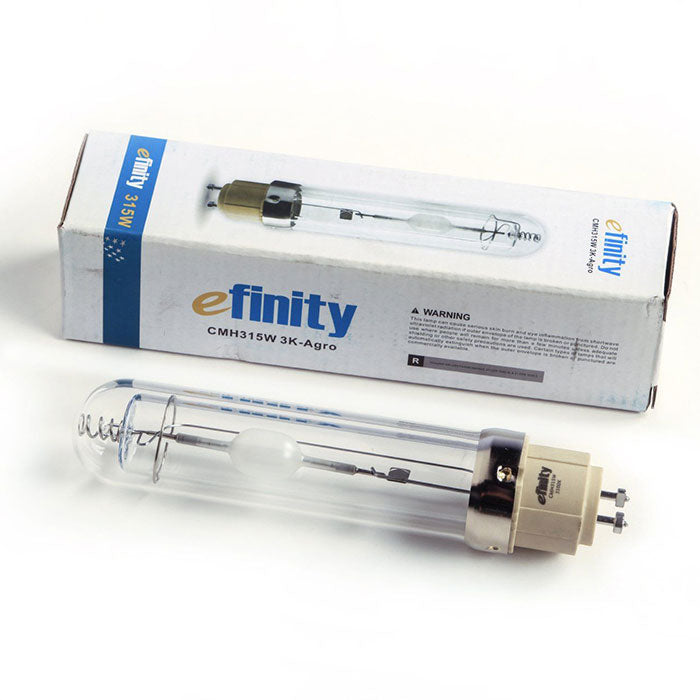

- Runs GreenPower CDM-T 315W Lamps
- No acoustic resonance
- Low Frequency, High Efficiency electronic ballast
- Lower harmonic distortion

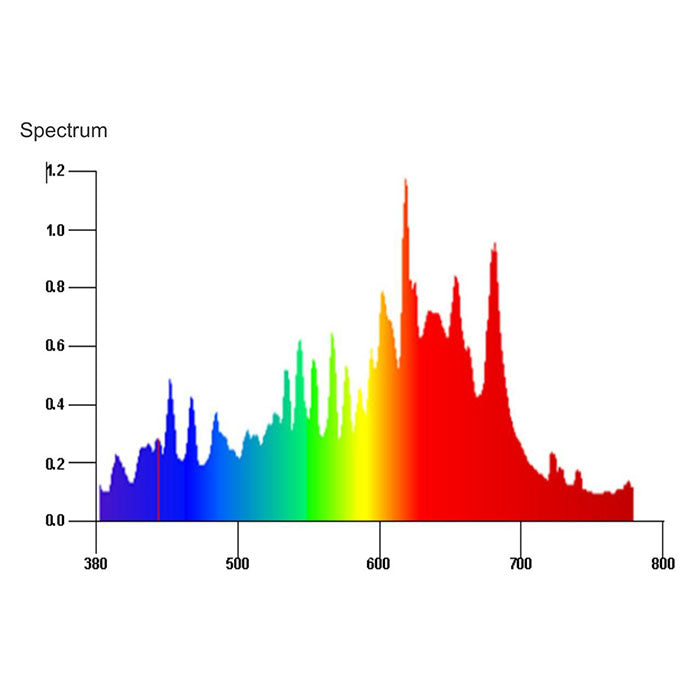

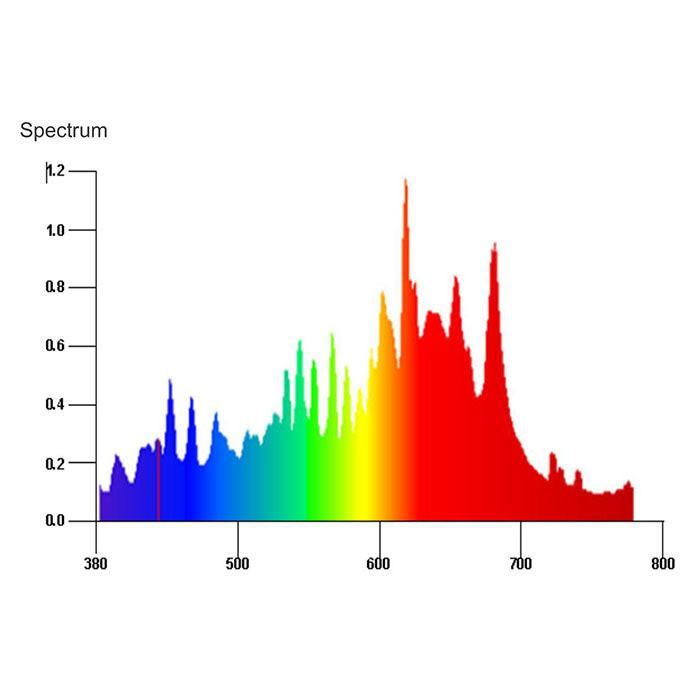

- High output and improved spectrum
- Driver efficiency at full power: 95-96%
- BUILT-IN PROTECTIONS
- Short circuit protection
- Open circuit protection
- Ignition failure protection
- Thermal protection
- End of Lamp Life (EOL) protection

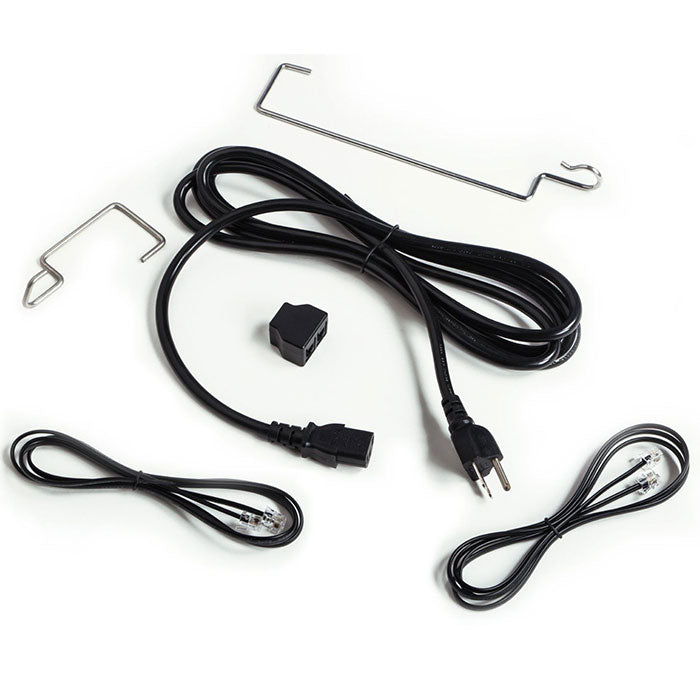

Efinity Black Series 315 Watt CMH Grow Light Fixture Master Carton Includes:
- One efinity 315W Digital Ballast
- 9ft power cord
- 110/240V with plug
- 277V buildin power cord
- User manual
Specifications for the EcoGrow
| Input Voltage: |
277 Volt |
| Input Current: |
1.3A |
| Input Power |
343 Watts |
| Power Factor: |
> 0.95 |
| Frequency: |
50-60 Hz |
| Total Harmonic Distortion: : |
< 15% |
| Ignition Voltage: |
5KV |
| Temperature ambient: |
-4-104 F |
| Power Inlet: |
IEC C14 |
| In Rush Current: |
< 50 Amps |
| AC Cord Length: |
9 ft |
| Plug Type: |
NEMA L7-15P |
