EcoPlus Product Documents

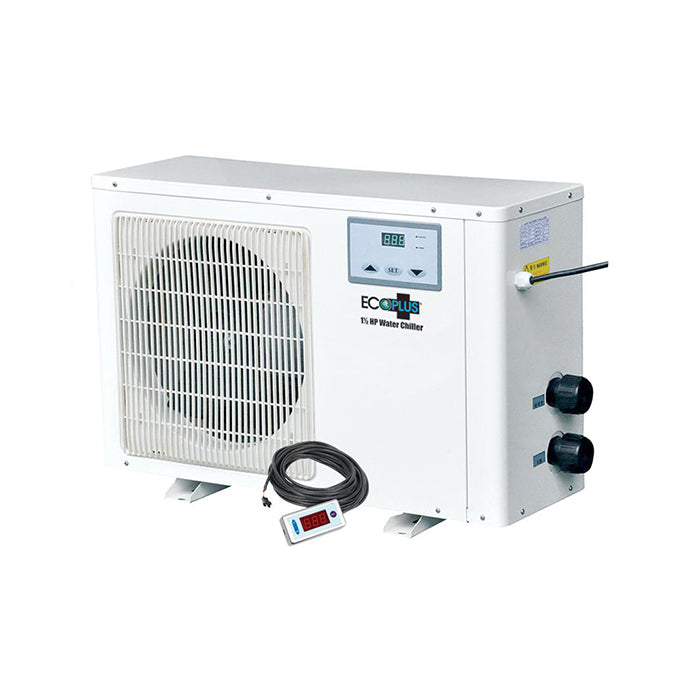

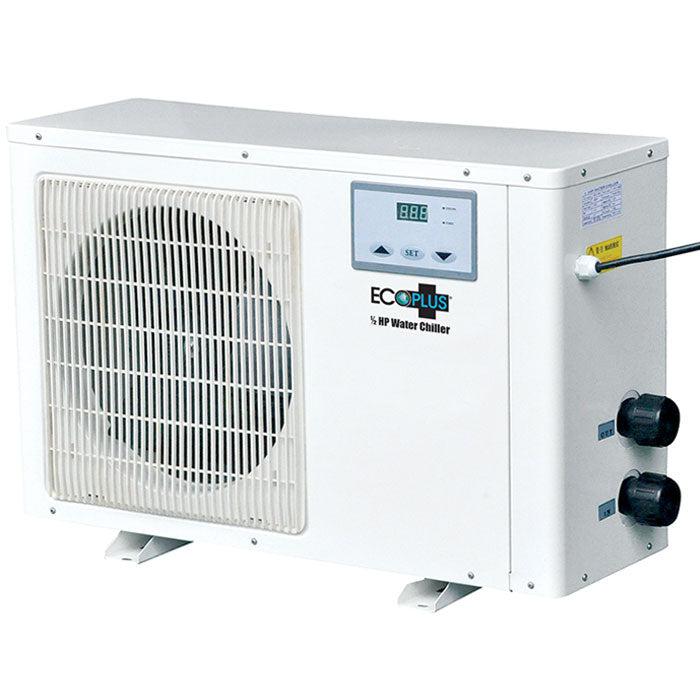

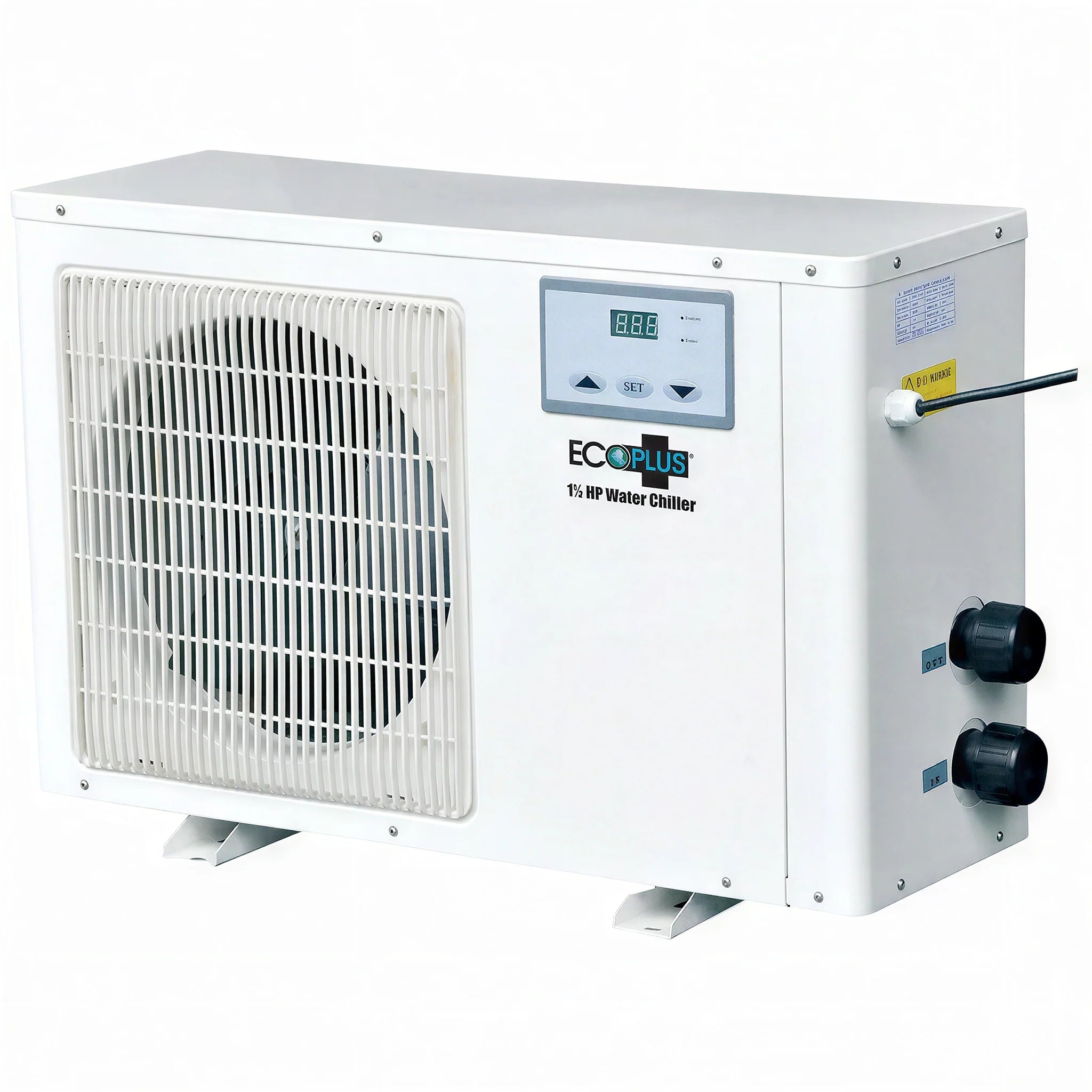

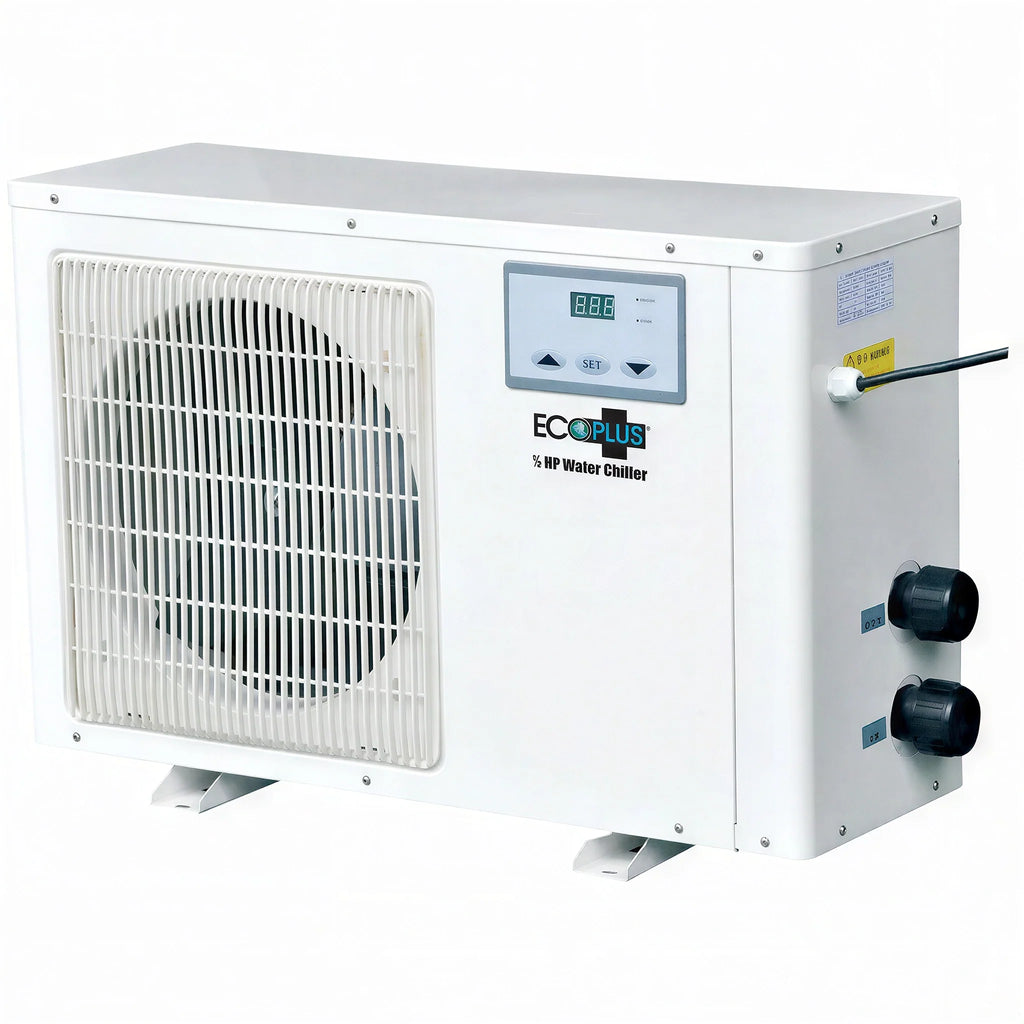

EcoPlus Commercial Chiller Product Instructions & SpecsEcoPlus Commercial Water Chillers
Suitable for use with reservoirs, hydroponic systems & aquariums.
Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor & adjust chiller settings, when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 inch hard PVC pipe or 1 inch flexible tubing.
Your EcoPlus® Commercial Water Chiller incorporates the latest in refrigeration technology and manufacturing techniques to ensure reliability and long service life. Some of these features include:
- Commercial-grade titanium heat exchanger for optimum performance and corrosion resistance
- High-quality compressor is extremely efficient and reliable
- Heavy-duty galvanized steel housing with a durable powder coated finish
- Digital LCD display allows for easy operation
- Remote temperature controller with a 30 ft. cord allows user to monitor & adjust chiller settings, when the unit is installed in a remote location
- Auto restart and temperature memory in the event of a power failure
- Uses environmentally friendly R410A refrigerant
- Comes with 2 fittings to allow chiller to be plumbed with 1" hard PVC pipe or 1" flexible tubing
High ambient air temperature will decrease cooling capacity. Allow these units to set upright for 3 hours prior to setup.
Recommended Water Pumps

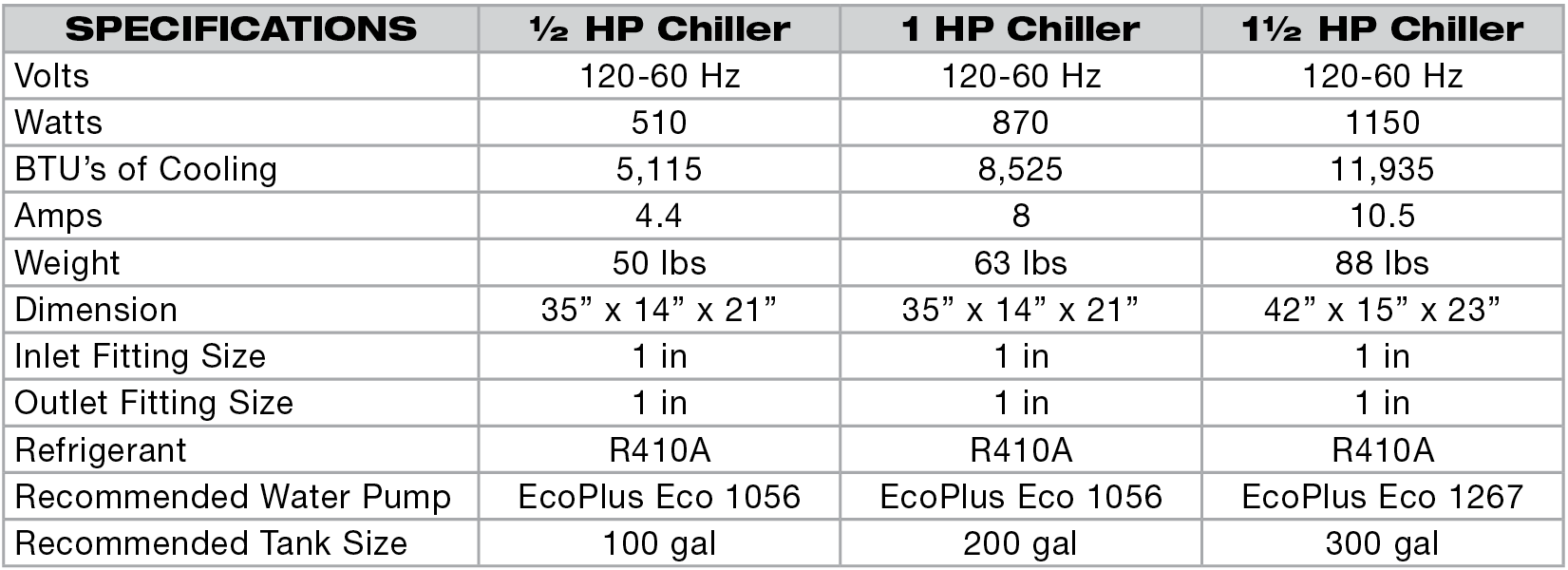

Specifications
| Model | 1/2 HP | 1 HP | 1 1/2 HP |
|---|---|---|---|
| Voltage | 120V | 120V | 120V |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Watts | 510W | 870W | 1150W |
| Current | 4.4A | 8A | 10.5A |
| Cooling Unit | 5,115 BTU | 8,525 BTU | 11,935 BTU |
| Max Water Volume | 100 gal | 200 gal | 300 gal |
| Dimensions | 34" x 14" x 21.5" | 34" x 13.75" x 21.5" | 41" x 15" x 24" |
| Weight | 66.7 lbs. | 70 lbs. | 97.35 lbs. |
| Refrigerant | R410a | R410a | R410a |
| Brand | EcoPlus |
|---|---|
| SKU | ECOPLUS-WC-COMM |
| Warranty | 1 Year |
