EcoPlus Product Documents
EcoPlus Commercial Chiller Product Instructions & SpecsEcoPlus Commercial Water Chillers
Suitable for use with reservoirs, hydroponic systems & aquariums.
Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor & adjust chiller settings, when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 inch hard PVC pipe or 1 inch flexible tubing.
Your EcoPlus® Commercial Water Chiller incorporates the latest in refrigeration technology and manufacturing techniques to ensure reliability and long service life. Some of these features include:
- Commercial-grade titanium heat exchanger for optimum performance and corrosion resistance
- High-quality compressor is extremely efficient and reliable
- Heavy-duty galvanized steel housing with a durable powder coated finish
- Digital LCD display allows for easy operation
- Remote temperature controller with a 30 ft. cord allows user to monitor & adjust chiller settings, when the unit is installed in a remote location
- Auto restart and temperature memory in the event of a power failure
- Uses environmentally friendly R410A refrigerant
- Comes with 2 fittings to allow chiller to be plumbed with 1" hard PVC pipe or 1" flexible tubing
High ambient air temperature will decrease cooling capacity. Allow these units to set upright for 3 hours prior to setup.
Recommended Water Pumps

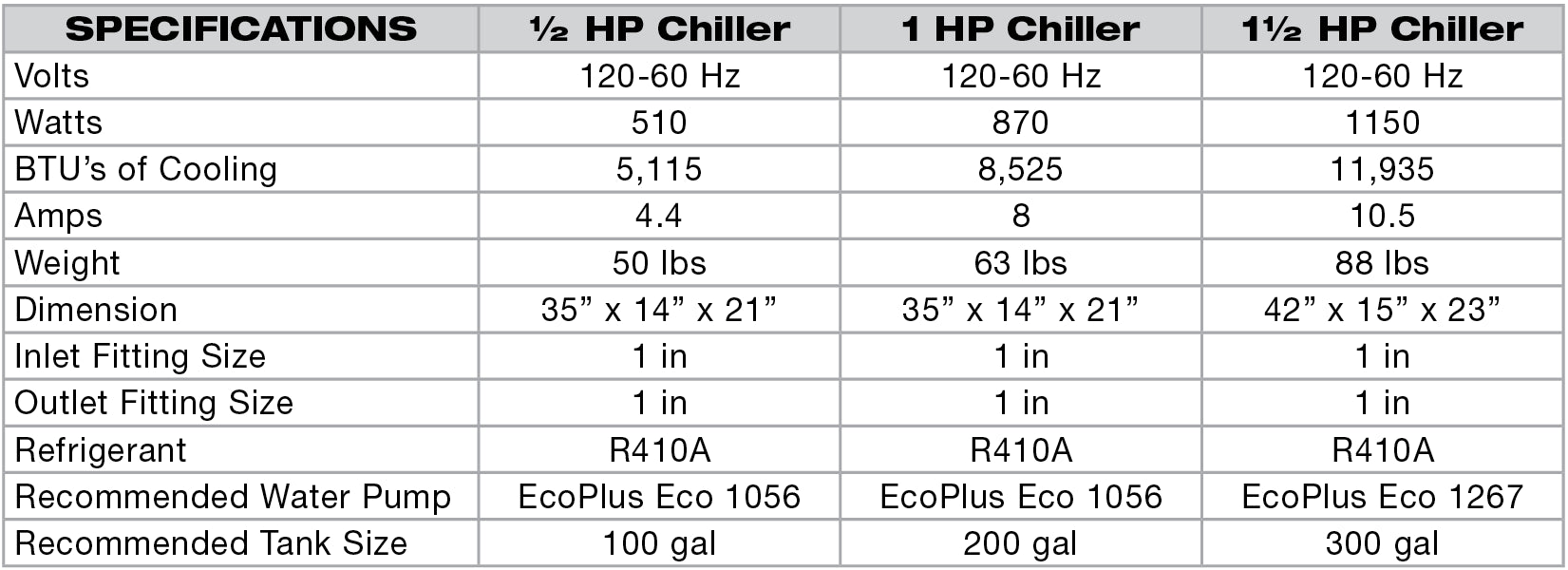

Specifications
| Model | 1/2 HP | 1 HP | 1 1/2 HP |
|---|---|---|---|
| Voltage | 120V | 120V | 120V |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Watts | 510W | 870W | 1150W |
| Current | 4.4A | 8A | 10.5A |
| Cooling Unit | 5,115 BTU | 8,525 BTU | 11,935 BTU |
| Max Water Volume | 100 gal | 200 gal | 300 gal |
| Dimensions | 34" x 14" x 21.5" | 34" x 13.75" x 21.5" | 41" x 15" x 24" |
| Weight | 66.7 lbs. | 70 lbs. | 97.35 lbs. |
| Refrigerant | R410a | R410a | R410a |
| Brand | EcoPlus |
|---|---|
| SKU | HGC728709 |
| Weight (lb.) | 97.3500 |
| Width (in.) | |
| Height (in.) | |
| Prop 65 | false |
| Length (in.) | |
| Warranty | 1 Year |
| Lead Time | This Product Ships in 7-10 Business Days |
| UPC | 870883000912 |
| UL Listed | No |
| ETL Listed | No |
| Chiller HP Rating | 1 1/2 HP |
| Included Fittings | 1 Inch |
| BTU's/hr | 11,935 BTU's |
| Recommended Pump | 1267 GPH |
| Recommended Reservoir Size | 300-500 Gallon |
| Voltage | 120 Volts |
| Exact Watts | 1150 Watts |
| Amps | 10.5A |
What systems can the EcoPlus 1-1/2 HP Commercial Water Chiller cool?
The EcoPlus 1-1/2 HP Commercial Water Chiller is suitable for reservoirs, hydroponic systems, and aquariums.
How much water can the EcoPlus 1-1/2 HP Commercial Water Chiller handle?
The EcoPlus 1-1/2 HP Commercial Water Chiller supports a maximum water volume of 300 gallons and provides 11,935 BTU of cooling. The recommended pump is the EcoPlus Eco 1267 with 1,347 GPH flow.
What plumbing connections work with the EcoPlus 1-1/2 HP Commercial Water Chiller?
The EcoPlus 1-1/2 HP Commercial Water Chiller includes two fittings for 1-inch hard PVC pipe or 1-inch flexible tubing.
How does the EcoPlus 1-1/2 HP Commercial Water Chiller support remote installation?
The EcoPlus 1-1/2 HP Commercial Water Chiller includes a remote temperature controller with a 30-foot cord for monitoring and adjusting chiller settings from a remote location.
What happens to the EcoPlus 1-1/2 HP Commercial Water Chiller after a power failure?
The EcoPlus 1-1/2 HP Commercial Water Chiller provides automatic restart and temperature memory after a power failure.
What construction features support long-term use of the EcoPlus 1-1/2 HP Commercial Water Chiller?
The EcoPlus 1-1/2 HP Commercial Water Chiller uses a commercial-grade titanium heat exchanger for corrosion resistance, a heavy-duty galvanized steel housing, and a durable powder-coated finish.
