Dutch Lighting Innovations JOULE-Series 1000W InstructionsDutch Lighting Innovations presents the JOULE-series 1000w DE system. This proprietary engineered design has reset the bar for indoor production specifically.
The engineering principles behind the DLI Open Reflector are a culmination of over a decade of research and development. The team works with a ranging group of some of the best horticulturists around the globe; each who specialise in plant and varietal specific production processes for the ornamental, and commercial flower market. Dutch Lighting Innovations has allowed these groups a new level of consistency, reliability, and quality unparalleled in the niche world of growing the best flowers and plants on Earth!
The DLI reflectors are manufactured to have the highest possible total reflectance at all wavelengths from 400 to 700 nm giving excellent PAR rendition. The integrated hemispherical reflectance is over 95% with an absence of iridescence colours in the louvre.
The DLI reflectors are made from an electrochemically brightened high purity aluminium substrate coil, and start with an anodised base coat which gives a hard support to minimize abrasion damage. The material is then treated under vacuum with specially developed processes to maximise coating adhesion and is vacuum coated with a super pure reflection layer of 99.99% pure aluminium.
These reflection layers are overlaid with a dual layer oxide system tuned for maximum visible reflection enhancement. This serves to increase the overall reflectivity provided by the metallic layers and adds protection against damage
Efficiency and uniformity have been the main focus in the development of the Flowers-only reflector. Each ray of light coming from the lamp will either be transmitted directly to the plants or will only hit the 99,99% pure aluminium once before being transmitted to the plant. The unique design of the DLI reflector and the high uniformity of light the reflector projects results in less hotspots on the canopy and a more even plant growth.

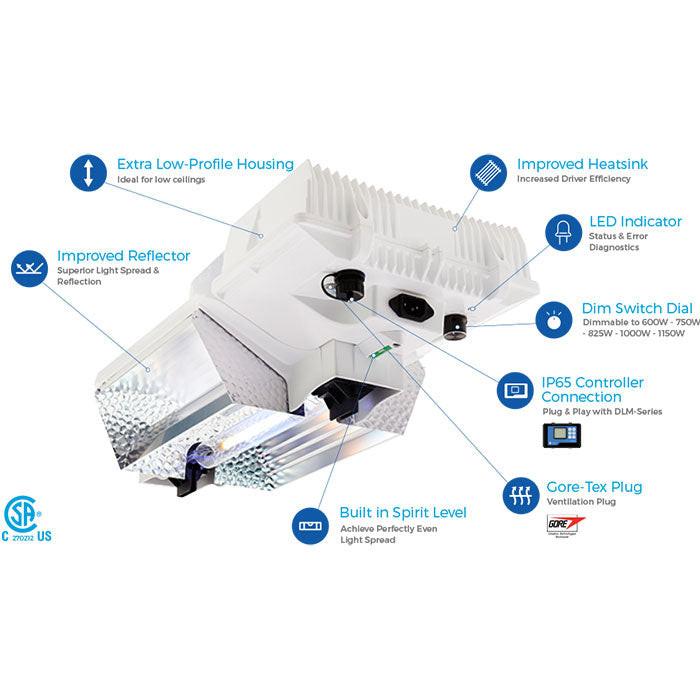

Features
- Extra Low-Profile Housing - Ideal for low ceilings
- Improved Heatsink - Increased Driver Efficiency
- LED Indicator - Status & Error Diagnostics
- Dim Switch Dial - Dimmable to 600W - 750W - 825W - 1000W - 1150W
- IP65 Controller Connection - Plug & Play with DLM-Series
- IP65 Controller Connection - Plug & Play with DLM-Series
- Gore-Tex Plug - Ventilation Plug
- Built in Spirit Level - Achieve Perfectly Even Light Spread
DLI JOULE-Series 1000W DE 120/240V Specs:
| INPUT VOLTAGE: | 120 ~ 240V |
| INPUT VOLTAGE RANGE: | ± 10% |
| RATED POWER: | 1045W |
| DIMMING WITH SWITCH: | 600W – 750W – 825W 1000W – 1150W |
| DIMMING WITH CONTROLLER: | 600W – 1150W |
| FREQUENCY: | 50/60 HZ |
| TYPICAL CURRENT: | 4.4A @ 240V/1000W |
| MAXIMUM CURRENT: | 10A @ 120V/1150W |
| INRUSH CURRENT: | ≤ 40A |
| POWER FACTOR: | ≥ 0,98 |
| DIMENSIONS: | 571 X 284 X 178mm 22.5 X 11.2 X 7.0 INCH |
| WEIGHT: | 7.5 KG / 16.5 LBS |
| Brand | Dutch Lighting Innovations |
|---|---|
| SKU | DLI1000 |
| Weight (lb.) | 17.5000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| UPC | 8719189432800 |
| Lighting Type | HPS/MH - Double Ended |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Exact Watts | 1000 Watts |
| Reflector Type | Open |
| Glass Included | No |
| Bulb(s) Included? | Yes |
| Bulb Type | Double Ended High Pressure Sodium |
| Est. Electricity Cost /mo | $43.20 |
| Frequency | 50/60Hz |
| Amps | 4.4A |
| Voltage | 120 Volts, 240 Volts |
| ETL Listed | No |
| UL Listed | No |
