Dosatron Etatron eOne Micro-Dosing Pump - Assembled Panel

SKU: PE0110MF.75INX1PR-RL
No reviews
Dosatron Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 5-7 business days


Price:
Sale price$1,536.50

Dosatron Product Documents

The Etatron eOne MF Micro-Doser Kit with water meter and pressure relief valve can accurately inject super-concentrated products and can be integrated into an existing fertigation system.

**Note:Tank in images NOT included

The eOne MF is a multifunction microprocessor dosing pump, suitable for applications that require proportional dosing. The pump operates at a dosing frequency up to 180 impulses/minute and is equipped with a backlit graphic display for the correct setting of the various programming parameters. It has a flow rate of 0.26 gph and a max pressure of 1.45 psi.

This kit can work in combination with a Dosatron Water-Powered NDS, or as a stand-alone solution, to provide the ultimate in reliability and functionality in one system. Connections 1.5" NPT.

Included eOne MF 0110 pump, polyethylene panel, PVC suction tube, PVC priming discharge tube, polyethylene discharge tube, water meter, check valve, pressure relief valve, injection valve, unions, foot filter, and mixing chamber. Choose the size and orientation that works best for your setup.

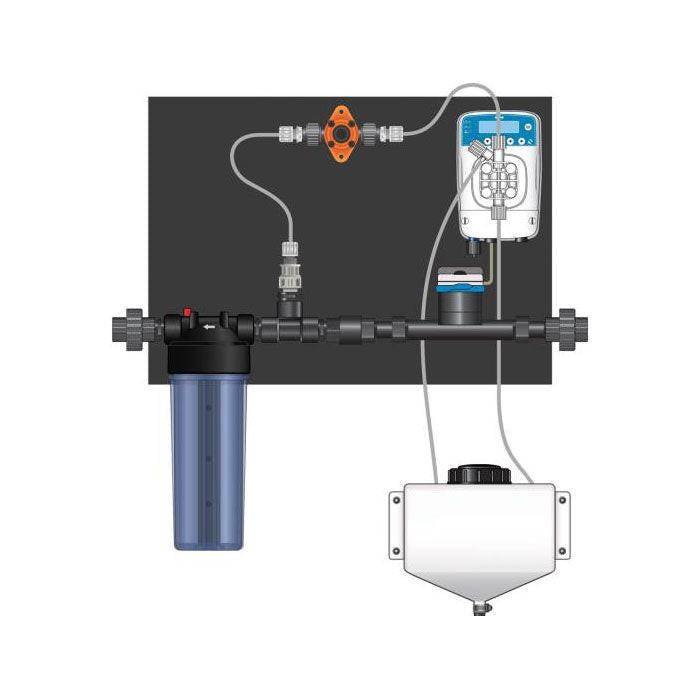

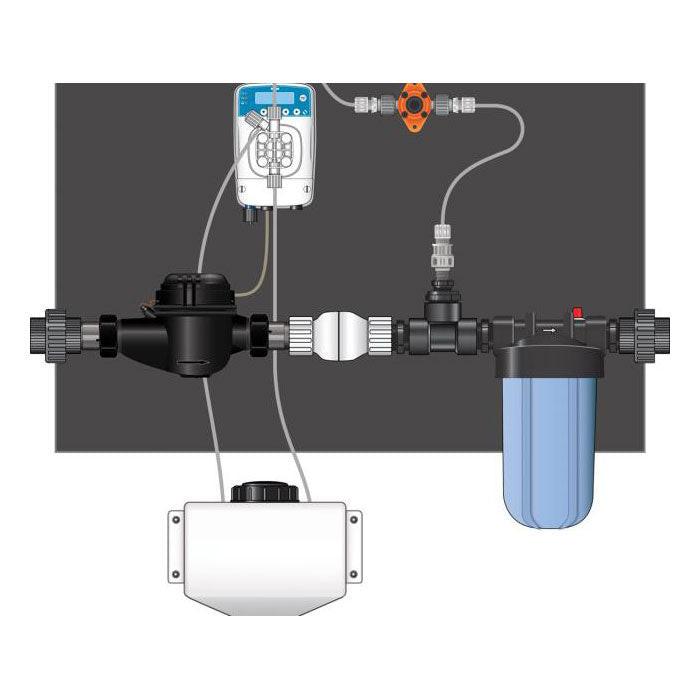

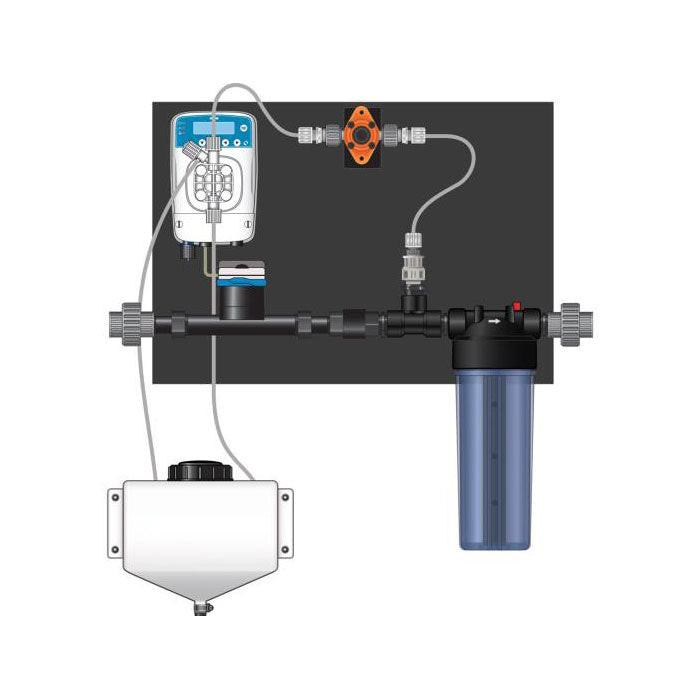

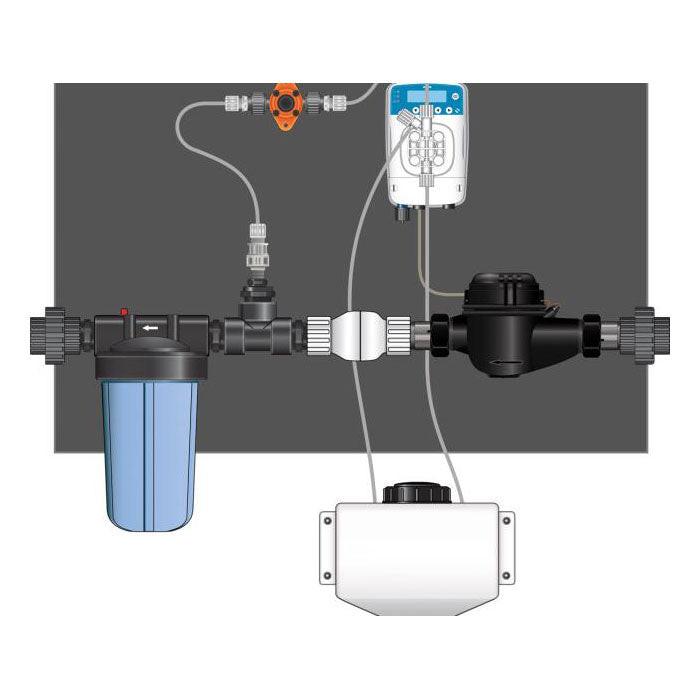

Etatron Micro-Doser Kit

*Tank in image not included

Applications include dosing acids (pH down), caustics (pH up), plant health additives, and water treatment products. Ability to micro-dose down to 0.1 mL per gallon, depending on flow rate.

Included eOne MF 0110 pump

The eOne MF is a microprocessor controlled, multifunction metering pump, suitable for applications which require proportional dosing. The eOne MF 0110 operates at 0.26 GPH (1 LPH) at 145 PSI (10 BAR). **Oxidants may require different pump head configuration. Degassing Pump Head is available for this unit.

  • PVDF Pump Head
  • PTFE (Teflon®) Diaphragm
  • TFE/P (Aflas®) Seals
  • Ceramic Ball Valves
  • Flow Rate – 0.26 GPH (1 LPH) at 145 PSI (10 BAR)
  • 180 Strokes per Minute
Brand Dosatron
SKU DOSA-EONE-PANEL
Hazardous Material false
