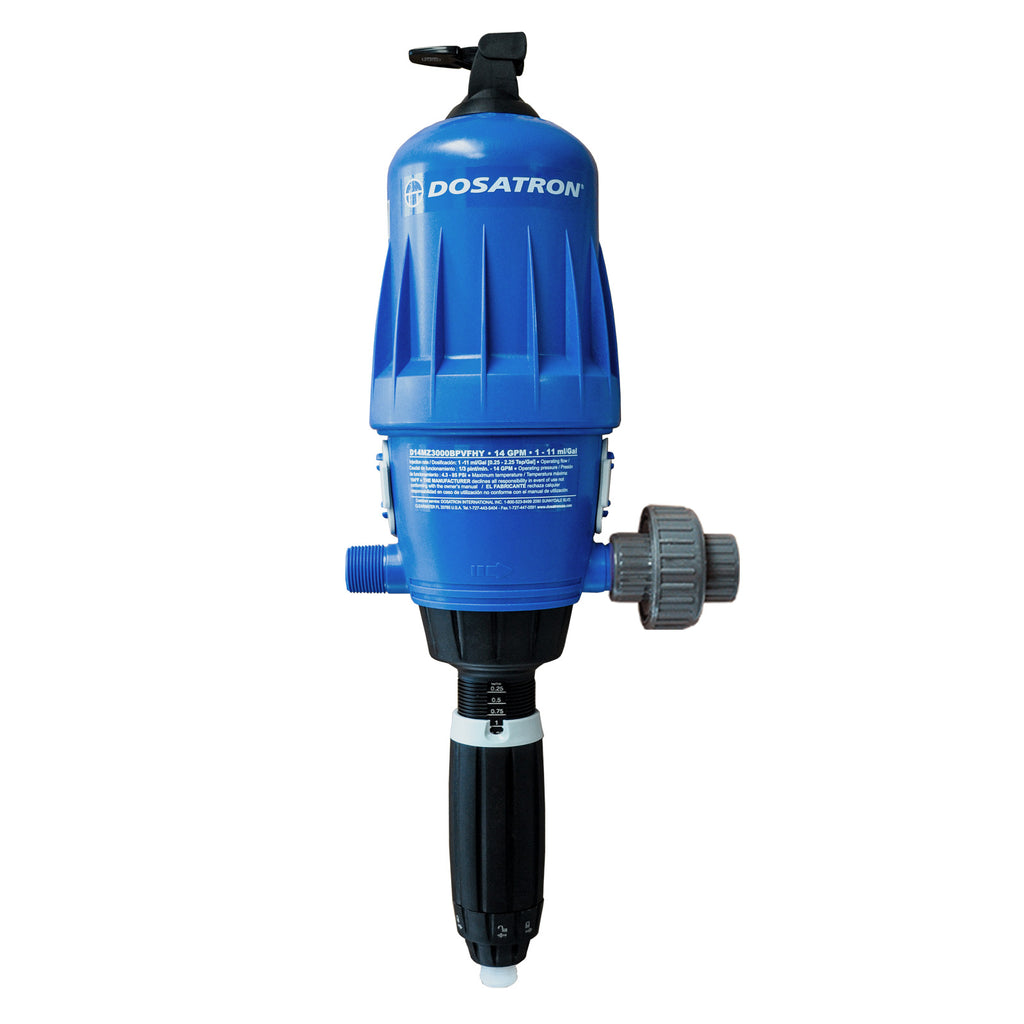

The Water-Powered Dosatron D14MZ3000-HY with concentration scale specifically designed for hydroponic applications.
Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:3000 to 1:333 (0.03% to 0.3%).
Doser Options
- D14MZ3000AFBPHY - For Alkaline Chemistries - with bypass
- D14MZ3000VFBPHY - For Acidic Chemistries - with bypass
- D14MZ3000VFBPHYK - For Concentrated Acidic Chemistries - with bypass
Maintenance & Rebuild Kits
- For a regular maintenance use Mini Maintenance Kit # PJDI139MINI-H
- For a recommended yearly maintenance use Seal Kit # PJDI139
- To extend the life of your Dosatron use Rebuild Kit # MKD14MZ3000
Specifications
- Dilution Range: 1:3000 to 1:333 - 0.03% to 0.3%
- Injection Range: 1.25 to 11 mL/gal
- Water Flow Range: 0.05 to 14 GPM
- Operating Pressure Range: 4.3 to 85 PSI
- Available Housing Materials: Polypropylene
- Dimensions: 21" x 6 5/16"
- Weight: 6 lbs.
- Connection Size: 3/4" NPT
- Included Accessories: 6' clear suction tube, strainer, bypass, weight, mounting bracket and operating manual
- Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
What flow rate and injection range does the D14MZ3000 operate at?
The D14MZ3000 operates at up to 14 GPM, with an injection ratio range of 1:3000 to 1:333.
How does the D14MZ3000 work mechanically?
It's a water-driven piston — no electricity required. Water pressure activates flow through the unit, which drives a piston that proportionately doses solution for every gallon that passes through. A check valve at the bottom displaces the solution downstream as it mixes into the water source.
What's the difference between this and the Hobby Cultivator?
This is a full commercial-grade unit built from polypropylene for better chemical resistance, with adjustable injection ranges, a bypass switch, and fully replaceable internal and external parts — versus the Hobby Cultivator's single fixed rate and consumable design.
Can units be run in parallel to increase flow rate?
Yes. Running two units of the same model in parallel doubles the flow rate while injecting the same chemistry at the same rate — both units must inject the same nutrient part at the same setting.
