DIG’s 180° and 360° adjustable drip emitters are available with a barb or spike and have a flow dial enabling the flow to be adjustable between 0 to 14.1 GPH at 25 PSI. The drippers are designed to emit a very low-flow, gentle stream pattern with a diameter range of 0 to 2.3’ at 25 PSI.
Features
- Click adjustment from flow off to full flow – perfect as the plant grows and its need for water changes
- Available in 360° and 180° patterns for individual plants or closely spaced plantings
- Recommended for planter boxes, large pots, groundcovers and shrubs
- Rotation of the cap allows adjustment of flow and diameter of throw down to a complete shut-off via a ratchet mechanism on the cap and a notch on the base
- Efficient and reliable method for applying water
- Trouble-free operation with no moving parts
- Removable cap for easy cleaning
- Constructed of UV-resistant, durable plastic material
Specifications
- 180° or 360° coverage
-
Flow rates and color::
- Adjustable from 0-14.1 GPH (0-53 L/H) @ 25 PSI
- Color code: black
- Maximum operating pressure: up to 30 PSI
- Recommended operating pressure: 15-25 PSI (1-1.72 BAR)
- Wetting area: 0 to 2.3’ at 15 to 25 PSI

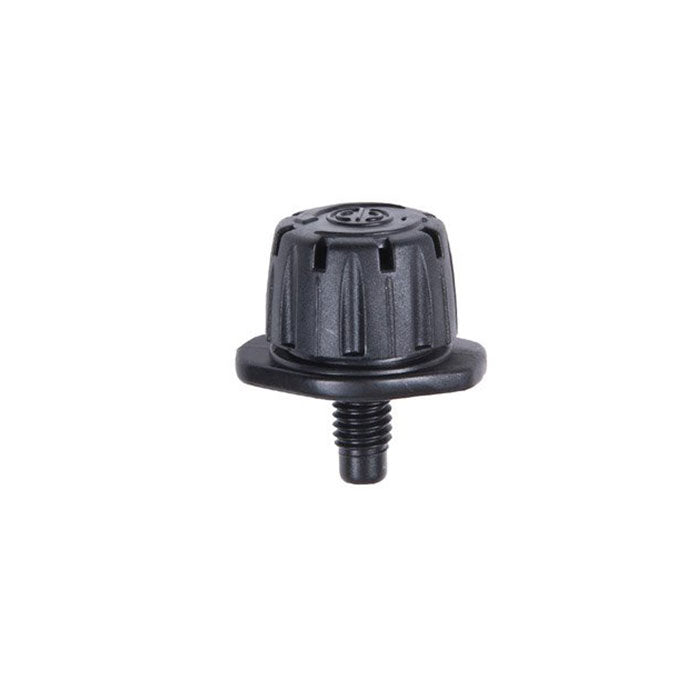

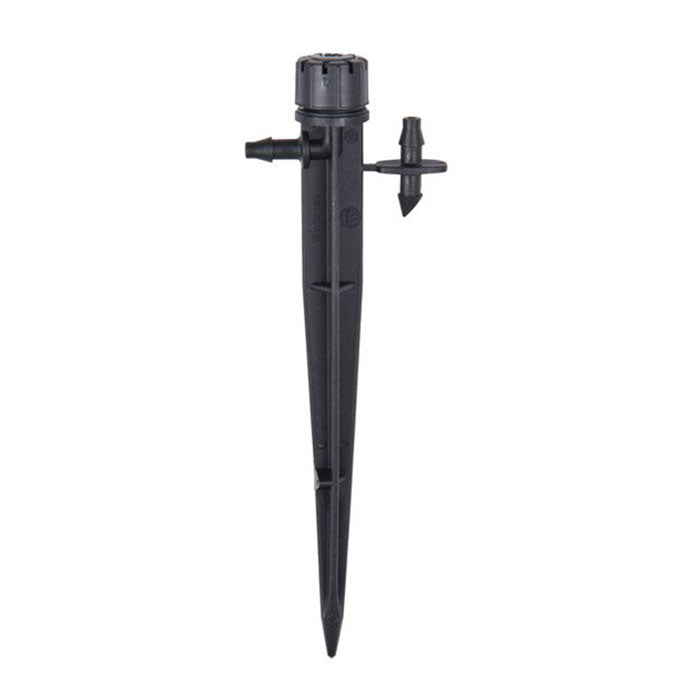

- Available on 1/4" barb or 5" (12.7 cm) stake with barb
- Filter requirement: minimum of 120 mesh
| Brand | DIG |
|---|---|
| SKU | DIG-ASDE |
| Hazardous Material | false |
