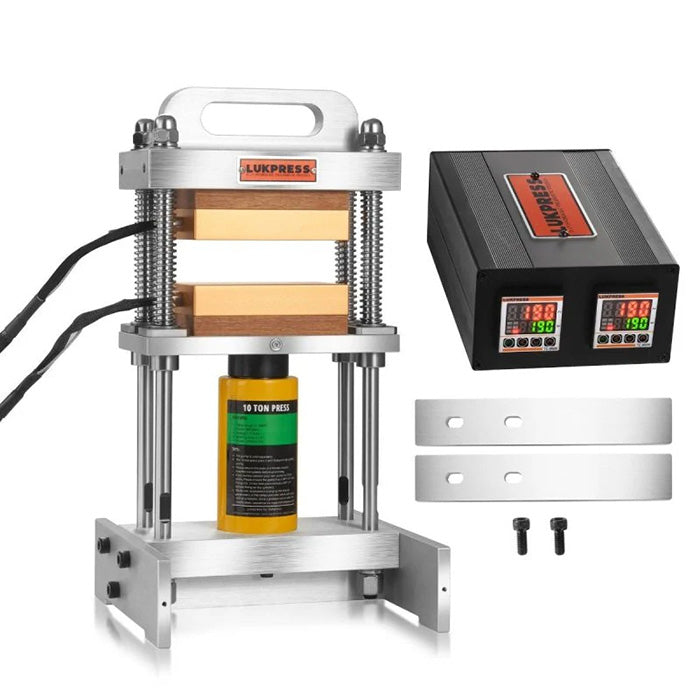

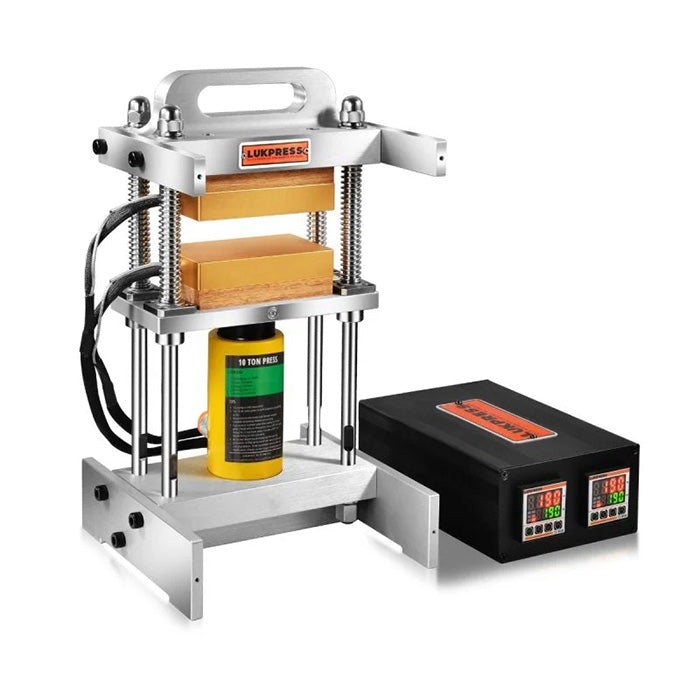

10 Ton Driptech Rosin Press - 3x5 Platens 14 Grams Materials Loaded, 500 Watts - Hydraulic Pump Sold Separately
Features & Benefits
- Dual Heated Platens Well Aligned - 4-piece linear bearings support dual heated plate to move on the 4 pieces of stainless steel evenly.

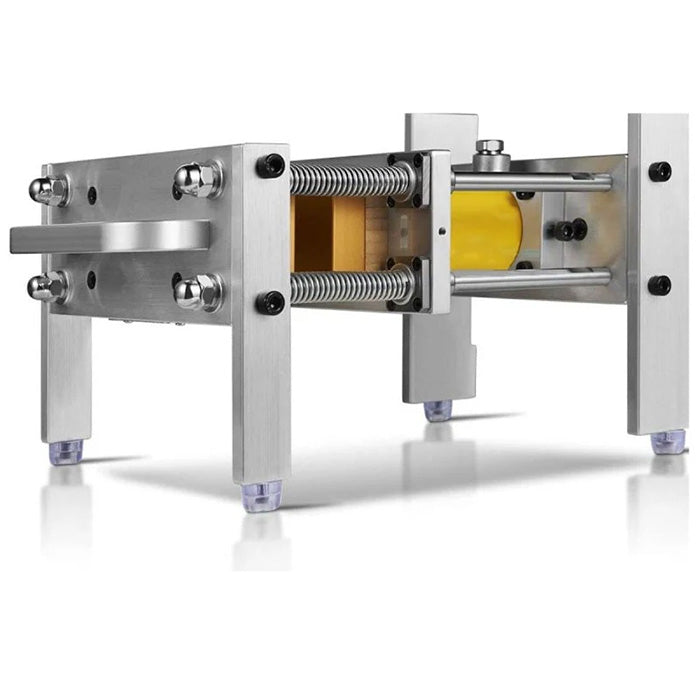

- 10-ton Pressure Durable Frame - The frame is made of 6061 aluminum, 4 pieces of stainless steel posts, and a PID temp controller box.
- Excellent Thermal Insulation Effect - Low heat transfer bamboo insulator guarantees quick heating-up and protects the cylinder from overheating.
- 4PC Magnets & 4PC Feet Pad - Two magnets are installed on the frame, the other two magnets are inside the package; 4 pieces of feet pad are included in the package to prevent scratches on the working table.

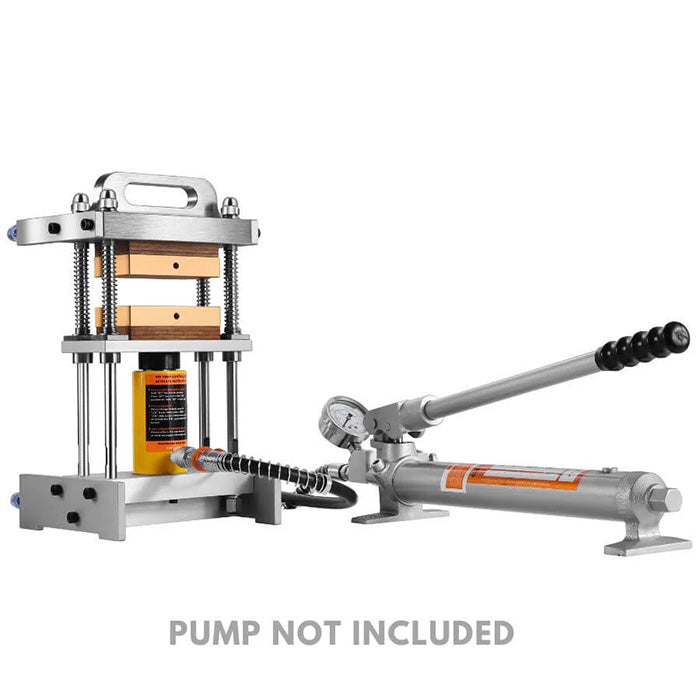

- No Pump Included - To offer a pair of NPT 1/4" couplers in the tool bags located in the package (please keep it for future use), but the relative pump sold separately, please buy the 10-ton Hydraulic Pump (DP-CP590G)
How to Avoid the Filter Bags from Blowing Out?
- Remove excess stems from flowers.
- Use less material in your filter bag.
- Preheating your material first to get it melty before you begin to apply pressure.
- Apply the pressure more slowly.
Specifciations
- Temperature Range: 0-399F
- Power: 500 Watts
- Voltage: 110v
- Total Weight: 34.27 lbs
- Package Dimension: 20.4" x 13.3" x 12.9"
- Frame Dimension: (H) 40cm x (W) 23cm x (D) 21.5cm
- PID Temp Controller Box Dimension: (H) 21.5cm x (W) 15cm x (D) 8.3cm
- Working Surface: 3" x 5"
- Clearance between Upper and Bottom Platens: 32mm/1.26"
Brand | Dabpress |
---|---|
SKU | DP-HR10T35V-US |
Weight (lb.) | 34.2700 |
Prop 65 | false |
Length (in.) | |
Width (in.) | |
Height (in.) | |
Lead Time | Ships in 3-7 business days |
Hazardous Material | false |
UPC | 600736913782 |
ETL Listed | No |
UL Listed | No |
Rosin Press Type | Hydraulic |
Plate Size | 3" x 5" |
Plate Material Type | Anodized Aluminum |
Temperature Range | 0-399 F |
Temperature Control | PID Controller |
Max. Pressure | 10 Ton |
Pressure Control | Hand pump |
Press Time Range | 0-999 |
Adjustable Tilt Position | Yes |
Needs Air Compressor | Required |
Voltage | 110 Volts |
Exact Watts | 500 Watts |
