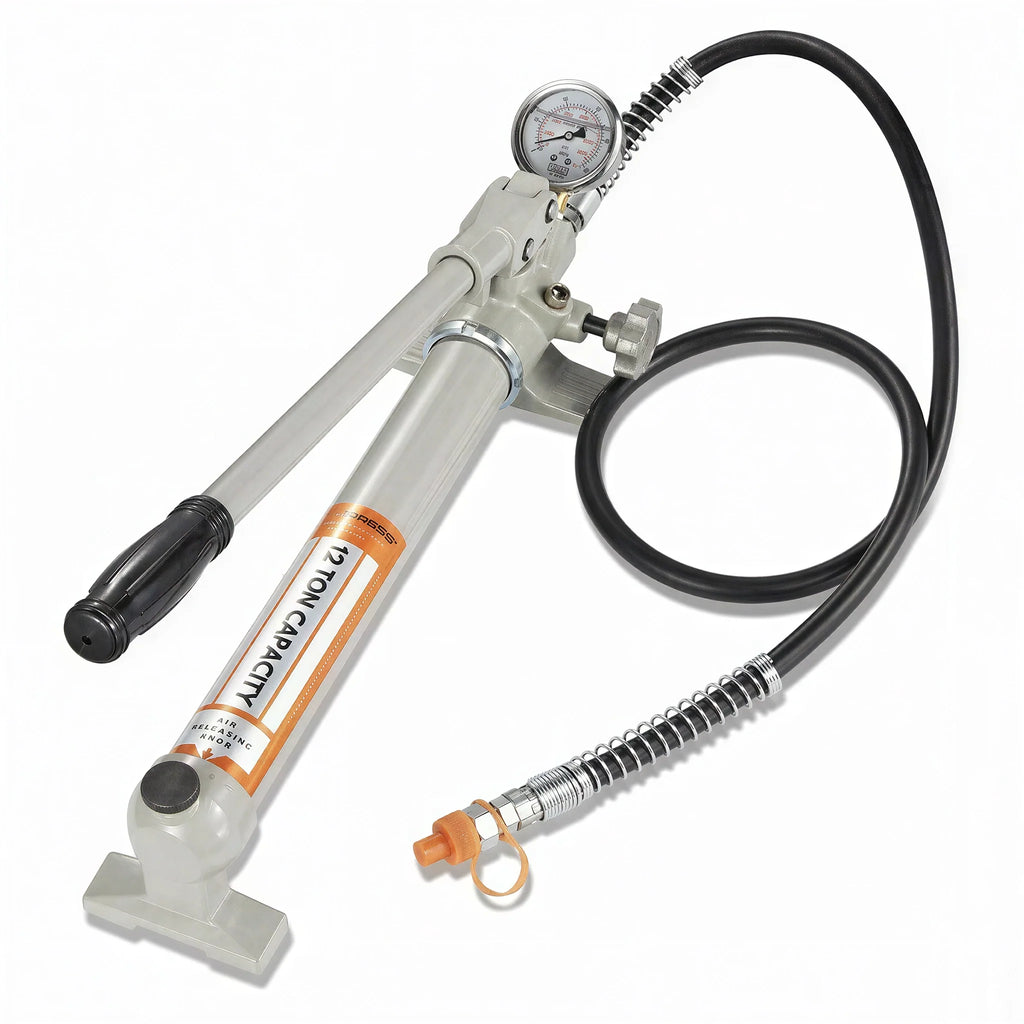

Dabpress Hydraulic Hand Pump with Gauge
Dabpress Hydraulic Hand Pump with Gauge
Roll over image to zoom in Click on image to zoom
Dabpress Hydraulic Hand Pump with GaugeDabpress Hydraulic Hand Pump with Gauge

Dabpress Hydraulic Hand Pump with Gauge

SKU: DP-CP590G-US
No reviews
Dabpress Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 3-5 business days

Price:
$189.86

Dabpress Product Documents

Hydraulic Hand Pump with Gauge - Pair It with 10 and 12-Ton Rosin Press Machine

Features & Benefits

  • Pressure Gauge Included - Installed at a 45-degree angle at the front of the pump makes the easy reading pressure (PSI) while working.
  • 1.5m Hose Included - Includes an extra-long handle with a rubberized grip for comfort and easy operation.
  • NPT 1/4 Coupler Attached - Easily adapts to hoses, rams, pumps, spreaders, and other accessories using common ZG 1/4-inch fittings.
  • Dust-proof Cap Attached - The red dust cap is attached to help prevent dust or foreign matter from entering the fitting portion when the connector is detached.
  • Durable Hand Pump - Durable solid steel construction, non-slip handle included, easily handles lift jobs up to 12 tons.

Specifciations

  • Capacity: 12 Ton
  • Coupler: NPT 1/4" Male Included
  • Max Pressure: 9500 PSI ( 63Mpa )
  • Gross Weight: 8.5kg / 18.7Lbs
  • Length of Hose: 330mm / 13"
  • Dimension of Package: 740 x 260 x 210mm / 29.1" x 10.2" x 8.26"
  • Dimension of Pump: 630 x 155 x 170mm / 24.8" x 6.1" x 6.7"

Quality Control Standard:

  • 0 ~ 4000psi, it is about 2 scale pressure pointing off
  • 4000 ~ 9000psi, it is about 1-1.5 scale pressure pointing off

Tips: The pump is sealed with ball valves, and the sealing performance will be better over 4,000 psi pressure.

Brand Dabpress
SKU DP-CP590G-US
Weight (lb.) 18.7000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Lead Time 3-5
Hazardous Material false
UPC 600736913515
ETL Listed No
UL Listed No

What does the Dabpress Hydraulic Hand Pump with Gauge do for rosin pressing?

The Dabpress Hydraulic Hand Pump with Gauge supplies hydraulic pressure for rosin press machines and lift jobs up to 12 tons. Solid steel construction supports durable hand operation.

Which rosin press machines work with the Dabpress Hydraulic Hand Pump with Gauge?

The Dabpress Hydraulic Hand Pump with Gauge pairs with 10-ton and 12-ton rosin press machines.

How does the Dabpress Hydraulic Hand Pump with Gauge help monitor pressing pressure?

The Dabpress Hydraulic Hand Pump with Gauge includes a pressure gauge installed at a 45-degree angle for easier PSI reading during operation. Maximum pressure reaches 9,500 PSI, or 63 MPa.

What accessories are included with the Dabpress Hydraulic Hand Pump with Gauge?

The Dabpress Hydraulic Hand Pump with Gauge includes a hose, an extra-long handle with a rubberized grip, an NPT 1/4-inch male coupler, and an attached red dust cap.

What hydraulic connections can the Dabpress Hydraulic Hand Pump with Gauge support?

The Dabpress Hydraulic Hand Pump with Gauge includes an NPT 1/4-inch male coupler for adapting to hoses, rams, pumps, spreaders, and accessories using common ZG 1/4-inch fittings.
