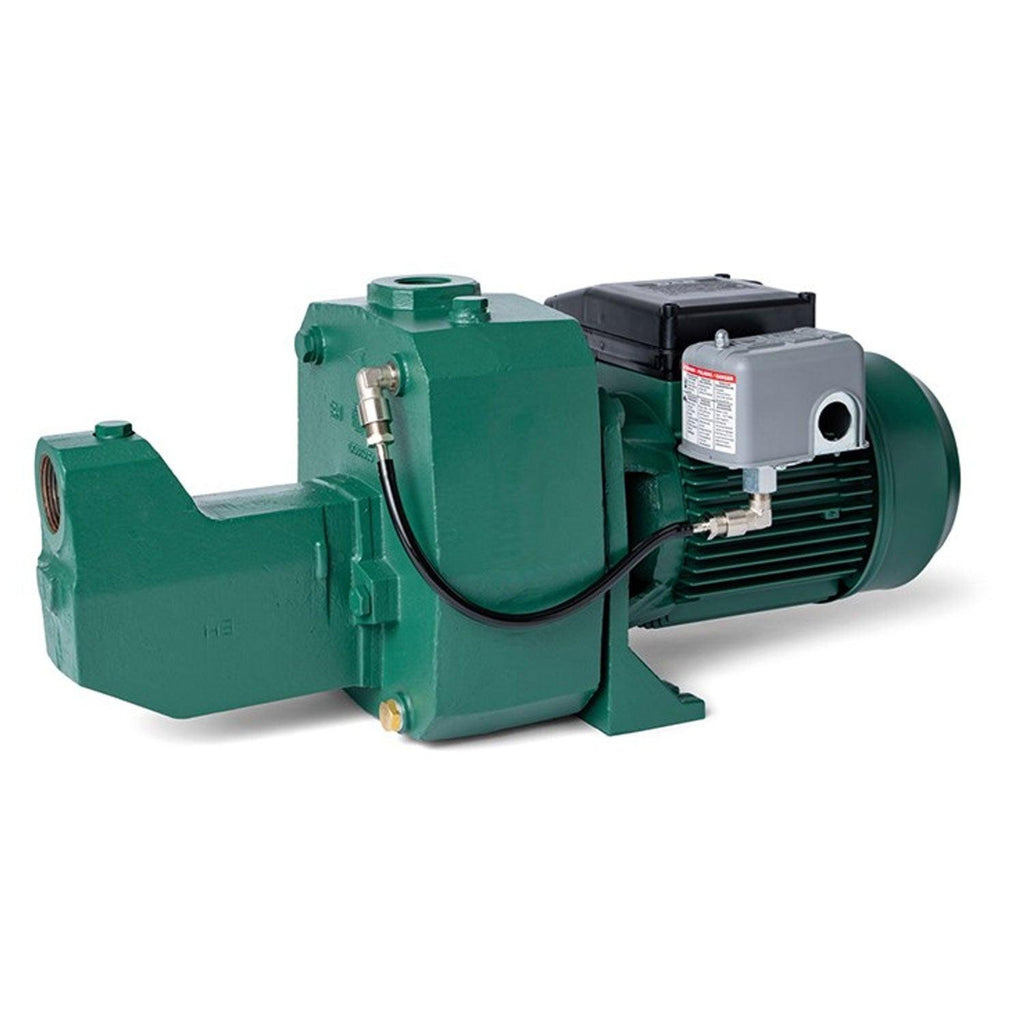

The DAB JET Self-Priming Centrifugal Pump is designed for reliable water transfer in residential, agricultural, and light industrial applications. Engineered to handle water containing air bubbles and small amounts of sandy impurities, this pump ensures consistent performance even under challenging suction conditions. The robust construction features a cast iron pump body and motor support, while key hydraulic components such as the impeller, diffuser, Venturi tube, and sand guard are made from durable techno polymer. Equipped with stainless steel adjustment rings and carbon/ceramic mechanical seals, the JET offers dependable operation and long service life. With its internal ejector, high suction capacity, and efficient self-priming capabilities down to 29 ft, the JET is an ideal choice for domestic water supply, irrigation systems, small-scale farming, and gardening.
Liquid Quality Requirements: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral
DAB JET Self Priming Centrifugal Electric Pump
Horsepower
1.5 HP
2 HP
Power Supply
Single Phase 230V / 60 Hz
Operating Range
Capacity up to 47gpm; Head up to 218 ft (94 psi)
Motor Power
1.1 kW / 1.5 hp
1.85 kW / 2 hp
Motor Performance
7.7A / 3400 RPM
10.5 A / 3400 RPM
Maximum Flow Rate
Up to 23 gpm
Up to 35 gpm
Maximum Pressure
115 psi
Maximum Suction Depth
29 ft
Liquid Temperature Range
32°F to +104°F
Maximum Ambient Temperature
+104°F
Discharge Port (DNA)
1-1/4in NPT
Delivery Port (DNM)
1in NPT
Insulation Class
F
Service Factor
1.3
1.2
Installation
Horizontal Fixed Position
>Motor Protection Rating
IP 44
Terminal Block Protection Rating
IP 55
Certifications
CSA Standard C22.2, UL Standard 778 5th Edition
Showing details for 1.5 HP. Choose another option above to see its specs.
