Multistage horizontal centrifugal pump, featuring extremely silent running suitable for domestic use for water supply and pressurisation, irrigation of gardens and vegetable gardens, and moving water in general. Euroinox: stainless steel pump body. Motor support in die-cast aluminium, seal holder in AISI 304 steel. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer. Adjustment rings in stainless steel.
Features:
- Multistage centrifugal electric pump
- Pump body in stainless steel
- Self-priming up to 6 mm
- Built-in capacitor and single-phase version complete with thermal and current overload protection
Advantages:
- The special design make these pumps exceptionally silent-running.
- High pressures of up to 8 bar can be reached.
- Optimal motor cooling
Benefits:
- Silent running
- Reliable
- Optimal hydraulic performance
Applications include:
- Domestic Water pressurization
- Water pressurization for irrigation systems
- Pressurization of sprinklers & sprinkler systems

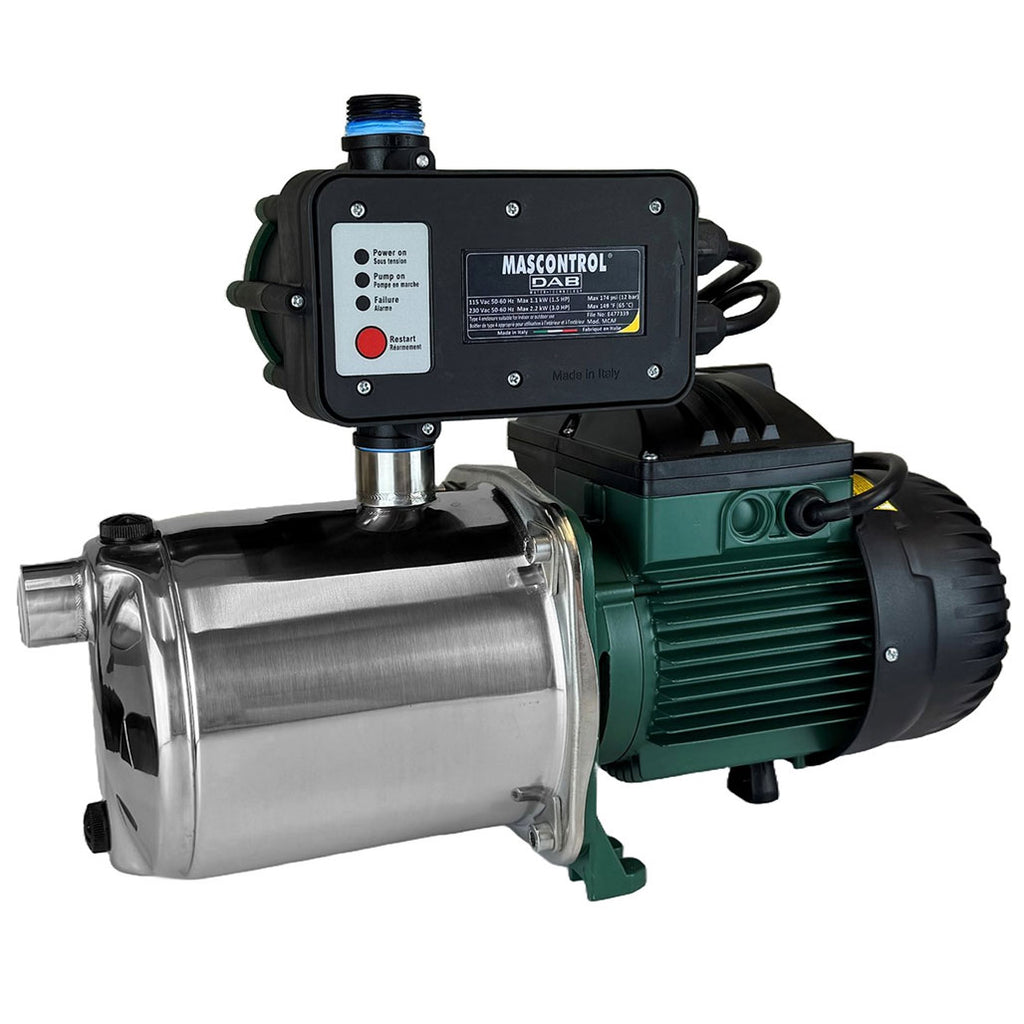

DAB Euroinox 50/506 with Mas Control, 1HP, 1920 GPH Technical Data
-
Protection Level of Motor: IP 44
-
Protection Level of Terminal Board: IP 55
-
Insulation Class: F
-
Operating Range: from 2.6 to 31.7 gpm (0.6 to 7.2 m3 /h) with a head of up to 236 ft (72 m)
-
Pumped Liquid Characteristics: Clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallised, chemically neutral and close to the characteristics of water.
-
Liquid temperature range:
- from 32°F to +95°F (0°C to +35°C )for domestic use
- from 32 F to +104 F (0°C to +40°C )for other uses
-
Maximum Ambient Temperature: +104 F (+40°C)
-
Maximum Operating Pressure: 116 psi (8 bar)
-
Euroinox: Self-priming
