Covert Product Documents

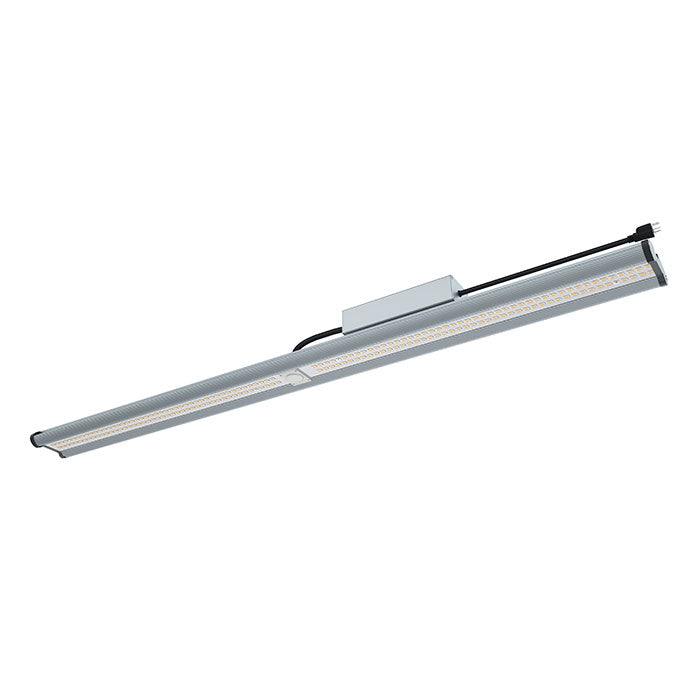

Covert LED-X Full-Spectrum LED Grow Light Bar ManualThe New Covert LED-X LED Bars Are Perfect For Side-Lighting, Intracanopy Lighting, Vertical Growing, Cloning, Seed Starting & More!
Covert full-spectrum plug-and-play LED grow light bars are your affordable and reliable solution to fill in gaps in low light spaces or add supplemental lighting for your prized plants in grow rooms, grow tents, and greenhouse applications. Designed and engineered to supplement the existing primary lighting in an effort to increase yields and add additional PAR where needed. Often upper leaves of plants will block the light from the top lighting from reaching the mid and lower leaves of the plant, which is where our LED bars are able to add usable light.
Our Covert 4 foot 100 Watt LED Bar will add an additional 240+ µmol/s and the 2 foot 60 Watt LED Bar will add an additional 140+ µmol/s (efficacy of 2.4 µmol/J for both versions) where it is needed most helping create a more vigorous and healthy plant without adding additional heat. These easy-to-use grow lights are passively cooled with no need for built-in fans that can often fail. Backed by a 3-year warranty, our LEDs will perform at a high level in your indoor garden for many years to come.
NOTE: The Covert LED-X Bars are NOT controllable with the Covert Master Controller
What's In The Box?
- Covert LED-X Full-Spectrum LED Grow Light Bar (Choose 2 ft. or 4 ft.)
- 120 Volt Power Cord
- User Manual
The Covert LED-X Grow Light Bars Have A Place In Any Grow Room Or Greenhouse
Whether you are a traditional indoor grower, use newer vertical farming techniques, or thrive in a greenhouse, our Covert LED-X Bars will perform at a high level in many applications.
Growing Indoors
Take your indoor garden or grow tent set-up to the next level with a precise and effeicent premium lighting solution. Great for adding side lighting to grow tents or as intacannopy lighting.
Vertical Farming
The low profile 3" height of this grow light makes it a perfect vertical gardening light. Simply attach the LED bars to the under side of the growing rack above for a siimple and easy primary or supplemental lighting solution.
Greenhouse Growing
The UL8800 rating for damp environments and open style multi-bar fixture design makes this a perfect solution for greenhouse lighting. The grow lights slim design will not block natural sunlight, but will provoide additional supplemental lighting when needed.
Specifications for the Covert 2 ft LED Grow Light Bar
| Light Source | LED |
|---|---|
| Spectrum | Full Spectrum White with Enhanced Red |
| PPF | 140 µmol/s |
| Input Power | 60 Watts |
| PAR Efficacy | 2.4 µmol/J |
| Coverage Area | Veg: 3' x 1'+; Flower 3' x 1'+ |
| HPS Equivalent | 150 Watts |
| Input Voltage | Auto-sensing 100-277 Volts |
| Dimensions | Weight | 23" x 2.25" x 2.25" | 5.5 lbs. |
| Mounting Height | 6" - 12" above canopy |
| Thermal Management | Passive |
| Light Distribution | 100° |
| Color Rendering Index | 90ra |
| Operating Temperature Range | -4°F - 185°F |
| Lifetime | 50,000 Hours |
| Power Factor | >90% |
| Certifications | UL1598 (Damp Location Rating), IP55 (Console Only), CE |
| Warranty | 3 Year |
| Amps | 0.5 @ 120, 0.28 @ 208, 0.25 @ 240, 0.21 @ 277 |
| Power Cord | Attached 120 Volt Included |
Specifications for the Covert 4 ft LED Grow Light Bar
| Light Source | LED |
|---|---|
| Spectrum | Full Spectrum White with Enhanced Red |
| PPF | 240 µmol/s |
| Input Power | 100 Watts |
| PAR Efficacy | 2.4 µmol/J |
| Coverage Area | Veg: 5' x 1'+; Flower 5' x 1'+ |
| HPS Equivalent | 300 Watts |
| Input Voltage | Auto-sensing 100-277 Volts |
| Dimensions | Weight | 43.5" x 2.25" x 2.25" | 5.5 lbs. |
| Mounting Height | 6" - 12" above canopy |
| Thermal Management | Passive |
| Light Distribution | 100° |
| Color Rendering Index | 90ra |
| Operating Temperature Range | -4°F - 185°F |
| Lifetime | 50,000 Hours |
| Power Factor | >90% |
| Certifications | UL1598 (Damp Location Rating), IP55 (Console Only), CE |
| Warranty | 3 Year |
| Amps | 0.83 @ 120, 0.48 @ 208, 0.42 @ 240, 0.36 @ 277 |
| Power Cord | Attached 120 Volt Included |
| Brand | Covert |
|---|---|
| SKU | CT-LEDX-BARS |
| Hazardous Material | false |
