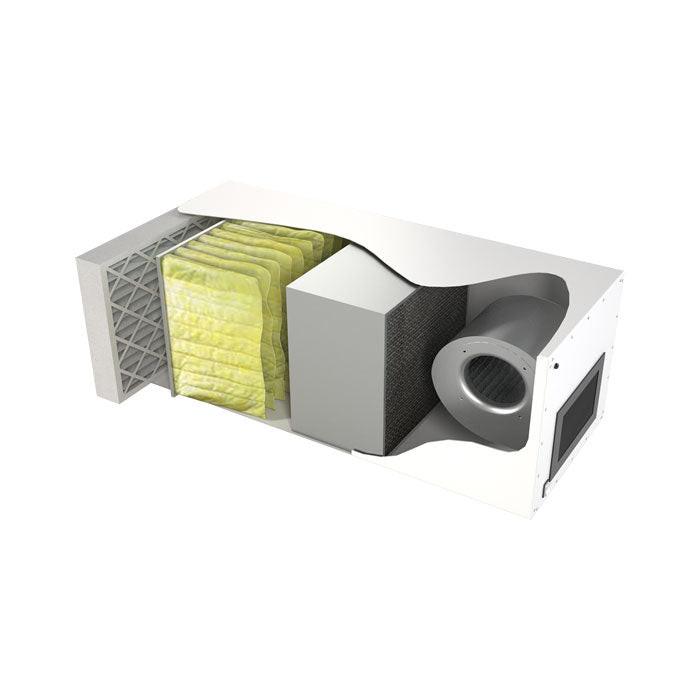

The CleanLeaf CL2500 series was engineered to capture the multiple airborne threats to large indoor grow facilities
Mold and fungi spores, bacteria, pollen, pest insects, VOCs and odors are all captured through a series of industry proven filtration technologies. Housed in a 16-gauge Cold-Rolled steel cabinet and finished with a light reflective white Polyurethane Powder Coating, each unit is self-contained for use individually or in groups. All units come with a standard 3 year warranty included on all parts excluding filters.
The CL1100 Series has 2 different options: Both options in this series come with the same 2 starting filters and your choice of the last filter
- 1) 35% Pleated Fiber Pre Filter - 24" x 24" x 4"
- 2) 95% 12 Pocket Bag Filter - 24" x 24" x 15"
- 3) Choice between:
- Charcoal After Filter - 75% Fill
- OR
- 99.97% True HEPA Filter
The CleanLeaf CL2500 with Charcoal filter runs at 2400 CFM while the CL1100 with HEPA filter runs at 1800 CFM
Specifications for the CleanLeaf 2500 Series
| Model | CL2500-HE |
|---|---|
| Airflow | 1800 CFM |
| Motor | PSC Type 1/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 10.2A |
| Dimensions | 24" W x 24" H x 59" L |
| Pre-Filter | 24" x 24" x 4" - 35% Pleated Fiber Pre Filter |
| Primary Filter | 24" x 24" x 15" - 95% 12 Pocket Bag Filter |
| After Filter | 20" x 20" x 12" - 99.97% True HEPA Filter |
| Hanging Weight | 190 lbs. |
| Shipping Weight | 200 lbs. |
| Model | CL2500-CF |
|---|---|
| Airflow | 2400 CFM |
| Motor | PSC Type 3/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 3.5A 500W |
| Dimensions | 20" W x 15" H x 44" L |
| Pre-Filter | 24" x 24" x 4" - 35% Pleated Fiber Pre Filter |
| Primary Filter | 24" x 24" x 15" - 95% 12 Pocket Bag Filter |
| After Filter | 24" x 24" x 2" Charcoal After Filter - 75% Fill |
| Hanging Weight | 150 lbs. |
| Shipping Weight | 160 lbs. |
| Brand | CleanLeaf |
|---|---|
| SKU | CL2500-HE |
| Weight (lb.) | 200.0000 |
| Length (in.) | |
| Lead Time | This product ships in 2-6 weeks |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| Prop 65 | false |
| CFM Rating | 1800 CFM |
| Primary Filter | 35% Pleated Fiber Pre Filter + 95% 12 Pocket Bag Filter |
| Secondary Filter | 99.97% True HEPA Filter (@ 0.3 Microns) |
| Power Cord(s) Included | Yes |
| Amps | 10.2 Amps |
| Voltage | 120 Volts |
| Frequency | 60 Hz |
| ETL Listed | No |
| UL Listed | No |
CleanLeaf CL2500 Series Air Filtration System with HEPA Filter, 1800 CFM Questions & Answers
Q: What is the most effective way to eliminate odors?
A: Carbon is the most efficient way of mitigating odors and VOC's
Q: Do your units take the place of my current carbon filters?
A: If you are exhausting air out of your room at any time, we still recommend doing so through a Can style filter.
Q: Will your units guarantee that I will not get Powdery Mildew or other Molds?
A: Since the air has to make its way to the units to be filtered, there is always a chance that it can still get to the plants. However, our units will reduce your chances of contamination by up to 95%.
Q: What size unit do I need?
A: The size and quantity of units required depend on the length, width and height of the room they are being placed in. Please contact us for assistance with accurate sizing.
Q: How do I hang the units?
A:
Q: How big are the most common grow room air contaminants and what filters capture them?
A: Most common grow room contaminants are 1 micron or larger
- HEPA filters will capture 99.97% of particulate down to 0.3 micron
- ✓ Bag filters will capture 95% of particulate down to 1 micron
Q: How do I hang the units?
A: They can be hung from the ceiling with eye bolts and chain, or hung from the wall with L-brackets.
Q: How often do I need to change the filters?
A: In normal grow room environments:
- Pre-filters will last up to 3 months
- Bag filters will last up to 6 months
- Carbon will last up to a year
- HEPA filters will last up to 4 years
Q: Can I turn down the units?
A: Yes, our CL1100 units have full variable speed control and our CL2500 and CL3000 have high or low controls.
Q: How long does it take to get my air cleaner?
A: Production times vary based on volume of orders, but most of the time we can get any unit out within 2 weeks.
