CleanLeaf Product Documents

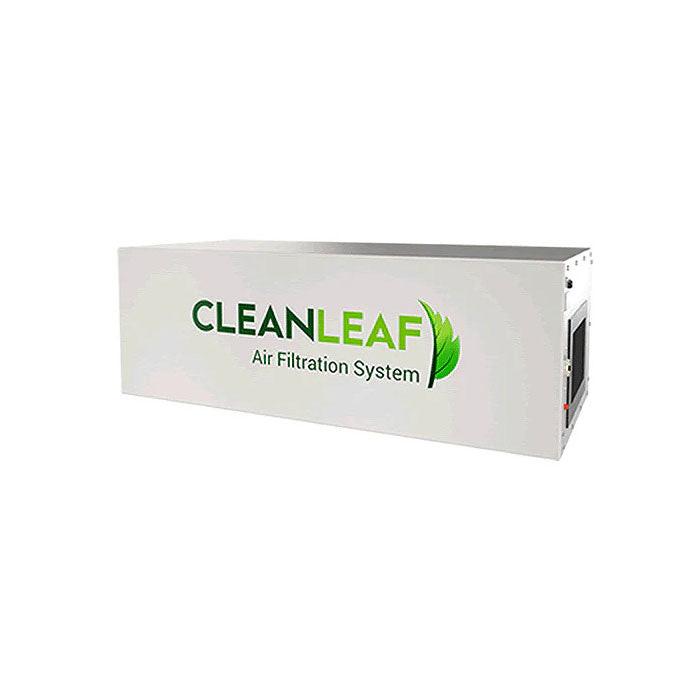

The CleanLeaf CL1100 series was engineered to capture the multiple airborne threats to medium sized indoor grow rooms
Mold and fungi spores, bacteria, pollen, pest insects, VOCs and odors are all captured through a series of industry proven filtration technologies. Housed in a 16-gauge Cold-Rolled steel cabinet and finished with a light reflective white Polyurethane Powder Coating, each unit is self-contained for use individually or in groups. All units come with a standard 3 year warranty included on all parts excluding filters.

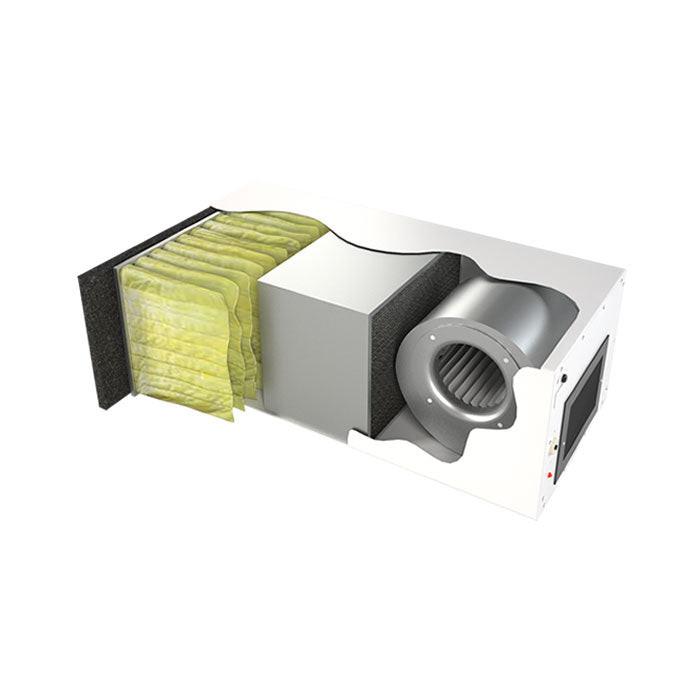

The CL1100 Series has 2 different options: Both options in this series come with the same 2 starting filters and your choice of the last filter
- 1) Foam Pre Filter - Washable - 15" x 20" x 1"
- 2)95% 6 Pocket Bag Filter - 15" x 20" x 12"
- 3) Choice between:
- 7 lb. Charcoal After Filter
- OR
- 99.97% True HEPA Filter
The CleanLeaf CL1100 with Charcoal filter runs at 1000 CFM while the CL1100 with HEPA filter runs at 800 CFM
Specifications for the CleanLeaf 1100 Series
| Model | CL1100-HE |
|---|---|
| Airflow | 800 CFM |
| Motor | PSC Type 1/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 3.5A 500W |
| Dimensions | 20" W x 15" H x 44" L |
| Pre-Filter | 15" x 20" x 1" - Foam Pre Filter - Washable |
| Primary Filter | 15" x 20" x 12" - 95% 6 Pocket Bag Filter |
| After Filter | 12" x 18" x 12" - 99.97% True HEPA Filter |
| Hanging Weight | 115 lbs. |
| Shipping Weight | 125 lbs. |
| Model | CL1100-CF |
|---|---|
| Airflow | 1000 CFM |
| Motor | PSC Type 1/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 3.5A 500W |
| Dimensions | 20" W x 15" H x 44" L |
| Pre-Filter | 15" x 20" x 1" - Foam Pre Filter - Washable |
| Primary Filter | 15" x 20" x 12" - 95% 6 Pocket Bag Filter |
| After Filter | 15" x 20" x 2" - 7 lb. Charcoal After Filter |
| Hanging Weight | 100 lbs. |
| Shipping Weight | 110 lbs. |
| Brand | CleanLeaf |
|---|---|
| SKU | CL1100 |
| Hazardous Material | false |
CleanLeaf CL1100 Series Air Filtration System Questions & Answers
Q: What is the most effective way to eliminate odors?
A: Carbon is the most efficient way of mitigating odors and VOC's
Q: Do your units take the place of my current carbon filters?
A: If you are exhausting air out of your room at any time, we still recommend doing so through a Can style filter.
Q: Will your units guarantee that I will not get Powdery Mildew or other Molds?
A: Since the air has to make its way to the units to be filtered, there is always a chance that it can still get to the plants. However, our units will reduce your chances of contamination by up to 95%.
Q: What size unit do I need?
A: The size and quantity of units required depend on the length, width and height of the room they are being placed in. Please contact us for assistance with accurate sizing.
Q: How do I hang the units?
A:
Q: How big are the most common grow room air contaminants and what filters capture them?
A: Most common grow room contaminants are 1 micron or larger
- HEPA filters will capture 99.97% of particulate down to 0.3 micron
- ✓ Bag filters will capture 95% of particulate down to 1 micron
Q: How do I hang the units?
A: They can be hung from the ceiling with eye bolts and chain, or hung from the wall with L-brackets.
Q: How often do I need to change the filters?
A: In normal grow room environments:
- Pre-filters will last up to 3 months
- Bag filters will last up to 6 months
- Carbon will last up to a year
- HEPA filters will last up to 4 years
Q: Can I turn down the units?
A: Yes, our CL1100 units have full variable speed control and our CL2500 and CL3000 have high or low controls.
Q: How long does it take to get my air cleaner?
A: Production times vary based on volume of orders, but most of the time we can get any unit out within 2 weeks.
