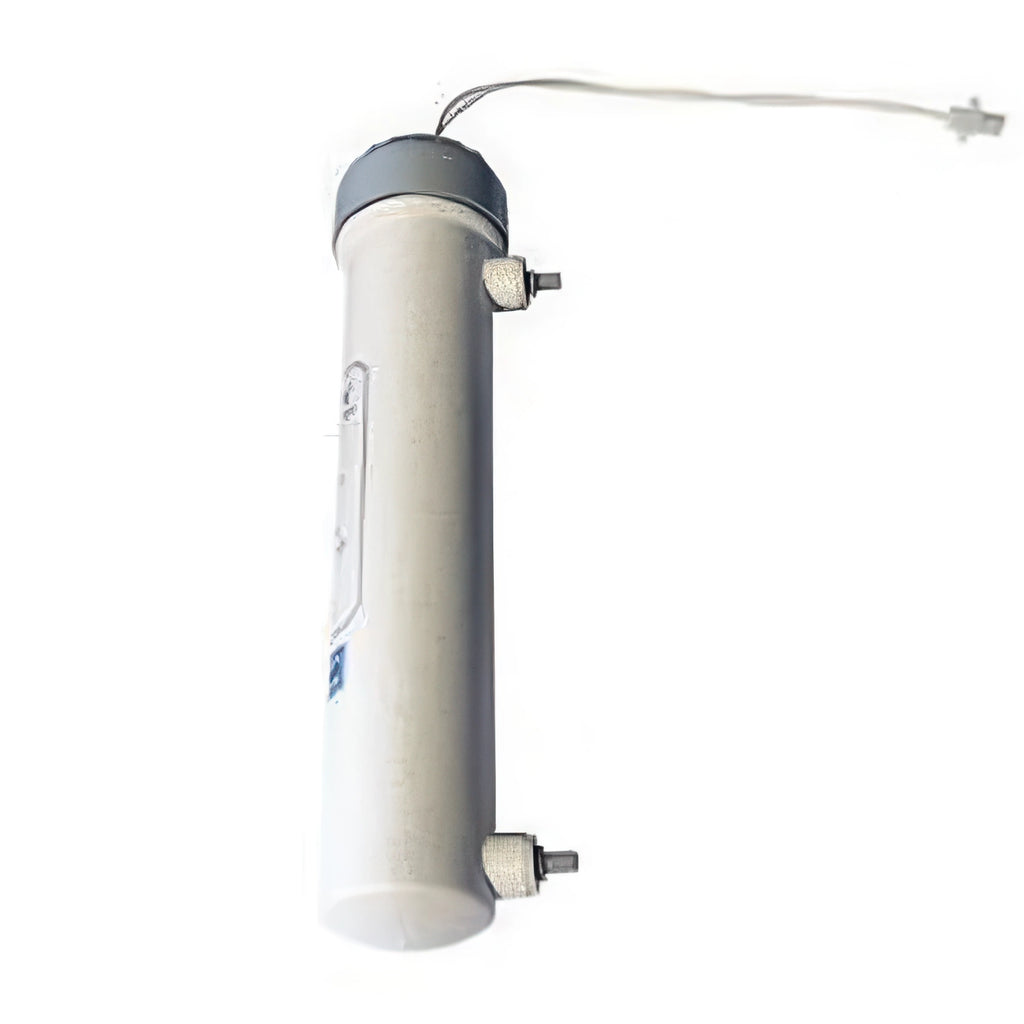

The AXEON® Inline UV Sterilizer is a compact, point-of-use ultraviolet disinfection unit designed for residential water treatment systems, RO setups, and specialty applications requiring chemical-free microbial control. Rated for up to 1 gallon per minute, it effectively inactivates bacteria and viruses in-line without altering water chemistry.
This unit is supplied without a ballast, making it ideal as a replacement chamber or for integration into existing systems where a compatible ballast is already in place. The 1/4" quick-connect fittings allow for fast, tool-free installation in tight spaces. Compatible ballast available separately: AXEON 6 Watt UV Ballast 110V, Part #200842.
Features
- Chemical-free disinfection - inactivates bacteria and viruses using UV light without adding chemicals
- Compact inline design - fits under-sink systems, RO units, and space-constrained applications
- 1/4" John Guest quick-connect ports for fast, tool-free installation and removal
- Stainless steel reaction chamber - corrosion-resistant, only the lamp requires periodic replacement
- Rated capacity: 1,500 gallons or 1 year before lamp replacement
- Ships without ballast - for use with existing compatible ballasts or custom builds
Specifications
| Part Number |
200816 |
| Flow Rate |
1 GPM |
| Rated Capacity |
1,500 gallons or 1 year |
| Power |
6 Watts, 110V, 60 Hz |
| Ballast |
Not included (compatible: Part #200842) |
| Connections |
1/4" Quick Connect (John Guest) |
| Max Temperature |
104 degrees F |
| Max Pressure |
120 psi |
| Dimensions |
1.9" x 11" |
| Chamber Material |
Stainless steel lined, corrosion-resistant |
