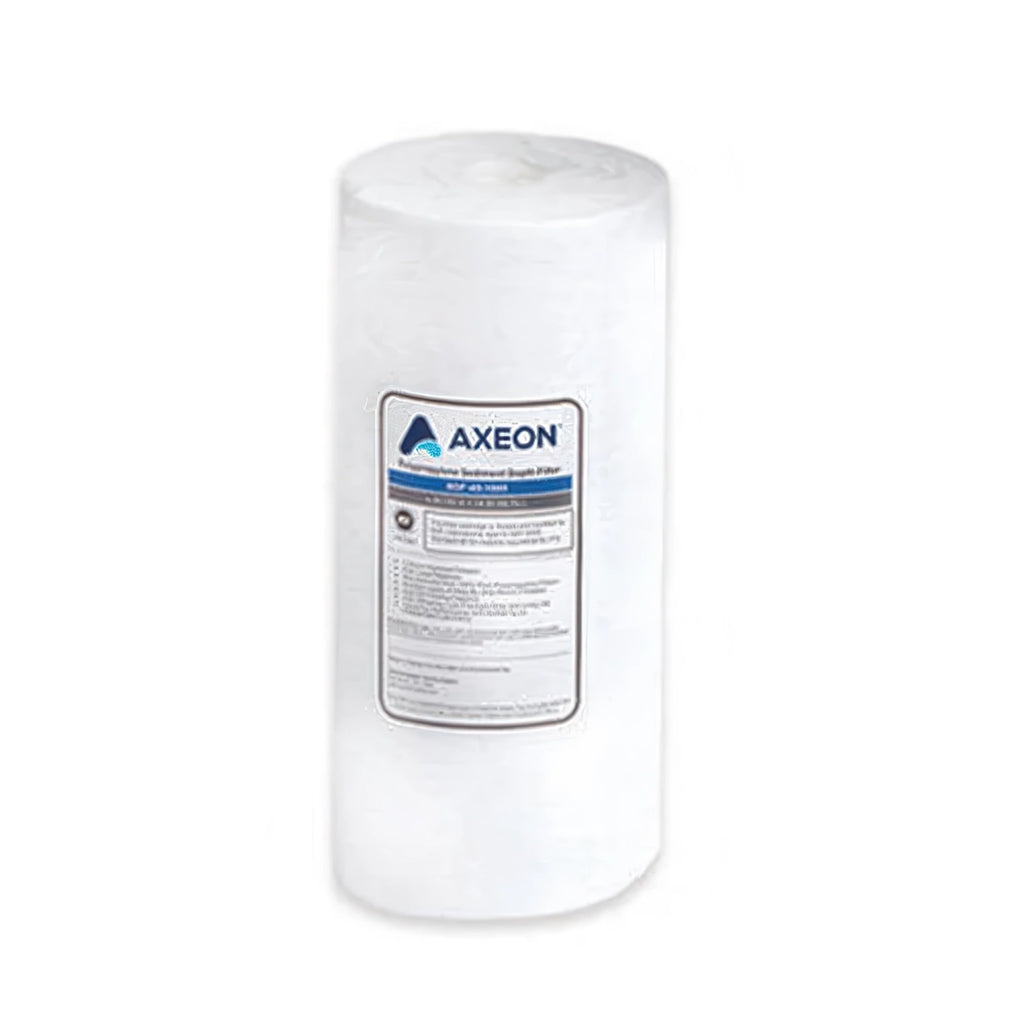

AXEON SDF-45-1005 Sediment Filter Cartridge, 5 Micron, 4.5" x 10"

The AXEON® SDF-45-1005 Polypropylene Sediment Depth Filter Cartridge provides an economical, high-quality option for sediment and particulate reduction in pre- and post-filtration applications. Fits standard 4.5" x 10" filter housings including Pentair® Big Grey housings. Used as a single stage of particulate filtration or as an integrated stage within a complete water treatment system.

AXEON SDF-Series cartridges feature a multi-stage depth filtration design with four separate layers of graded-density micron filtration. The outside-in flow captures larger particles in the outer layers and progressively finer sediment toward the center - resulting in higher dirt-holding capacity and lower pressure drop than conventional spun polypropylene and string wound cartridges.

Features

• Multi-stage graded density depth filtration - four layers capture progressively finer particles from outside in
• Higher dirt-holding capacity than standard spun polypropylene and string wound cartridges
• Outside-in flow technology for minimal pressure drop
• Manufactured from 100% pure polypropylene fibers
• Surfactant, binder, and adhesive free
• High chemical resistance
• Certified to NSF Standard 42
• FDA listed materials

Specifications

• Model: SDF-45-1005
• Diameter: 4.5"
• Length: 10"
• Micron Rating: 5 micron
• Media: 100% pure polypropylene fibers
• Flow Direction: Outside-in
• Certifications: NSF Standard 42

Used In These Systems

• AXEON® FSD-110 Single Stage Cartridge Filter System
• AXEON® FSD-210 Double Stage Cartridge Filter System
• AXEON® FSD-310 Triple Stage Cartridge Filter System
• AXEON® R1-Series Reverse Osmosis Systems
• AXEON® NL-Pro Reverse Osmosis Systems
