AXEON Water Technologies Product Documents

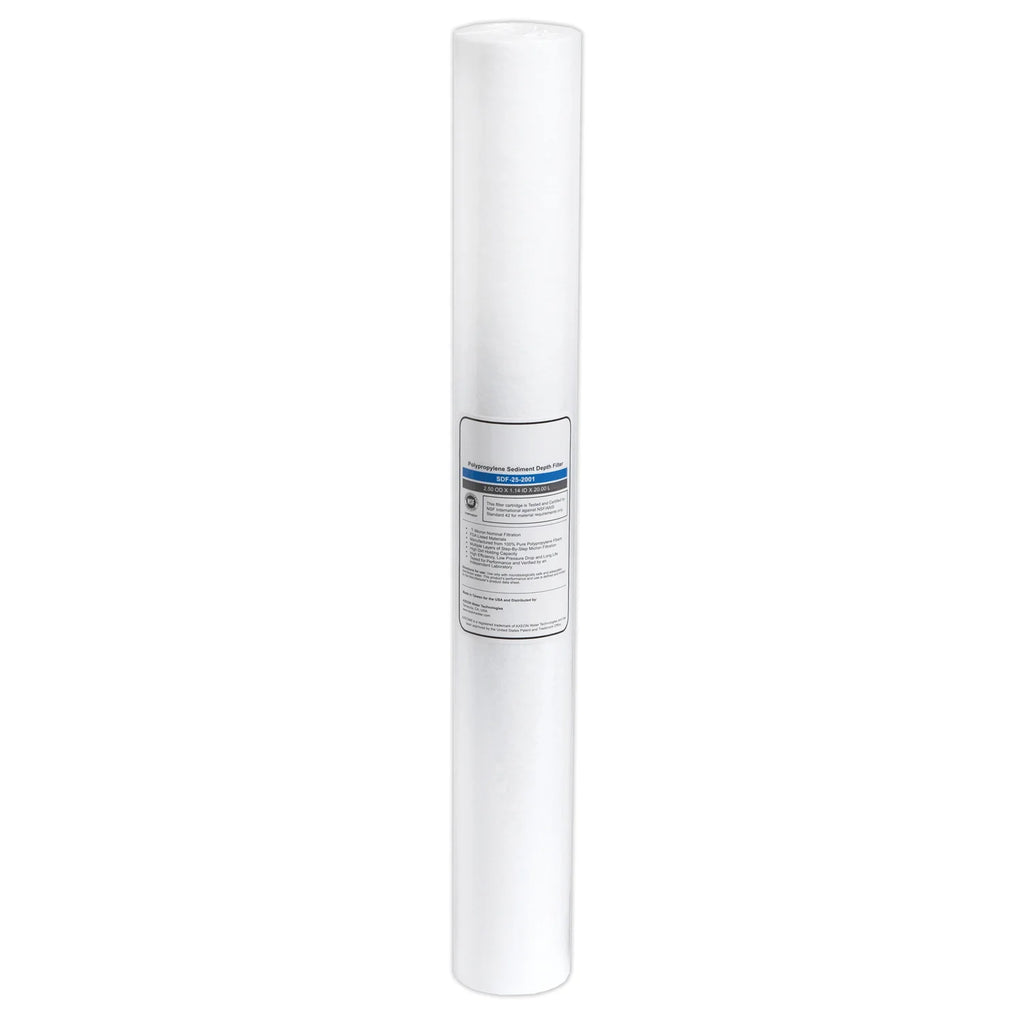

AXEON SDF Series SpechseetThe AXEON® SDF-25-2005 Polypropylene Sediment Depth Filter Cartridge provides an economical, high-quality option for sediment and particulate reduction in pre- and post-filtration applications. Fits standard 2.5" x 20" filter housings used in AXEON LP-Series RO systems. Used as a single stage of particulate filtration or as an integrated stage within a complete water treatment system.
AXEON SDF-Series cartridges feature a multi-stage depth filtration design with four separate layers of graded-density micron filtration. The outside-in flow captures larger particles in the outer layers and progressively finer sediment toward the center - resulting in higher dirt-holding capacity and lower pressure drop than conventional spun polypropylene and string wound cartridges.
Features
- Multi-stage graded density depth filtration - four layers capture progressively finer particles from outside in
- Higher dirt-holding capacity than standard spun polypropylene and string wound cartridges
- Outside-in flow technology for minimal pressure drop
- Manufactured from 100% pure polypropylene fibers
- Surfactant, binder, and adhesive free
- High chemical resistance
- Certified to NSF Standard 42
- FDA listed materials
Specifications
- Model: SDF-25-2005
- Diameter: 2.5"
- Length: 20"
- Micron Rating: 5 micron
- Media: 100% pure polypropylene fibers
- Flow Direction: Outside-in
- Certifications: NSF Standard 42
Used In These Systems
- AXEON® LP-350 Reverse Osmosis System
- AXEON® LP-500 Reverse Osmosis System
- AXEON® LP-700 Reverse Osmosis System
- AXEON® Replacement Filter Kit for Hydro Logic TALLBoy
Fast shipping on most orders. Call 888-815-9763 with questions.
| Brand | AXEON Water Technologies |
|---|---|
| SKU | 200626 |
| Weight (lb.) | 1.0000 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Lead Time | 2-3 |
| Prop 65 | false |
What is the AXEON SDF-25-2005 Polypropylene Sediment Depth Filter Cartridge used for?
The AXEON SDF-25-2005 reduces sediment and particulates in pre-filtration, post-filtration, single-stage filtration, and complete water treatment systems. The AXEON SDF-25-2005 has a 5-micron rating.
Which filter housings and RO systems fit the AXEON SDF-25-2005?
The AXEON SDF-25-2005 fits standard 2.5-inch x 20-inch filter housings used in AXEON LP-Series RO systems. The AXEON SDF-25-2005 is used in AXEON LP-350, LP-500, and LP-700 RO systems, plus the AXEON Replacement Filter Kit for Hydro Logic TALLBoy.
How does the AXEON SDF-25-2005 improve sediment filtration performance?
The AXEON SDF-25-2005 uses four layers of graded-density depth filtration with outside-in flow to capture progressively finer sediment. The AXEON SDF-25-2005 provides higher dirt-holding capacity and lower pressure drop than conventional spun polypropylene and string wound cartridges.
What materials and certifications does the AXEON SDF-25-2005 have?
The AXEON SDF-25-2005 is made from 100% pure polypropylene fibers and is free of surfactants, binders, and adhesives. The AXEON SDF-25-2005 has high chemical resistance, FDA listed materials, and NSF Standard 42 certification.
