AXEON Water Technologies Product Documents

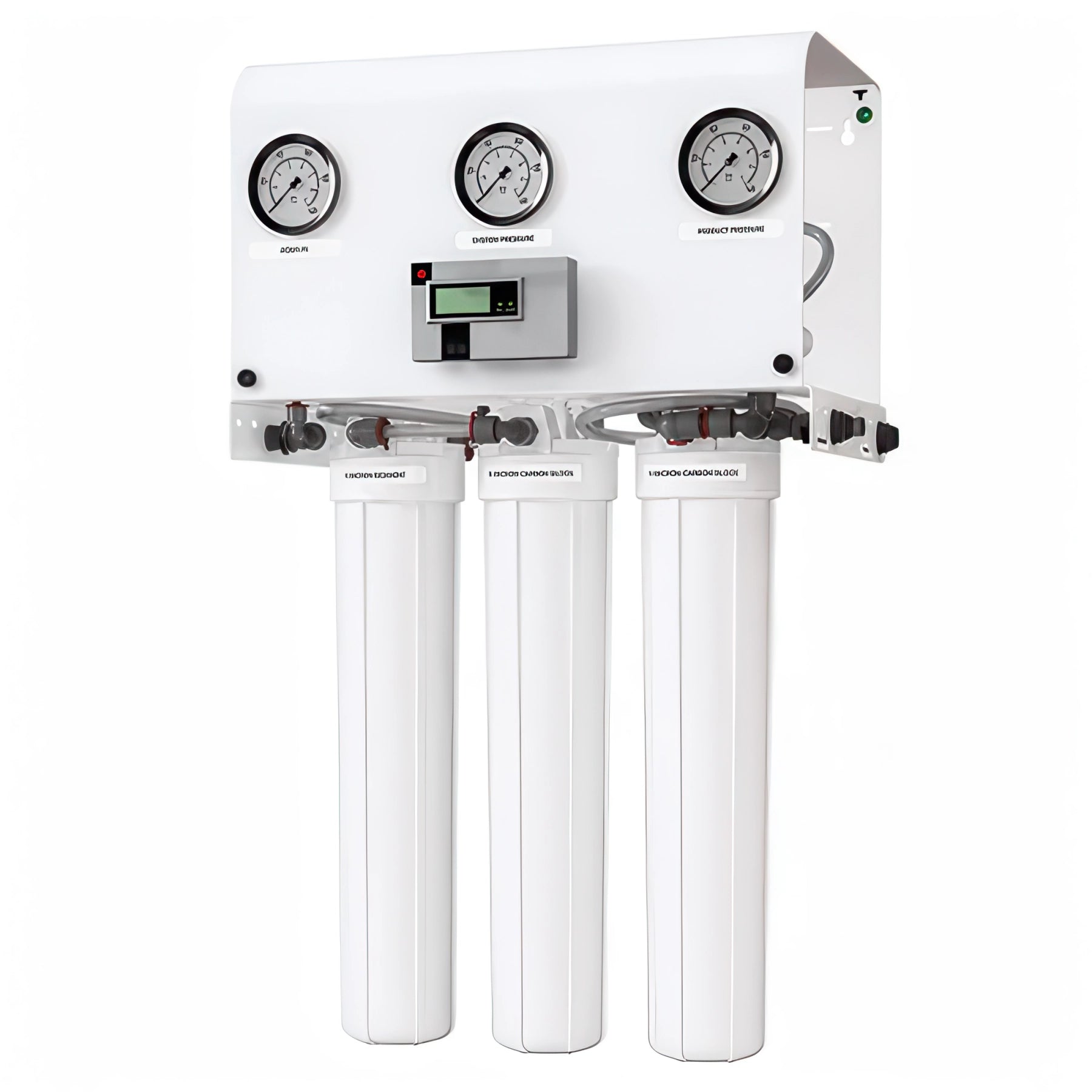

AXEON LP Series User Manual AXEON LP Series Spec Sheet AXEON WarrantyAXEON® LP– Series Reverse Osmosis Systems are engineered for light commercial markets. The LP–Series systems provide a cost-effective solution and are easy to install and maintain. These systems are designed to be wall mounted or free-standing and feature 10" 5-micron sediment and 10-micron carbon pre- and post-filters, slim line filter housings and AXEON RO membranes and membrane housings.
AXEON LP– Series Reverse Osmosis Systems are available in 10" standard or 20" plus models ranging from 350 to 700 gallons per day (GPD) at a line pressure of 70 psi. The LP– 500 models include a pump in order to deliver 500 GPD.
Included Components
- AXEON TF-3012 membrane element
- AXEON 3012 membrane housing
- AXEON 5-Micron Sediment Pre-Filter
- AXEON 10-Micron Carbon Block Pre-Filter and Post-Filter
- Pentair® 20" Slim Line filter housings
- Automatic shut-off valve
- Push/pull fittings with locking safety clip
- White Powder-Coated Steel Bracket/li>
- Blending Valve (LP– 500/500 Plus)
-
Cover with Glycerin - Filled Pressure Gauges, Including:
- Post-Filter Pressure Gauge
- Working Pressure Gauge
- Permeate Pressure Gauge
- HM-Digital® DM-2 Dual TDS Meter
Specifications
| LP-350 | LP-500 | LP-700 | |
|---|---|---|---|
| Permeate Flow (GPD) | 350 | 500 | 700 |
| Permeate Flow (gpm / lpm) | 0.24 / 0.91 | 0.35 / 1.31 | 0.49 / 1.85 |
| Standard Recovery % | 40 | 46 | 38 |
| Min Feed Flow (gpm / lpm) | 0.66 / 2.50 | 0.76 / 2.88 | 1.33 / 5.03 |
| Max Feed Flow (gpm / lpm) | 8.00 / 30.28 | 8.00 / 30.28 | 8.00 / 30.28 |
| Nominal TDS Rejection % | 98 | 98 | 98 |
| Membrane Quantity | 1 | 1 | 2 |
| Membrane Size | 3012 | 3012 | 3012 |
| Vessel Array | 1 | 1 | 2 (Parallel) |
| Pump Included | No | Yes (Aquatec 5800, 110V, 60Hz, 1PH, 4A) | No |
| Feed / Permeate / Concentrate | 3/8" QC | 3/8" QC | 3/8" QC |
| Max Feedwater TDS (ppm) | 500 | 500 | 500 |
| Operating Pressure (psi) | 70 (line pressure) | 70 (line pressure) | 70 (line pressure) |
| Approx. Dimensions LxWxH (in) | 12x17x32 | - | - |
| Approx. Weight (lbs) | 35 | 41 | 38 |
Note: Low temperatures and high feedwater TDS will affect production. For best results, feed water TDS should be under 500 ppm. The LP-350 and LP-700 operate on line pressure; the LP-500 includes a pump for lower-pressure installations.
LP-Series Accessories
Fast shipping on most orders. Call 888-815-9763 with questions.
AXEON LP-350 Reverse Osmosis System, 350 GPD
What does the AXEON LP-350 Reverse Osmosis System do for growers?
The AXEON LP-350 Reverse Osmosis System purifies water for hydroponic and light commercial grow applications, producing up to 350 gallons per day with up to 98% TDS rejection.
Can the AXEON LP-350 Reverse Osmosis System operate without a booster pump?
The AXEON LP-350 Reverse Osmosis System operates on standard 70 psi line pressure without a booster pump.
Where can the AXEON LP-350 Reverse Osmosis System be used?
The AXEON LP-350 Reverse Osmosis System suits restaurants, cafes, laboratories, light commercial grow facilities, and other point-of-use water purification applications.
How can the AXEON LP-350 Reverse Osmosis System be installed?
The AXEON LP-350 Reverse Osmosis System supports wall-mount or free-standing installation and includes necessary installation hardware.
What does the AXEON LP-350 Reverse Osmosis System include?
The AXEON LP-350 Reverse Osmosis System includes an AXEON TF-3012 membrane element, membrane housing, sediment and carbon pre-filters, post-filter, Pentair Slim Line filter housings, automatic shut-off valve, push-pull fittings, pressure gauges, cover, and dual TDS meter.
How can growers monitor water quality with the AXEON LP-350 Reverse Osmosis System?
The AXEON LP-350 Reverse Osmosis System includes a dual TDS meter for monitoring inbound and outbound water quality at a glance.
