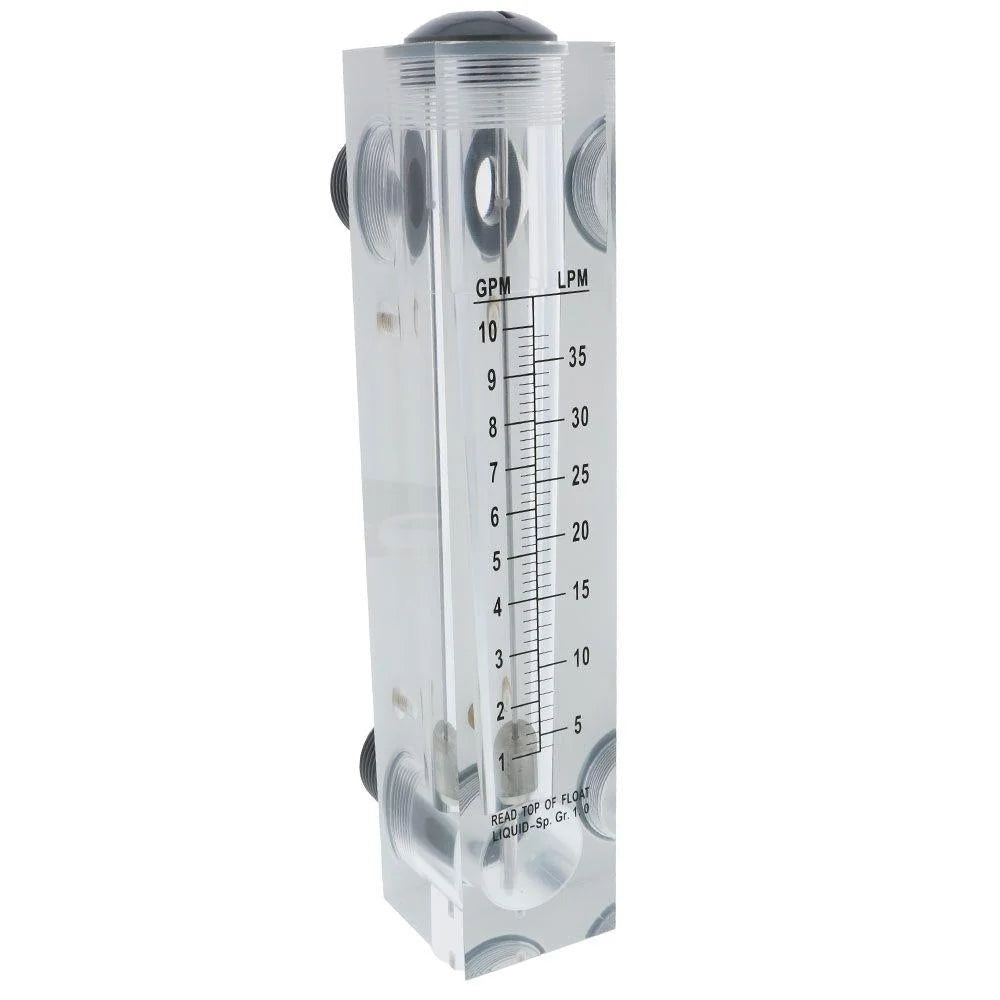

The AXEON Panel Mount Flow Meter is designed for accurate monitoring of water flow in commercial and industrial water treatment systems. With a 1–10 GPM flow range, this meter allows operators to easily verify system flow rates and maintain proper operating conditions in reverse osmosis and filtration applications.

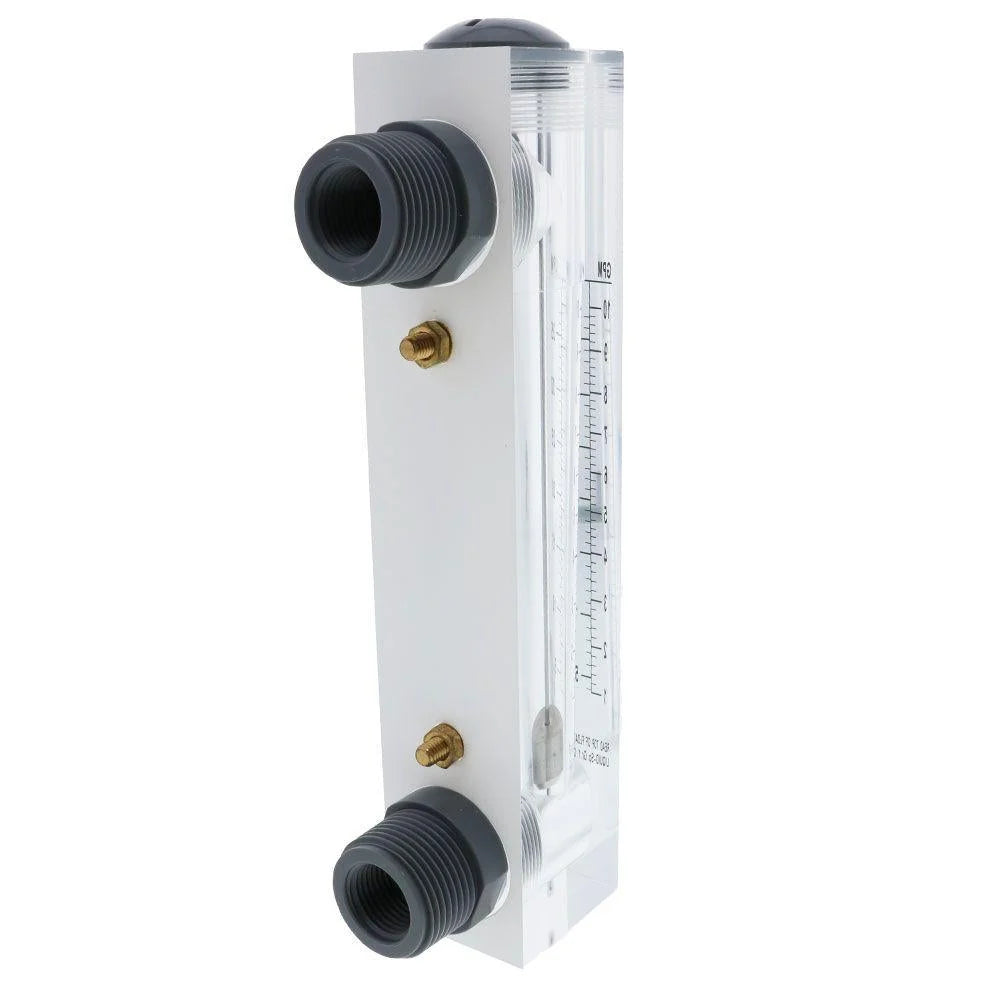

Featuring 1″ MNPT × 1″ MNPT connections, this panel-mounted flow meter supports straightforward installation and dependable performance in a wide range of water treatment systems. Its clear flow scale provides reliable visual monitoring to help maintain consistent system operation.
Features:
- Solid One Piece Injection Molded Acrylic Body
- Stainless Steel Float and Internals
- Permanent Screen Printed Scales
- Dual Scale in GPM/LPM or GPH/LPH
- Individually Packaged
- 100% Tested for Accuracy
Specifications
-
Flow Range (gpm / lpm): 1 - 10 / 5 - 35
-
Integrated 316L SS Valve: No
-
Inner Connection (in): 1/2" FNPT
-
Outer Connection (in): 1" MNPT
-
Body: Acrylic
-
O–Rings: Silastic
-
Connections: Polypropylene
-
Guide: 316L Stainless Steel
-
Float: 316L Stainless Steel
-
Maximum Pressure: 125 psi
-
Temperature Rating: 120°F
-
Accuracy: ± 5%
-
AXEON Part Number: 200899
