Autopilot Product Documents

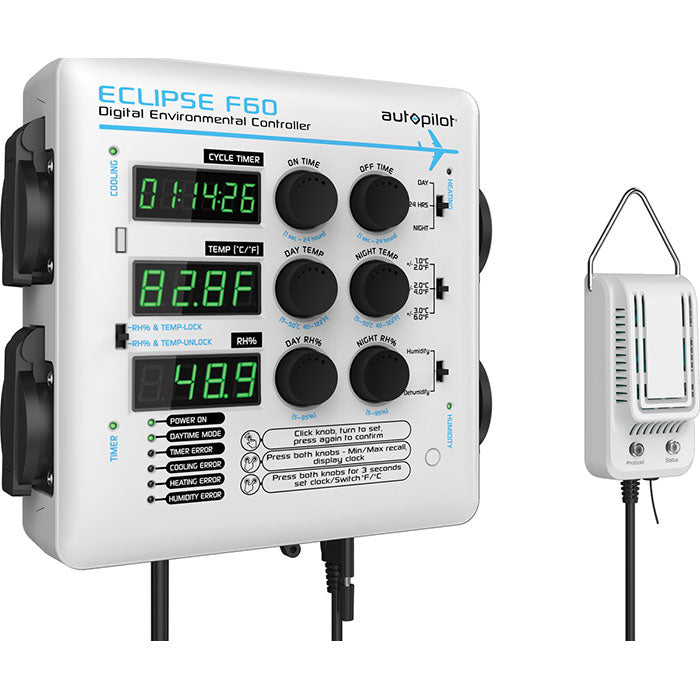

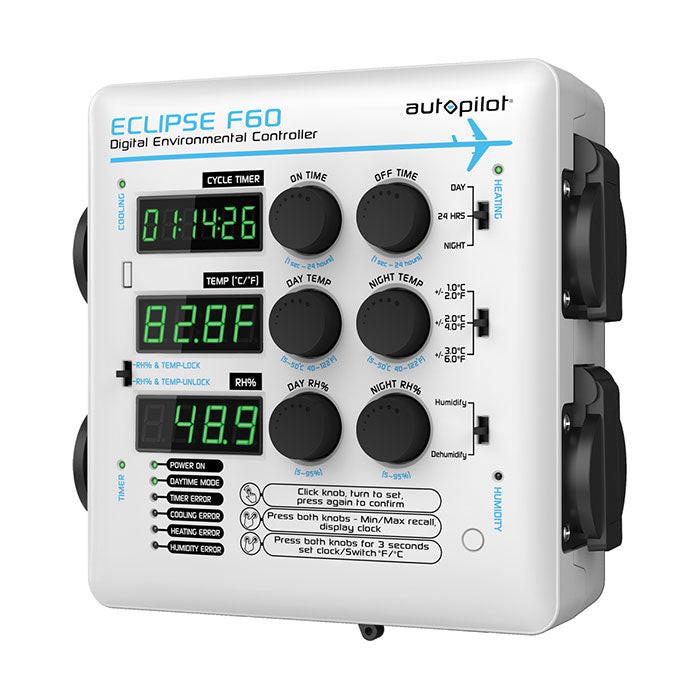

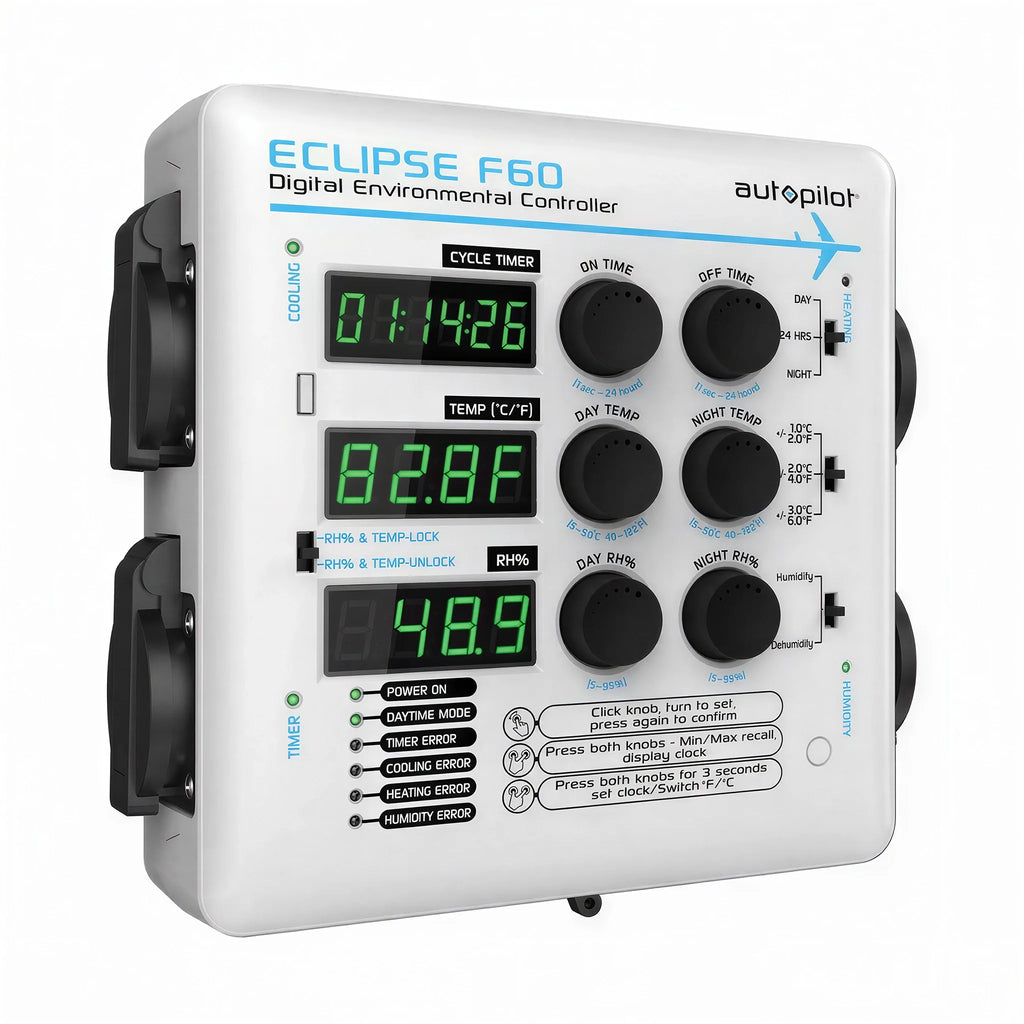

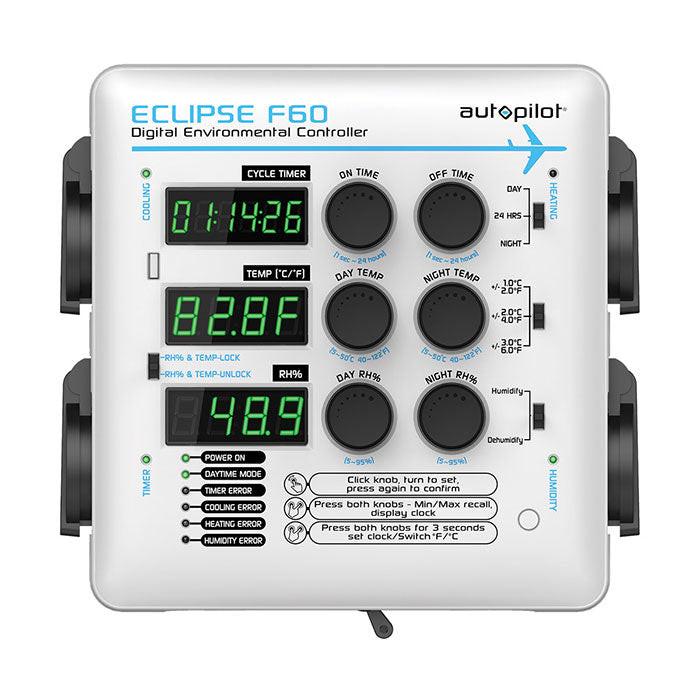

APE4100 InstructionsThe Autopilot ECLIPSE F60 Digital Environmental Controller combines precise temperature and humidity control along with cycle timing to create an intelligent yet easy-to-use unit. Three digital screens continuously display current temperature, relative humidity, and a cycle timing countdown clock. LED lights indicate active modes and inform the user of any errors.
Eclipse F60 has four outlets: Cooling, Heating, Humidify/Dehumidify, Cycle Timer. The three temperature and humidity outlets offer customizable day and night set points while the cycle timer outlet controls any device requiring a repeated on/off function during a 24 hour time period. All four outlets feature heavy duty protective covers that prevent atmospheric moisture from entering the device. A built-in data logger records minimum and maximum temperature and humidity levels.
The F60’s sensitive and intelligent remote combination probe features a highly accurate temperature/humidity sensor and photocell for daylight detection. The probe can be placed up to 15 feet from the controller, and has been designed to resist EMI/EFI from electronic ballasts.
Mounts to both walls and grow tents. Two mounting kits are included with each controller.
Features:
- 4 outlets control temperature (heating and cooling), humidity and a cycle timed device
- Operates temperature and humidity outlets independently or synchronized
- Separate day/night temperature and humidity set points
- Cycle timer outlet modes: day only/night only/24 hours
- Cycle timer is programmable down to 1 second
- Records high/low temperature and humidity levels
- 15' temperature and humidity sensor with photocell
- LED mode and error indicators
- Internal battery keeps settings during unexpected power failure
- 14.5 max operating amperage, 120V
- ETL-listed
| Brand | Autopilot |
|---|---|
| SKU | APE4100 |
| Weight (lb.) | 5.1000 |
| Lead Time | This Product Ships in 2-3 Business Days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 2 Year |
| Hazardous Material | false |
| UPC | 638104021579 |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| Controller Functions | Temperature Control, Humidity Control, Cycle Timer Control, Temp & Humidity Monitors |
| Remote Sensor | Yes |
| Number of Zones | Single Zone |
| Humidity Setting Range | 5%-95% rH |
| Temp Setting Range | 40-122°F (5-50°C) |
| Has Photocell | Yes |
| Display Readout Type | LCD |
| Amps | 14.5 |
| Voltage | 120 Volts |
| Frequency | 60hz |
| Power Cord Length | 6.5'/2 m |
| ETL Listed | Yes |
| UL Listed | No |
How does the Autopilot ECLIPSE F60 Digital Environmental Controller manage temperature, humidity, and timed equipment?
The Autopilot ECLIPSE F60 Digital Environmental Controller manages temperature and humidity through dedicated outlets and controls repeated on/off operation through a cycle timer outlet.
What equipment can the Autopilot ECLIPSE F60 Digital Environmental Controller control?
The Autopilot ECLIPSE F60 Digital Environmental Controller has four outlets for cooling, heating, humidify/dehumidify, and cycle timer control.
How does the Autopilot ECLIPSE F60 Digital Environmental Controller handle day and night schedules?
The Autopilot ECLIPSE F60 Digital Environmental Controller provides separate day and night temperature and humidity set points, with independent or synchronized outlet operation. The cycle timer supports day-only, night-only, and 24-hour modes, with programming down to 1 second.
How far can the Autopilot ECLIPSE F60 Digital Environmental Controller remote probe be placed?
The Autopilot ECLIPSE F60 Digital Environmental Controller remote combination probe can be placed up to 15 feet from the controller. The probe includes temperature and humidity sensing, daylight detection through a photocell, and resistance to EMI and EFI from electronic ballasts.
Where can the Autopilot ECLIPSE F60 Digital Environmental Controller be mounted, and what is included?
The Autopilot ECLIPSE F60 Digital Environmental Controller mounts to walls and grow tents. Two mounting kits are included with each controller.
How does the Autopilot ECLIPSE F60 Digital Environmental Controller monitor environmental conditions?
The Autopilot ECLIPSE F60 Digital Environmental Controller continuously displays current temperature, relative humidity, and cycle timing countdown information on three digital screens. A built-in data logger records minimum and maximum temperature and humidity levels.
