Aqua Master C10 Single Peristaltic Pump Unit

SKU: AMT1061
No reviews
Aqua Master Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 3-5 business days

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Price:
Sale price$254.56

Aqua Master Product Documents

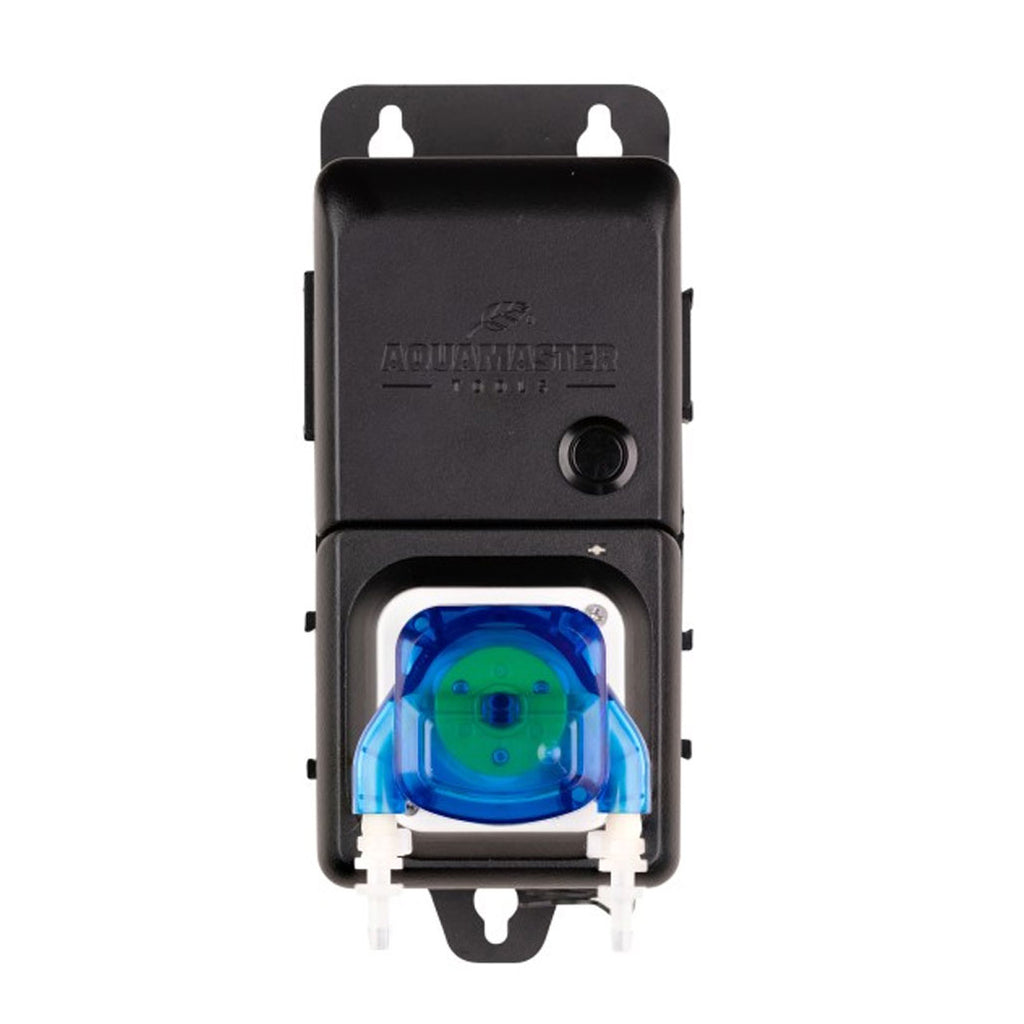

C10 pump unit 1x peristaltic pump for pH or nutrient dosing


The C10 is a compact dosing pump with one peristaltic channel, designed for precise dosing of a single nutrient (EC) or for pH adjustment. The standard dosing rate is 1.5 ml per second.

Connection and Use Cases

The C10 can be used in different configurations, depending on the application:

  • As a pH dosing pump (for pH minus or pH plus):
    • Connect directly to the left UTP port on the controller.
    • The function (pH minus or pH plus) can be selected in the controller menu.
    • Recognized as the pH pump.
  • As an EC dosing pump (for 1 nutrient line):
    • Connect directly to the right UTP port on the controller.
    • Recognized as Pump 1.
  • As an extension to a C30 (for 4 nutrients total):
    • Connect to the right UTP output on the C30.
    • Recognized as Pump 4.

Mechanical connection to other units is possible via the side slide rail. The UTP port is located on the bottom of the unit.

A maximum of 5 EC pumps and 1 pH pump can be connected per controller.


Manual Operation
The pump includes a manual priming button, ideal for filling or emptying the tubing during installation or maintenance.


Aqua Master C10 Single Peristaltic Pump Unit Includes:

  • C10 dosing unit (1 pump)
  • Tubing (3 meters)
  • UTP cable (150 cm)
  • International Power Adapter

Specifications for Aqua Master C10 Single Peristaltic Pump Unit

Individual Flow Rate 90 ml per 60 seconds ( depending on the temp and viscosity of the liquid )
Operation Temp 5°C - 50°C (41°F - 122°F)
Noise level <60 DB
Power Supply AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs
Power 6 W
Rated voltage 12V
Peristaltic Tube Lifetime 1000 Hours
Motor lifetime 800 Hours
