Apogee Instruments Product Documents
Apogee Instruments MQ-610 ePAR Meter Spec Sheet Apogee Instruments MQ-610 ePAR Meter Owners ManualApogee's newest, cutting-edge ePAR sensor was created in 2021 as an upgrade to our ePFD sensor and designed to measure the newly defined 400-750 nm ePAR radiation range that research has shown to be photosynthetically active, beyond the traditional 400-700 nm range.
Typical Applications

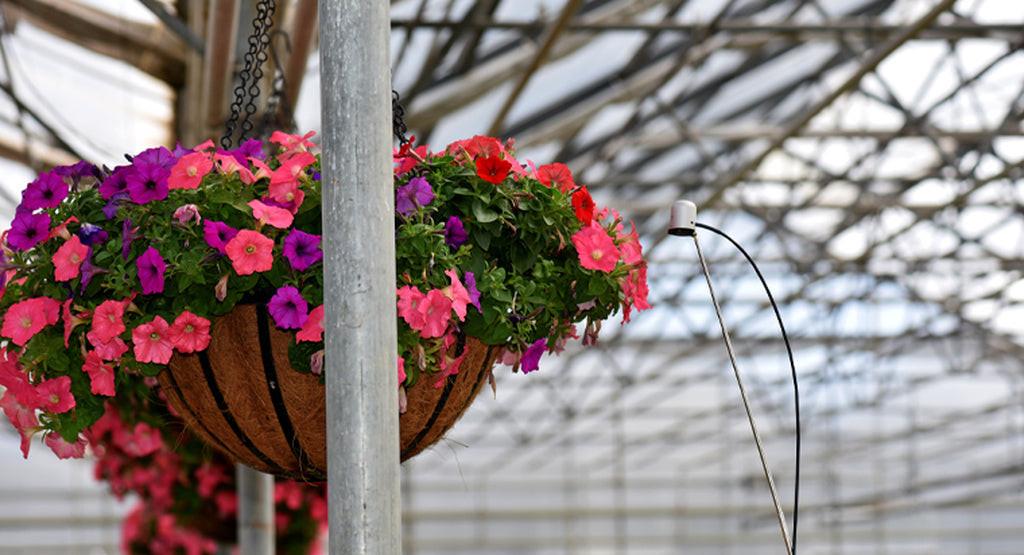

- Total ePAR intensity measurements over plant canopies in all growing environments
- Monitor and adjust grow lights
- Research plant morphogenic activity
- Photobiology studies

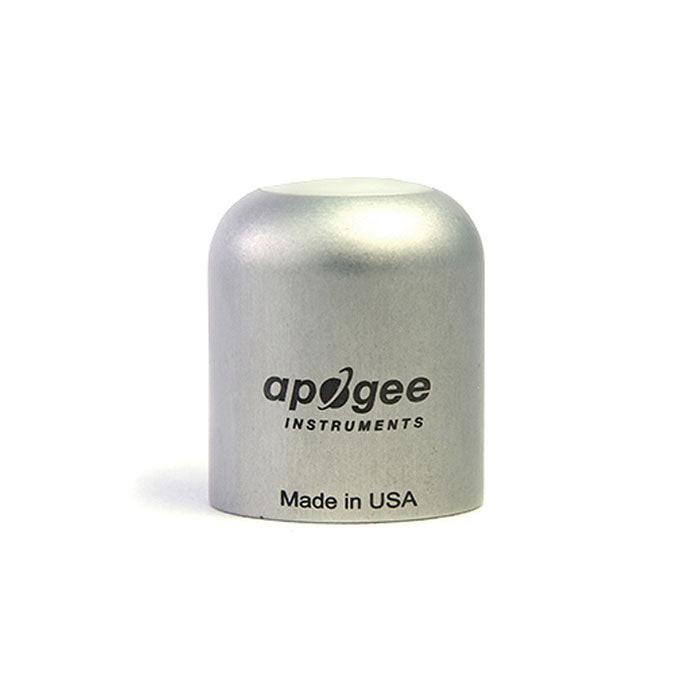

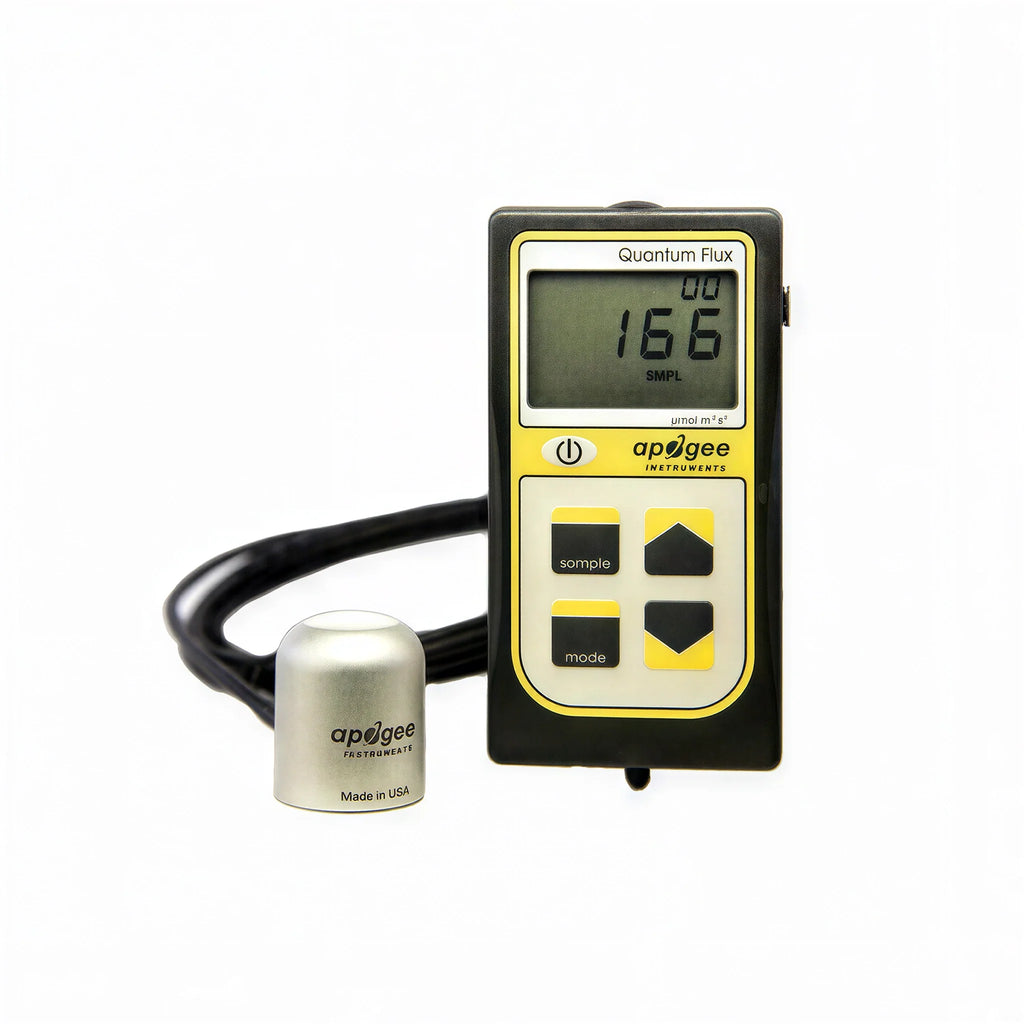

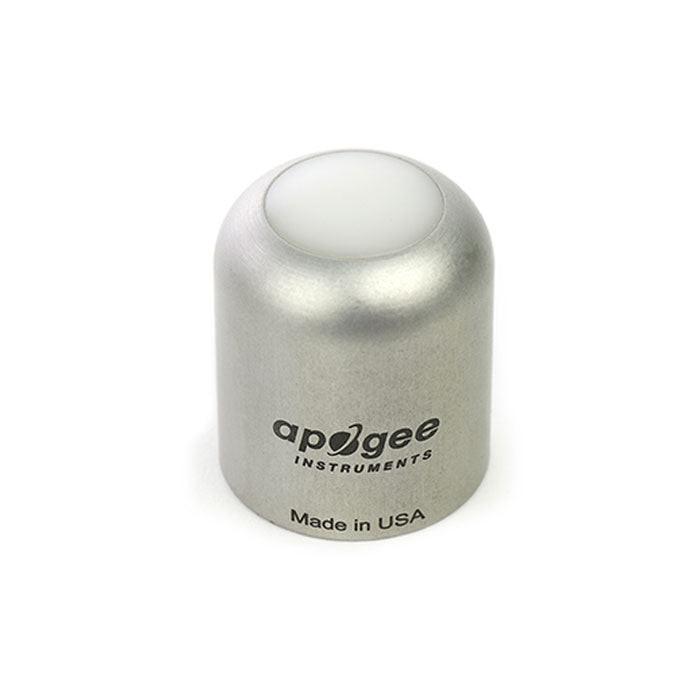

The MQ-610 has a hand-held meter, attached via cable, that displays and stores measurements. The sensor features a rugged, aluminum housing that is fully submersible and built to withstand harsh conditions. Typical applications of ePAR sensors include measuring total ePAR intensity over plant canopies in all growing environments, monitoring and adjusting grow lights, and researching plant morphogenic activity and photobiology. Many next-generation LED fixtures, the sun, and other light sources emit these newly confirmed Far-red photosynthetic wavelengths, but they have not been measurable by traditional 400-700 nm PAR meters until now.
The meter has a sample and log mode and will record an integrated daily total in mol m-2 d-1. Sample mode will record up to 99 manual measurements. Log mode will power the meter on/off to make a measurement every 30 seconds. Every 30 minutes the meter will average the sixty 30 second measurements and record the averaged value to memory. The meter can store up to 99 averages, once full it will start to overwrite the oldest measurement with new ones. A Daily Light Integral will be recorded from the 48 averaged measurements (making a 24 hr period). Sample and log measurements can be reviewed on the LCD display or by downloading the data to a computer, however, the integrated daily total can only be viewed by downloading the data to a computer. Downloading data to a computer requires the AC-100 communication cable (a standard USB cable will not work) and ApogeeAMS software
Where is the MQ-610 used?
The MQ-610 is used for measuring the newest generation of LED grow lights with wavelengths outside the traditional 400-700 nm PAR range. Research has shown the value of adding far-red LEDs to fixtures to control various diseases, achieve certain photomorphogenic effects, and even gain additional photosynthesis. The extended range filter of the MQ-610 allows it to measure photons from PAR and Far-red.
Specifications
| Calibration Uncertainty | ± 5% |
|---|---|
| Measurement Range | 0 to 4000 μmol m⁻² s⁻¹ |
| Measurement Repeatability | Less than 0.5% |
| Long-term Drift (Non-stability) | Less than 2% per year |
| Non-linearity | Less than 1% (up to 4000 μmol m⁻² s⁻¹) |
| Response Time | Less than 1 ms |
| Field of View | 180° |
| Spectral Range | 383 to 757 nm ± 5 nm |
| Directional (Cosine) Response | ± 2 % at 45° zenith angle, ± 5 % at 75° zenith angle |
| Azimuth Error | Less than 0.5% |
|---|---|
| Tilt Error | Less than 0.5% |
| Temperature Response | -0.11 ± 0.04 % per C |
| Uncertainty in Daily Total | Less than 5 % |
| Detector | Blue-enhanced silicon photodiode |
| Housing | Anodized aluminum |
| IP Rating | IP68 |
| Cable | 2 m of shielded, twisted-pair wire; TPR jacket |
| Warranty | 4 years against defects in materials and workmanship |
| Brand | Apogee Instruments |
|---|---|
| SKU | MQ-610 |
| Weight (lb.) | 1.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 4 Year |
| Hazardous Material | false |
| UL Listed | No |
| Prop 65 | false |
| ETL Listed | No |
What does the Apogee Instruments MQ-610 ePAR Meter with Sensor measure for grow-light management?
The Apogee Instruments MQ-610 ePAR Meter with Sensor measures total ePAR intensity over plant canopies across the 400 to 750 nm range. Growers can use the Apogee Instruments MQ-610 ePAR Meter with Sensor to monitor and adjust grow lights.
Which light sources can the Apogee Instruments MQ-610 ePAR Meter with Sensor measure?
The Apogee Instruments MQ-610 ePAR Meter with Sensor measures next-generation LED fixtures, sunlight, and other light sources emitting far-red photosynthetic wavelengths. The Apogee Instruments MQ-610 ePAR Meter with Sensor measures beyond the traditional 400 to 700 nm PAR range.
How does the Apogee Instruments MQ-610 ePAR Meter with Sensor record grow-light measurements?
The Apogee Instruments MQ-610 ePAR Meter with Sensor records up to 99 manual measurements in sample mode and takes measurements every 30 seconds in log mode. The Apogee Instruments MQ-610 ePAR Meter with Sensor averages measurements every 30 minutes and records integrated daily totals.
Can the Apogee Instruments MQ-610 ePAR Meter with Sensor be used in wet or harsh growing environments?
The Apogee Instruments MQ-610 ePAR Meter with Sensor has a rugged anodized aluminum housing and a fully submersible IP68 sensor. The Apogee Instruments MQ-610 ePAR Meter with Sensor is designed for harsh conditions and all growing environments.
What is required to download Apogee Instruments MQ-610 ePAR Meter with Sensor data to a computer?

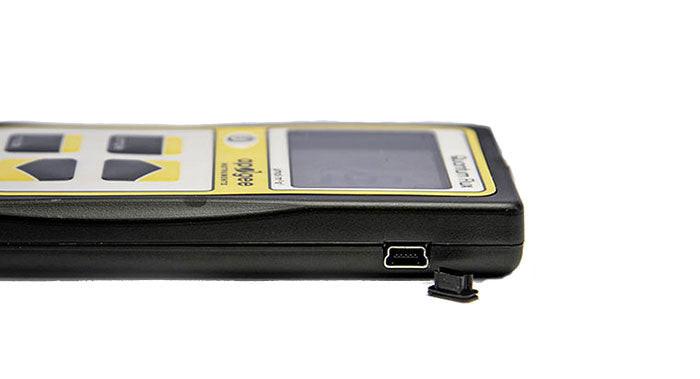

Downloading Apogee Instruments MQ-610 ePAR Meter with Sensor data requires the Apogee AC-100 communication cable and ApogeeAMS software. A standard USB cable will not work with the Apogee Instruments MQ-610 ePAR Meter with Sensor.
What warranty covers the Apogee Instruments MQ-610 ePAR Meter with Sensor?
The Apogee Instruments MQ-610 ePAR Meter with Sensor includes a 4-year warranty against defects in materials and workmanship.
