AirGrean Product Documents

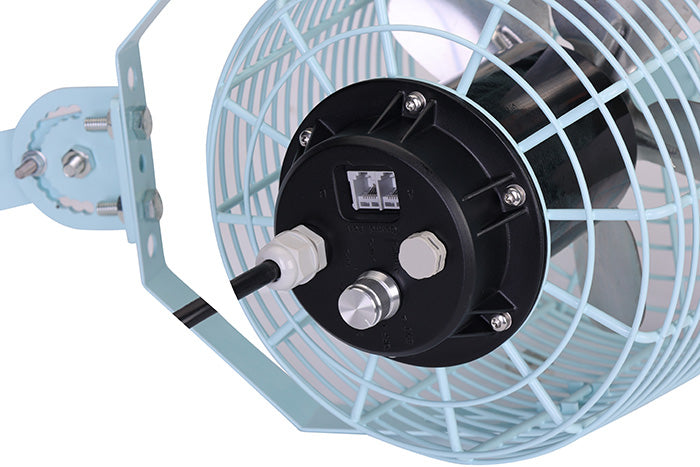

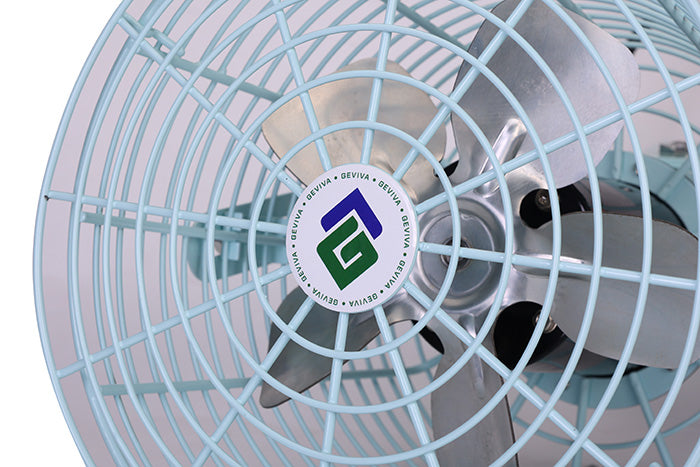

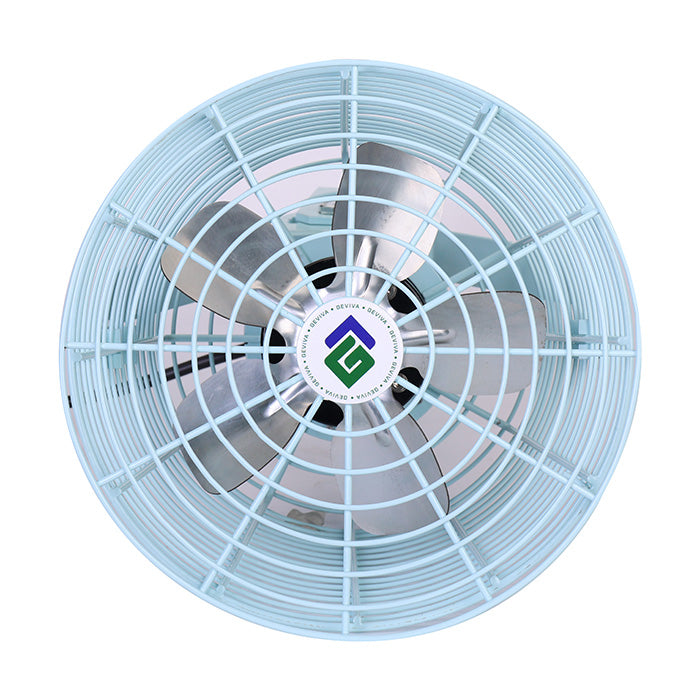

AirGrean GEVIVA Circulation Fan Spec SheetThe AirGrean GEVIVA Circulation Fans are the most innovative, powerful circulation fan on the market, with many proprietary designs and features.
This circulation fan is the most efficient way to improve air quality and reduce heat stress, ideal for Greenhouse, warehouse, and any space that requires superior air circulation.
Feature & Benefits
- Revolutionized motor with unrivaled CFM
- Multiple voltages, 120v – 277v
- Built-in adjustable 20% – 100% speed level control or control by your own controller
- IP65 Water Resistant
- Compatible with all major brand controller

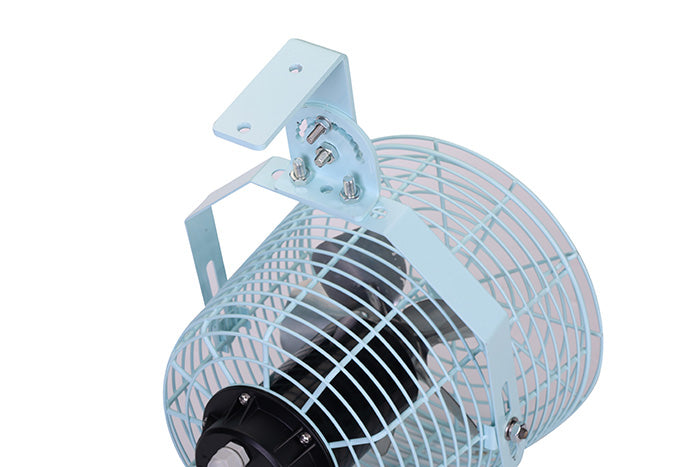

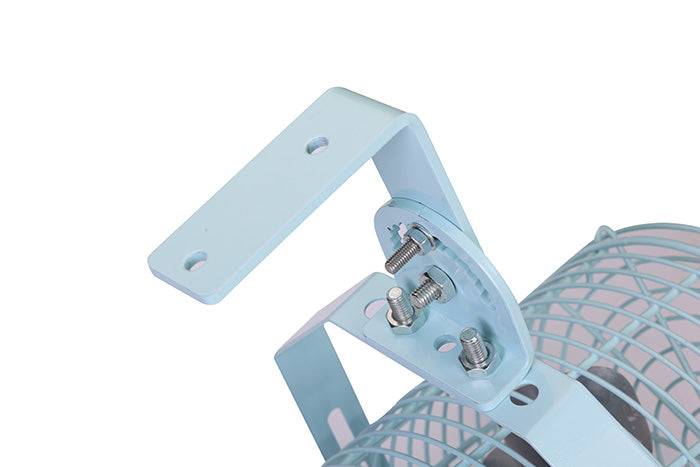

- Hanging bracket included for easy installation
- Aluminum Metallic Blades produced maximum airflow with low noise level
- Galvanized steel guards, corrosion resistant
- Heavy-Duty motor
- 1 Year Warranty
- 20" model is UL Listed
- 8" model has 180 degree tilting for any direction hanging
Specifications
| Size | 8 Inch |
|---|---|
| Speeds | 20% – 100% Adjustable |
| Voltage/Power/AMPS | 120v/88W/1.2A - 240v/85W/0.8A - 277v/84W/0.7A |
| CFM (High) | 960 CFM |
| RPM | 2630/min |
| Noise (db) | 67 |
| Weight (lbs) | 10.3 |
| Size | 20 Inch |
|---|---|
| Speeds | 20% – 100% Adjustable |
| Voltage/Power/AMPS | 120v/320W/2.70A - 240v/310W/1.31A - 277v/310W/1.15A |
| CFM (High) | 5470 |
| RPM | 1720/min |
| Noise (db) | 77 |
| Weight (lbs) | 32 |
| Brand | AirGrean |
|---|---|
| SKU | GVCF08A |
| Weight (lb.) | 15.0000 |
| Lead Time | Ships in 2-3 business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Wall Mount, Horizontal Circulation |
| Fan Size | 8" Diameter |
| Is Speed Controllable | Yes |
| Inline Fan Features | Built-In Speed Controller |
| Oscillation | No |
| CFM Rating | 960 CFM |
| Exact Watts | 85 Watts |
| Amps | 1.2 Amps @ 120 Volts, 0.8 Amps @ 240 Volts, 0.7 Amps @ 277 Volts |
| Voltage | 120 Volts |
| Max. Decibals | 67 db |
| Max. RPM | 2630 |
| Power Cord(s) Included | Yes |
| Power Cord Length | 6 ft. |
| ETL Listed | No |
| UL Listed | No |
