AirGrean Product Documents

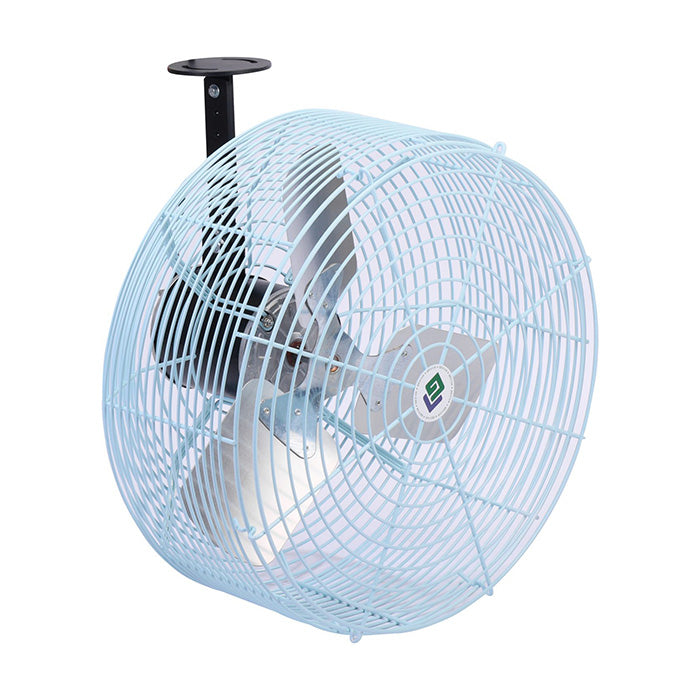

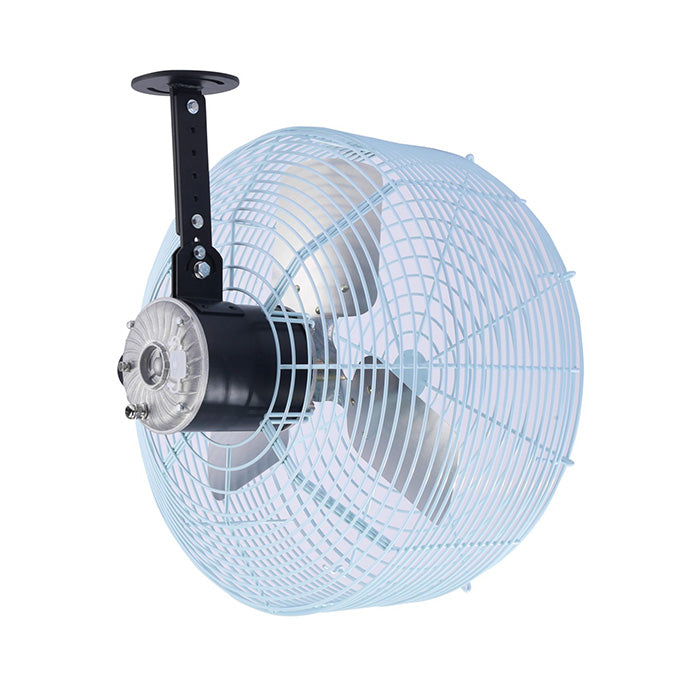

AirGrean GEVIVA Circulation Fan Spec SheetThe AirGrean GEVIVA Circulation Fans are the most innovative, powerful circulation fan on the market, with many proprietary designs and features.
This circulation fan is the most efficient way to improve air quality and reduce heat stress, ideal for Greenhouse, warehouse, and any space that requires superior air circulation.
Feature & Benefits
- Revolutionized motor with unrivaled CFM
- Multiple voltages, 120v – 277v
- Built-in adjustable 20% – 100% speed level control or control by your own controller
- IP65 Water Resistant
- Compatible with all major brand controller

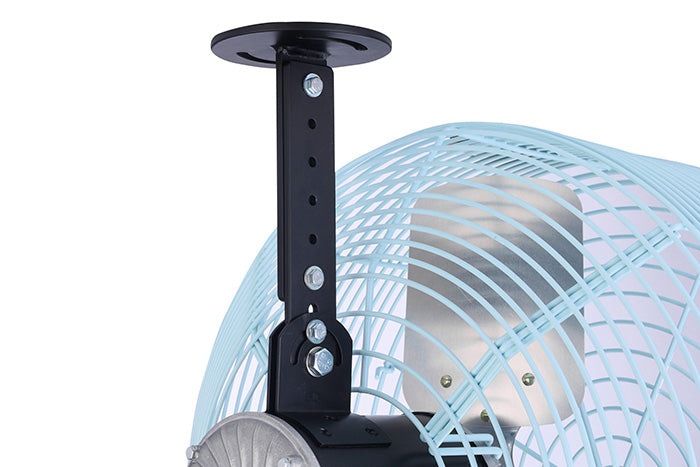

- Hanging bracket included for easy installation
- Aluminum Metallic Blades produced maximum airflow with low noise level
- Galvanized steel guards, corrosion resistant

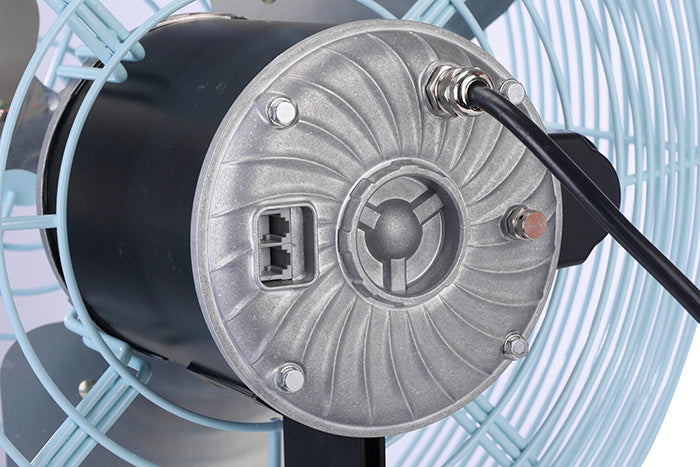

- Heavy-Duty motor
- 1 Year Warranty
- 20" model is UL Listed
- 8" model has 180 degree tilting for any direction hanging
Specifications
| Size | 8 Inch |
|---|---|
| Speeds | 20% – 100% Adjustable |
| Voltage/Power/AMPS | 120v/88W/1.2A - 240v/85W/0.8A - 277v/84W/0.7A |
| CFM (High) | 960 CFM |
| RPM | 2630/min |
| Noise (db) | 67 |
| Weight (lbs) | 10.3 |
| Size | 20 Inch |
|---|---|
| Speeds | 20% – 100% Adjustable |
| Voltage/Power/AMPS | 120v/320W/2.70A - 240v/310W/1.31A - 277v/310W/1.15A |
| CFM (High) | 5470 |
| RPM | 1720/min |
| Noise (db) | 77 |
| Weight (lbs) | 32 |
| Brand | AirGrean |
|---|---|
| SKU | GVCF20A |
| Weight (lb.) | 37.0000 |
| Lead Time | 3-5 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Wall Mount, Horizontal Circulation |
| Fan Size | 20" Diameter |
| Inline Fan Features | Built-In Speed Controller |
| Oscillation | No |
| CFM Rating | 5470 CFM |
| Exact Watts | 320 Watts |
| Amps | 2.7 Amps @ 120 Volts, 1.31 Amps @ 240 Volts, 1.15 Amps @ 277 Volts |
| Voltage | 120 Volts |
| Max. Decibals | 77 db |
| Max. RPM | 1720 RPM |
| Power Cord(s) Included | Yes |
| Power Cord Length | 1.5 ft. |
| ETL Listed | No |
| UL Listed | Yes |
What spaces can the AirGrean GEVIVA Circulation Fan 20-inch serve?
The AirGrean GEVIVA Circulation Fan 20-inch improves air circulation and helps reduce heat stress in greenhouses, warehouses, and other spaces requiring strong air movement.
How much airflow does the AirGrean GEVIVA Circulation Fan 20-inch provide?
The AirGrean GEVIVA Circulation Fan 20-inch delivers 5,470 CFM at high speed for powerful horizontal air circulation.
How can growers adjust AirGrean GEVIVA Circulation Fan 20-inch airflow?
The AirGrean GEVIVA Circulation Fan 20-inch provides built-in adjustable speed control from 20% to 100% and supports control through a separate controller.
What electrical systems and controllers support the AirGrean GEVIVA Circulation Fan 20-inch?
The AirGrean GEVIVA Circulation Fan 20-inch operates from 120 to 277 volts and is compatible with all major-brand controllers. The fan uses 320 watts and 2.70 amps at 120 volts.
What installation and protection features does the AirGrean GEVIVA Circulation Fan 20-inch offer?
The AirGrean GEVIVA Circulation Fan 20-inch includes a hanging bracket for installation and provides IP65 water resistance. Galvanized steel guards add corrosion resistance.
What construction and sound characteristics does the AirGrean GEVIVA Circulation Fan 20-inch have?
The AirGrean GEVIVA Circulation Fan 20-inch features aluminum metallic blades, a heavy-duty motor, and a maximum noise rating of 77 dB. The AirGrean GEVIVA Circulation Fan 20-inch is UL Listed and includes a 1-year warranty.
