Agrowtek GrowControl SXW Digital Outdoor Weather Sensor, Transmitter, & Logger

SKU: SXW
No reviews
Agrowtek Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 2 Weeks


Price:
Sale price$536.12

Agrowtek Product Documents

SXW Specs SXW Instructions

This Aspirated Outdoor Climate Sensor, Logger, & Transmitter Gives You Weather Station Accuracy At Your Home Or Operation

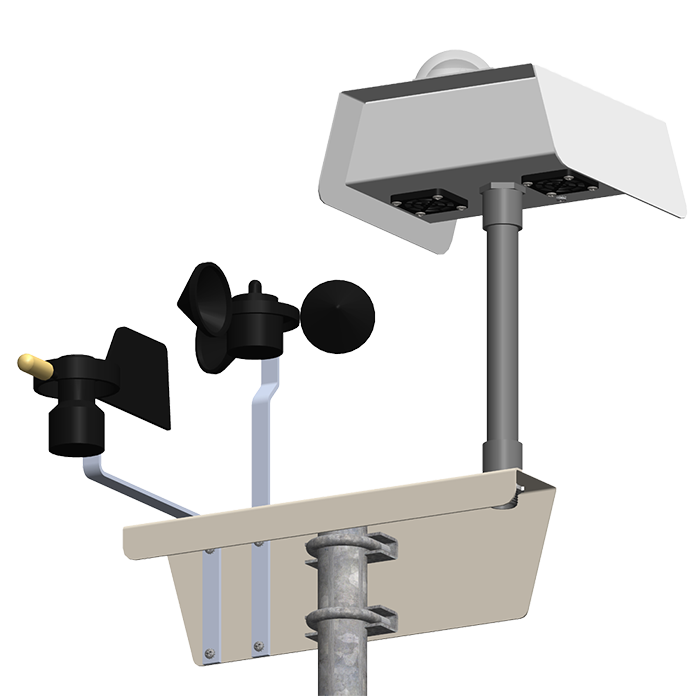

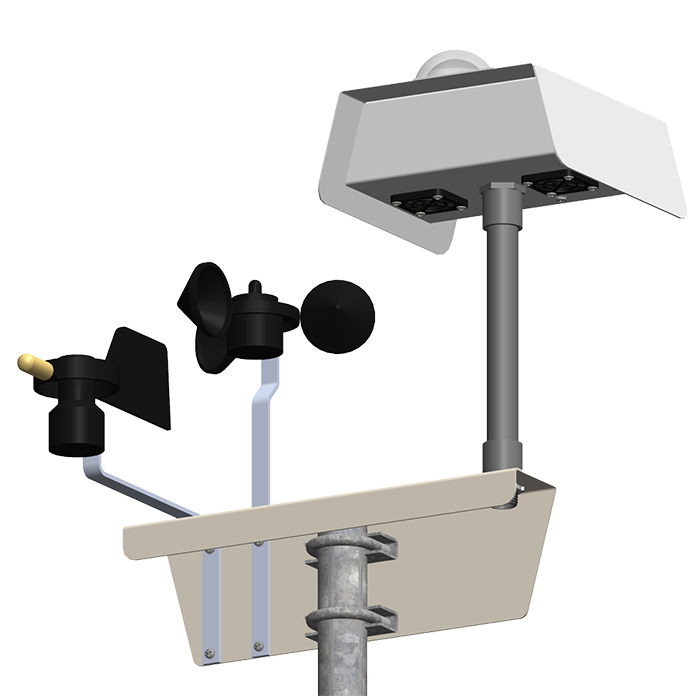

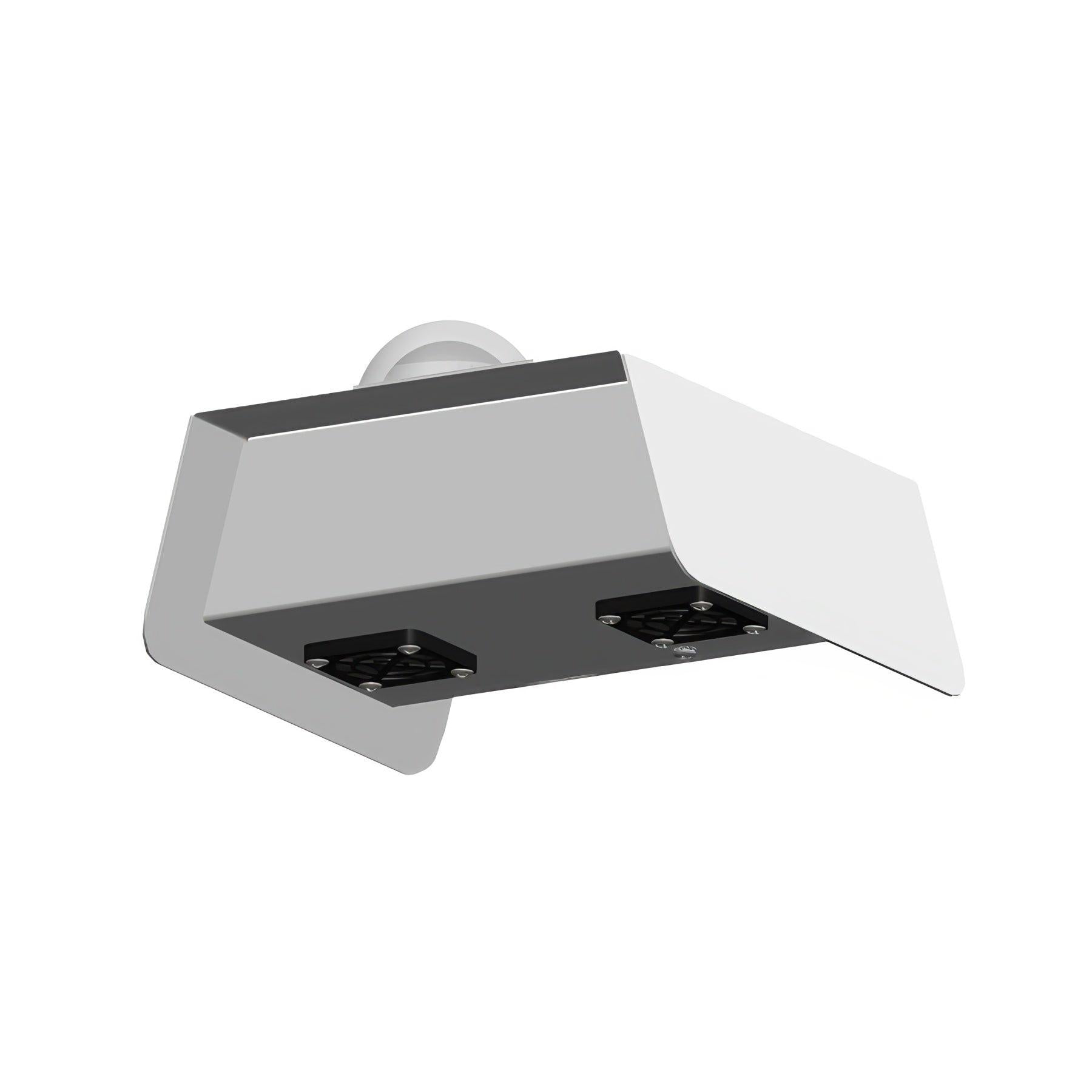

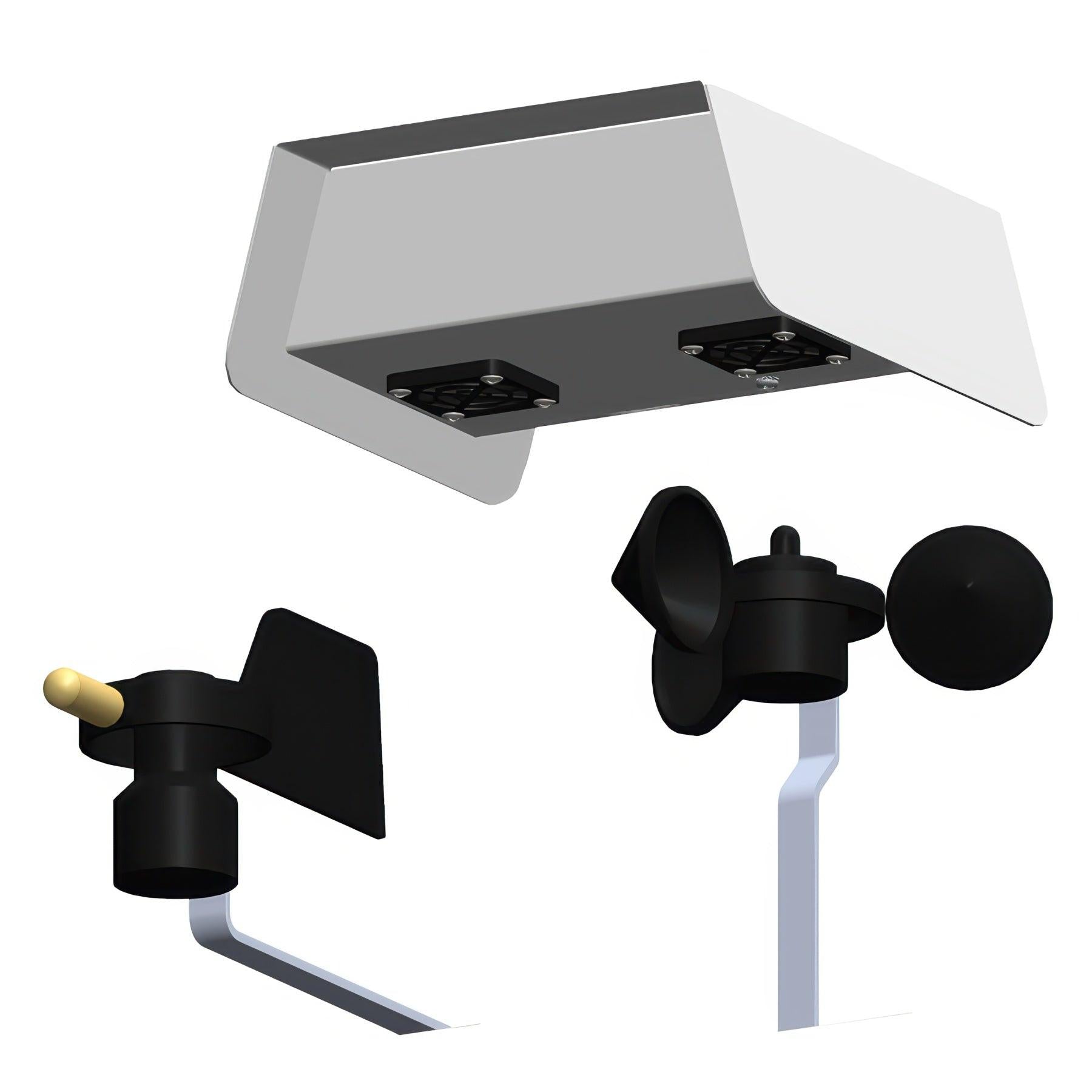

GrowControl SXW Weather Monitor & Logger is a precision digital outdoor sensor station featuring temperature and ambient light sensors with optional wind speed anemometer and wind direction vane. Housed in a rugged, corrosion-proof stainless steel enclosure and designed for pole or wall mounting, the SXW is built to weather the storm while providing accurate and reliable readings.

Internal memory logs 20,000+ data points for months or years of storage, so you never miss a thing. An onboard accurate real-time clock keeps the log time accurate during power outages.

Agrowtek offers several interfaces, making the SXW system as user-friendly as possible. Using the LX1, USB AgrowLink connects the GrowNET™ port to a PC for data log download to .csv, graphing, calibration, configuration, updates, and more using free PC software. Learn more here!

If you'd prefer to take advantage of the MODBUS RTU, Agrowtek offers the LX2 MODlink, which connects your MODBUS device to your SXW system. Check out the LX2 here!

Finally, if you have a bigger operation on your hands, or just don't have an on-site PC, Agrowtek offers the ultimate in cultivation control with the GCX or GCX-Plus Cultivation Master Controller. The GCX can connect, control, and monitor up to 100 devices, and the GCX-Plus allows you to monitor up to 200 devices, both in real time with extreme accuracy! Learn more here.

Features

GrowNet Digital Communication PortMODBUS RTU via LX2 ModLINKWeather-proof stainless-steel enclosure Real Time Clock Fan Aspirated With Air Filter For High Accuracy Made in USA 1-Year Warranty

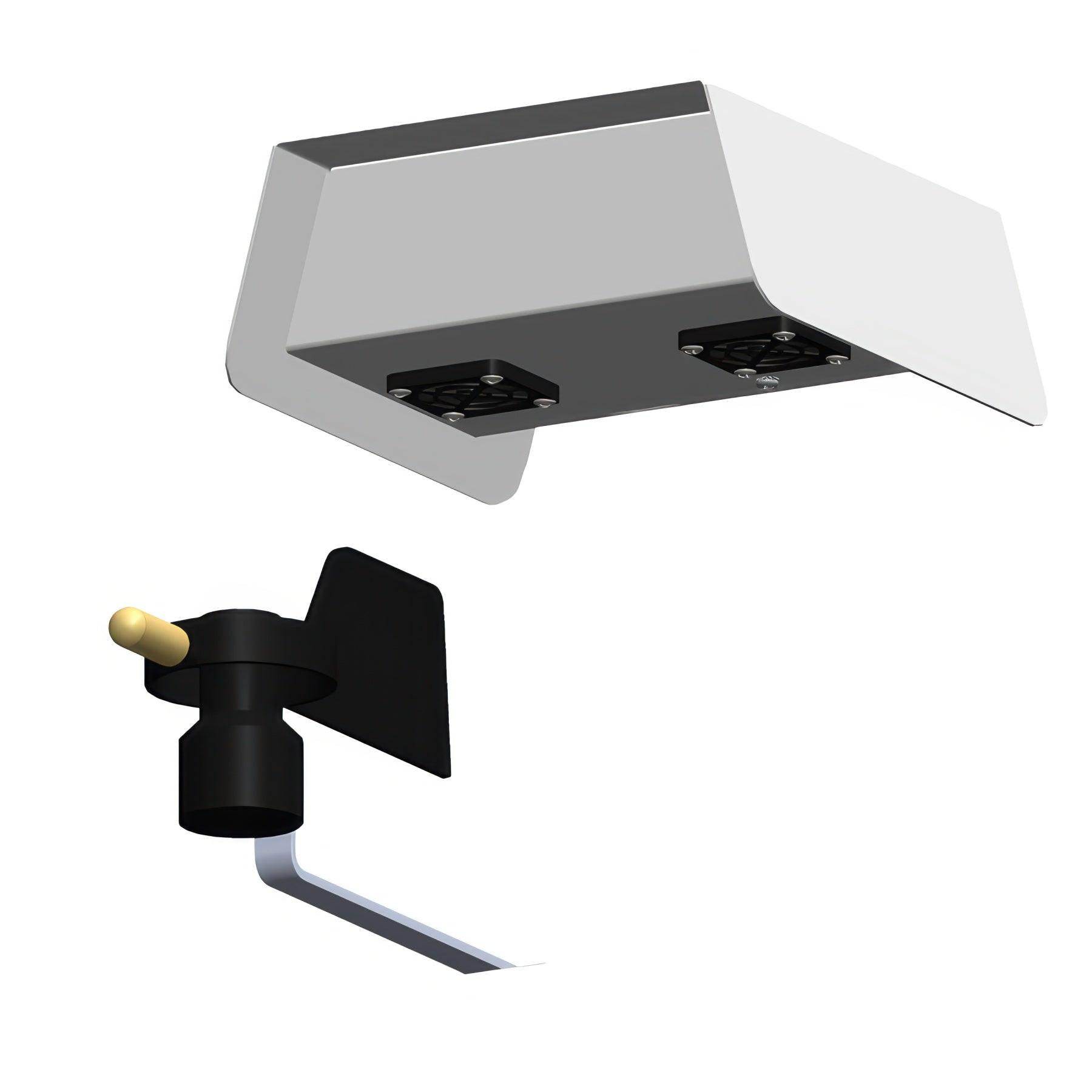

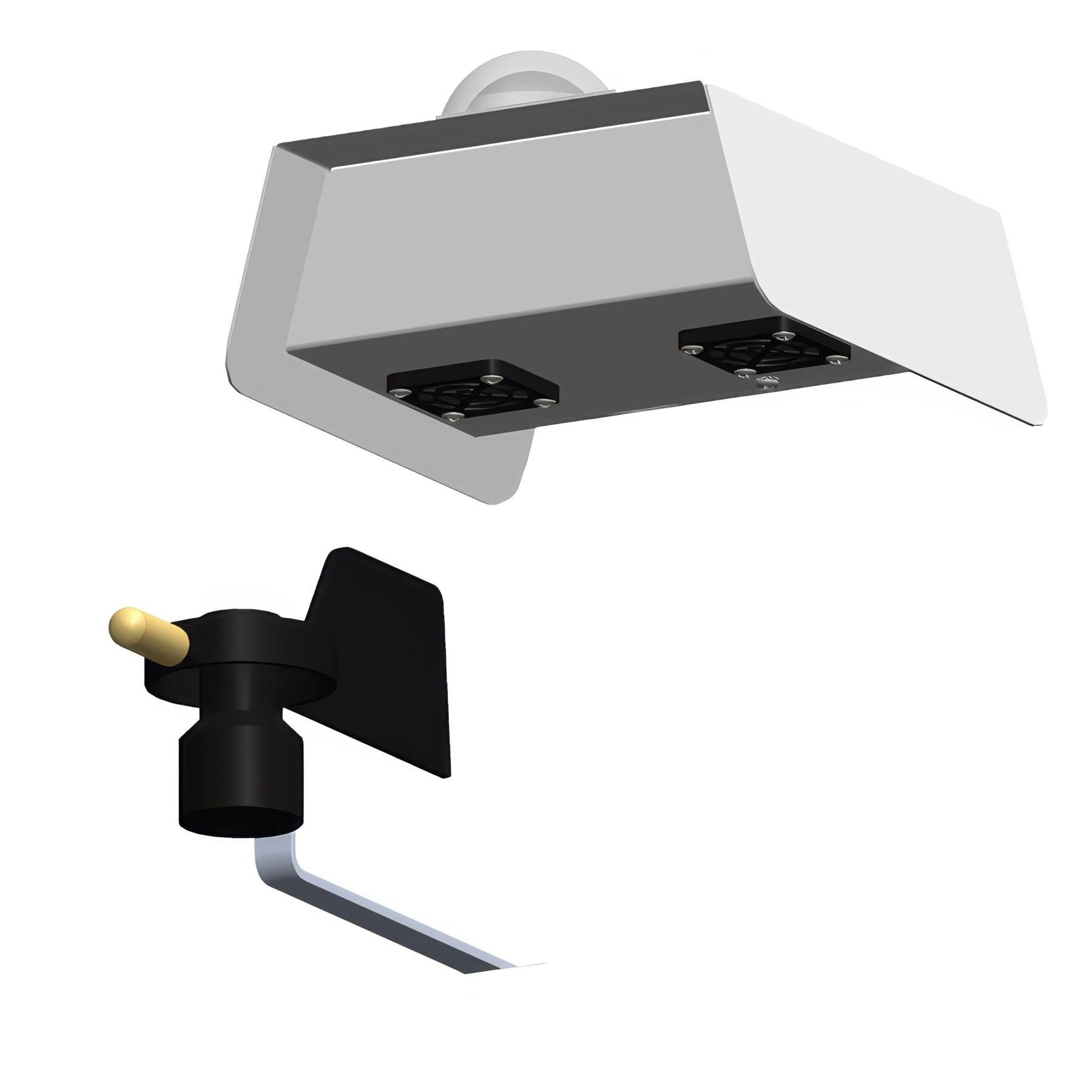

Direction Vane

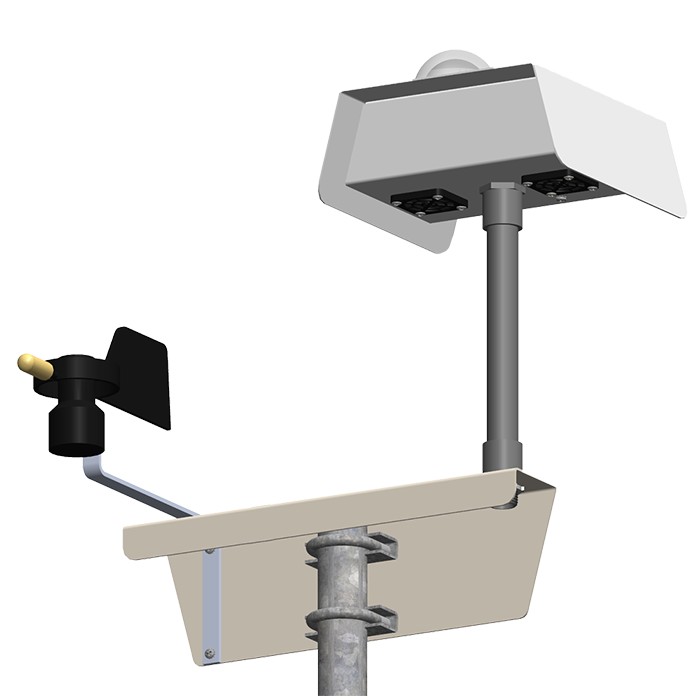

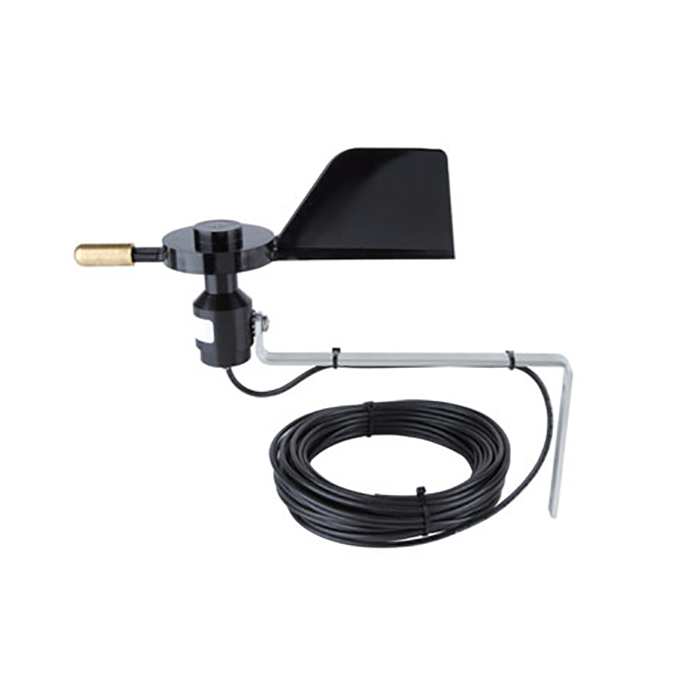

Wind Direction Vane (Optional)

Wind vane uses a German Hall effect sensor for precision and durability. Many potentiometer-type wind vanes have a dead spot of several degrees, friction from the sensor, and a defined life span. Agrowtek’s wind vanes have zero dead band, are near-zero friction, and have a theoretical infinite life.

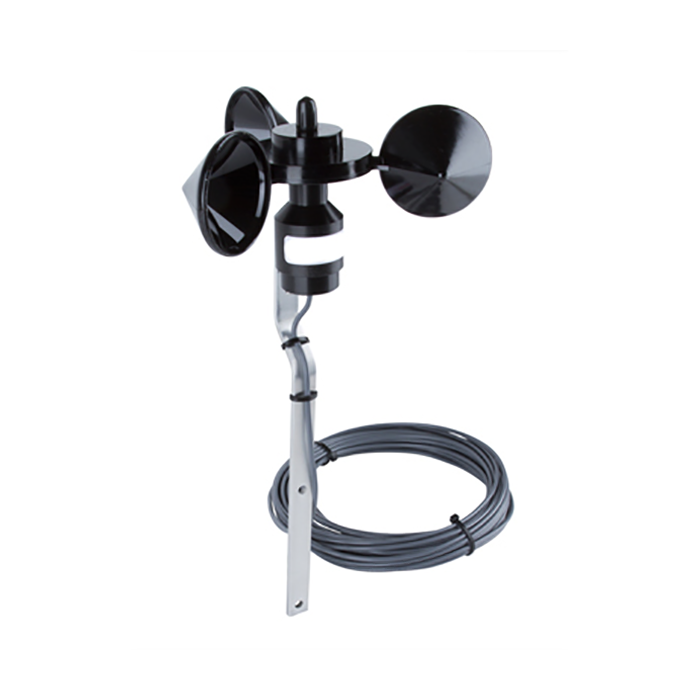

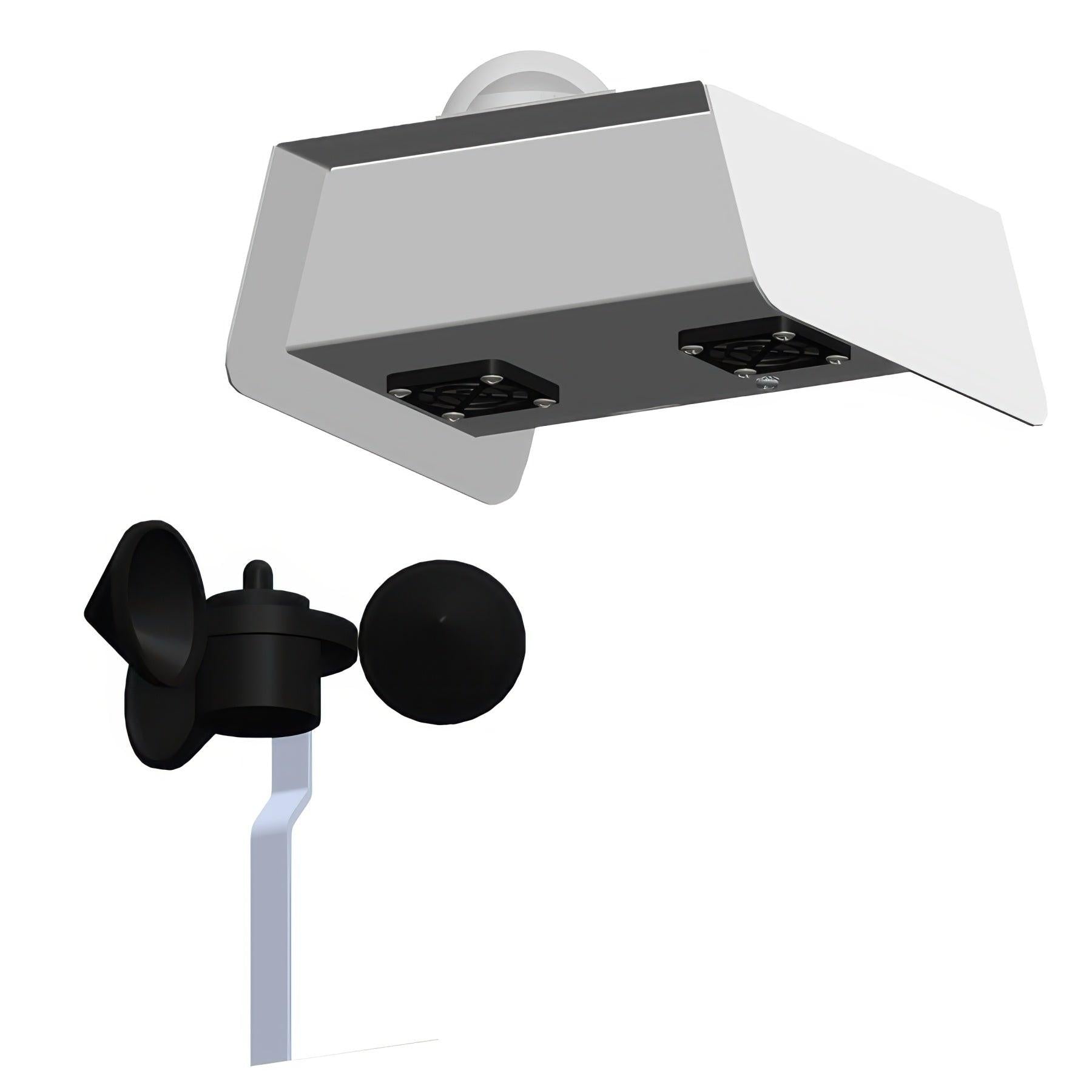

Wind Anemometer

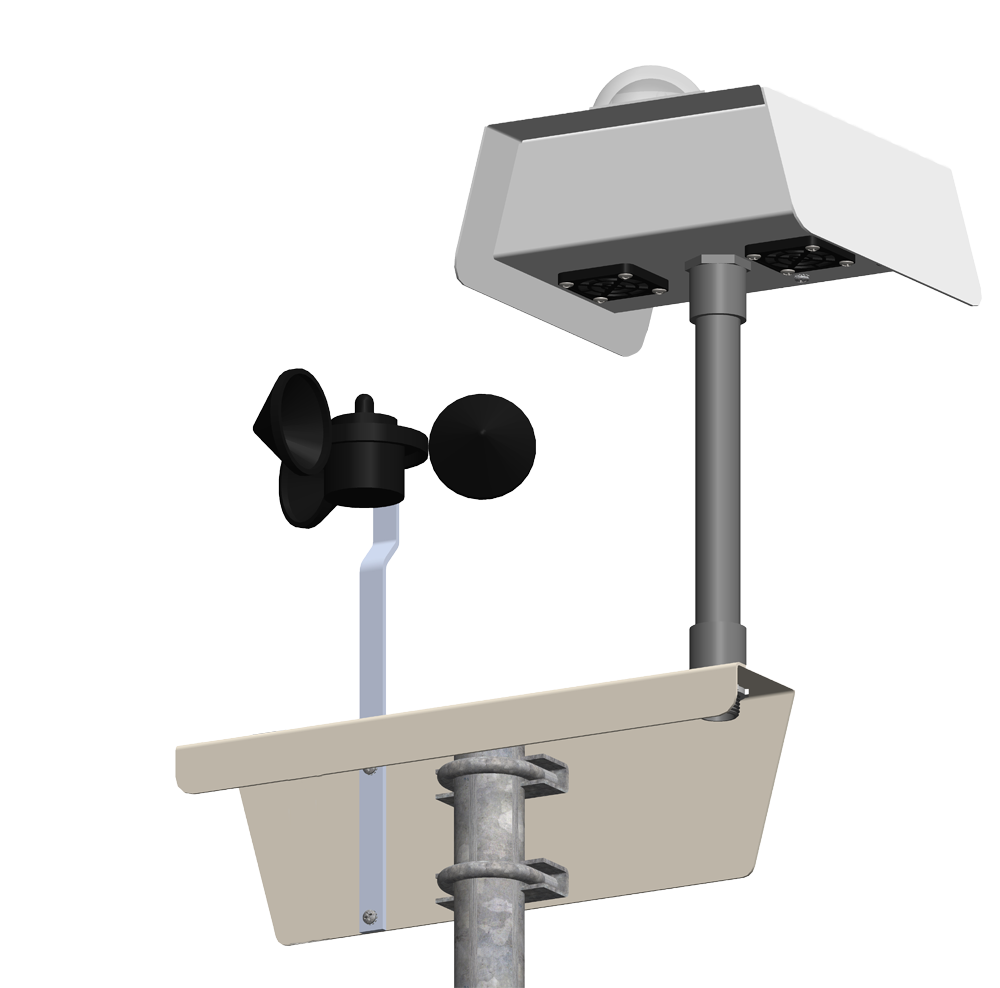

Wind Speed Anemometer (Optional)

Wind speed anemometer with 3 cup rotor measures wind speeds from 1 to 125 MPH. Extremely rugged for harsh conditions and sensitive to the slightest breeze. Simple two-wire connection to transmitter.

Rain Sensor

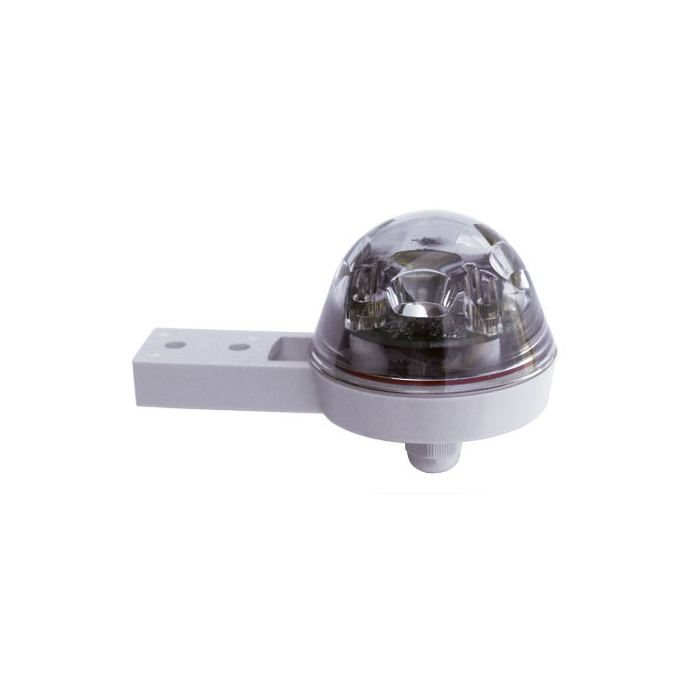

SXR Optical Rain Sensor (Optional)

GrowControl SXR Rain Sensor is a high-quality optical-type rain sensor with no moving parts. The rain gauge senses water hitting its outside surface using beams of infrared light. It uses the same sensing principle used in millions of automotive rain-sensing windshield wiper controls.

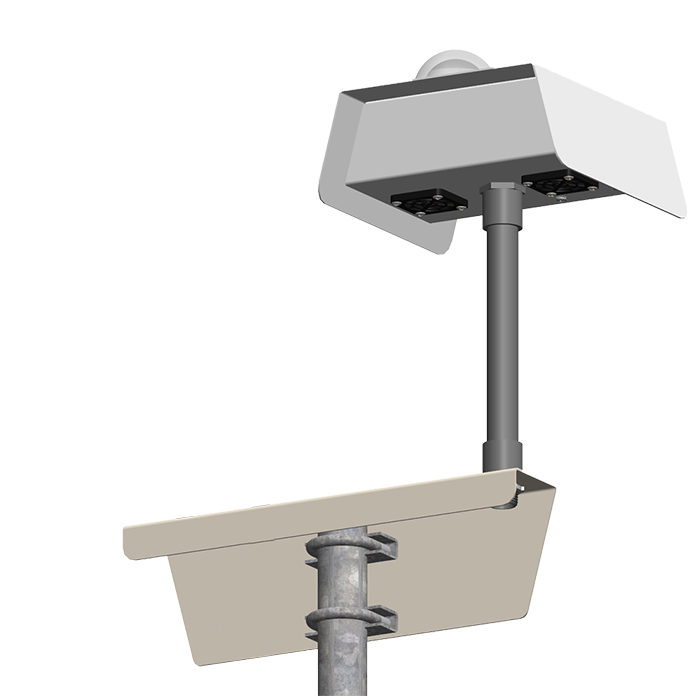

Pole Mounting Kit

Pole Mounting Bracket Kit (Optional)

The optional pole mount bracket includes a stainless steel bracket for mounting the SXW weather station, two 1" pole clamps, and a PVC stand-off pipe for the weather station.

SXW Specifications

Specification Measurement
Power 24Vdc, ~5W
Max Cable Distance 1000ft
Aspirator 6cfm Fan with Foam Filter
Temperature Range -20 - 60°C
Temperature Accuracy ±0.2°C typical | ±0.4°C maximum
Humidity Range 0-100% RH non-condensing)
Humidity Accuracy ±2% 0-80% typical | ±4% maximum
Light Irradiance Range 0 - 1000W/m2
Light Accuracy ±10%
Wind Speed Range 0 - 125 mph
Wind Speed Accuracy ±1 mph
Wind Direction Range 0 - 359°
Wind Angle Precision ±1°
4-20mA DAC Resolution 12 bit, 0.005mA
Interface GrowNET, MODBUS
Brand Agrowtek
SKU AG-SXW
Hazardous Material false
