An Automatic pH Doser, Monitor, & Transmitter Built On A Decade Of Proven Technology With New, Enhanced Capabilities To Meet The Growing Demand For Highly Reliable Autonomous Dosing Applications
AgrowDose MPX dosing systems are autonomous pH set-point control systems consisting of a digital PHX hydroponics controller and ADi intelligent peristaltic pump. Available with 1, 2, or 4 independent pump heads. Configure each pump as a pH up, pH down, or ORP part. Precision sensors and rugged pumps offer reliable and accurate control of reservoirs, large and small.

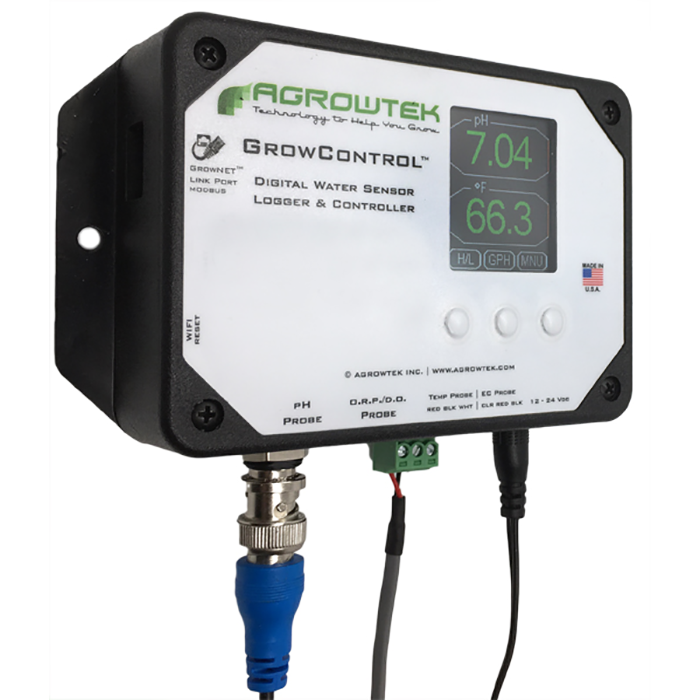

Color LCD and button interface allows instant access to sensor readings, guided calibration, alarms, historical graphing, and more. The multi-recipe memory stores 14 different configurations for quick adjustments according to the growth phase. Dose up to 6 different chemical parts. Internal memory logs over 20,000 data points per sensor.

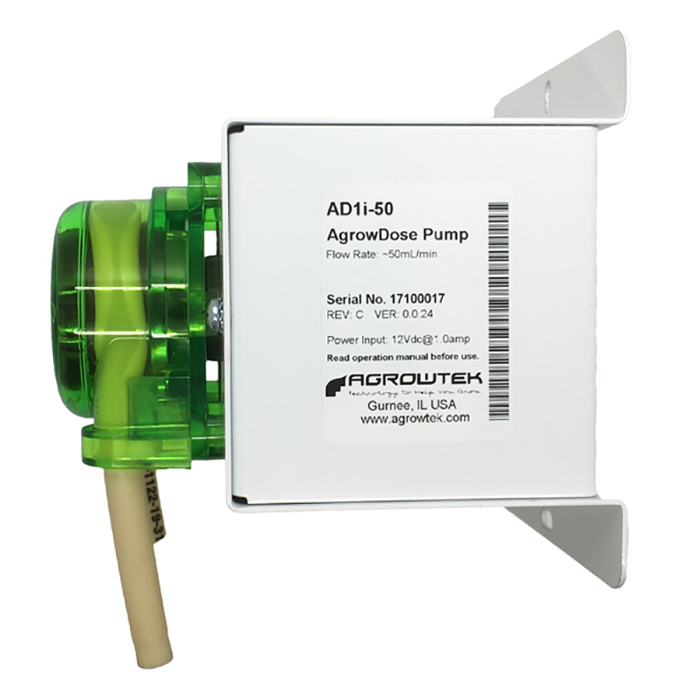

Precision sensors and rugged pumps offer reliable and accurate control. Built with FDA-compliant tubing, the pumps inject chemicals quickly into water lines up to 25psi. Long-life pump heads are easily replaced in seconds without tools. The controller's large built-in color display provides an easy-to-use interface for monitoring the sensor readings and configuring the dosing settings.
The PHX hydro sensor continuously monitors the sensor probes and compares the readings to "target" set points for pH and ORP (optional). If the readings are outside of the allowed range, the pumps will sequentially dose according to the configured recipe, repeating until the targets are achieved.
Each pump has a programmable delay time to separate parts and/or add a delay between the cycles.
Included With The Mini Dosing System:
- GrowControl PHX Controller
- pH and temperature sensors
- Available in a single, dual, or quad pump setup
-
OPTIONAL: ORP Sensor
-
OPTIONAL: Mounting Panel Kit (ships constructed with mounting panel, sensor manifold, and selected sensors & pumps)
The PHX can be paired with the GrowControl GCX Cultivation Control System for ultimate control of your growing operation. When paired with the GrowControl GCX Controller, you not only gain the ability to control all aspects of your facility's climate and hydroponics systems, but you also gain the option to run your PHX pH dosing system from the comfort of your home with remote access capabilities. Potential problems and issues are sent to you instantly via text or email, too, so you never have to worry!
Add Agrowtek's SXL electronic optical liquid level sensor and water valve kits to the stock tank to automate the water level control and replenish the tank with water. This setup is perfect for those looking to automate their system entirely. Learn more here.
Agrowtek also offers an easy solution for firmware updates and data logging, using the Agrowtek LX1 AgrowLink. When using the LX1, you can hook your MPX system up to your pc for even more control. Learn more here.
To make sure you set your system up how you truly like and not just how you can get it, Agrowtek systems use standard MODBUS protocols and can be controlled by MODBUS devices using Agrowtek's LX2 ModLink. Learn more here.
