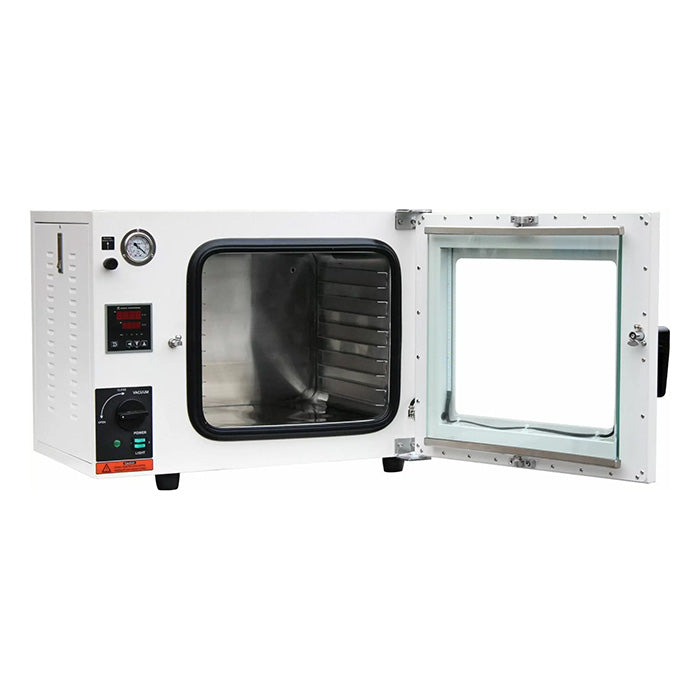

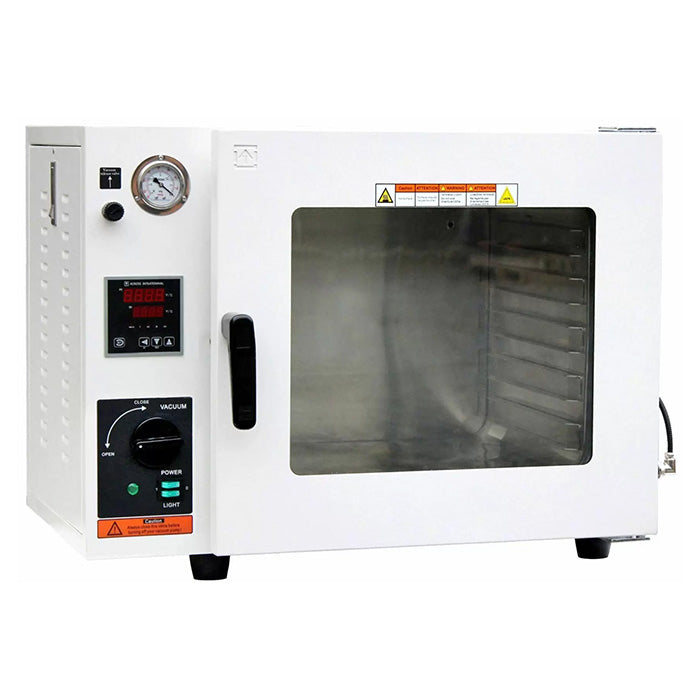

Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light

SKU: AT19E-110
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: Ships in 1-2 business days

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Voltage: 110 Volt
Price:
Sale price$1,790.00

Across International Product Documents

AT19e series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

What's Included

  • Ai 1.9 cu ft vacuum oven
  • x5 Aluminum pan shelf
  • KF25 quick clamp and centering ring
  • Quick disconnect fitting (pre-installed at vent port)
  • Led Light Cable
  • Users manual

Features & Benefits

  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
  • Manufactured in accordance with
    • ISO 9001:2000
    • ISO 12100-1:2003, ISO 12100-2:2003
    • EN1050:1996, EN294:1992, EN60204-1:2006
    • CE

Specifications

  • 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
  • 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Electrical requirements
Chamber
  • Size: 16.5 x 14.5 x 14"
  • Material: Stainless steel
  • Capacity: 1.9 cubic foot
Heater 3-sided heating (left 400W, right 400W, bottom 700W)
Temperature control
  • Controller: 3rd gen low proportional gain, microcomputer PID controlled
  • Range: ambient to 150°C
  • Display units: Fahrenheit or Celsius
  • Uniformity: +/- 5% of setpoint
  • Dwelling timer range: 1 to 9999 minutes
  • Warm-up time to 302°F: 90 minutes
Vacuum
  • Ultimate vacuum level: better than 500 microns/millitorrs
  • Mechanical gauge range: 0 to 30 inch mercury

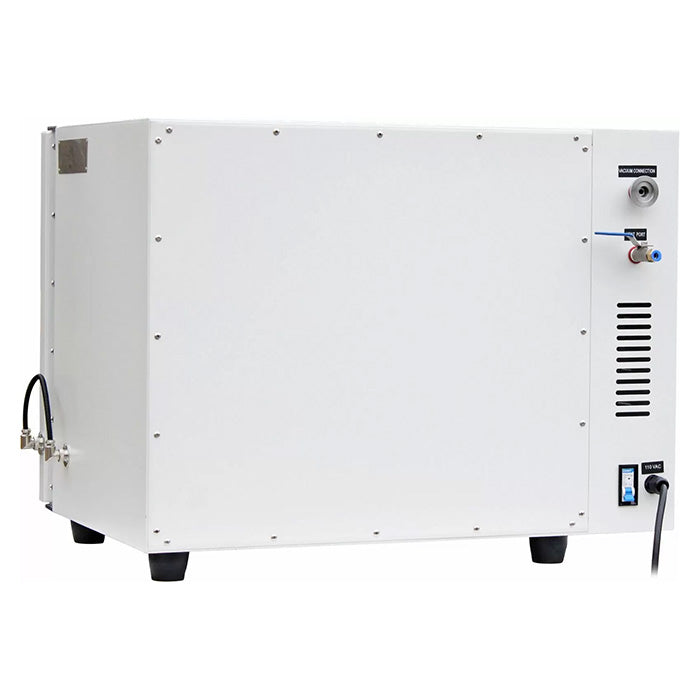

  • Vacuum port: KF25 flange x 1
  • Vent port: 1/4" ball valve
  • Vacuum pump: Sold separately
Weight Unit: 135 Lbs, shipping: 220 Lbs
Dimensions (WxDxH)
  • Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75"
  • Shipping: 32 x 28 x 29"
Shelves
  • Included with oven purchase: 5 aluminum slide-in shelves
  • Capacity: 10 shelves max.
  • Style: pan-shape
  • Size: 11.5 x 11.25"
  • Maximum area: 228 x 10 = 16 sq ft or 2280 inch2
  • Distance between shelves: one inch

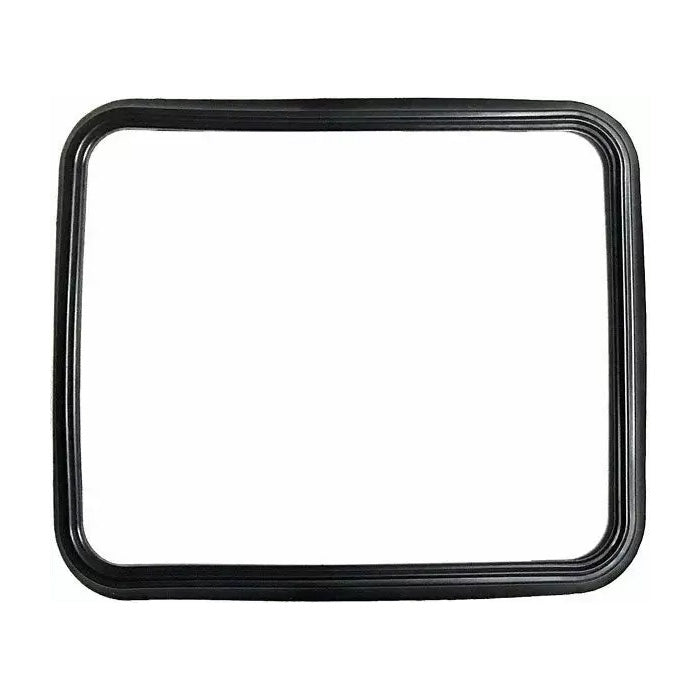

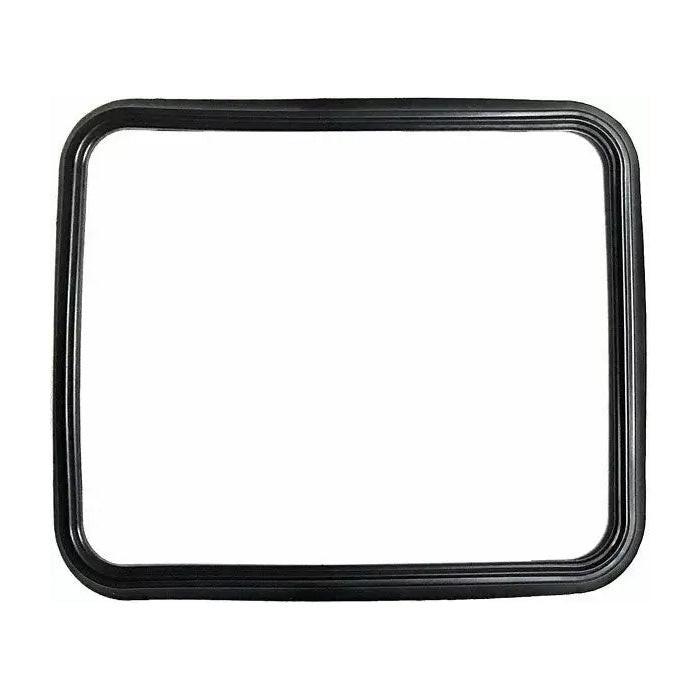

Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
  • Built-in circuit breaker
  • Overheat shutoff protection
In-door lights White LED
Warranty 1 year
Warranty CE
Brand Across International
SKU AT19E
Hazardous Material false
