Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt
Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt
Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt
Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt
Roll over image to zoom in Click on image to zoom
Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 VoltAcross International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 VoltAcross International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 VoltAcross International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt

Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light, 110 Volt

SKU: AT19E-110
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 2-3 business days

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI

Voltage: 110 Volt
110 Volt
220 Volt
Price:
$1,790.00

Across International Product Documents

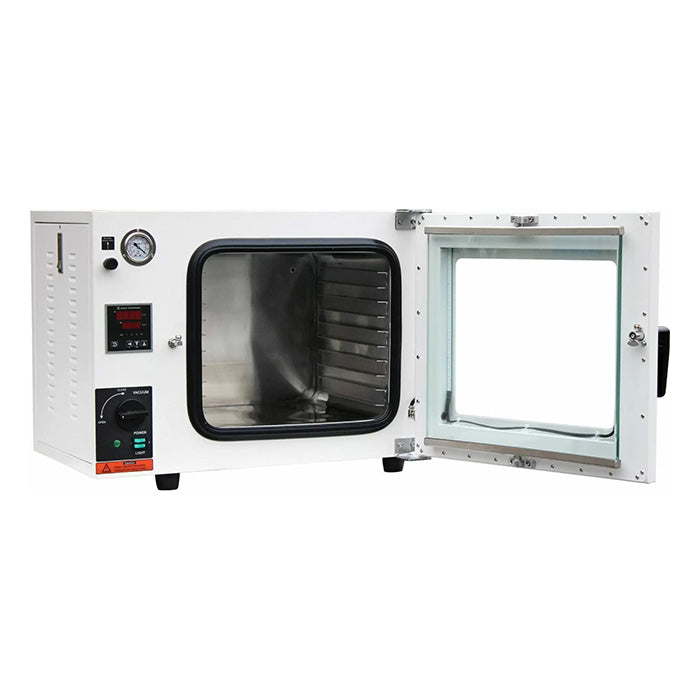

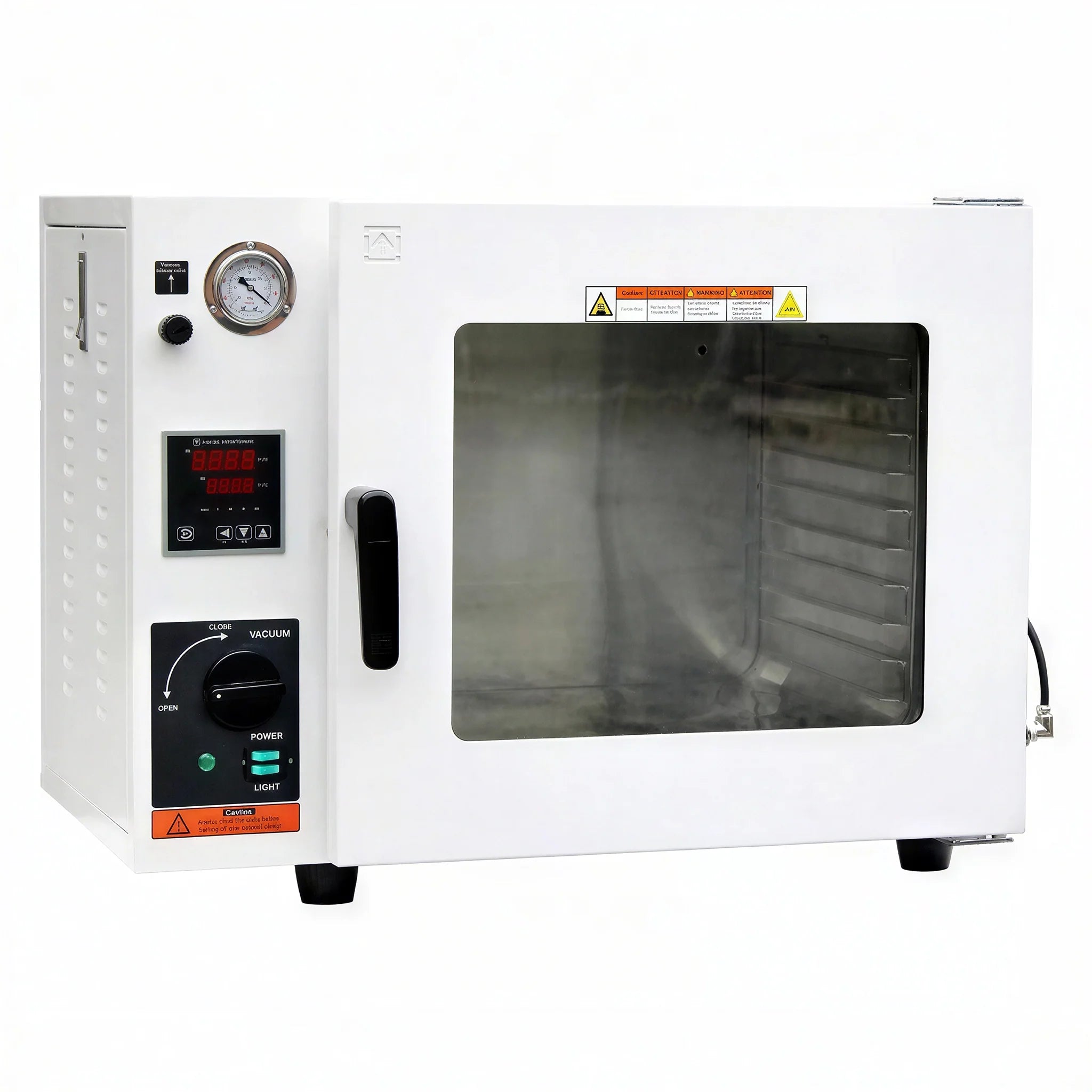

AT19e series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

What's Included

  • Ai 1.9 cu ft vacuum oven
  • x5 Aluminum pan shelf
  • KF25 quick clamp and centering ring
  • Quick disconnect fitting (pre-installed at vent port)
  • Led Light Cable
  • Users manual

Features & Benefits

  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
  • Manufactured in accordance with
    • ISO 9001:2000
    • ISO 12100-1:2003, ISO 12100-2:2003
    • EN1050:1996, EN294:1992, EN60204-1:2006
    • CE

Specifications

  • 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
  • 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Electrical requirements
Chamber
  • Size: 16.5 x 14.5 x 14"
  • Material: Stainless steel
  • Capacity: 1.9 cubic foot
Heater 3-sided heating (left 400W, right 400W, bottom 700W)
Temperature control
  • Controller: 3rd gen low proportional gain, microcomputer PID controlled
  • Range: ambient to 150°C
  • Display units: Fahrenheit or Celsius
  • Uniformity: +/- 5% of setpoint
  • Dwelling timer range: 1 to 9999 minutes
  • Warm-up time to 302°F: 90 minutes
Vacuum
  • Ultimate vacuum level: better than 500 microns/millitorrs
  • Mechanical gauge range: 0 to 30 inch mercury

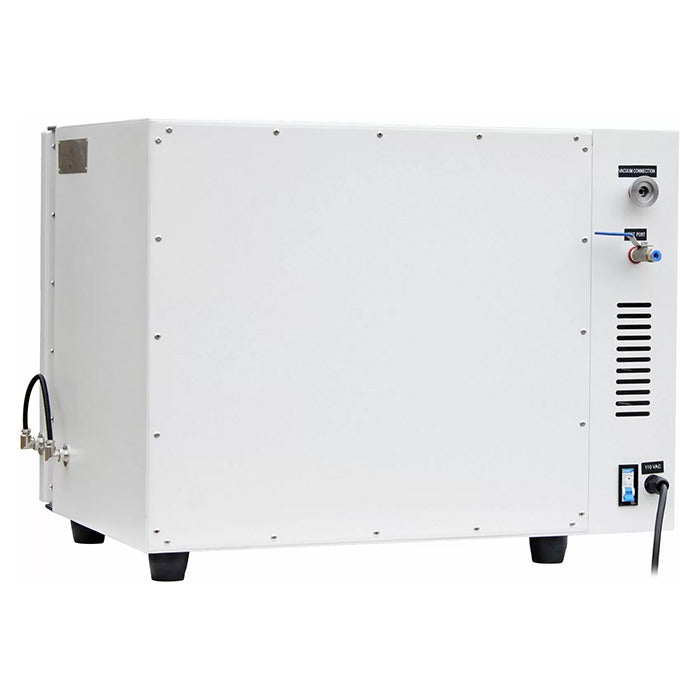

  • Vacuum port: KF25 flange x 1
  • Vent port: 1/4" ball valve
  • Vacuum pump: Sold separately
Weight Unit: 135 Lbs, shipping: 220 Lbs
Dimensions (WxDxH)
  • Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75"
  • Shipping: 32 x 28 x 29"
Shelves
  • Included with oven purchase: 5 aluminum slide-in shelves
  • Capacity: 10 shelves max.
  • Style: pan-shape
  • Size: 11.5 x 11.25"
  • Maximum area: 228 x 10 = 16 sq ft or 2280 inch2
  • Distance between shelves: one inch

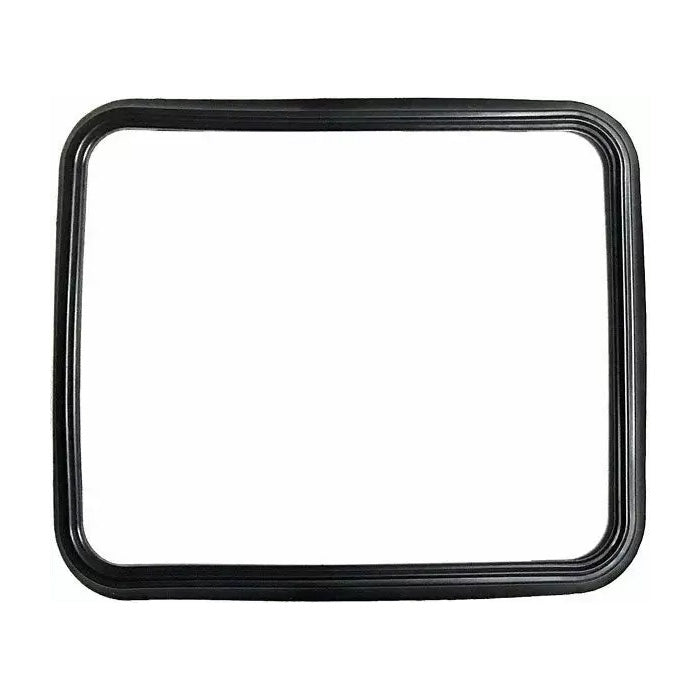

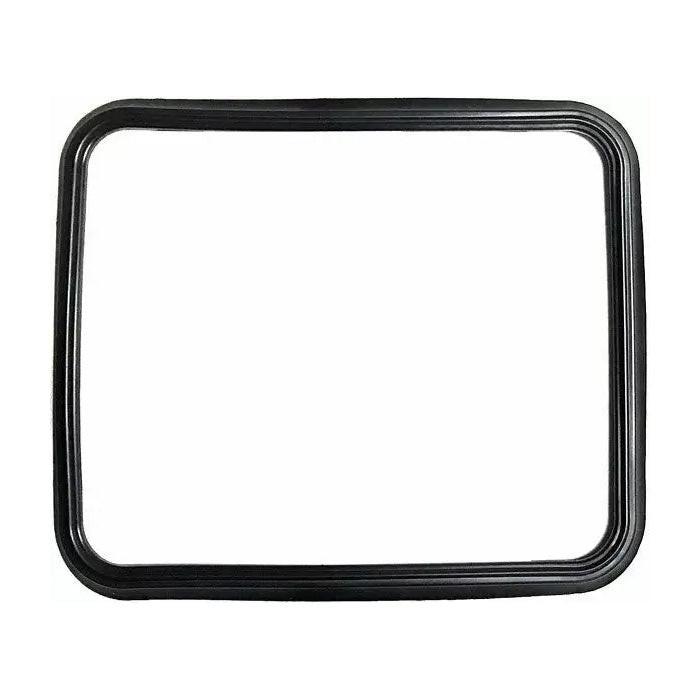

Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
  • Built-in circuit breaker
  • Overheat shutoff protection
In-door lights White LED
Warranty 1 year
Warranty CE
Brand Across International
SKU AT19E-110
Weight (lb.) 165.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time 2-3
Hazardous Material false
Shipping Restrictions AK, HI
Vacuum Oven Temperature Range Ambient to 150°C (302°F)
Vacuum Oven Capacity 1.9 Cubic Feet
Amps 13.6 Amps
Exact Watts 1500 Watts
Frequency 60 Hz
ETL Listed No
UL Listed No

What processes does the Across International ECO 150°C 1.9 CF Vacuum Oven support?

The Across International ECO 150°C 1.9 CF Vacuum Oven supports drying, curing and converting oil extracts, plus rapid degassing and purging. Consistent vacuum levels can greatly reduce drying time.

How much chamber space does the Across International ECO 150°C 1.9 CF Vacuum Oven provide for drying and curing?

The Across International ECO 150°C 1.9 CF Vacuum Oven provides a 1.9 cubic foot stainless steel chamber. The oven includes five aluminum slide-in shelves and supports up to 10 shelves.

How does the Across International ECO 150°C 1.9 CF Vacuum Oven provide controlled drying temperatures?

The Across International ECO 150°C 1.9 CF Vacuum Oven operates from ambient temperature to 150°C (302°F). A third-generation microcomputer PID controller provides temperature control, with Fahrenheit or Celsius display options.

What vacuum equipment and connections are needed for the Across International ECO 150°C 1.9 CF Vacuum Oven?

The Across International ECO 150°C 1.9 CF Vacuum Oven requires a vacuum pump, sold separately. The oven includes a KF25 quick clamp and centering ring, plus a pre-installed quick disconnect fitting at the vent port.

What features support safe viewing and maintenance with the Across International ECO 150°C 1.9 CF Vacuum Oven?

The Across International ECO 150°C 1.9 CF Vacuum Oven has a dual-layer 1/2-inch tempered safety glass window, white LED interior lighting and an easy-to-clean stainless steel interior. Built-in circuit breaker protection, overheat shutoff protection and an alarm support safer operation.
