Our new EasyVac 7 CFM vacuum pump is now 110V/220V 50/60Hz switchable!

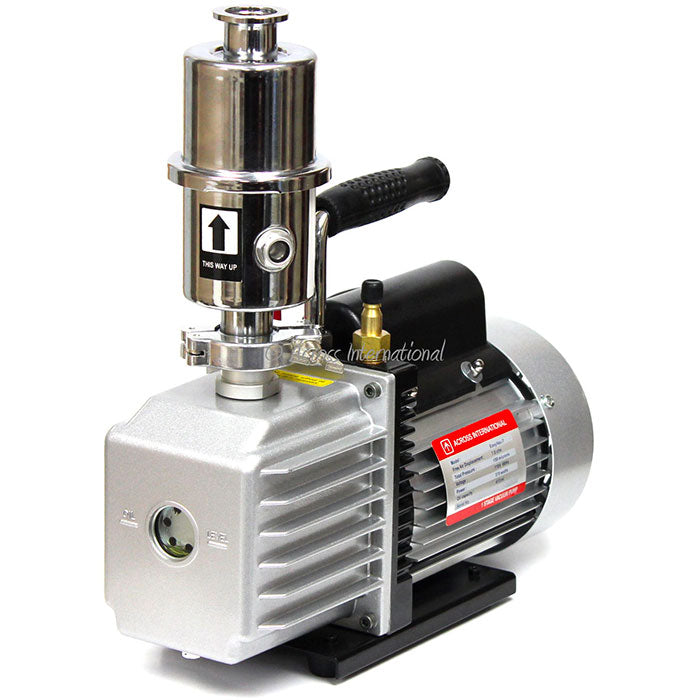

Ai EasyVac 7 single-stage sliding-vane rotary compact vacuum pump with 3/8" hose barb vacuum connector. Comes with a 3-foot food grade silicone hose and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.
Free three feet 3/8" white premium food grade silicone vacuum tubing (a $19.99 value) included.
Product Specs:
|
Electrical requirements
|
110V/220V 50/60Hz or 220V 50/60Hz, 1-Phase 1/2 HP 370 watts
|
|
Pumping rate
|
7 cfm (110V 60Hz), 6 cfm (220V 50/60Hz)
|
|
Vacuum level
|
150 micron/millitorr
|
| Vacuum connection |
3/8" hose barb
|
|
Exhaust filter connection
|
KF25/NW25 flange
|
|
Oil volume
|
415 ml / 0.44 quart
|
| Motor rate | 1720 rpm |
| Working temperature | -5 to 60°C |
|
Pump dimensions (LxWxH)
|
13 x 5 x 10"
|
|
Shipping dimensions (pump) (LxWxH)
|
18 x 7 x 11.5"
|
|
Pump weight
|
22 Lb
|
|
Shiping weight
|
23 Lb |
| Recommended oil | Ultragrade 19 |
|
CE compliance
|
Yes |
| Warranty | One year |
Package includes
|
Part description
|
Quantity
|
|
Ai EasyVac-7 vacuum pump with exhaust oil mist filter
|
1 set
|
|
3/8" white premium food grade silicone vacuum hose (3 ft)
|
1 pc
|
| Ai premium vacuum pump oil | 1 pc |
| User's manual |
1 pc
|
| Brand | Across International |
|---|---|
| SKU | AI-EV7 |
| Hazardous Material | false |
