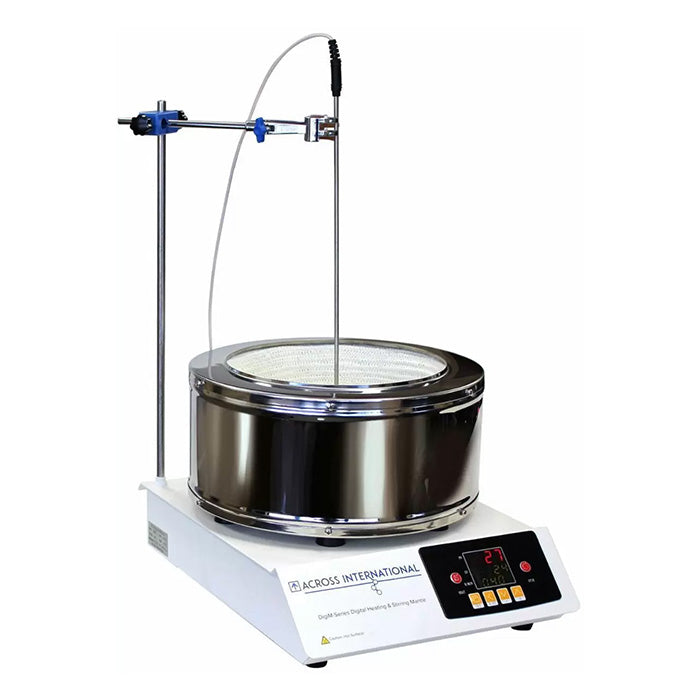

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Product Specifications
|
Model
|
DigiM5
|
|
Electrical requirements
|
110V 60Hz 1-Phase, 1100 watts, 12A
or 220V 50/60Hz 1-Phase, 1100 watts, 6A |
|
Heating
|
Ambient to 300°C
|
| Stirring |
Min. speed: 110 rpm, max. speed: 2000 rpm
Motor power: 40 watts Motor type: brushless DC motor |
| Controller | PID control with digital temperature and rotation speed display |
|
External thermocouple
|
Type: PT100
Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm |
| Flask holder |
Maximum flask capacity: 5 liters
Top opening diameter: 9 inches Depth: 5.5 inches |
| Dimensions (WxDxH) |
Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 16 inches
|
| Weight | Unit: 22 lbs, shipping: 32 lbs |
| Safety | Thermocouple failure protection |
| Certification | UL/CSA optional |
| Warranty | One year |
What's Included
|
Part description
|
Quantity
|
|
Ai DigiM 5L digital heating & stirring mantle
|
1 set
|
| External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
|
Boss head
|
1 pc |
|
Stainless steel support rod (15 inches)
|
1 pc |
|
PTFE coated stir bar
|
2 pcs |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
|
User's manual
|
1 pc
|
| Brand | Across International |
|---|---|
| SKU | DIGIM5-220V |
| Weight (lb.) | 25.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Flask Holder Max Capacity | 5 Liter |
