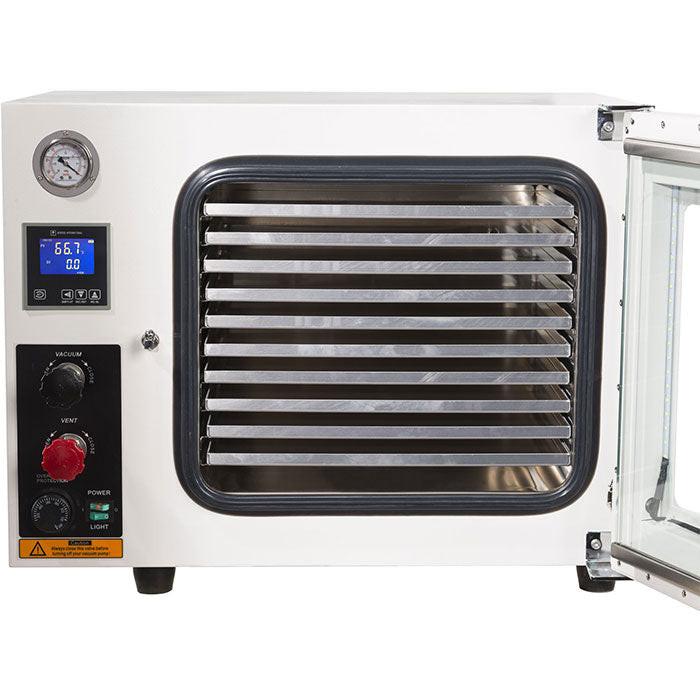

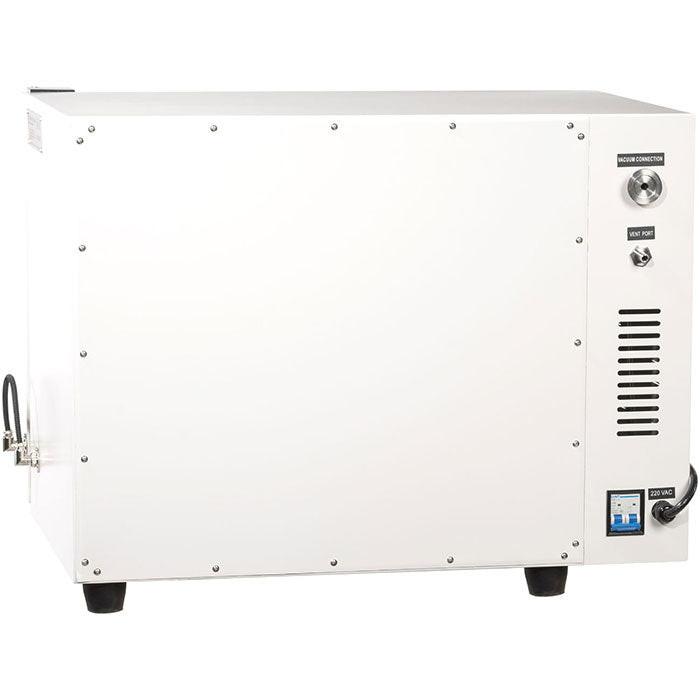

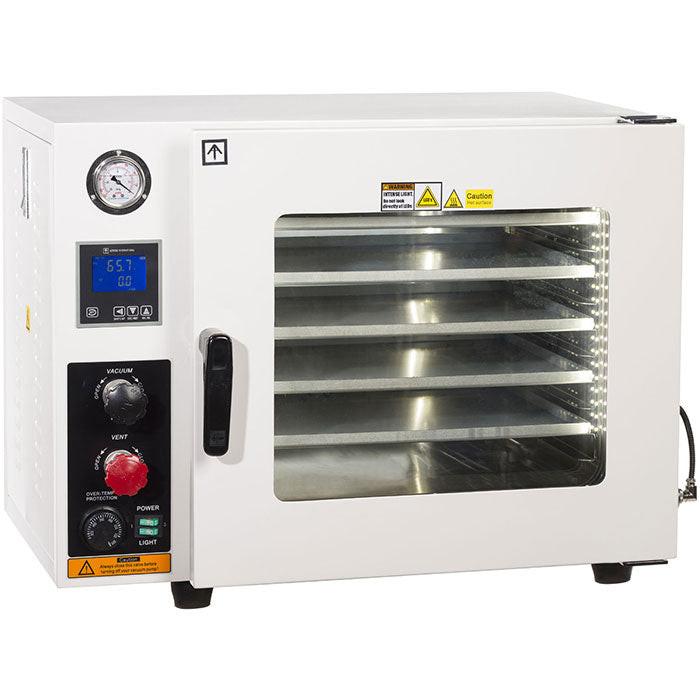

Across International AccuTemp 1.9 CF Vacuum Oven 5 Sided Heat & SST Tubing - UL/CSA Certified

SKU: AT19-UL-220V
1 review
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Voltage: 220 Volt
Price:
Sale price$2,290.00

Across International Product Documents

Across International AccuTemp Vacuum Oven Specs

FIVE ALUMINUM SHELVES INCLUDED WITH OVEN PURCHASE. SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new Ai UL/CSA certified AccuTemp 1.9 cubic foot vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, all stainless steel tubing/compression fittings, stainless steel vacuum/vent valve, oil-filled vacuum gauge, 5 sided pad heating technology and two year warranty. The thermal-conductive aluminum shelves provide excellent temperature uniformity inside the chamber, while our 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.

AccuTemp-19 series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

Attention: Before initial use, run oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

Features

  • All stainless steel internal tubing & compression fittings provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • New 5 sided pad heating technology and aluminum shelves provide excellent temperature uniformity and faster heating rates (25% faster in our lab test).
  • Adjustable gas back fill capability with needle valve and vent port.
  • 3rd gen LCD low proportional gain temperature controllers keep your oven temperature within +/- 1¬∞F accuracy, in either ¬∞F or ¬∞C
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Product Specs:

Electrical requirements
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Chamber
Size: 16.5 x 14.5 x 14"
Material: Stainless steel
Capacity: 1.9 cubic foot
Heater 5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W)
Temperature control Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 480°F
Display units: Fahrenheit or Celsius
Accuracy: +/- 1°F
Uniformity: +/- 6% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 45 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
(
may vary based on your altitude, )
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: 3/8" hose barb
Vacuum pump: Sold separately
Weight Unit: 140 Lbs, shipping: 240 Lbs
Dimensions (WxDxH) Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75"
Shipping: 32 x 28 x 29"
Shelves
Included with oven purchase: 5 aluminum slide-in shelves
Size: 16 x 14.25 inches
Total area: 228 x 10 = 16 sq ft or 2,280 inch 2
Distance between shelves: one inch
Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial

In-door lights White LED
Warranty 2 years
Compliance UL/CSA (E482564), CE

Package includes

Part description

Quantity

Ai UL/CSA certified 1.9 cu ft vacuum oven
1 pc
Aluminum shelf
5 pcs
KF25 quick clamp and centering ring 1 set
User's manual 1 pc
Brand Across International
SKU AI-AT19-UL
