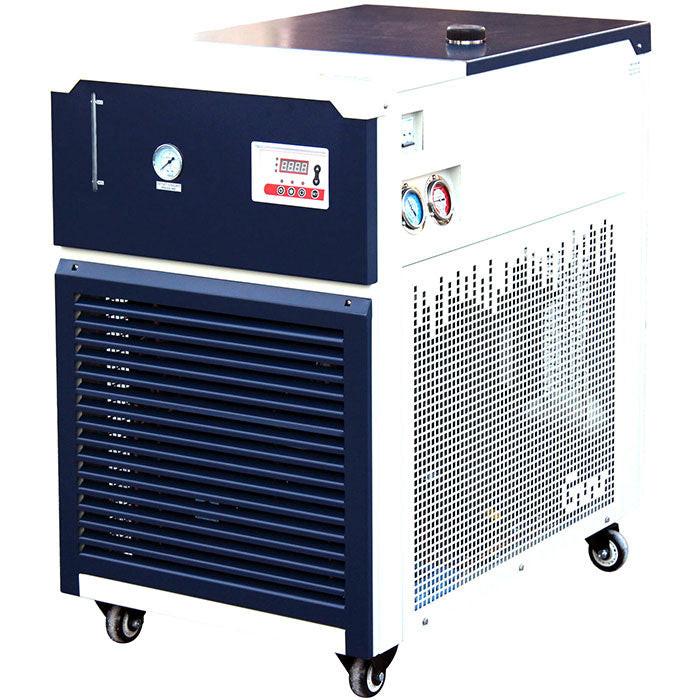

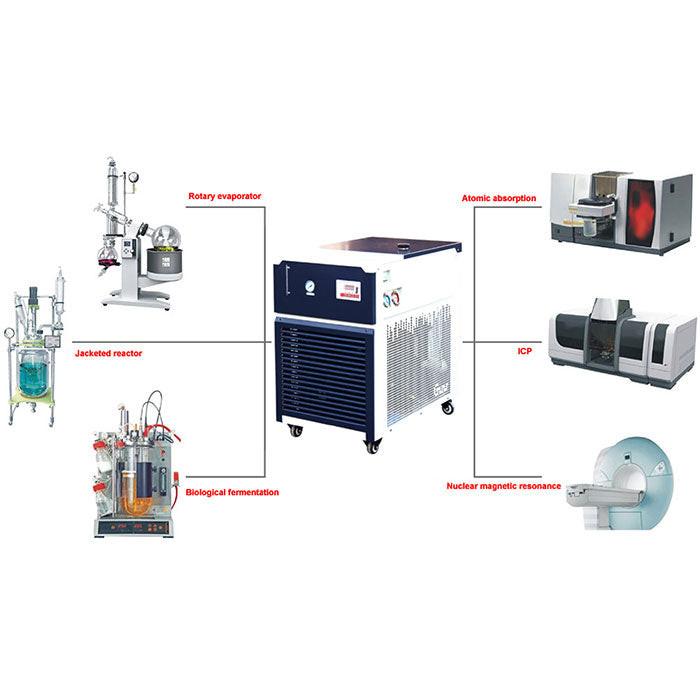

AI Recirculating Chiller SpecificationsAi C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30-40 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
- UL 61010-1 and CSA C22.2 certified (optional)
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Eco-friendly R404A refrigerant
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Insulated tubing included
- Recommended for 50L rotary evaporators
What's Included
- Ai -30°C/-22°F recirculating chiller
- 3/8" insulated chilling fluid tubing, 11 ft
- (3x) 3/8" stainless steel chilling fluid connector with on/off valve
- PTFE sealing tape
- User's manual
Specs
| Model | C30-40-50L |
| Temperature range | Ambient to -30°C (No load) |
|
Electrical requirements
|
220V 60Hz 1-PH 18A, 3,960 watts (Not compatible with 50Hz power)
|
|
Cooling capacity
(Assuming working environment 25°C/77°F) |
@ 32°F/0°C: 5,000W
@ 14°F/-10°C: 3,000W @-4°F/-20°C: 1,800W @-22°F/-30°C: 1,000W |
| Compressor |
Make: KK
Power: 208-230V 60Hz 1-PH Number of compressor: one Refrigerant: R404A (3.2 kgs) |
| Recirculating pump |
Model: 25PLBR30-10
Type: Centrifugal Output: 280 watts Pumping speed: 30 L/min or 8 gallon/min Maximum pressure: 1 bar |

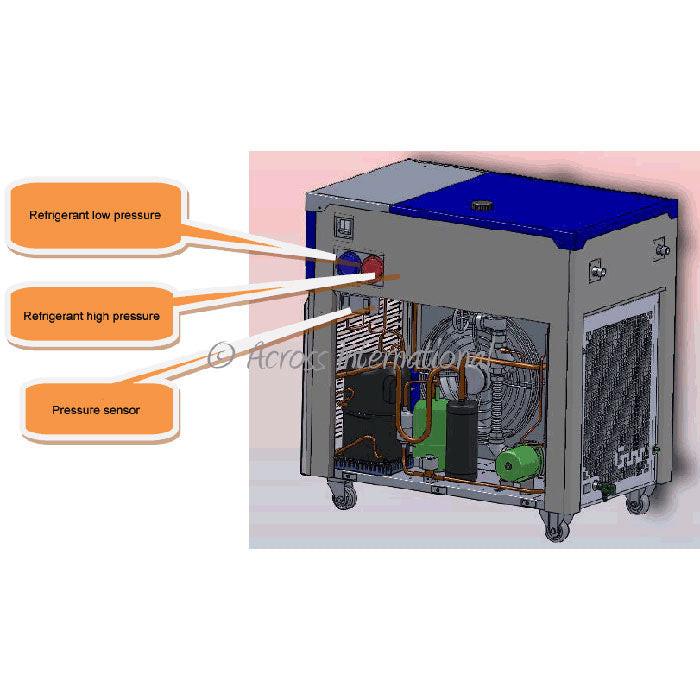

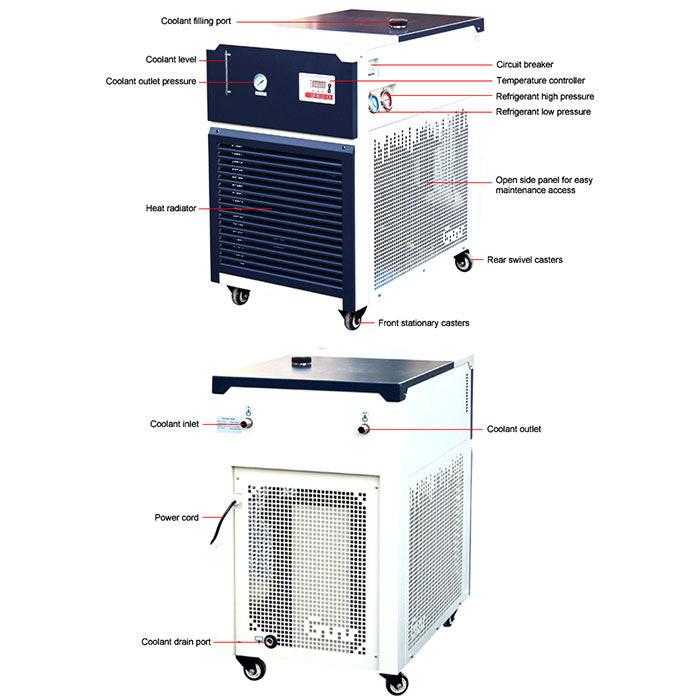

| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge |
|
Reservoir
|
Material: Type 304 stainless steel,
polished
Chilling fluid connection: 3/4" NPT Drain port: 1/2" NPT Overflow port: 3/8" hose barb Capacity: 40 liters or 10.6 gallons Dimensions: 17.5 x 17.5 x 9.5" (WxDxH) |
| Radiator |
Fan motor
Make: Boyoung Model: YWF4E-400 Power: 220V 60Hz 1.3A 300W Rotation speed: 1550 rpm Flow rate: 4240 m3/hour Cleaning Clean radiator fins with a fin comb every three months |

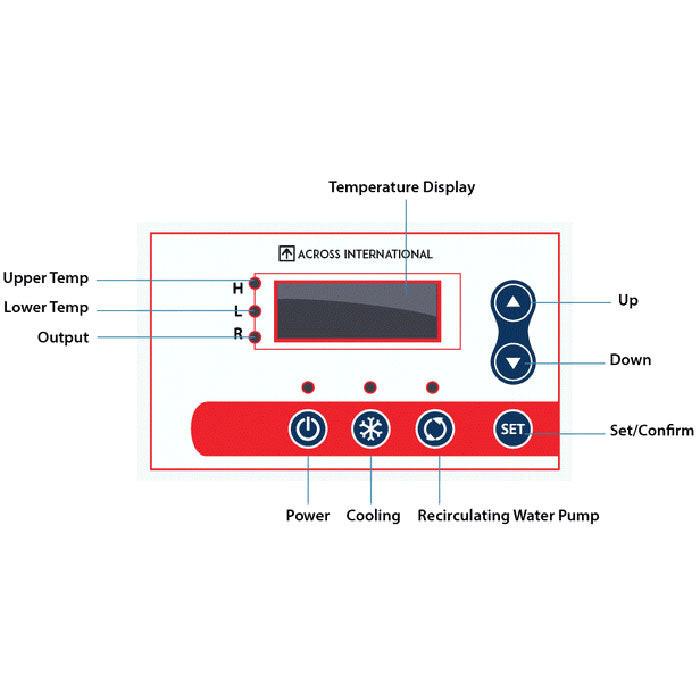

| Temperature controller |
Type: Digital microprocessor PID controlled
|
| Temperature sensor type |
Pt100 |
| Housing |
Powder coated type 42 stainless steel
|
|
Recommended coolant
|
For 50°F/10°C or higher:
distilled water Between 50°F/10°C and -22°F/-30°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters |
Four
|
|
Unit/shipping dimensions
|
40 x 25 x 41" / 46 x 30 x 51" (WxDxH)
|
| Unit/shipping weight |
365 Lbs / 480 Lbs
|

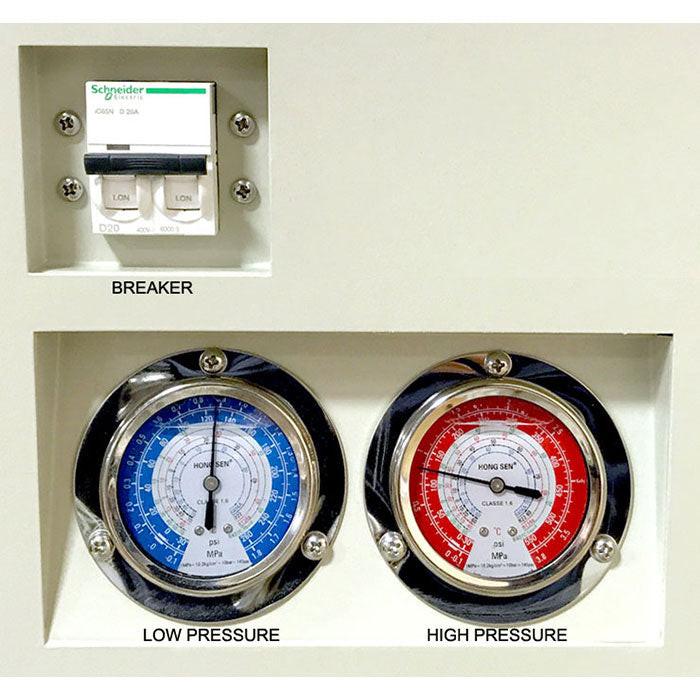

| Safety |
Compressor over-temp protection
Compressor delay start protection Short circuit and ground protection Over-current protection Over-voltage protection |
| Recommended for rotary evaporators |
Ai 50L SolventVap rotary evaporators
|
| Warranty | One year |
| Compliance |
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3 |
| Brand | Across International |
|---|---|
| SKU | AI-C30-40-50L |
| Hazardous Material | false |
