Introducing the new Ai separatory funnel kits with all PTFE valves. A separatory funnel, also known as separation funnel, separating funnel, or colloquially sep funnel, is a piece of laboratory glassware used in liquid-liquid extractions to separate (partition) the components of a mixture into two immiscible solvent phases of different densities. Typically, one of the phases will be aqueous, and the other a lipophilic organic solvent such as ether, MTBE, dichloromethane, chloroform, or ethyl acetate. All of these solvents form a clear delineation between the two liquids. The more dense liquid, typically the aqueous phase unless the organic phase is halogenated, sinks and can be drained out through a valve away from the less dense liquid, which remains in the separatory funnel.
Product Specs
-
Capacity: 2000 mL
-
Height: 18 inches
-
Diameter: 6 inches
-
Top port: 34/45 joint
-
Bottom port: GL16
-
Material: high borosilicate glass 3.3
-
Outlet: 3/8" hose barb, GL16
-
Outlet open/close valve material: PTFE
-
Top stopper: 34/45 joint PTFE stopper
-
Setup dimensions (WxDxH): 6 x 8 x 23 inches
What's Included:
-

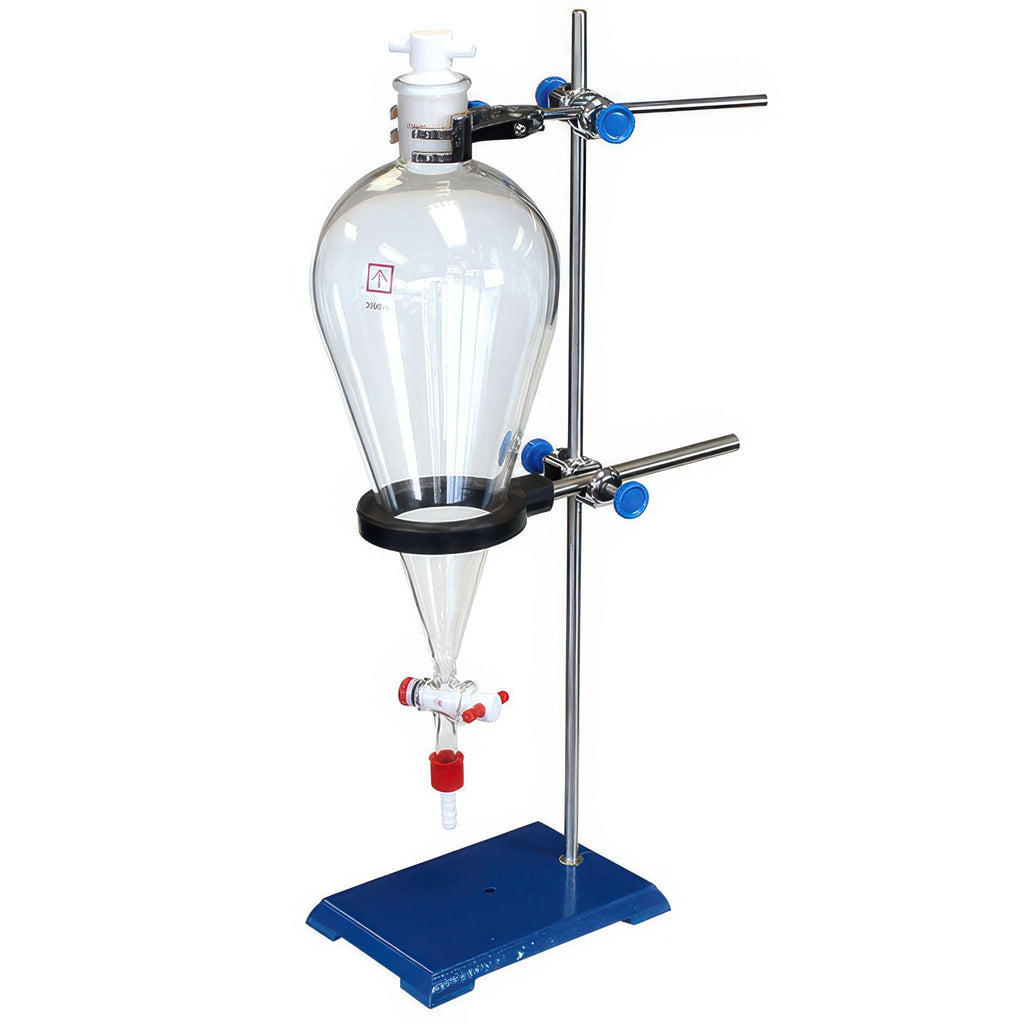

Ai 2L glass separatory funnel with PTFE open/close valve
-
GL16 connector
-
Premium food grade silicone vacuum hose, 6 ft
-
Lab stand (8 x 5.25" base with 22" SST pole)
-
(2x) Boss head clamp
-
Glass funnel
-
Rubber-wrapped funnel support
-
4 prong stainless steel clamp opens to 3.5 inches
